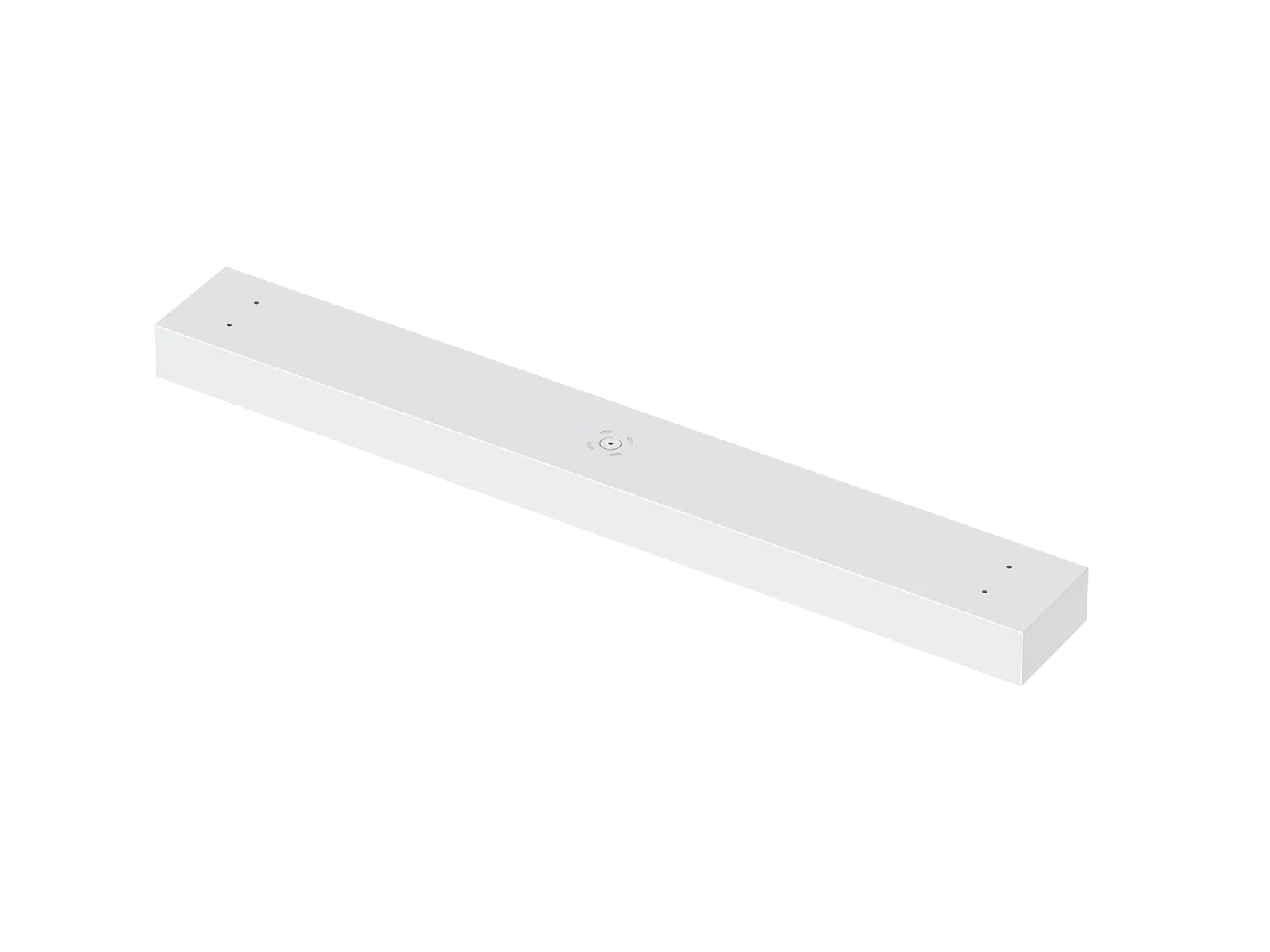

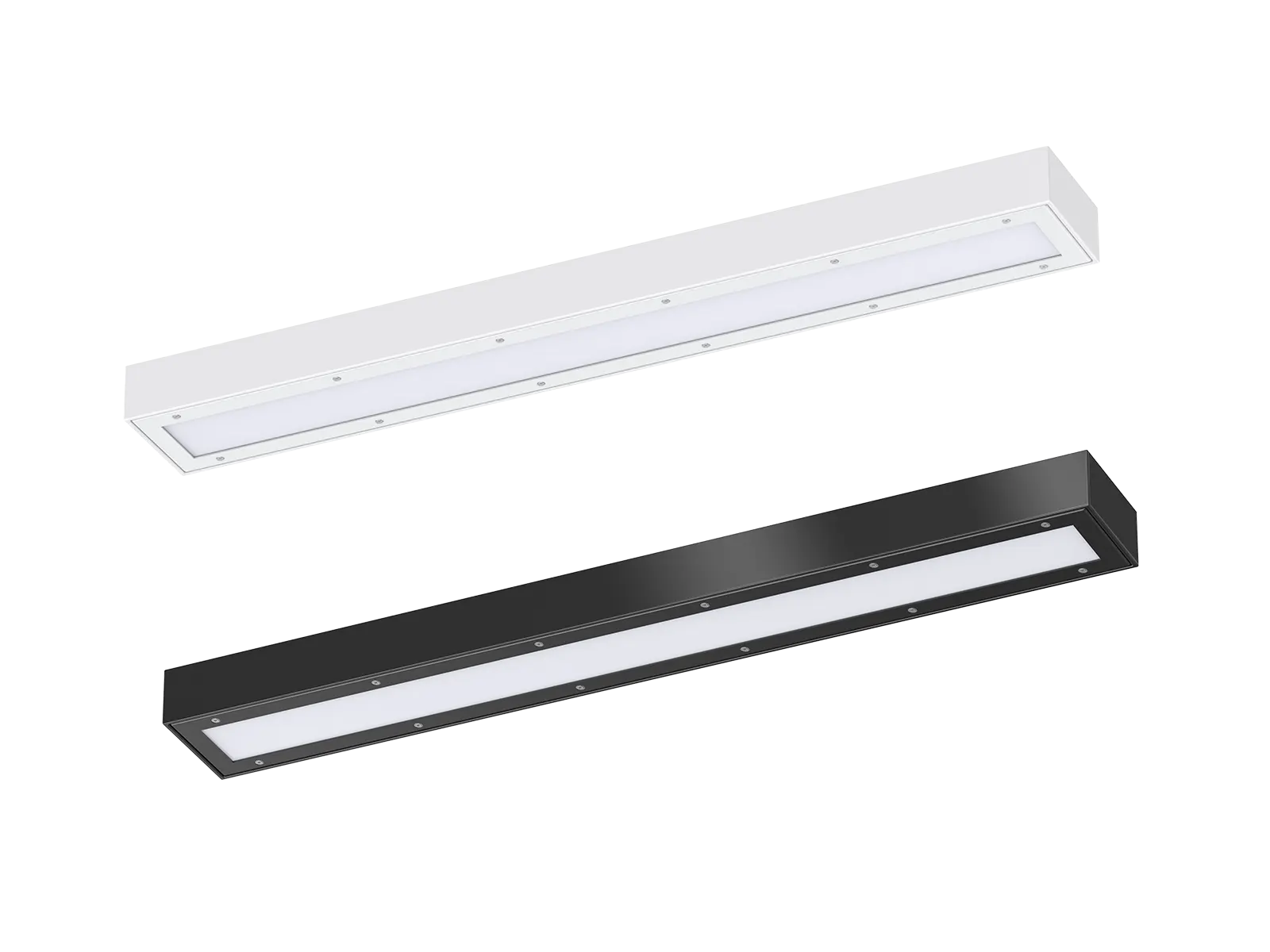

The DB216 series is a high-end batten with IP65 protection level and IK11++ (80JOULES) impact resistance level which suitable for harsh conditions . The 5mm thickness cover ensures the quality of light output and provide better impact resistance. The integrated modular design of the light output module makes installation, maintenance and replacement more convenient.
Applications: It can be widely applied in pedestrian bridges, underground passages, sports training grounds, prisons, courts, and semi-outdoor places for industrial applications. Suitable for places that require earthquake resistance, waterproofing, and impact resistance.

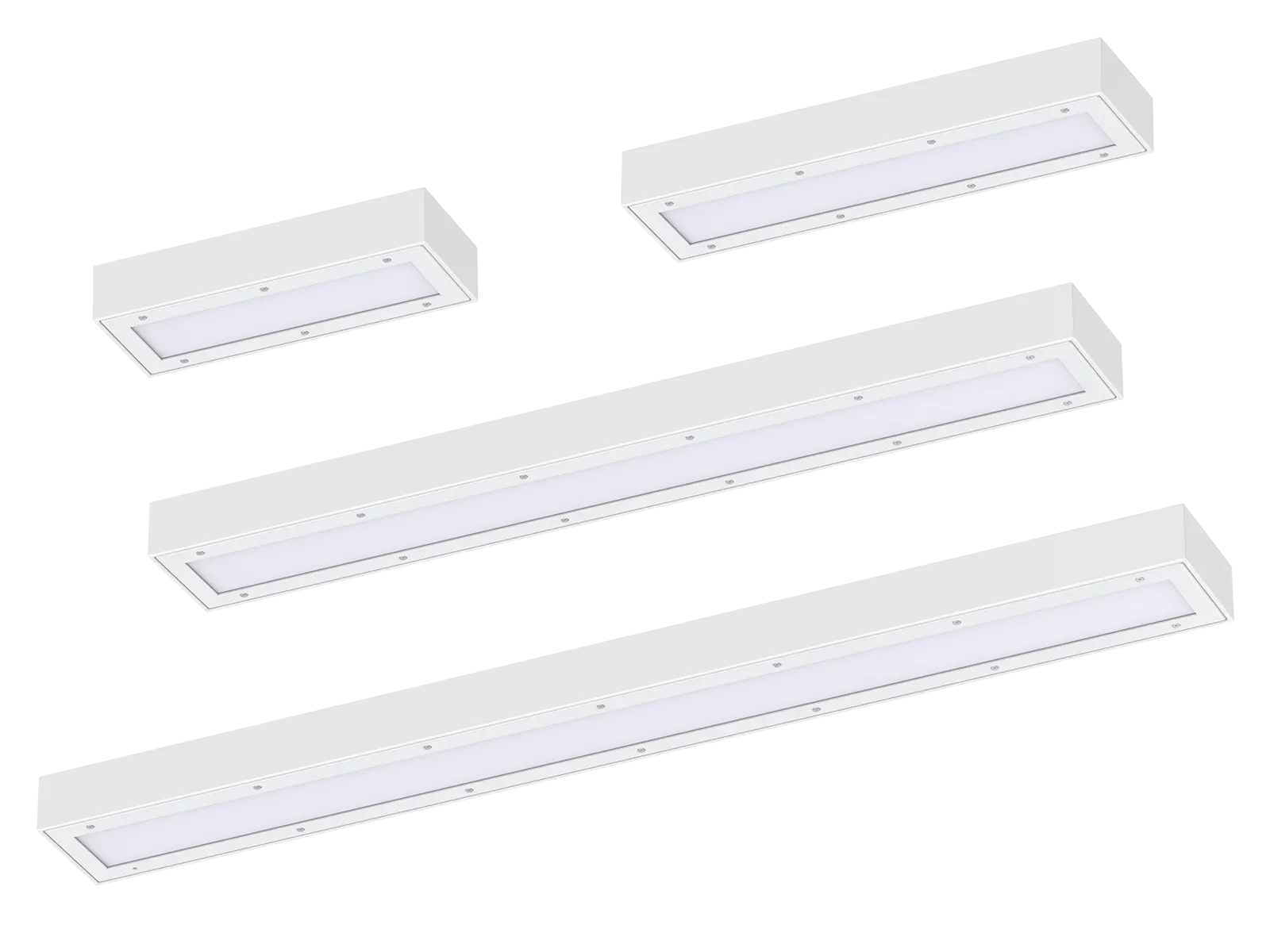

| Code | DB216-450-15W-A4 | DB216-650-20W-A4 | DB216-1250-45W-A4 | DB216-1550-67W-A4 | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L450*W160*H79 | L650*W160*H79 | L1250*W160*H79 | L1550*W160*H79 | ||
| Watt(W) | 15W@max (optional:13W/11W/9W) | 20W@max (optional:17W/15W/12W) | 45W@max (optional:39W/33W/27W) | 67W@max (optional:60W/58W/50W) | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| Light Source | SMD | |||||
| SDCM | SDCM<6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 15W: 1550-1750 13W: 1350-1550 11W: 1150-1350 9W: 950-1150 | 20W: 2100-2400 17W: 1800-2100 15W: 1600-1850 12W: 1250-1450 | 45W: 4900-5400 39W: 4500-5000 33W: 3800-4200 27W: 3200-3600 | 67W: 7800-8400 60W: 7100-7700 58W: 6900-7500 50W: 6000-6500 |
| DALI | 15W: 1550-1750 | 20W: 2100-2400 | 45W: 5200-5700 | 67W: 7800-8400 | ||
| Night light | 280-350(3.5W) | |||||
| CRI | CRI80 | |||||
| Beam Angle(°) | 110° | |||||
| LED Driver | Built-in, Flicker Free | |||||
| Dimming Option | DALI2+pushDIM | |||||
| Sensor | NO | |||||
| Emergency Kits | YES | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP65 | |||||
| Impact Resistance(IK Rating) | IK11++ (80JOULES) | |||||
| Product Finishing | White RAL9016 | |||||
| Optics Material | Difftuser/PC | |||||
| Housing Material | Metal | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~40°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Ceiling Surface Mount | |||||
