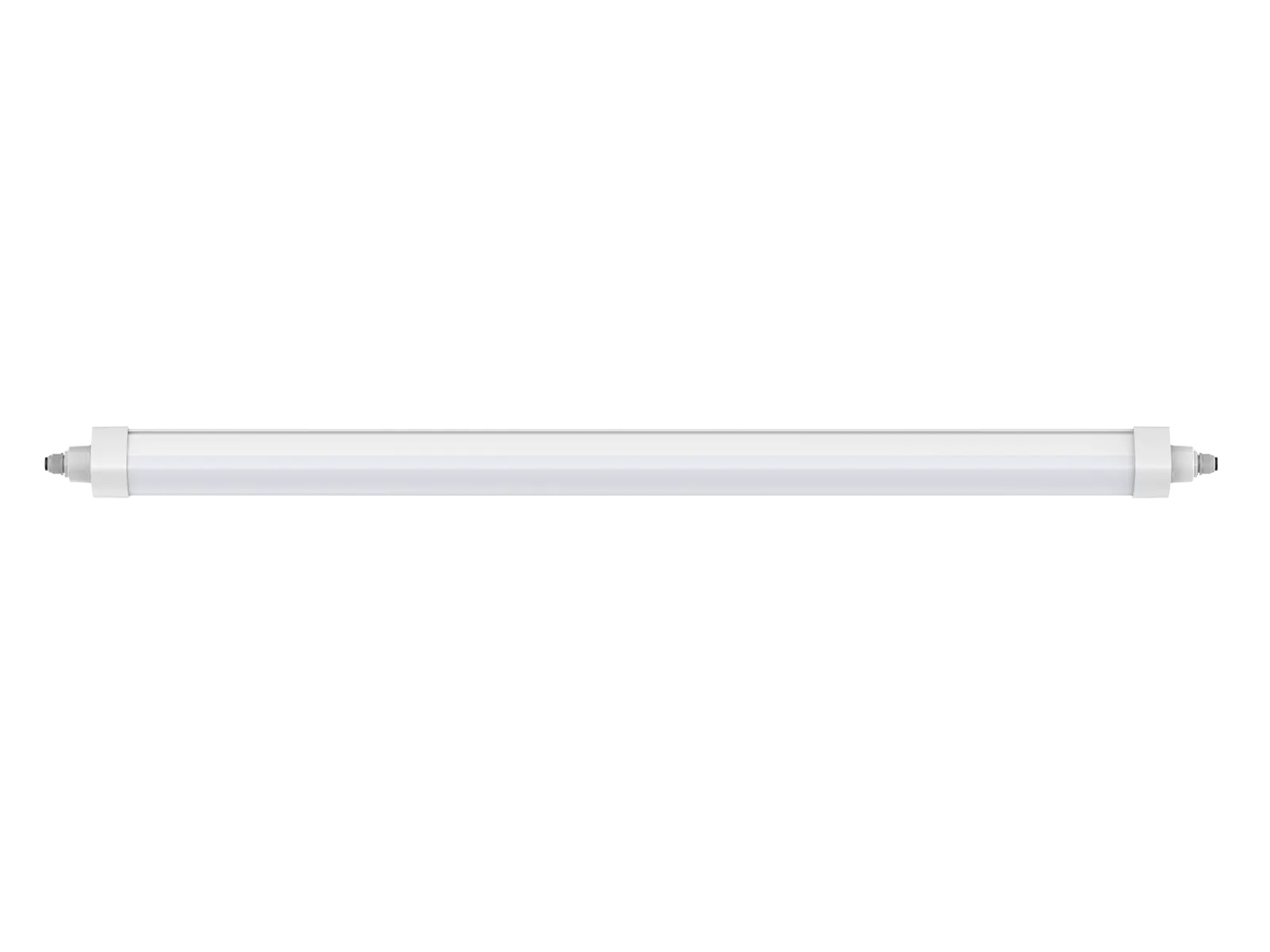

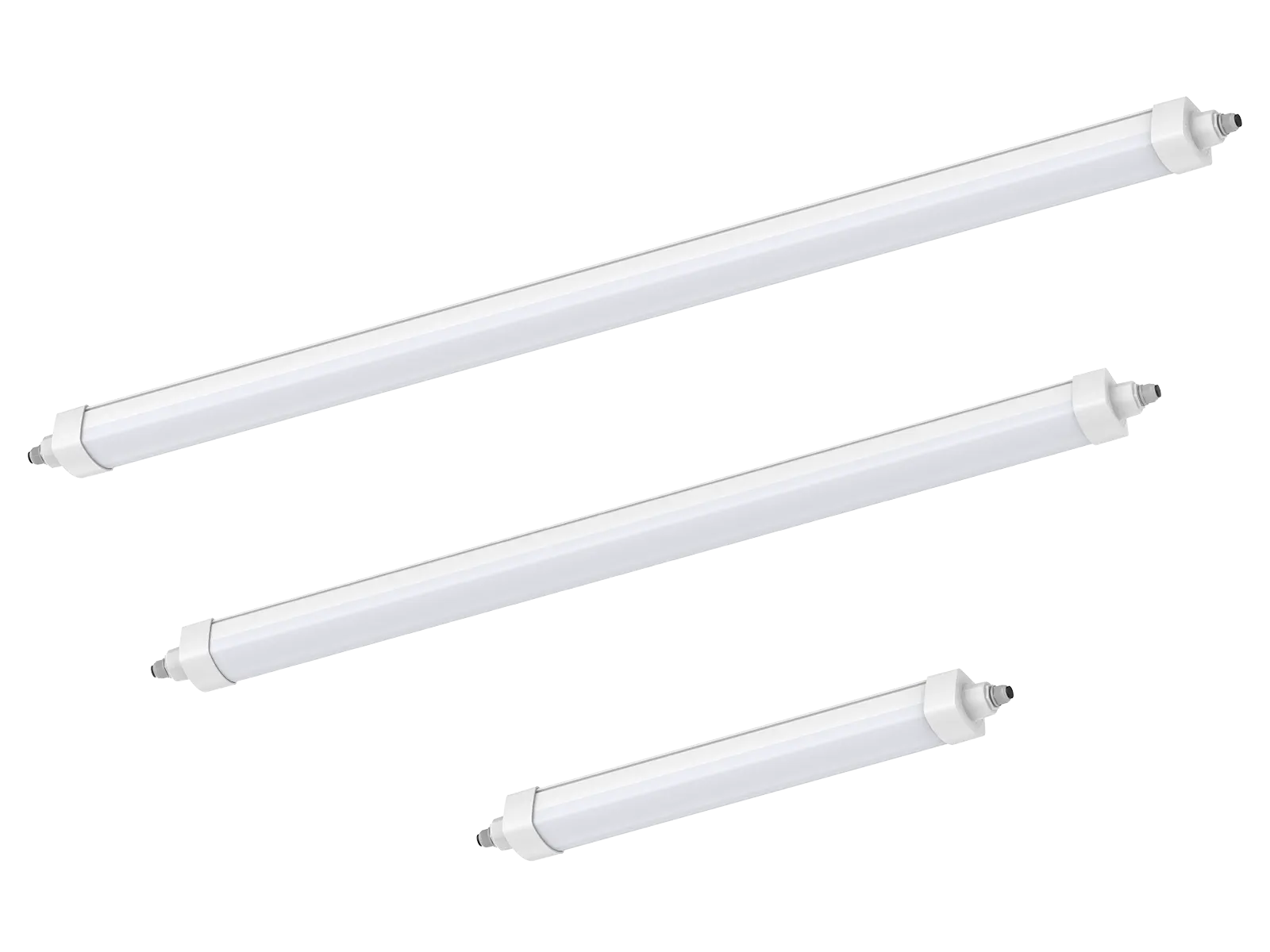

It's a high-quality, high-efficiency batten light with a simple appearance, built-in power supply, and an integrated design featuring IP66 and IK08 ratings. The fixture offers multiple functions, including adjustable color temperature, power adjustment, sensor, and emergency capabilities to meet various application needs of different customers.The DIP-switch for color temperature and power adjustment, as well as the microwave sensor switch, are conveniently located on the end cap for easy user operation. The light board module can be easily taken out for replacement and maintenance. The fixture is versatile for ceiling mounting, pendant, wall mounting and spicing, it’s an ideal replacement for traditional fluorescent.
Applications: It can be widely used in parking lots, subway passages, bus stations, construction building corridors, warehouses etc.
(140lm/W)
| Code | DB214-600-22W | DB214-1200-34W | DB214-1500-46W | DB214-1500-55W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L600*W79*H71mm | L1200*W79*H71mm | L1500*W79*H71mm | L1500*W79*H71mm | ||
| Watt(W) | 22W Max. (20W/16W/13W optional) | 34W Max. (30W/25W/20W optional) | 46W Max. (40W/34W/26W optional) | 55W Max. (46W/38W/32W optional) | ||
| Rated Input Voltage | AC 220-240V | |||||
| Input Voltage | AC198-264V | |||||
| Light Source | SMD | |||||
| SDCM | SDCM<4(Single CCT) | |||||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K || 3-CCT: 3000K+4000K+5700K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 22W: 2750-2900 20W: 2460-2600 16W: 1940-2150 13W: 1710-1850 | 34W: 4650-4900 30W: 4040-4380 25W: 3330-3600 20W: 2850-3000 | 46W: 6200-6550 40W: 5350-5800 34W: 4470-4800 26W: 3750-3950 | 55W: 7450-7900 46W: 6360-6750 38W: 5250-5600 32W: 4600-4850 |
| DALI | 22W: 2750-2900 20W: 2460-2600 16W: 1940-2150 13W: 1710-1850 | 34W: 4650-4900 30W: 4040-4380 25W: 3330-3600 20W: 2850-3000 | 46W: 6200-6550 40W: 5350-5800 34W: 4470-4800 26W: 3750-3950 | 55W: 7450-7900 46W: 6360-6750 38W: 5250-5600 32W: 4600-4850 | ||
| 3-CCT | Non-DIM | 22W: 2750-2900 20W: 2460-2600 16W: 1940-2150 13W: 1710-1850 | 34W: 4650-4900 30W: 4040-4380 25W: 3330-3600 20W: 2850-3000 | 46W: 6200-6550 40W: 5350-5800 34W: 4470-4800 26W: 3750-3950 | 55W: 7450-7900 46W: 6360-6750 38W: 5250-5600 32W: 4600-4850 | |
| DALI | 22W: 2750-2900 20W: 2460-2600 16W: 1940-2150 13W: 1710-1850 | 34W: 4650-4900 30W: 4040-4380 25W: 3330-3600 20W: 2850-3000 | 46W: 6200-6550 40W: 5350-5800 34W: 4470-4800 26W: 3750-3950 | 55W: 7450-7900 46W: 6360-6750 38W: 5250-5600 32W: 4600-4850 | ||
| CRI | 80 | |||||
| Beam Angle(°) | 120° | |||||
| LED Driver | Driver built-in, Flicker free | |||||
| Dimming Option | DALI | |||||
| Sensor | Microwave sensor | |||||
| Emergency Kits | - | YES | ||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP66 | |||||
| Impact Resistance(IK Rating) | IK08 | |||||
| Product Finishing | White RAL9016 | |||||
| Optics Material | PC | |||||
| Housing Material | PC | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp(°C) | -20-45°C | |||||
| Storage Temp(°C) | -20-65°C | |||||
| Installation | Surface mount / Pendant / Wall mount | |||||
(160lm/W)
| Code | DB214-600-22W | DB214-1200-34W | DB214-1500-46W | DB214-1500-55W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L600*W79*H71mm | L1200*W79*H71mm | L1500*W79*H71mm | L1500*W79*H71mm | ||
| Watt(W) | 22W Max. (20W/16W/13W optional) | 34W Max. (30W/25W/20W optional) | 46W Max. (40W/34W/26W optional) | 55W Max. (46W/38W/32W optional) | ||
| Rated Input Voltage | AC 220-240V | |||||
| Input Voltage | AC198-264V | |||||
| Light Source | SMD | |||||
| SDCM | SDCM<4(Single CCT) | |||||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K || 3-CCT: 3000K+4000K+5700K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 22W: 2990-3180 20W: 2660-2890 16W: 2130-2320 13W:1810-1970 | 34W:4960-5400 30W: 4470-4870 25W:3640-3980 20W: 2960-3200 | 46W: 6790-7220 40W: 6040-6520 34W:4970-5350 26W: 3930-4280 | 55W: 8100-8530 46W: 7050-7730 38W: 5630-6150 32W: 4750-5150 |
| DALI | 22W: 2990-3180 20W: 2660-2890 16W: 2130-2320 13W:1810-1970 | 34W:4960-5400 30W: 4470-4870 25W:3640-3980 20W: 2960-3200 | 46W: 6790-7220 40W: 6040-6520 34W:4970-5350 26W: 3930-4280 | 55W: 8100-8530 46W: 7050-7730 38W: 5630-6150 32W: 5200-5330 | ||
| 3-CCT | Non-DIM | 22W: 2990-3180 20W: 2660-2890 16W: 2130-2320 13W:1810-1970 | 34W:4960-5400 30W: 4470-4870 25W:3640-3980 20W: 2960-3200 | 46W: 6790-7220 40W: 6040-6520 34W:4970-5350 26W: 3930-4280 | 55W: 8100-8530 46W: 7050-7730 38W: 5630-6150 32W: 4750-5150 | |
| DALI | 22W: 2990-3180 20W: 2660-2890 16W: 2130-2320 13W:1810-1970 | 34W:4960-5400 30W: 4470-4870 25W:3640-3980 20W: 2960-3200 | 46W: 6790-7220 40W: 6040-6520 34W:4970-5350 26W: 3930-4280 | 55W: 8100-8530 46W: 7050-7730 38W: 5630-6150 32W: 5200-5330 | ||
| CRI | 80 | |||||
| Beam Angle(°) | 120° | |||||
| LED Driver | Driver built-in, Flicker free | |||||
| Dimming Option | DALI | |||||
| Sensor | Microwave sensor | |||||
| Emergency Kits | - | YES | ||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP66 | |||||
| Impact Resistance(IK Rating) | IK08 | |||||
| Product Finishing | White RAL9016 | |||||
| Optics Material | PC | |||||
| Housing Material | PC | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp(°C) | -20-45°C | |||||
| Storage Temp(°C) | -20-65°C | |||||
| Installation | Surface mount / Pendant / Wall mount | |||||
