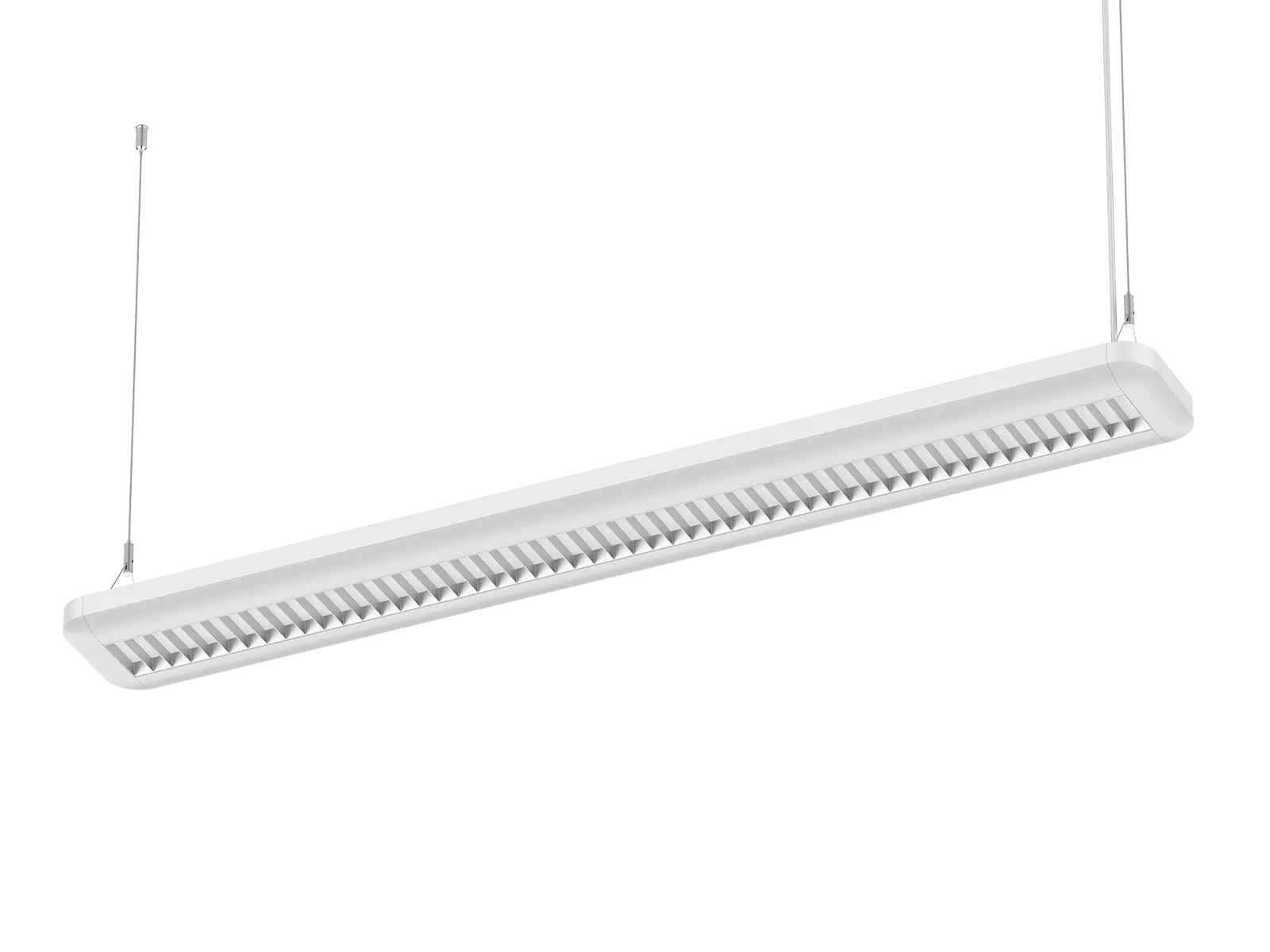

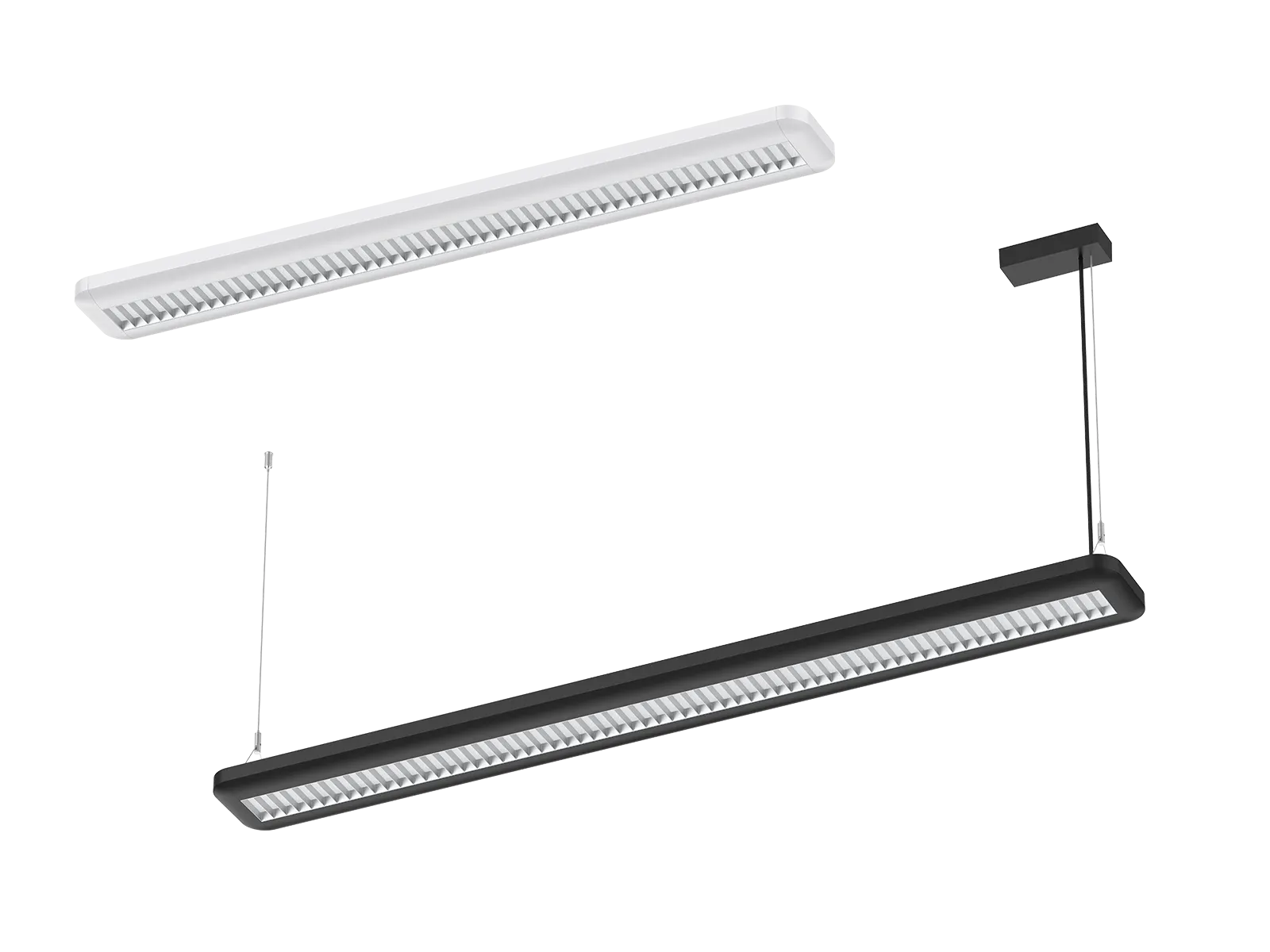

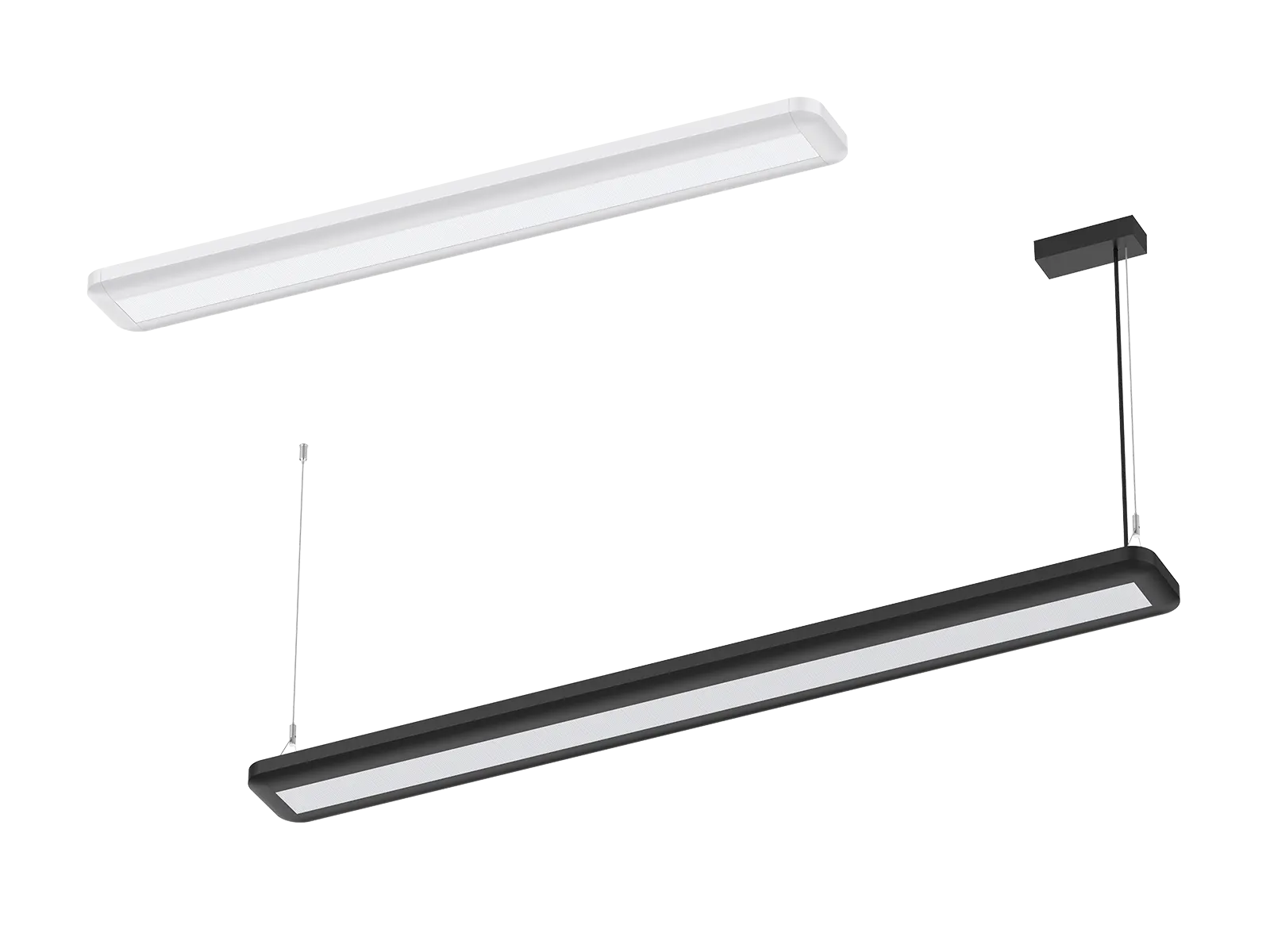

It features a modern and stylish appearance, with a square design combined with streamlined curves that highlight its high-end quality. The entire body is made of aluminum, ensuring excellent heat dissipation. It offers two types of optics: a traditional louvered reflector and a micro prismatic diffuser, effectively reducing glare.
Applications: It's widely applied in offices, conference rooms, and schools.
| Code | DB200A-1200 | DB200A-1500 | DB200B-1200 | DB200B-1500 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 32W | 42W | 40W | 50W | 32W | 42W | 42W | 52W | |||
| Dimension(mm) | 1200*160*45 | 1480*160*45 | 1200*160*45 | 1480*160*45 | ||||||
| Rated Input Voltage | AC 220-240V | |||||||||
| Input Voltage | AC198-264V | |||||||||
| LED Module Input | - | |||||||||
| Light Source | SMD | |||||||||
| SDCM | SDCM<6 | |||||||||
| CCT(K) | 2-CCT: 3000K+4000K | |||||||||
| CCT Selection | By DIP Switch | |||||||||
| Luminous Flux (lm) ±5% | 2-CCT | Non-DIM | 3600-4100 | 4600-5300 | 4550-5000 | 5700-6400 | 3850-4400 | 4950-5450 | 4800-5250 | 6000-6600 |
| CRI80 | DALI | 3600-4100 | 4600-5300 | 4550-5000 | 5700-6400 | 3850-4400 | 4950-5450 | 4800-5250 | 6000-6600 | |
| CRI | CRI80 | |||||||||
| Beam Angle(°) | 70° | |||||||||
| UGR | <22 | <22@3K | <22@3K | - | ||||||
| LED Driver | Built-in, Flicker Free | |||||||||
| Dimming Option | DALl-2+pushDlM | |||||||||
| Sensor | NO | |||||||||
| Emergency Kits | NO | |||||||||
| Electrical Class | Class I | |||||||||
| Ingress Protection(IP Rating) | IP20 | |||||||||
| Impact Resistance(IK Rating) | IK03 | |||||||||
| Product Finishing | White RAL9016 /Black RAL9005 | |||||||||
| Optics Material | Diffuser/PC | Reflector/PC | ||||||||
| Housing Material | Aluminium | |||||||||
| Lifetime(hr) | 50,000h | |||||||||
| Glow wire test(°C) | 750°C | |||||||||
| Operating Temp.(°C) | -20-45°C | |||||||||
| Storage Temp.(°C) | -20-65°C | |||||||||
| Installation | Ceiling Surface Mount | |||||||||
