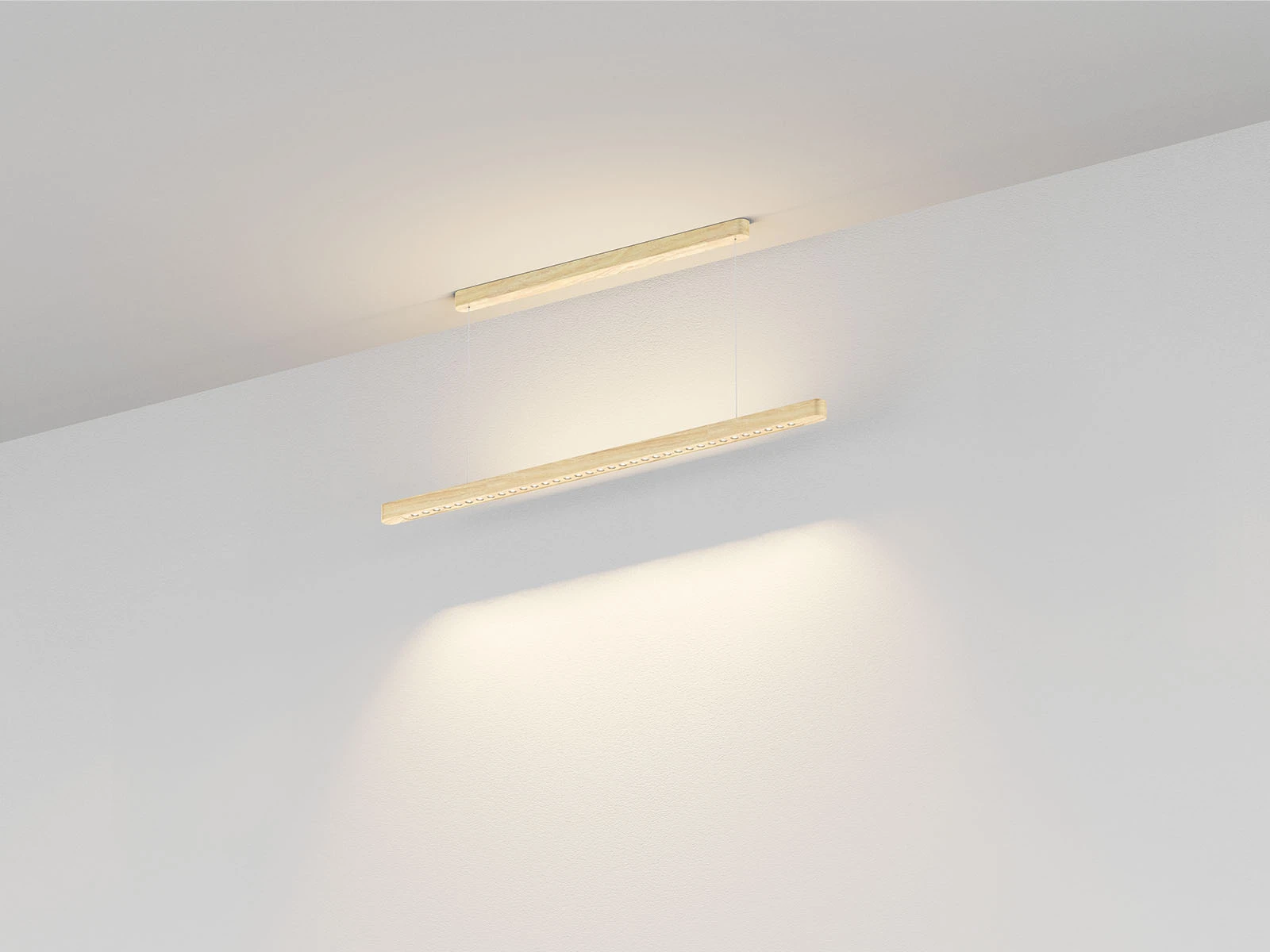

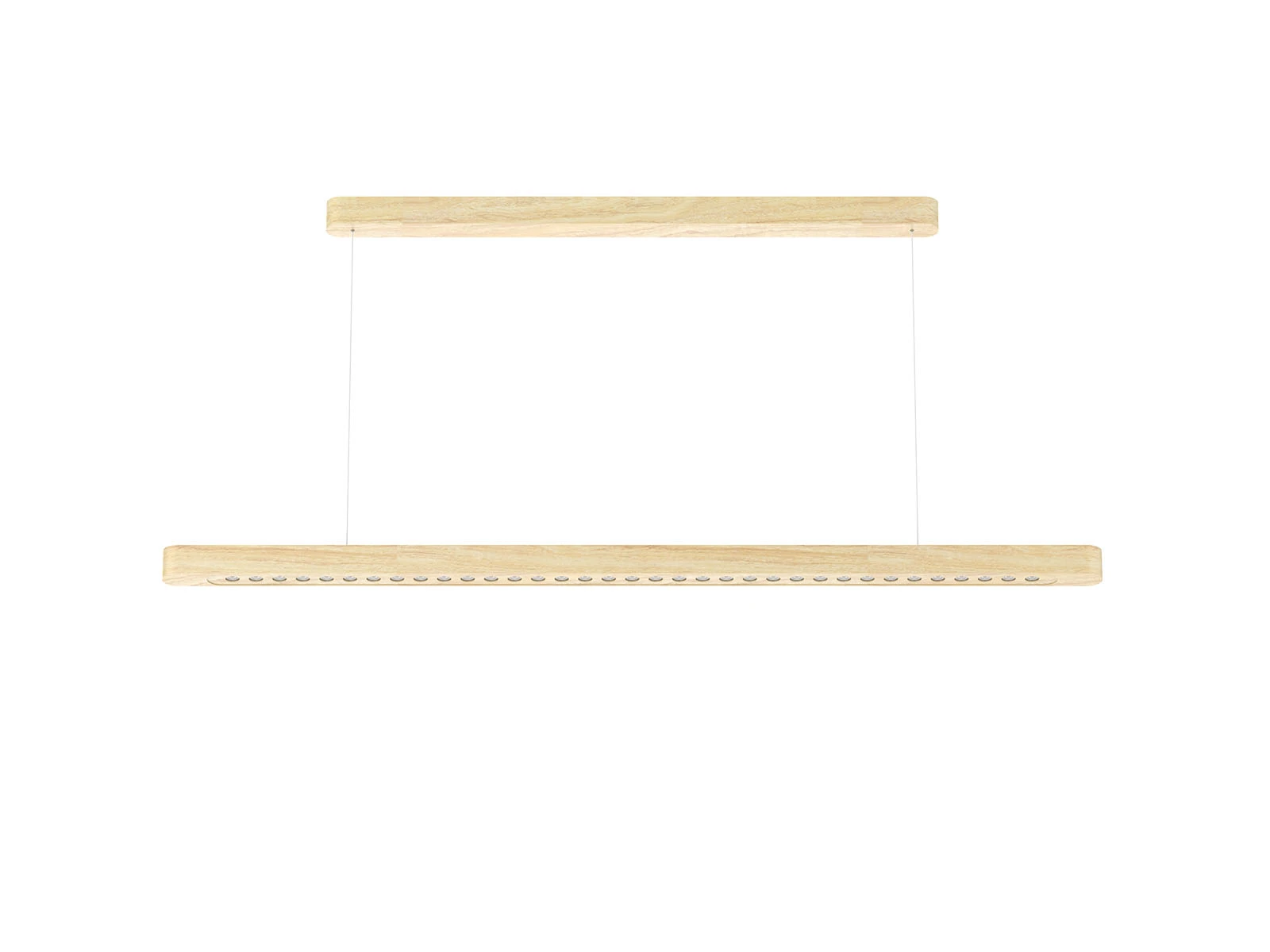

It is a suspended workplace luminaire with a strong focus on sustainability with minimal climate footprints. With a wooden frame, micro-prism louvreoptic in PC reflectors, and reduced plastic components, the luminaire is made up of 70% recycled or renewable material. High-quality extruded aluminiumstructures embedded inside provide excellent thermal management. With fewer materials and components this pendant can easily be disassembled and recycled. Beyond its construction, it offers exceptional operation efficiency and optimal up and down lit experience. The softness of the wood and the warmatmosphere created by the glare-free lighting will bring a modern and unique style to any office environment.
Application Areas: It is designed for indoor applications in office, restaurant, hotel, cafe, bar, museum etc.
|
Code |
DB198-1200-34W-A5 |
DB198-1500-45W-A5 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimension(mm) |
1200*40*40 |
1500*40*40 |
||||||||||
|
Cutout(mm) |
- |
|||||||||||
|
Watt(W) Up+Down |
34W |
31W |
29W |
27W |
25W |
45W |
42W |
40W |
38W |
36W |
||
|
Watt(W) Down |
27W |
25W |
23W |
21W |
20W |
35W |
33W |
31W |
30W |
28W |
||
|
Rated Input Voltage |
AC 220-240V |
|||||||||||
|
Input Voltage |
AC198-264V |
|||||||||||
|
LED Module Input |
- |
|||||||||||
|
Light Source |
SMD |
|||||||||||
|
SDCM |
<6 |
|||||||||||
|
CCT(K) |
1-CCT:3000K/4000K |
|||||||||||
|
CCT Selection DIP Switch |
- |
|||||||||||
|
Luminous Flux (lm) ±5% CRI80 |
1-CCT Up+Down |
Non-DIM |
4300-4600 |
3900-4200 |
3600-3900 |
3500-3800 |
3250-3550 |
5600-6200 |
5250-5650 |
5100-5400 |
5000-5350 |
4600-5000 |
|
|
|
DIM |
|
|
|
|
|
|
|
|
|
|
|
|
1-CCT Down |
Non-DIM |
3350-3650 |
3150-3450 |
2850-3150 |
2700-2950 |
2550-2850 |
4450-4750 |
4100-4500 |
4000-4300 |
3900-4200 |
3600-3950 |
|
|
|
DIM |
|
|
|
|
|
|
|
|
|
|
|
CRI |
80 |
|||||||||||
|
Beam Angle (°) |
36°/60° |
|||||||||||
|
UGR |
<19 |
|||||||||||
|
LED Driver |
Driver built-in |
|||||||||||
|
Dimming Option |
DALI |
|||||||||||
|
Sensor |
NO |
|||||||||||
|
Emergency Kits |
NO |
|||||||||||
|
Electrical Class |
Class I |
|||||||||||
|
Ingress Protection(IP Rating) |
IP20 |
|||||||||||
|
Impact Resistance(IK Rating) |
IK03 |
|||||||||||
|
Product Finishing |
Birch wood natural finish |
|||||||||||
|
Optics Material |
PC |
|||||||||||
|
Housing Material |
Birch wood |
|||||||||||
|
Lifetime (hr) |
50,000h |
|||||||||||
|
Glow wire test (°C) |
750°C |
|||||||||||
|
Operating Temp.(°C) |
-20°C-45°C |
|||||||||||
|
Storage Temp.(°C) |
-20°C~65°C |
|||||||||||
|
Installation |
Pendant |
|||||||||||
