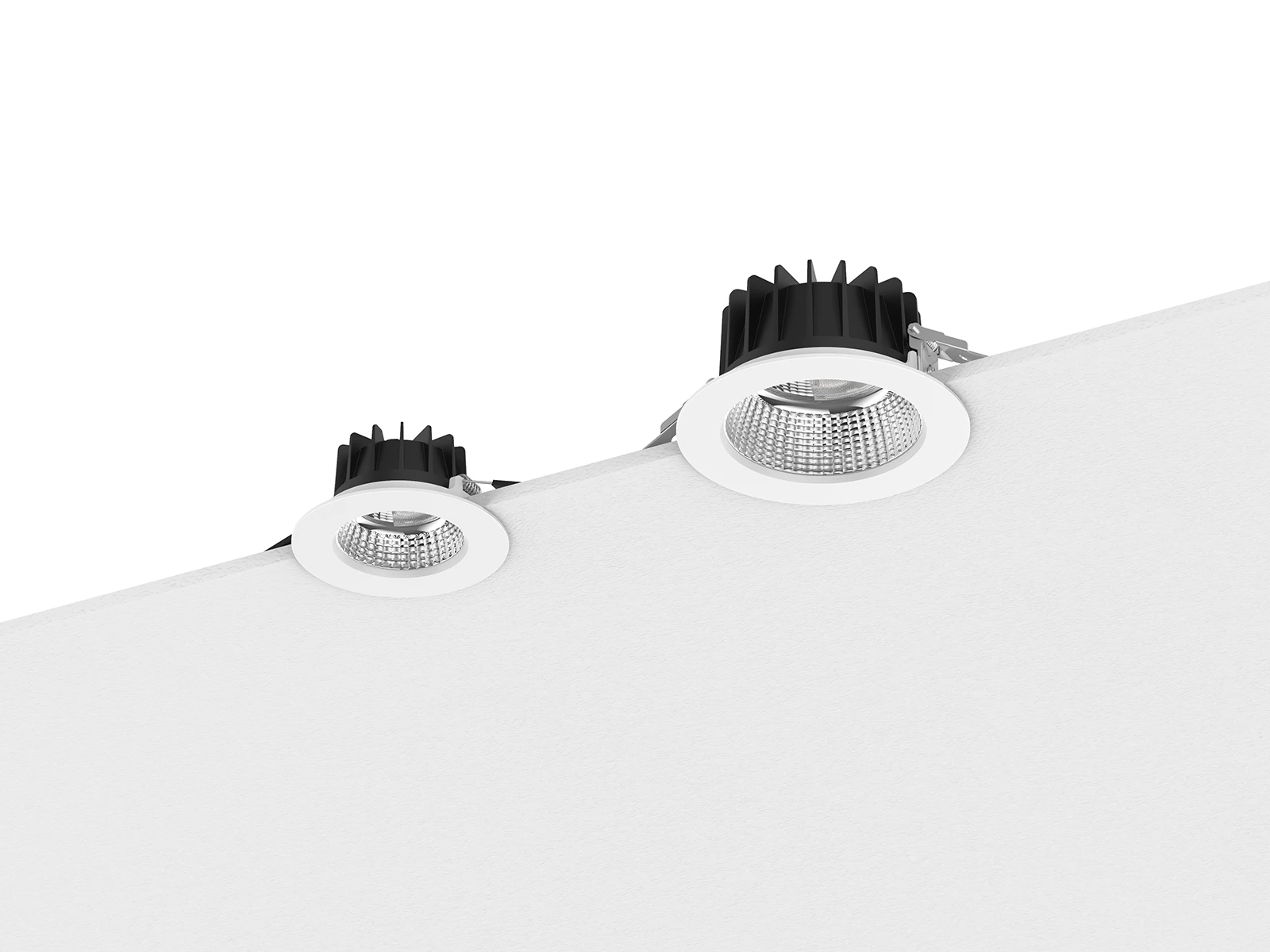

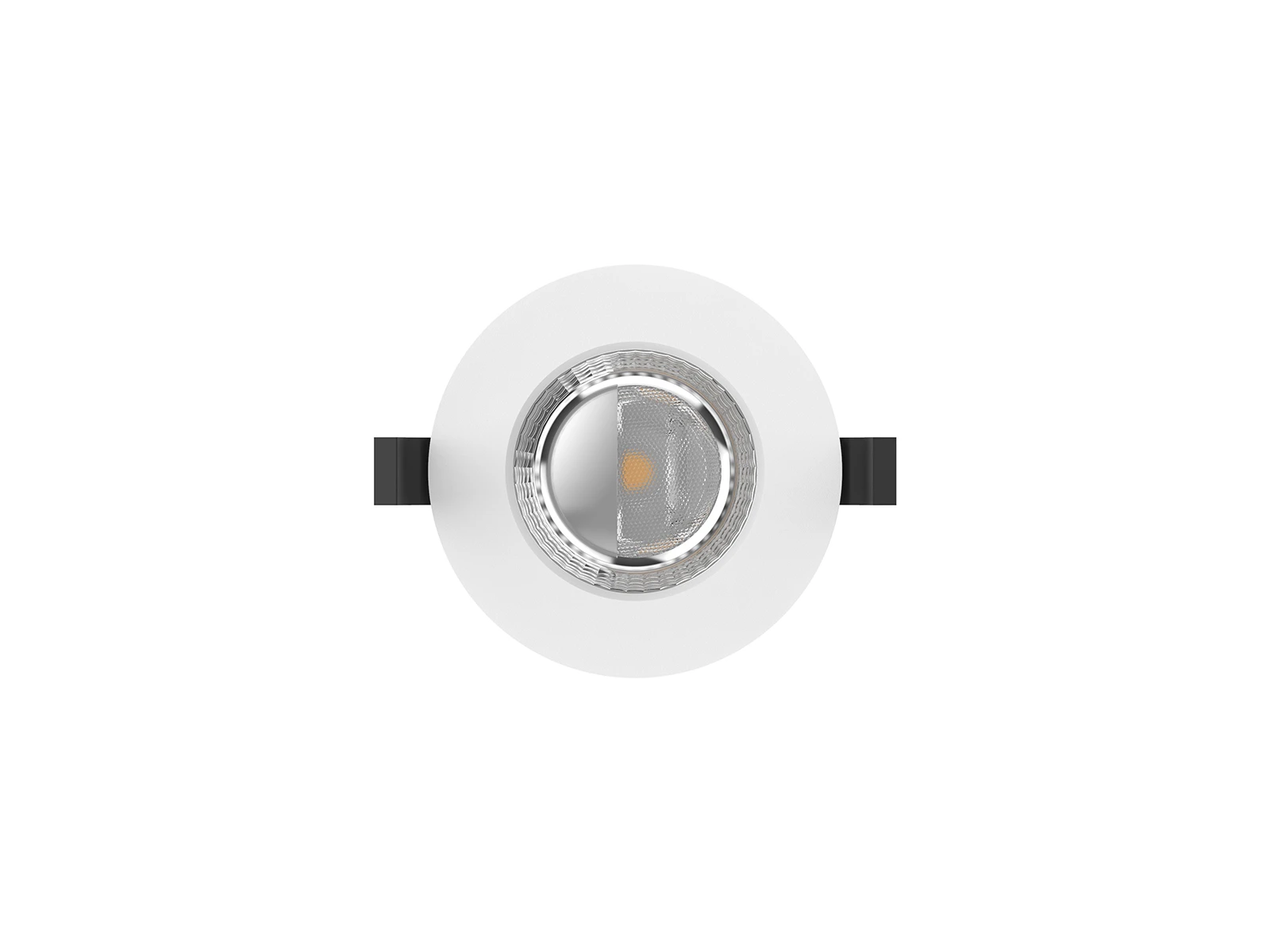

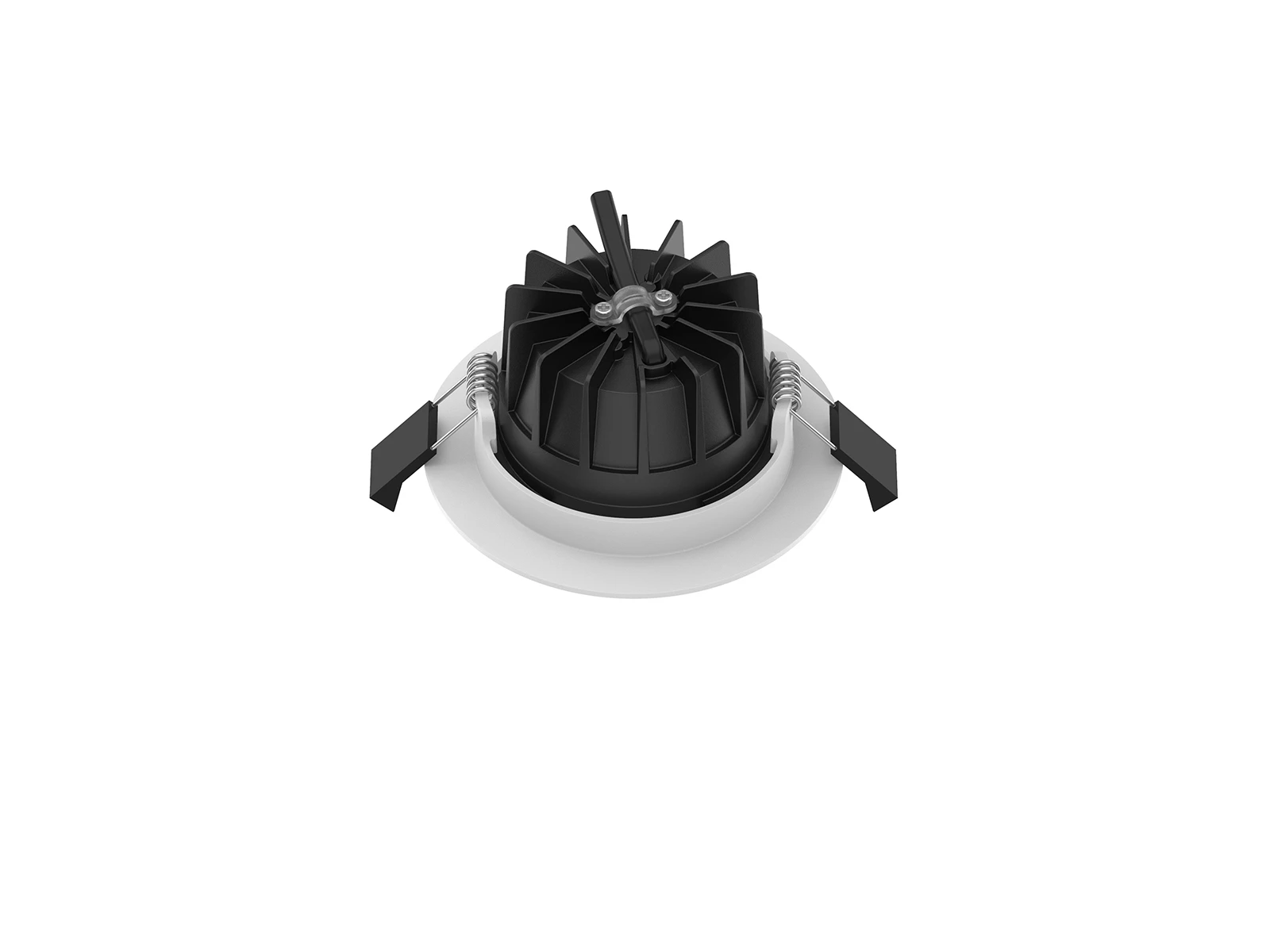

This is a wall washer downlight, adopting high lumen COB LED to reach high efficiency. The ADC12 aluminum shell features die-cast aluminum heat sink, providing excellent heat dissipation and ensuring a long lifespan for the luminaire. It adopts COB light source and lens polarized design to reach a uniform wall washing effect and lower the glare. The wall washing effect can be achieved without the need to adjust the angle.
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | DL178B-3-8W | DL178B-3-10W | DL178-4-10W | DL178-4-13W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø110*H54 | Ø145*78 | ||||
| Cutout(mm) | Ø90-95 | Ø125-135 | ||||
| Watt(W) | 8W | 10W | 10W | 13W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | SDCM<5 | |||||
| CCT(K) | 1-CCT:2700K/ 3000K/ 4000K/ 5000K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI80 (Bright Silver Reflector) | 1-CCT | Non-DIM | 450-480 | 630-680 | 770-820 | 1000-1060 |
| DIM | 450-480 | 600-650 | 750-800 | 900-950 | ||
| CRI | 80 | |||||
| Beam Angle (°) | 80°(Asymmetric 30°) | |||||
| LED Driver | Driver built-out | |||||
| Dimming Option | Triac | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP54(Only for LED cover),IP40(For other part) | |||||
| Impact Resistance(IK Rating) | IK03 | |||||
| Product Finishing | Black RAL9005/White RAL 9016 | |||||
| Optics Material | PC | |||||
| Housing Material | Die-casting Aluminum | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp(°C) | -20°C~45°C | |||||
| Storage Temp(°C) | -20°C~65°C | |||||
| Installation | Recessed | |||||
