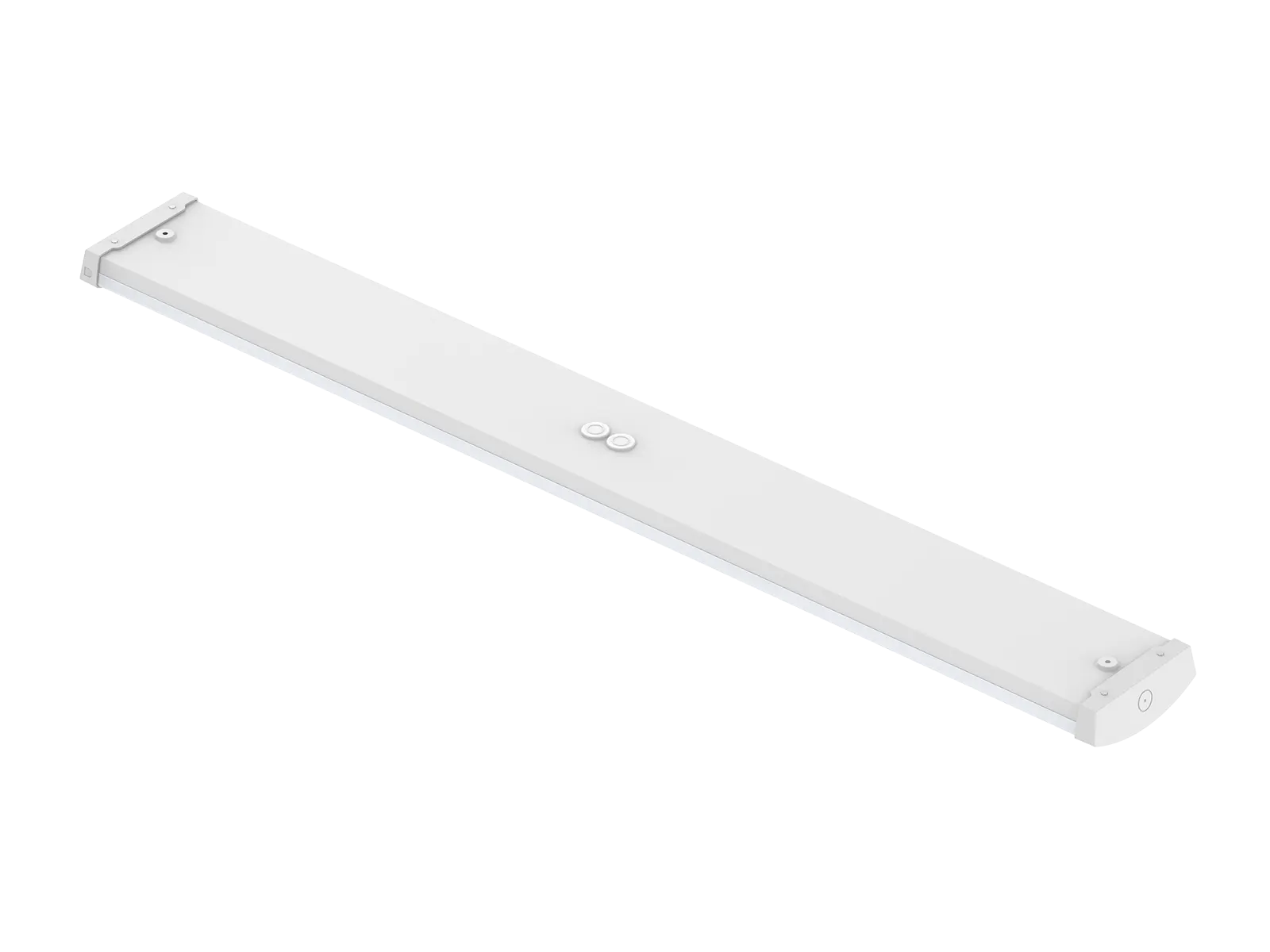

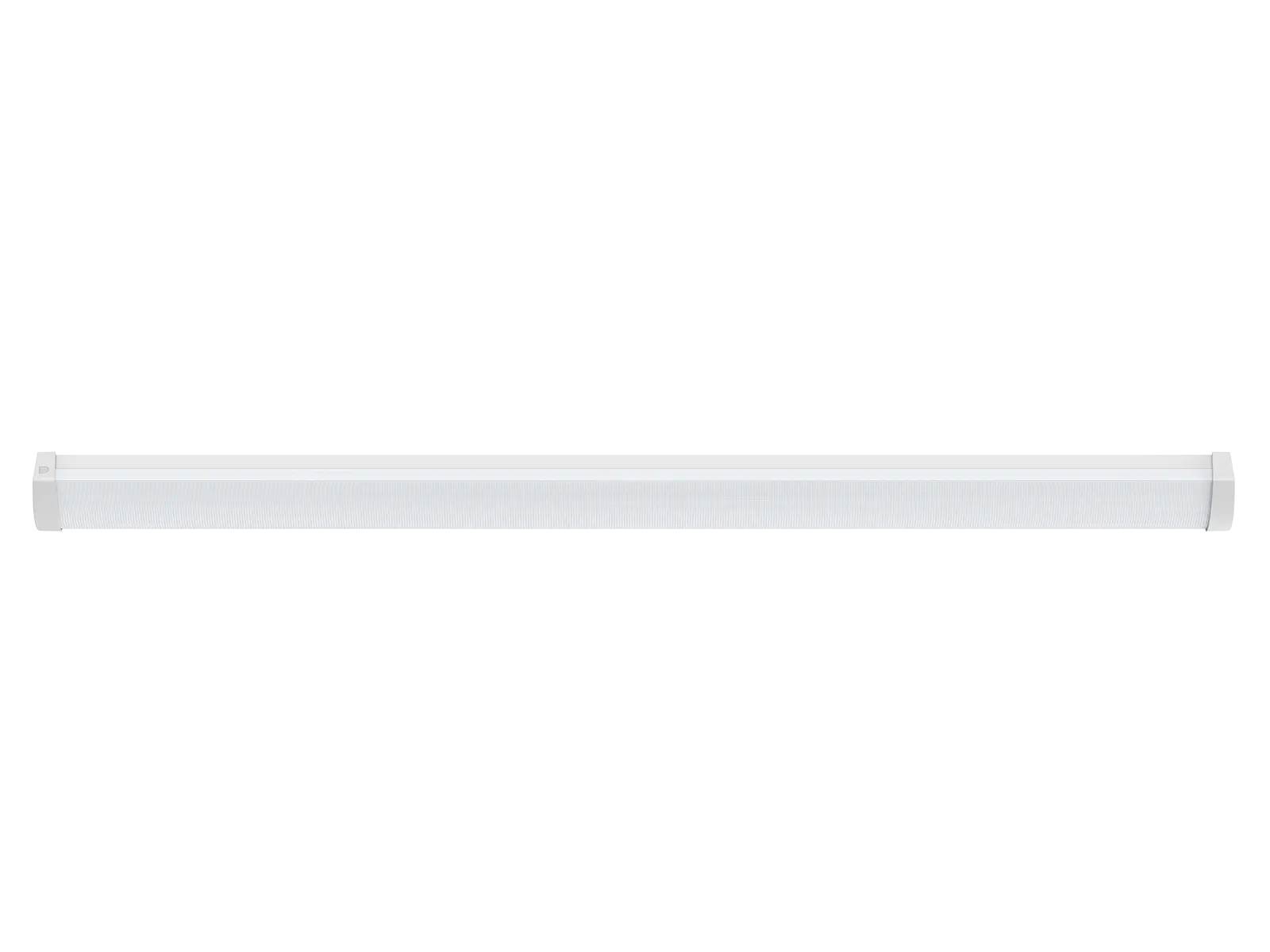

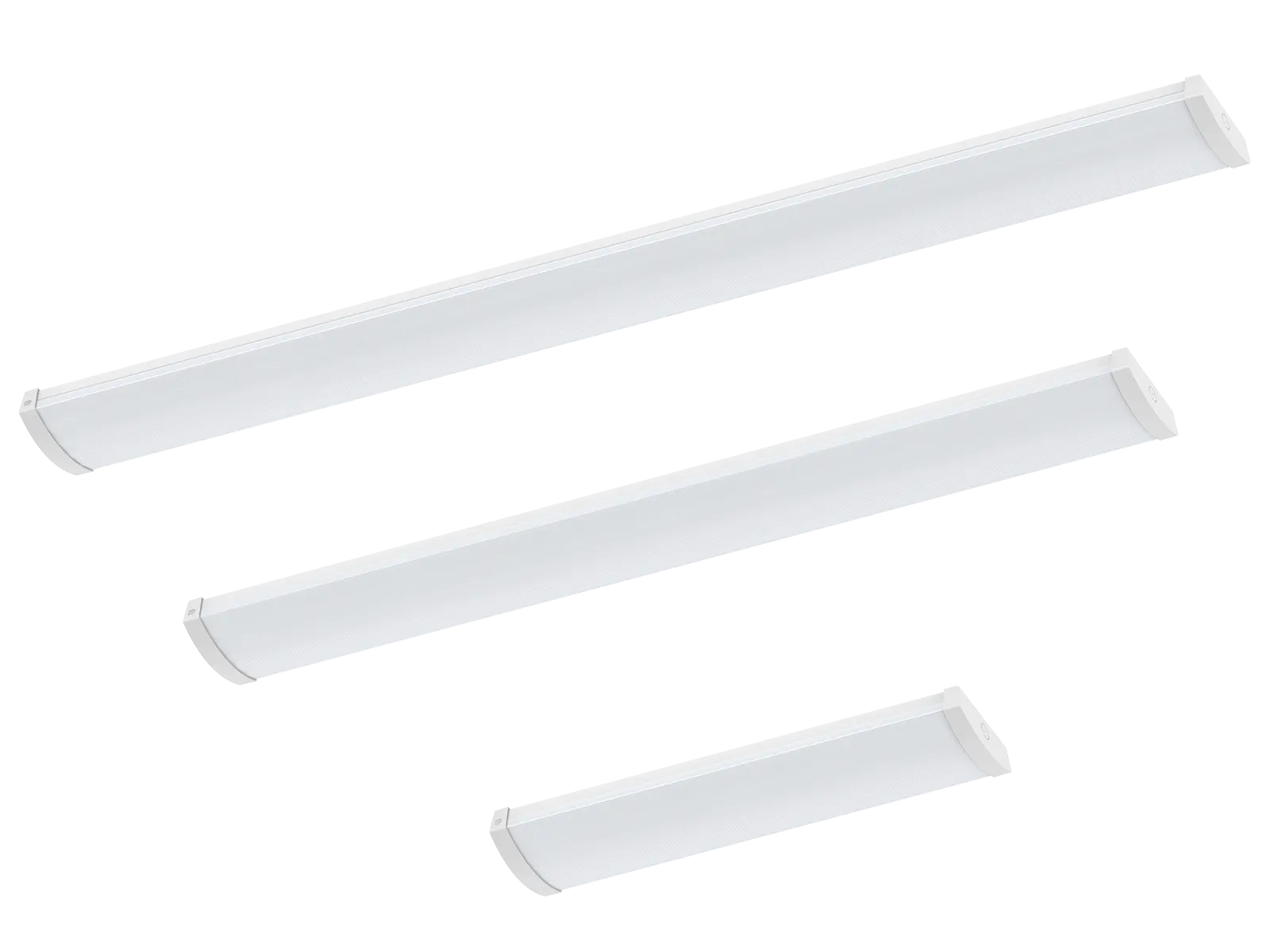

It is a high-quality and high-efficiency series batten light. It has a simple and elegant appearance, and is easy to install. The PC lampshade adopts extrusion technology, and the illuminated part internally features a striped design to improve the uniformity of light emission. The product supports functions such as adjustable color temperature, DALI dimming, emergency, and microwave sensor function. It is available in three sizes 600mm, 1200mm, 1500mm.
Applications: It is designed for general lighting applications such as classrooms, libraries, workshop, warehouse, factory, supermarket etc.
DB175(140lm)
| Code | DB175-600-20W-A4 | DB175-1200-40W-A4 | DB175-1200-40W-DA | DB175-1500-55W-A4 | DB175-1500-55W-DA | ||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | 600*148*50 | 1200*148*50 | 1500*148*50 | ||||
| Watt(W) | 20W/16W/13W/10W | 40W/35W/24W/20W | 40W | 55W/50W/45W/40W | 55W | ||
| Rated Input Voltage | AC220-240V | ||||||
| Input Voltage | AC198-264V | ||||||
| Light Source | SMD | ||||||
| SDCM | <6 | ||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||||
| CCT Selection DIP Switch | YES | ||||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 20W: 2550-2750 16W: 2000-2200 13W: 1650-1800 10W: 1250-1400 | 40W: 5200-5600 35W: 4500-4850 24W: 3050-3350 20W: 2550-2750 | - | 55W: 7150-7700 50W: 6500-7000 45W: 5800-6300 40W: 5200-5600 | - |
| DALI | - | - | 5100-5500 | - | 7150-7700 | ||
| 3-CCT | Non-DIM | 20W: 2550-2750 16W: 2000-2200 13W: 1650-1800 10W: 1250-1400 | 40W: 5200-5600 35W: 4500-4850 24W: 3050-3350 20W: 2550-2750 | - | 55W: 7150-7700 50W: 6500-7000 45W: 5800-6300 40W: 5200-5600 | - | |
| DALI | - | - | 5100-5500 | - | 7150-7700 | ||
| CRI | 80 | ||||||
| Beam Angle (°) | 110° | ||||||
| LED Driver | Driver built-in | ||||||
| Dimming Option | DALI | ||||||
| Sensor | Microwave sensor | ||||||
| Emergency Kits | YES | ||||||
| Electrical Class | Class I | ||||||
| Ingress Protection(IP Rating) | IP44 | ||||||
| Impact Resistance(IK Rating) | IK06 | ||||||
| Product Finishing | White RAL 9016 | ||||||
| Optics Material | PC | ||||||
| Housing Material | SPCC | ||||||
| Lifetime (hr) | 50,000h | ||||||
| Glow wire test (°C) | 750°C | ||||||
| Operating Temp.(°C) | -20°C-45°C | ||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||
| Installation | Surface mount | ||||||
DB175(160lm)
| Code | DB175-600-19W-A4 | DB175-1200-38W-A4 | DB175-1200-38W-DA | DB175-1500-53W-A4 | DB175-1500-53W-DA | ||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | 600*148*50 | 1200*148*50 | 1500*148*50 | ||||
| Watt(W) | 19W/16W/13W/10W | 38W/33W/22W/19W | 38W | 53W/48W/43W/38W | 53W | ||
| Rated Input Voltage | AC220-240V | ||||||
| Input Voltage | AC198-264V | ||||||
| Light Source | SMD | ||||||
| SDCM | <6 | ||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||||
| CCT Selection DIP Switch | YES | ||||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 19W: 2750-2950 16W: 2300-2500 13W: 1850-2000 10W: 1400-1500 | 38W: 5700-6100 33W: 5100-5300 22W: 3400-3500 19W: 2950-3050 | - | 53W: 8000-8500 48W: 7200-7700 43W: 6450-6900 38W: 5700-6100 | - |
| DALI | - | - | 5700-6100 | - | 8000-8500 | ||
| 3-CCT | Non-DIM | 19W: 2750-2950 16W: 2300-2500 13W: 1850-2000 10W: 1400-1500 | 38W: 5700-6100 33W: 5100-5300 22W: 3400-3500 19W: 2950-3050 | - | 53W: 8000-8500 48W: 7200-7700 43W: 6450-6900 38W: 5700-6100 | - | |
| DALI | - | - | 5700-6100 | - | 8000-8500 | ||
| CRI | 80 | ||||||
| Beam Angle (°) | 110° | ||||||
| LED Driver | Driver built-in | ||||||
| Dimming Option | DALI | ||||||
| Sensor | Microwave sensor | ||||||
| Emergency Kits | YES | ||||||
| Electrical Class | Class I | ||||||
| Ingress Protection(IP Rating) | IP44 (Surface mount) | ||||||
| Impact Resistance(IK Rating) | IK06 | ||||||
| Product Finishing | White RAL 9016 | ||||||
| Optics Material | PC | ||||||
| Housing Material | SPCC | ||||||
| Lifetime (hr) | 50,000h | ||||||
| Glow wire test (°C) | 750°C | ||||||
| Operating Temp.(°C) | -20°C-45°C | ||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||
| Installation | Surface mount | ||||||
