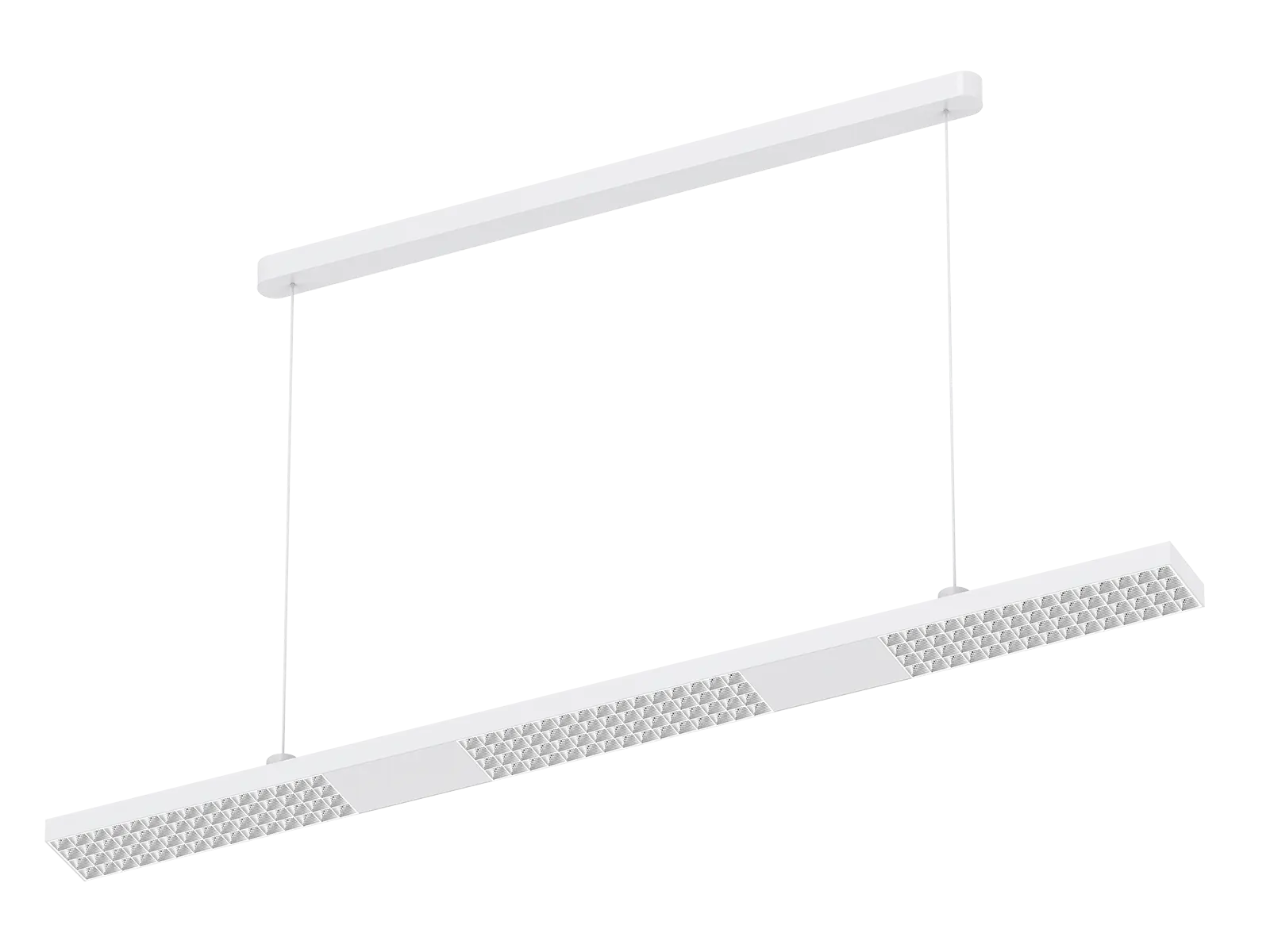

In keeping with modern, dynamic working environments in which office layouts are constantly changing and adapting, this series linear light and linear track achieve the efficient and standard-compliant low anti-glare lighting of workplaces. The especially super slim flat housing and a striking antidazzle louvre characterize the elegant appearance. It s lighting technology combines a highly efficient lens system with an antidazzle louvre for visual comfort and luminous efficacy at the same high level. The wattage and light distribution enable wide luminaire spacing for energy-efficient lighting concepts that comply to standards. This series can be quickly converted between track light and linear light by replacing the power module always meeting the requirements of the architecture and the arrangement of the workstations.
Applications: It can be widely applied in office environments such as conference rooms and offices.
| Code | DB153-1200-36W | DB153-1650-46W | TL153-1200-36W | ||||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | L1200*W85*H54 | L1647*W85*H54 | L1200*W85*H105 | ||||
| Watt(W) | 36W Max.(36W/32W/28W/24W optional) | 46W Max.(46W/42W/38W/34W optional) | 36W Max.(36W/32W/28W/24W optional) | ||||
| Rated Input Voltage | AC220-240V | ||||||
| Input Voltage | AC198V-264V | ||||||
| Light Source | SMD | ||||||
| SDCM | ≤6 | ||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | ||||||
| CCT Selection DIP Switch | No | ||||||
| Luminous Flux (lm) ±5% CRI80 | Non-DIM | 36W: 5040-5400 32W: 4480-4800 28W: 3920-4200 24W: 3360-3600 | 36W: 4680-5040 32W: 4160-4480 28W: 3640-3920 24W: 3120-3360 | 46W: 6440-6900 42W: 5880-6300 38W: 5320-5700 34W: 4760-5100 | 46W: 5980-6440 42W: 5460-5880 38W: 4940-5320 34W: 4420-4760 | 36W: 5040-5400 32W: 4480-4800 28W: 3920-4200 24W: 3360-3600 | 36W: 4680-5040 32W: 4160-4480 28W: 3640-3920 24W: 3120-3360 |
| DALI | 36W: 4940-5290 32W: 4390-4700 28W: 3840-4120 24W: 3290-3530 | 36W: 4590-4940 32W: 4080-4390 28W: 3570-3840 24W: 3060-3300 | 46W: 6310-6760 42W: 5760-6170 38W: 5210-5590 34W: 4660-5000 | 46W: 5860-6310 42W: 5350-5760 38W: 4840-5210 34W: 4330-4660 | 36W: 4940-5290 32W: 4390-4700 28W: 3840-4120 24W: 3290-3530 | 36W: 4590-4940 32W: 4080-4390 28W: 3570-3840 24W: 3060-3300 | |
| CRI | 80 | ||||||
| Beam Angle (°) | 36° | 60° | 36° | 60° | 36° | 60° | |
| UGR | <13 | <19 | <13 | <19 | <13 | <19 | |
| LED Driver | Driver built-in | ||||||
| Dimming Option | DALI | ||||||
| Sensor | NO | ||||||
| Emergency Kits | NO | ||||||
| Electrical Class | Class Ⅰ | Class Ⅱ | |||||
| Ingress Protection(IP Rating) | IP40 | ||||||
| Impact Resistance(IK Rating) | IK06 | ||||||

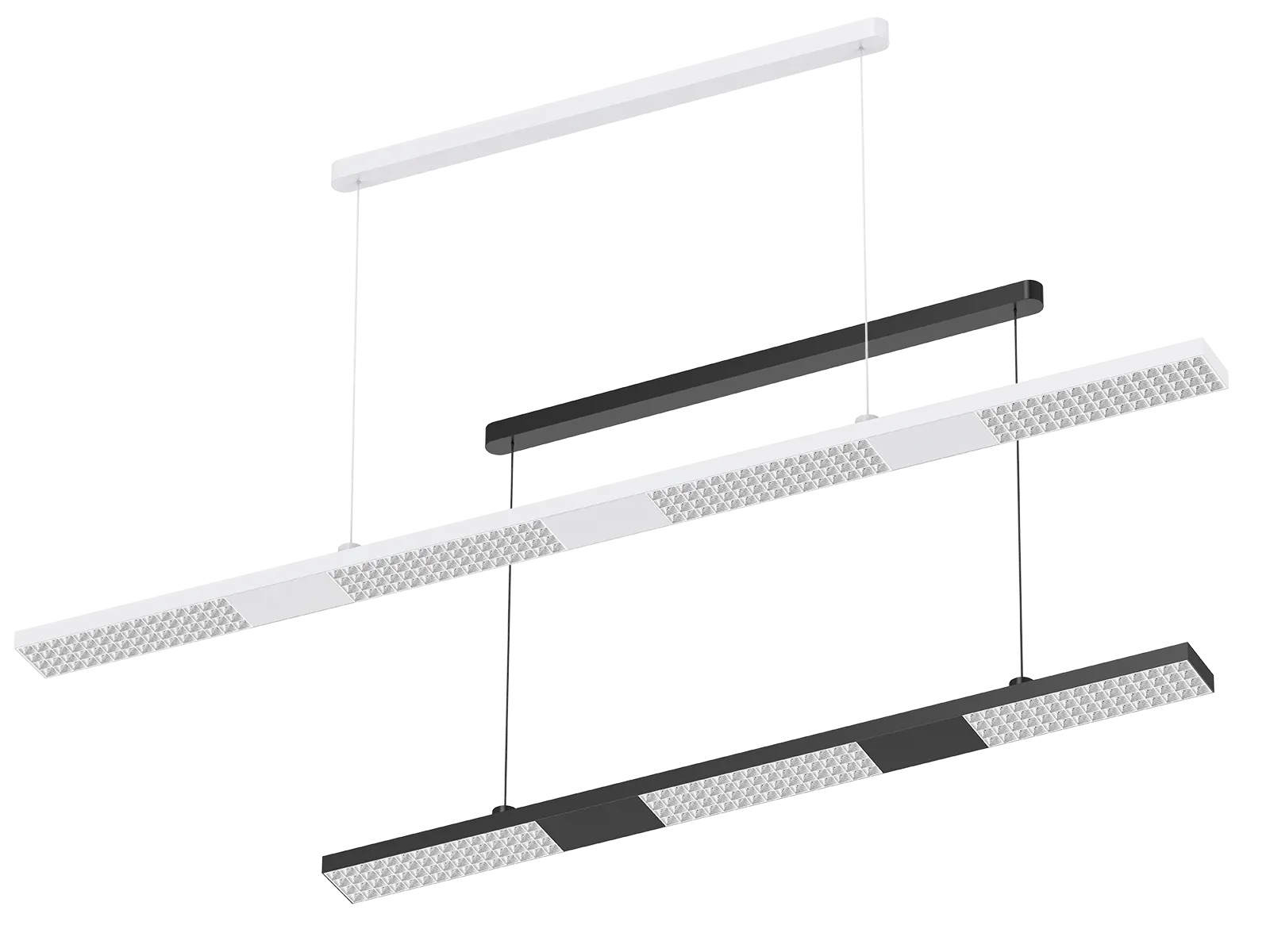

| Product Finishing | White RAL9016/Black RAL9005 | ||||||
| Optics Material | PMMA+PC | ||||||
| Housing Material | Aluminium | ||||||
| Lifetime(hr) | 50,000h | ||||||
| Glow wire test(°C) | 750°C | ||||||
| Operating Temp(°C) | -20°C~45°C | ||||||
| Storage Temp(°C) | -20°C~65°C | ||||||
| Installation | Pendant | Track | |||||
