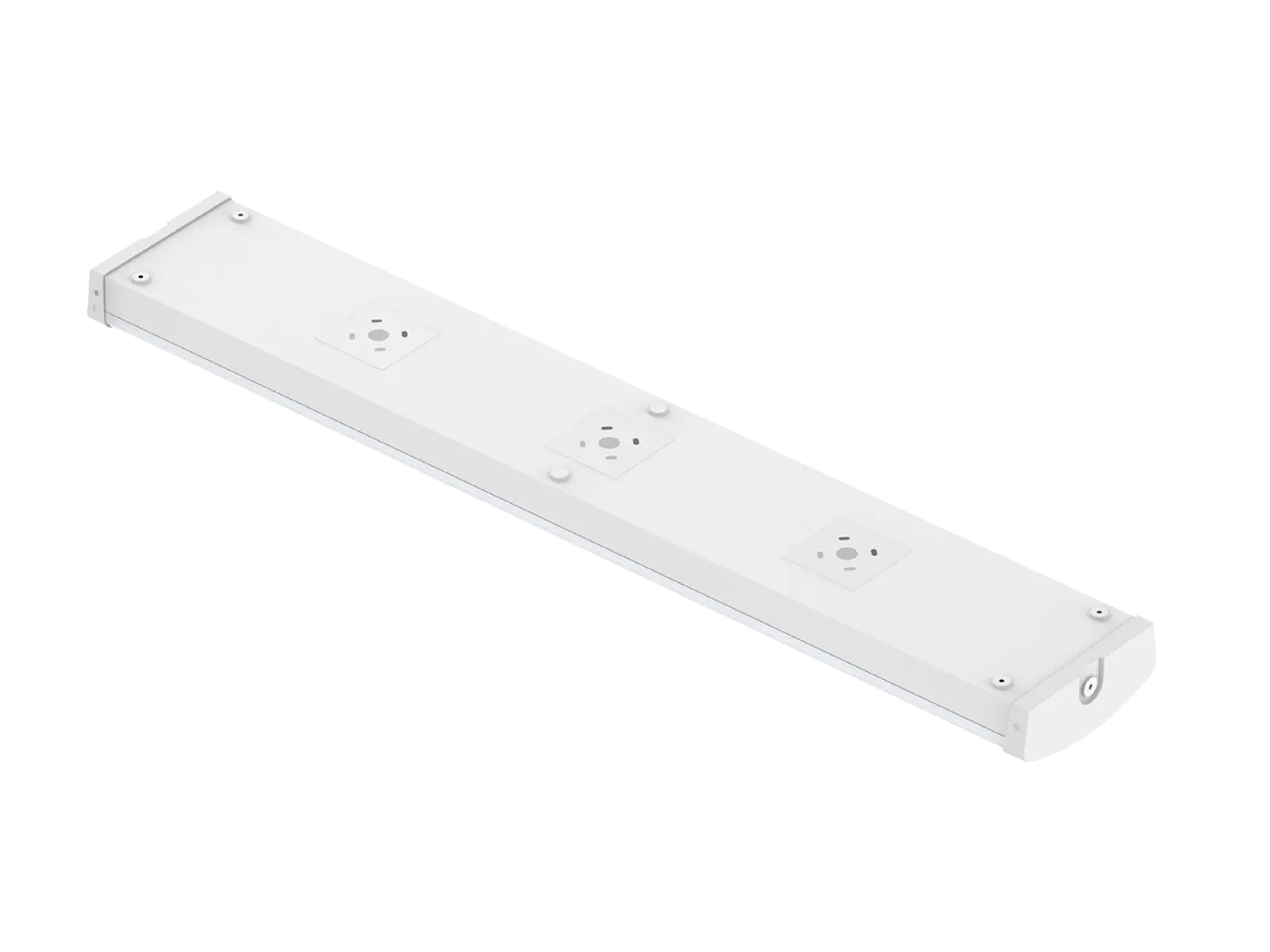

This batten light is a compact design, it’s adopted high lumen 2835 SMD chip, big angle lens and high transmittance PC shade to create a uniform light output. Screwless design on back side with better looking, large lighting area with high lumen efficiency. Besides, it’s a functional design, Wattage adjustable , emergency, microwave sensor, DALI dim all available. Flicker free branded driver ensure a long lifespan, it’s a great option for various applications.
Applications: It is designed for general lighting applications such as classrooms, libraries workshop, showroom, warehouse, factory, supermarket etc.
| Code | DB106E-1200-30W-A4 | DB106E-1200-30W-DA | DB106E-1500-30W-A4 | DB106E-1500-30W-DA | DB106E-1800-30W-A4 | DB106E-1800-30W-DA | ||
|---|---|---|---|---|---|---|---|---|

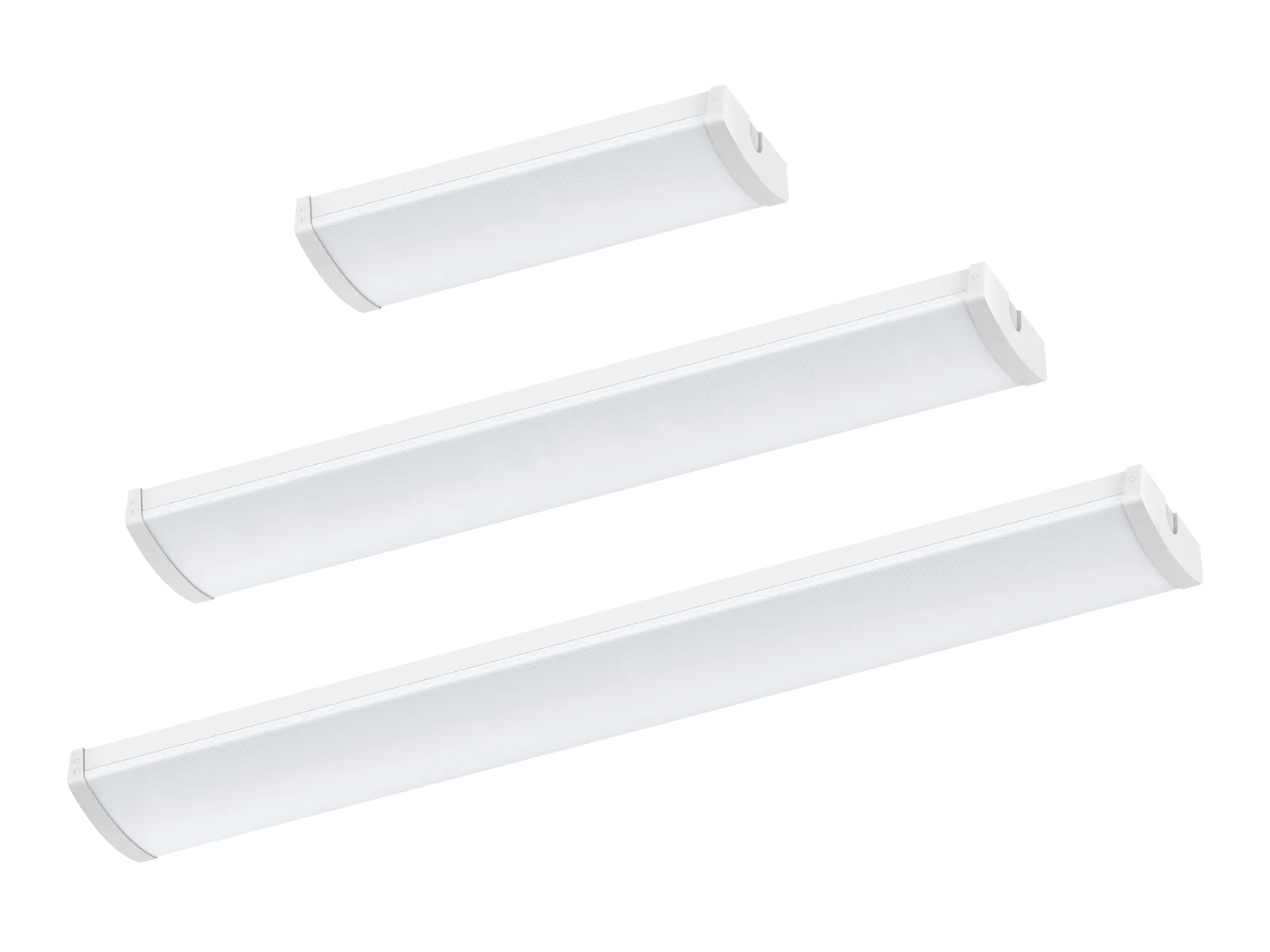

| Dimension(mm) | 1200*207*80 | 1500*207*80 | 1800*207*80 | |||||
| Watt(W) | 30W@max | 30W | 30W@max | 30W | 30W@max | 30W | ||
| (optional: | (optional: | (optional: | ||||||
| 26W/23W/20W) | 26W/23W/20W) | 26W/23W/20W) | ||||||
| Rated Input Voltage | AC 220-240V | |||||||
| Input Voltage | AC198-264V | |||||||
| LED Module Input | - | |||||||
| Light Source | SMD | |||||||
| SDCM | <6 | |||||||
| CCT(K) | 1-CCT: 4000K | |||||||
| CCT Selection | NO | |||||||
| Luminous Flux (lm) ±5% | 30W: 4400 | 30W: 4400 | 30W: 4400 | |||||
| CRI80 | 1-CCT | Non-DIM | 26W: 3900 | - | 26W: 3900 | - | 26W: 3900 | - |
| 23W: 3450 | 23W: 3450 | 23W: 3450 | ||||||
| 20W: 2800 | 20W: 2800 | 20W: 2800 | ||||||
| DALI | - | 4350 | - | 4350 | - | 4350 | ||
| CRI | 80 | |||||||
| Beam Angle(°) | 120° | |||||||
| UGR | - | |||||||
| LED Driver | Driver built-in | |||||||
| Dimming Option | DALl-2+pushDlM | |||||||
| Sensor | Microwave sensor | |||||||
| Emergency Kits | YES | |||||||
| Electrical Class | Class I | |||||||
| Ingress Protection(IP Rating) | IP44 (Surface mount)/IP40(Pendant)/IP40(Wall Mount) | |||||||
| Impact Resistance(IK Rating) | IK06 | |||||||
| Product Finishing | White RAL 9016 | |||||||
| Optics Material | PC | |||||||
| Housing Material | SPCC | |||||||
| Lifetime(hr) | 50,000h | |||||||
| Glow wire test(°C) | 750°C | |||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||

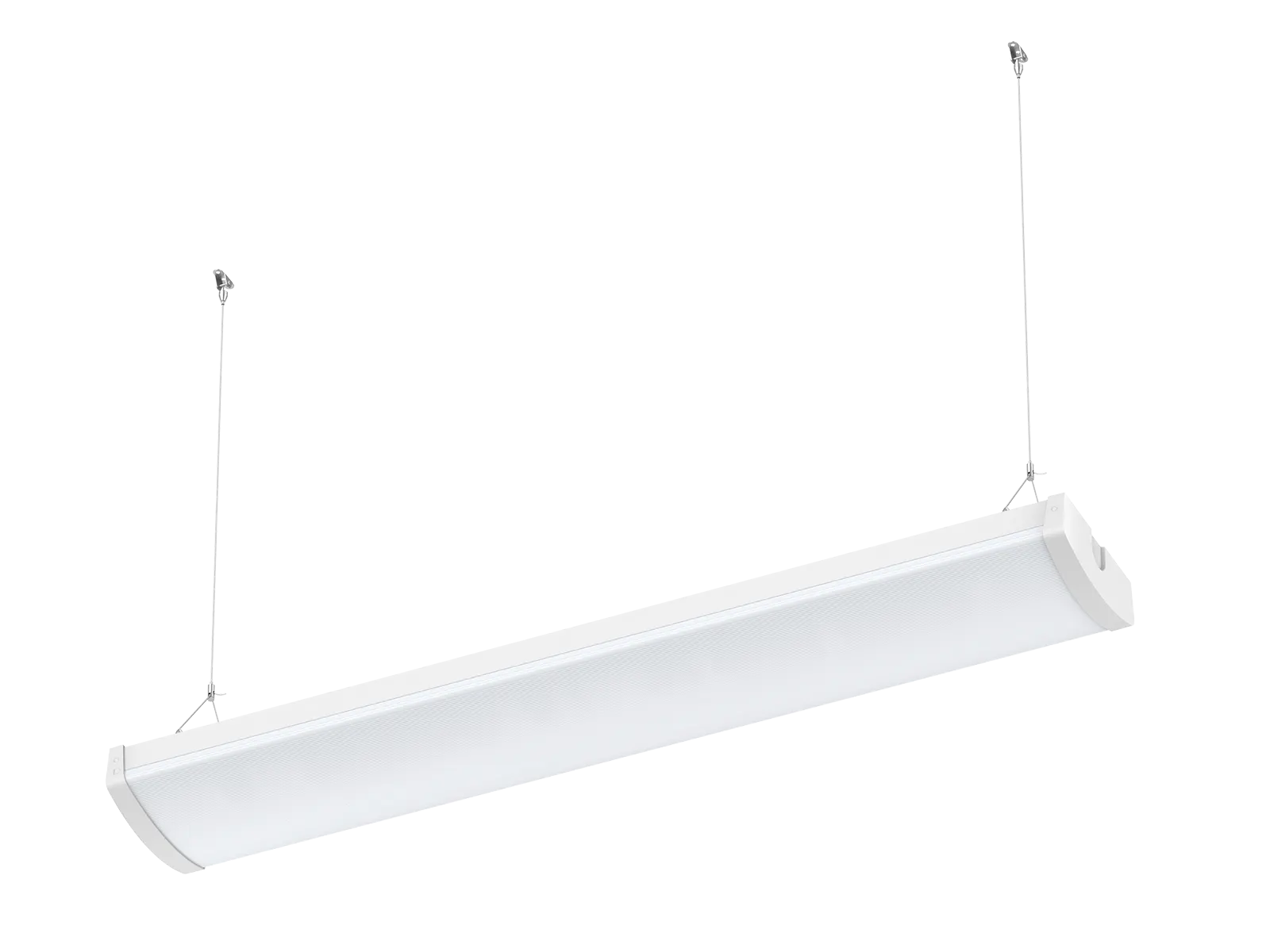

| Installation | Surface mount / Pendant / Wall Mount | |||||||
