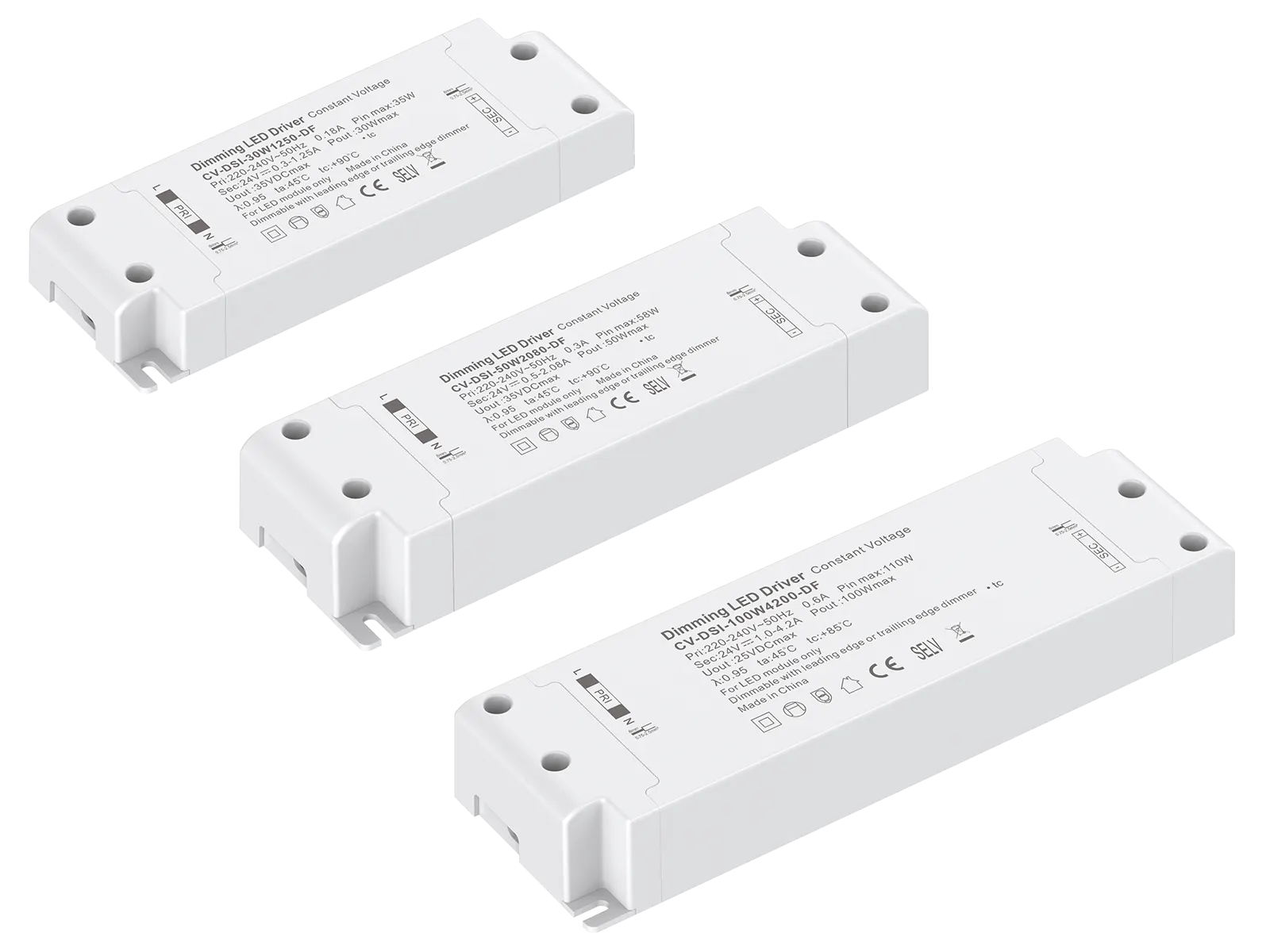

DSI series led flicker free driver is constant voltage DALI dimming driver. With a focus on application- related functions, the LED Driver range offers good quality and performance that ensures reliable operation of LED module.
Applications: Widely used for cabinet led light, garden light, wall lamp, various led strip and so on.
| Model | CV-DSI-30W1250-DF | CV-DSI-50W2080-DF | CV-DSI-100W4200-DF | |
|---|---|---|---|---|
| Function | Triac dim | |||
| Input | Input Power(W) | 35Wmax | 58Wmax | 110Wmax |
| Input Voltage(V) | AC198-264V | |||
| Rated Input Voltage(V) | AC220-240V | |||
| Frequency(Hz) | 50Hz | |||
| Input Current(A) | ≤0.18A | ≤0.3A | ≤0.55A | |
| Rated Input Current(A) | ≤0.2A | ≤0.33A | ≤0.60A | |
| Power Factor(typ) | 0.95 | |||
| Total harmonic distortion(%) | < 15%@230V | |||
| Efficiency(typ) | ≥84%(@230VAC full load) | ≥85%(@230VAC full load) | ≥90%(@230VAC full load) | |
| Inrush current(Typ.) | 4.8/64uS | 5.04A/61.6uS | 25.2A/66.8uS | |
| Leakage current(mA) | <0.7mA@AC230V | |||
| No load wattage(W) | N/A | |||
| Output | Output Voltage range(V) | DC24V | ||
| Rated output current | 0.3-1.25A | 0.5-2.08A | 1-4.2A | |
| Line Regulation(%) | ±5% | |||
| Open circuit voltage(max) | 35V | 35V | 25V | |
| Setup time(note1) | <0.5S@230V | |||
| Flickering Index(IEEEStd 1789) | <5%(LOW Risk) | |||
| IEC-PST/CIE(SVM) | ≤0.1/≤0.1 | |||
| Protection | Short circuit protection | PASS | ||
| Over voltage protection | PASS | |||
| Over temperature protection | PASS | |||
| Environment | Maximum case temperature tc | 90℃ | 85℃ | |
| Operating temperature | -20…+45 °C | |||
| Storage temperature/humidity | -25…+85 °C; 5-95% RH | |||
| Relative humidity | 5…85% | |||
| Environmental rating | Indoor | |||
| IP rating | IP20 | |||
| Life time | >50,000H @25°C | |||
| SAFFTY&EMC | Safety standards | BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384 | ||
| Withstand voltage | I/P-O/P:3.75KVAC | |||
| Isolation Resistance | I/P-FG: 500VDC, ≥4M Ω | |||
| surge | IEC/EN61000-4-5(L-N:1.5KV ) | IEC/EN61000-4-5(L-N:4KV ) | ||
| EMC EMISSION | BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3 | |||
| EMC IMMUNITY | BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547 | |||
| Other | Dimension | L163*W56.6*H22.6mm | L187.2*W61.6*H32.6mm | L213.2*W67.5*H32.6mm |
| Weight | 210g | 375g | 740g | |
| Model | CV-DSI-50W2080-DAF | CV-DSI-100W4200-DAF | |
|---|---|---|---|
| Function | DALI/PUSH | ||
| Input | Input Power(W) | 58W Max | 110W Max |
| Input Voltage(V) | AC198-264V | ||
| Rated Input Voltage(V) | AC220-240V | ||
| DC Input Voltage(V) | DC176-280V | ||
| Frequency(Hz) | 50/60Hz | ||
| Input Current(A) | ≤0.33A | ≤0.60A | |
| Rated Input Current(A) | ≤0.30A | ≤0.56A | |
| Power Factor(typ) | 0.95 | ||
| Total harmonic distortion(%) | <15%@230V | ||
| Efficiency(typ) | ≥88%(@230VAC full load) | ≥90%(@230VAC full load) | |
| Inrush current(Typ.) | 27.8A/210uS | 32.6A/400uS | |
| Leakage current(mA) | <0.7mA@AC230V | ||
| Stand-by power consumption(W) | <0.5W@AC230V | ||
| Output | Output Voltage range(V) | DC24V | |
| Rated output current | 0.2-2.08A | 0.4-4.2A | |
| Line Regulation(%) | ±5% | ||
| Open circuit voltage(max) | 24V | ||
| Setup time(note1) | <1S@230V | ||
| Flickering Index(IEEEStd 1789) | <1%(NO Risk) | ||
| IEC-PST/CIE (SVM) | ≤1/≤0.4 | ||
| Protection | Short circuit protection | PASS | |
| Over voltage protection | PASS | ||
| Over temperature protection | PASS | ||
| Environment | Maximum case temperature tc | 85°C | |
| Operating temperature | -20…+45 °C | ||
| Storage temperature/humidity | -25…+85 °C; 5-95% RH | ||
| Relative humidity | 5…85% | ||
| Environmental rating | Indoor | ||
| IP rating | IP20 | ||
| Life time | >50,000H @25°C | ||
| SAFFTY&EMC | Safety standards | BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384 | |
| Withstand voltage | I/P-O/P:3.75KVAC | ||
| Isolation Resistance | I/P-FG: 500VDC, ≥4M Ω | ||
| surge | IEC/EN61000-4-5(L-N:1.5KV ) | ||
| Ring Wave | - | ||
| EMC EMISSION | BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3 | ||
| EMC IMMUNITY | BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547 | ||
| Other | Dimension | L187.2*W61.6*H32.6mm | L213.2*W67.5*H32.6mm |
| Weight | 0.38Kg | 0.58Kg | |
