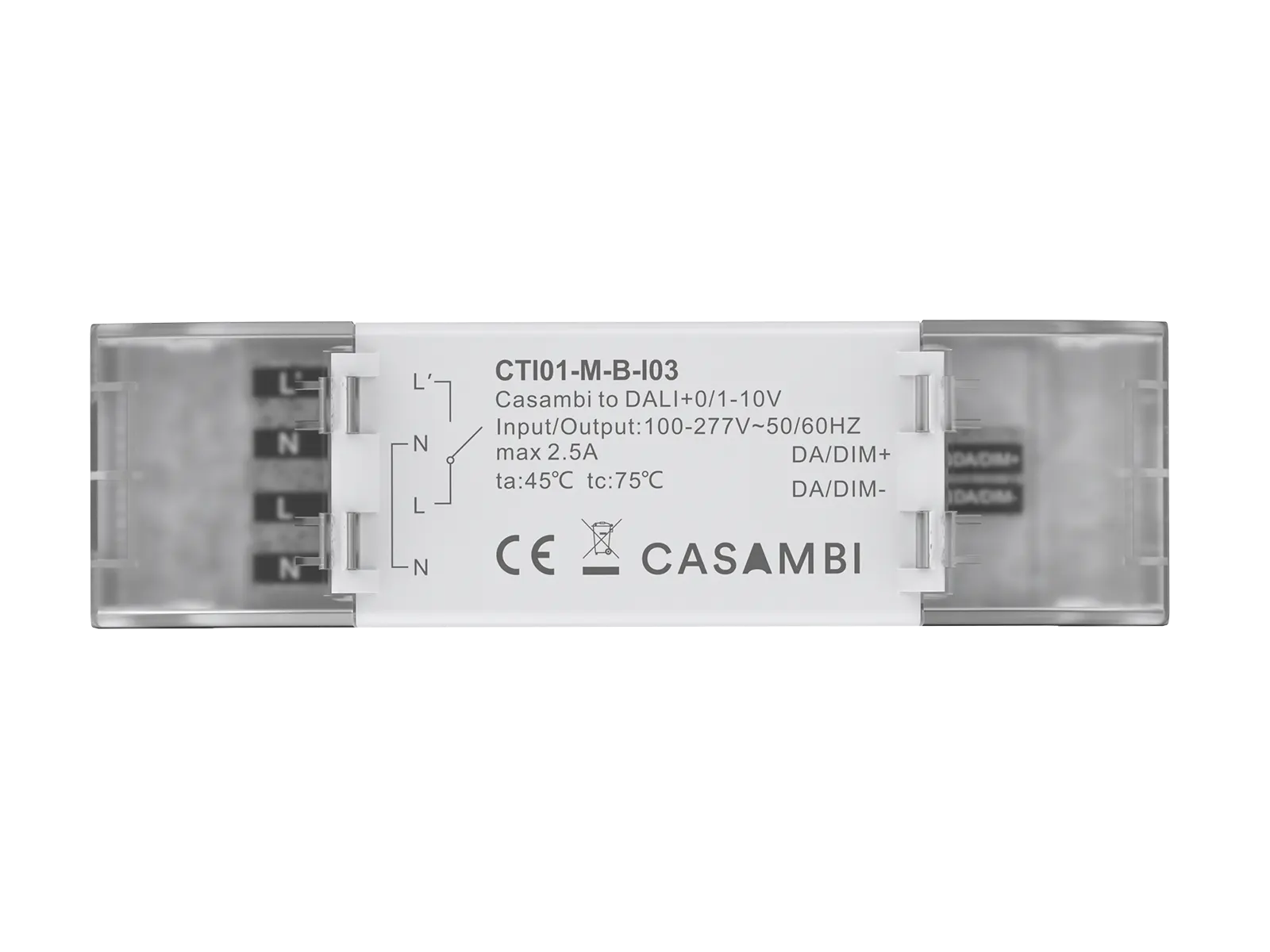

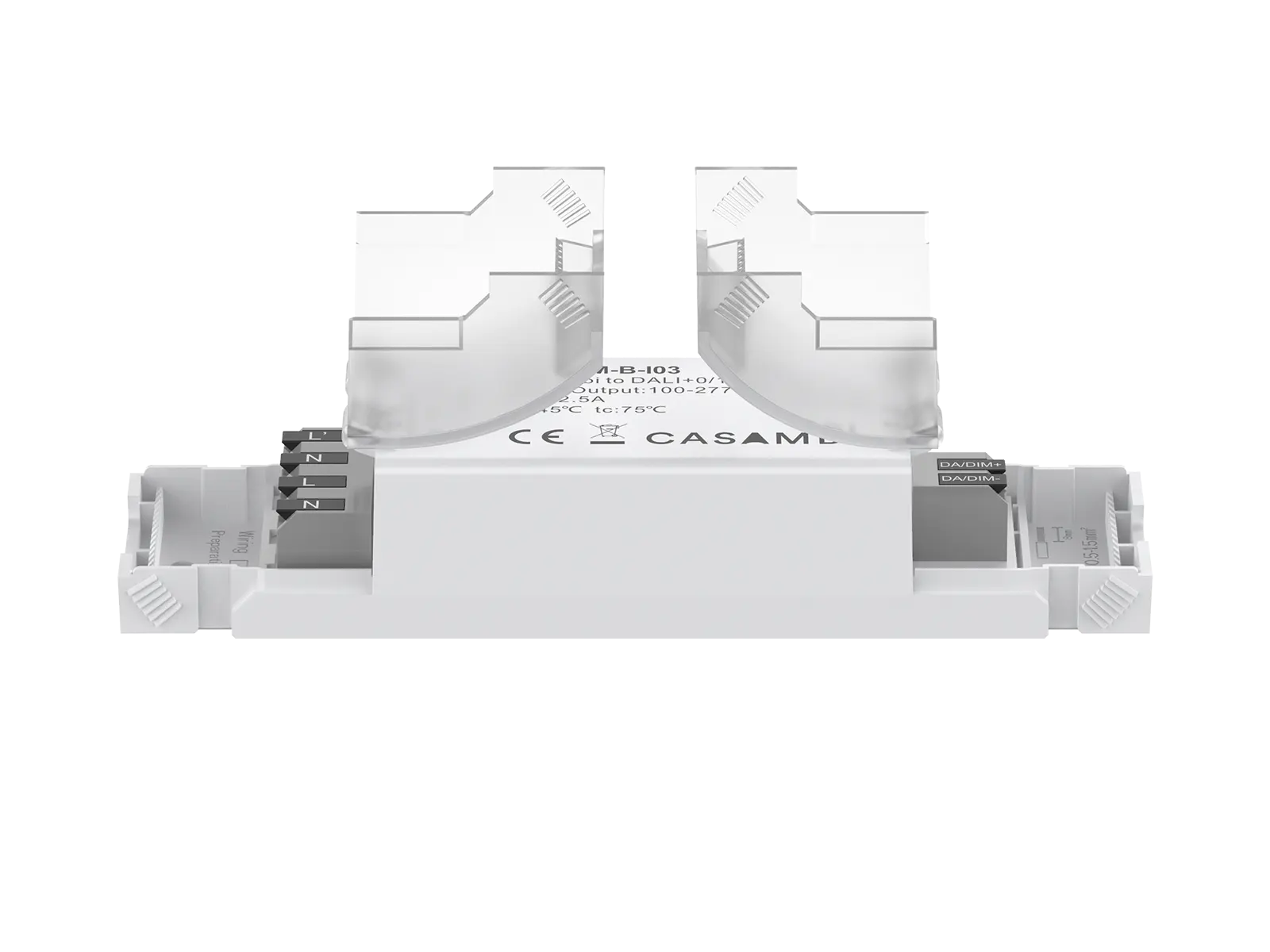

CTI01-M-B is a controller which uses low-power Bluetooth communication to receive control signals from the Casambi APP makes the 0/1-10V or DALI lamps can become Casambi smart control led light. In addition, CTI01-M-B also integrates a DALI bus power supply. The bus power supply current can reach 50mA. It can also provide a dimming current of more than 5mA, and can intervene in up to 8 0-10V dimming power supplies.
Applications: Widely used in residential lighting, commercial lighting and so on.
| Model | CTI01-M-B-I03 | |
|---|---|---|
| Input | Input Power(W) | 3W max |
| Input Voltage(V) | AC90-305V | |
| Rated Input Voltage(V) | AC100-277V | |
| DC Input Voltage(V) | - | |
| Frequency(Hz) | 50/60Hz | |
| Input Current(A) | ≤2.5A | |
| Rated Input Current(A) | ≤2.5A | |
| Leakage current(mA) | <0.7mA@AC230V | |
| No load wattage(W) | <1W@AC230V | |
| Output | Output Voltage range(V) | DALI:14-18V |
| Rated output current | DALI:50mA MAX | |
| Line Regulation(%) | - | |
| Open circuit voltage(max) | - | |
| Setup time(note1) | <0.5S@230V | |
| Environment | Maximum case temperature tc | 75℃ |
| Operating temperature | -20…+45 °C | |
| Storage temperature/humidity | -25…+85 °C; 5-95% RH | |
| Relative humidity | 5…85% | |
| Environmental rating | Indoor | |
| IP rating | IP20 | |
| Life time | >50,000H @25°C | |
| SAFFTY & EMC | Safety standards | BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384 UL8750(type”HL”), CSA C22.2 No.250.13-12 |
| Withstand voltage | I/P-O/P:3.75KVAC | |
| Isolation Resistance | I/P-FG: 500VDC, ≥4M Ω | |
| surge | IEC/EN61000-4-5(L-N:1KV ) | |
| Ring Wave | ANSI/IEEE C62.41.2-2002(L-N:2.5KV,LN-PE 2.5KV) | |
| EMC EMISSION | BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3;FCC-PART15 | |
| EMC IMMUNITY | BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547;FCC-PART15 | |
| Other | Dimension | L137*W39*H29mm |
| Weight | 71g | |
