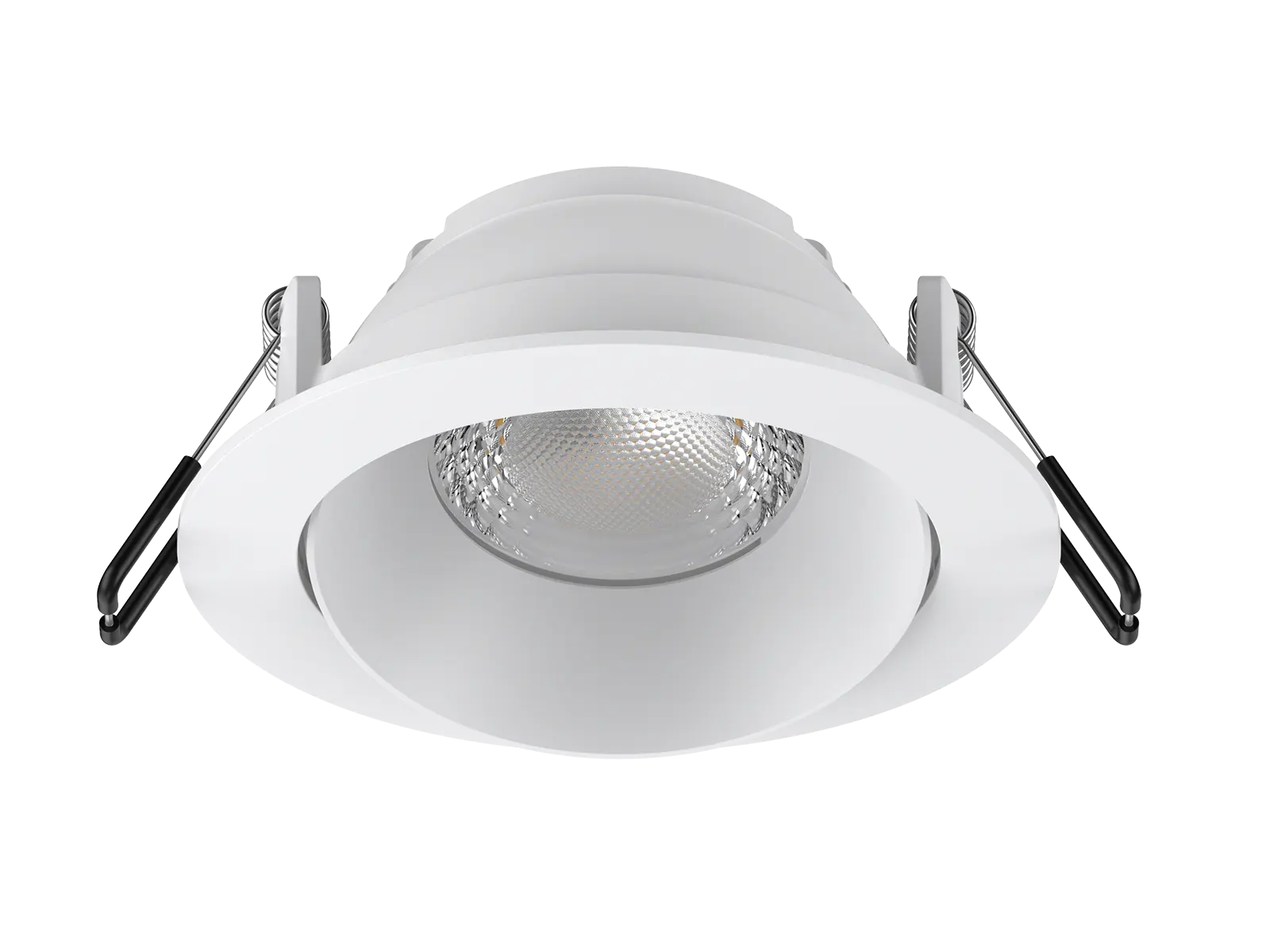

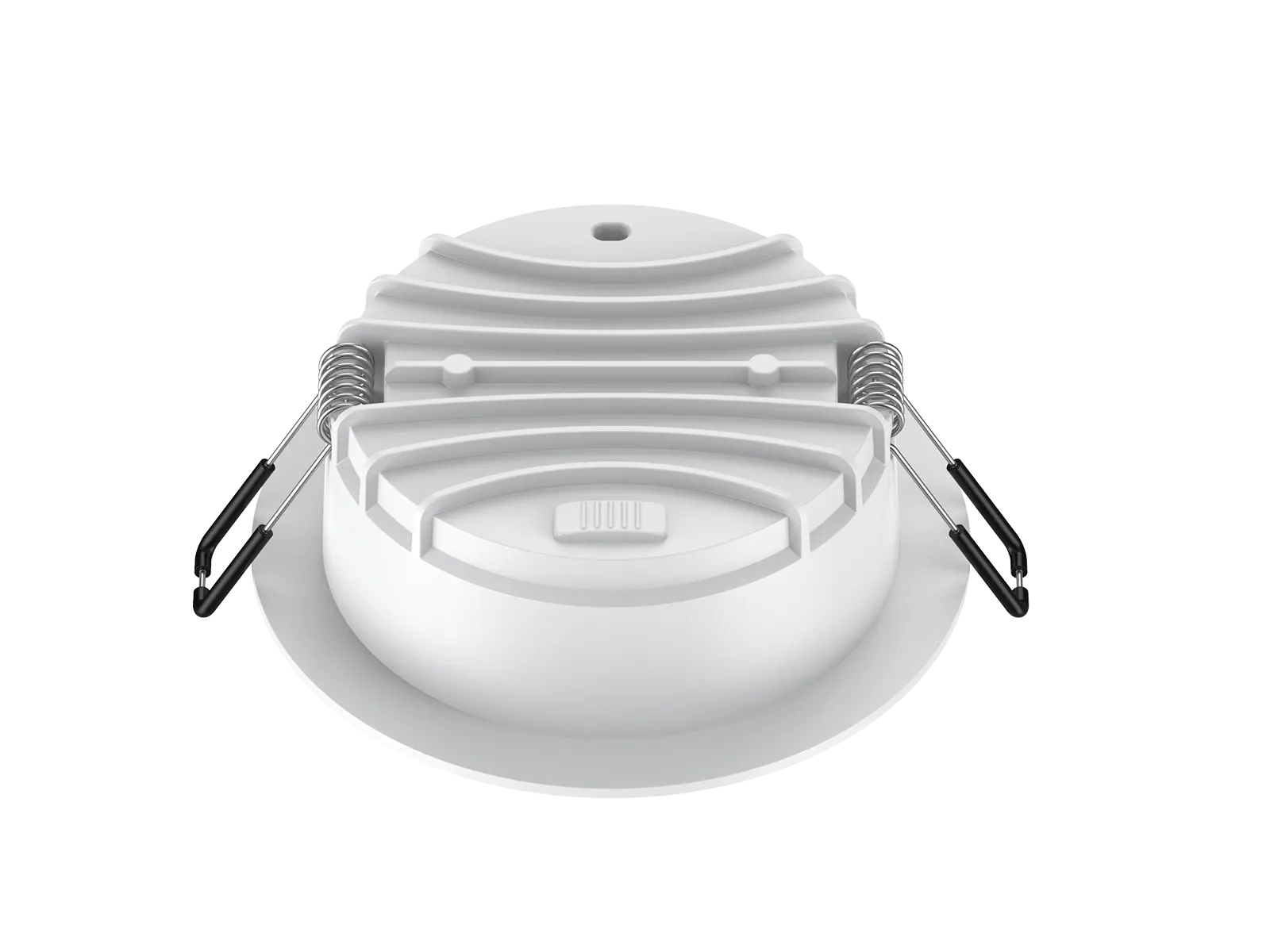

This is a plastic-coated aluminum downlight featuring high-efficacy LED chips and a 2-step dip switch for CCT adjustment. It adopts an optical lens with two beam angle options: 50° and 90°,and it is a family design, available at recessed and surface mounted version. The recessed one has tilted and fixed type for options, and it is less than 40 mm, making it suitable for ultra-thin ceiling installations. It offers wide applicability and high cost performance, with simple installation.
Applications: Ideal for general lighting in offices, supermarkets, shops, schools, and hotels. It is also widely used in public areas such as staircases, lobbies, receptions, and corridors.
| Code | CL488-3-8W | CL488-3-10W | DL488A-3-8W | DL488A-3-10W | DL488B-3-10W-D2C2 | ||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø110*40 | Ø110*38 | Ø90*94 | ||||
| Cutout(mm) | Ø90 | - | |||||
| Watt(W) | 8W | 10W | 8W | 10W | 10W/8W | ||
| Rated Input Voltage | AC220-240V | ||||||
| Input Voltage | AC198-264V | ||||||
| LED Module Input | DC104-110V | - | |||||
| Light Source | SMD | ||||||
| SDCM | SDCM<6 | ||||||
| CCT(K) | 3-CCT: 3000K+4000K+5700K | ||||||
| CCT Selection | By DIP Switch | ||||||
| Luminous Flux (lm) ±5% | 3-CCT | DIM | 830-870 | 980-1050 | 830-880 | 1000-1070 | 10W: 920-1020 |
| CRI90 | 8W: 780-840 | ||||||
| CRI | CRI80 | ||||||
| Beam Angle(°) | 50°/90° | ||||||
| UGR | <19 (50°) | <22 (50°) | <19 (50°) | <22 (50°) | 8W<19, 10W<22 (50°) | ||
| LED Driver | Built-out, Flicker Free | ||||||
| Dimming Option | Triac | ||||||
| Sensor | NO | ||||||
| Emergency Kits | NO | ||||||
| Electrical Class | Class II | ||||||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP20(Inside Ceiling) | IP54 | |||||
| Impact Resistance(IK Rating) | IK03 | ||||||

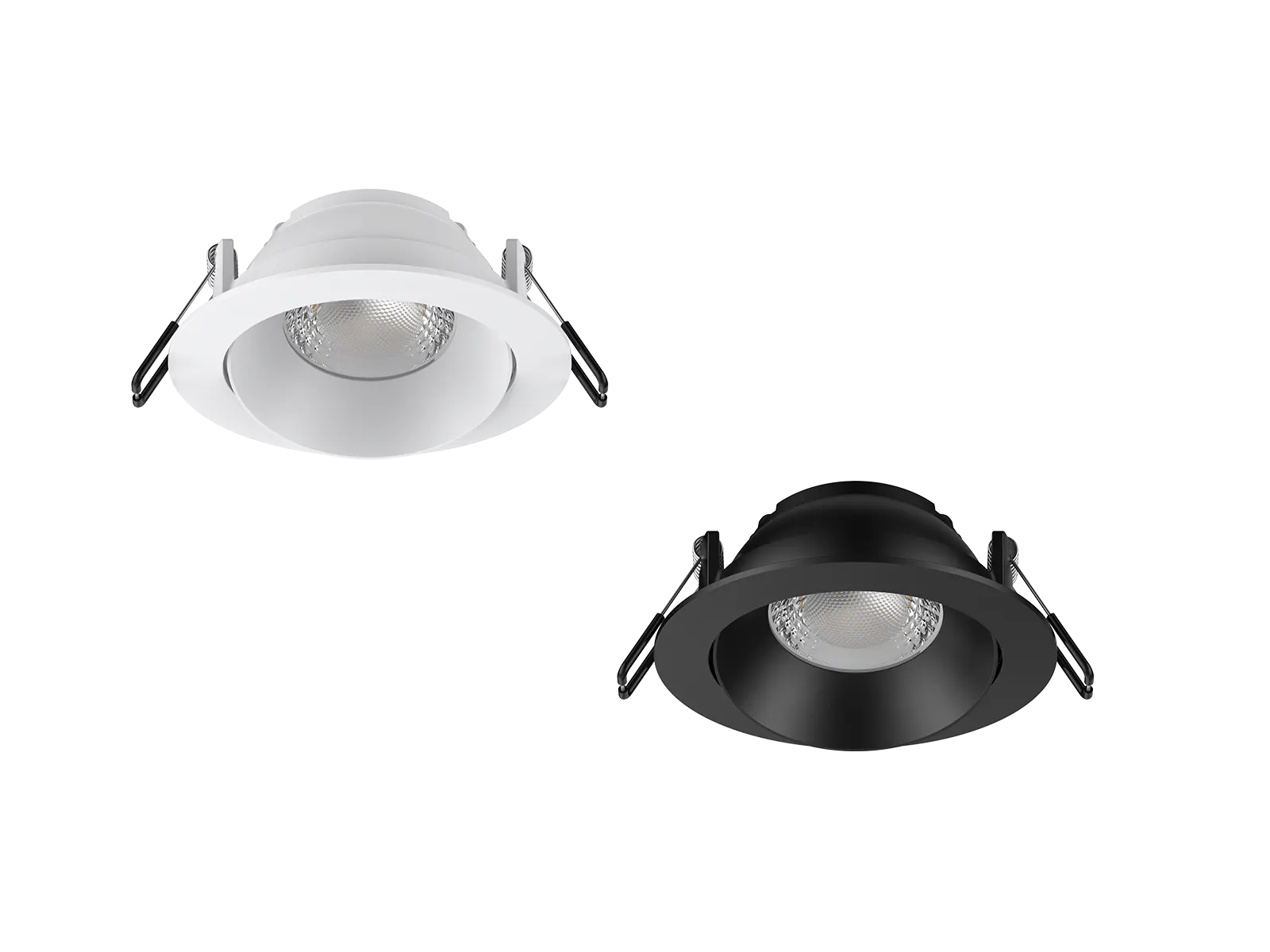

| Product Finishing | White RAL9016/ Black RAL9005 | ||||||
| Optics Material | Lens/PC | ||||||
| Housing Material | Plastic coated Aluminium | ||||||
| Lifetime(hr) | 50,000h | ||||||
| Glow wire test(°C) | 750°C | ||||||
| Operating Temp.(°C) | -20°C ~ 40°C (25°C IC-rated) | -10°C ~ 40°C | |||||
| Storage Temp.(°C) | -20°C ~ 65°C | ||||||
| Installation | Recessed | Ceiling surface mount | |||||
