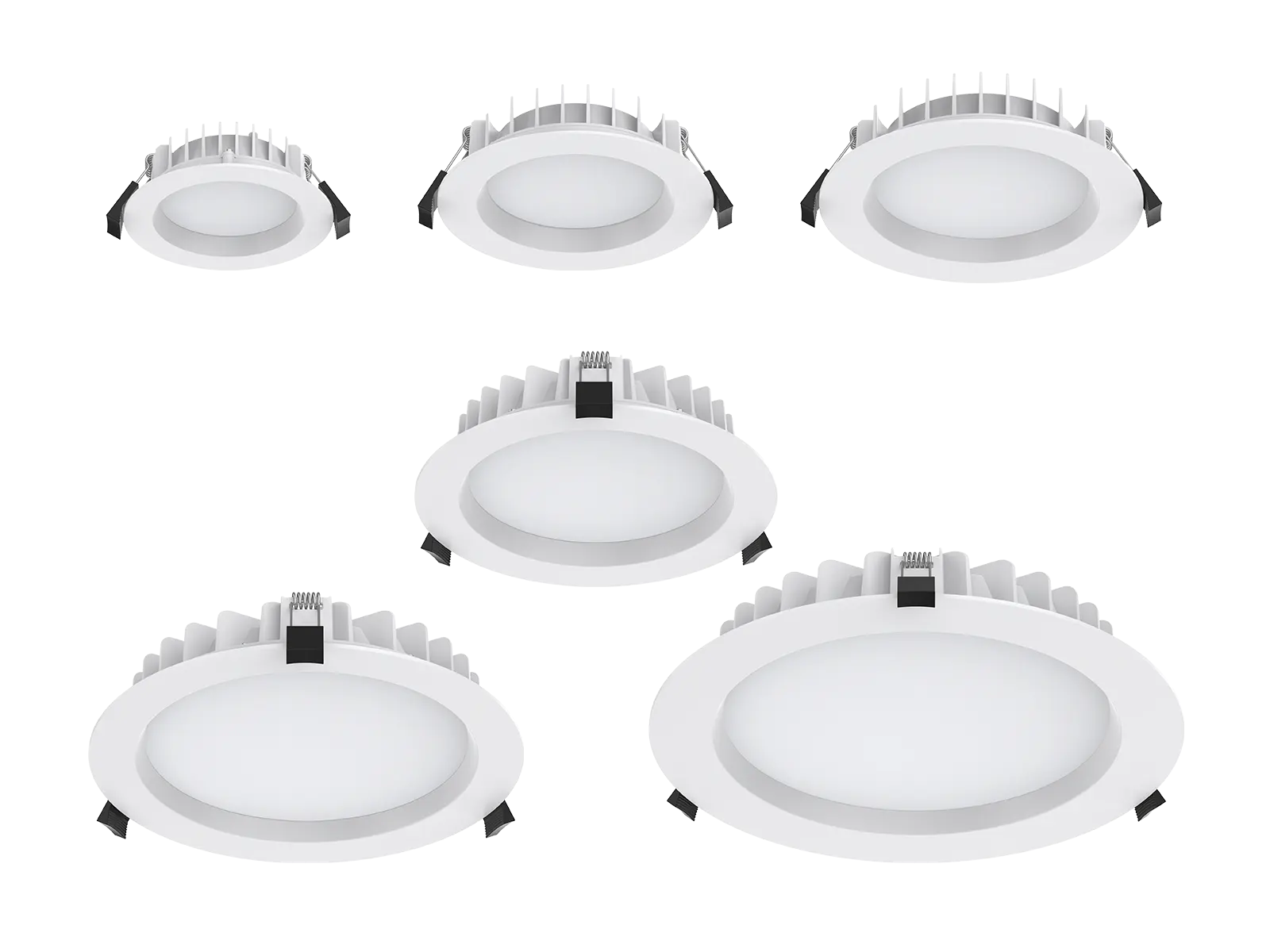

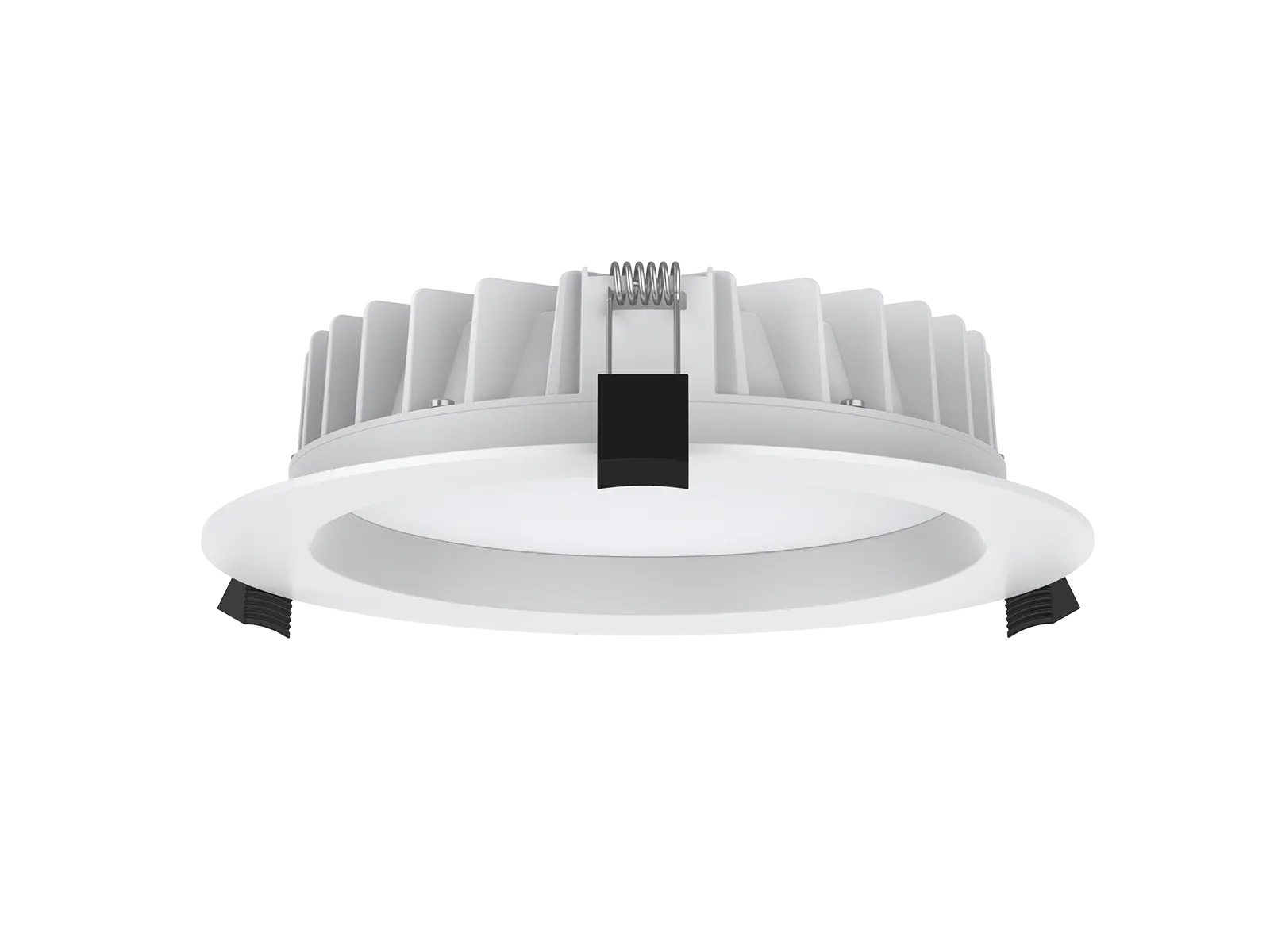

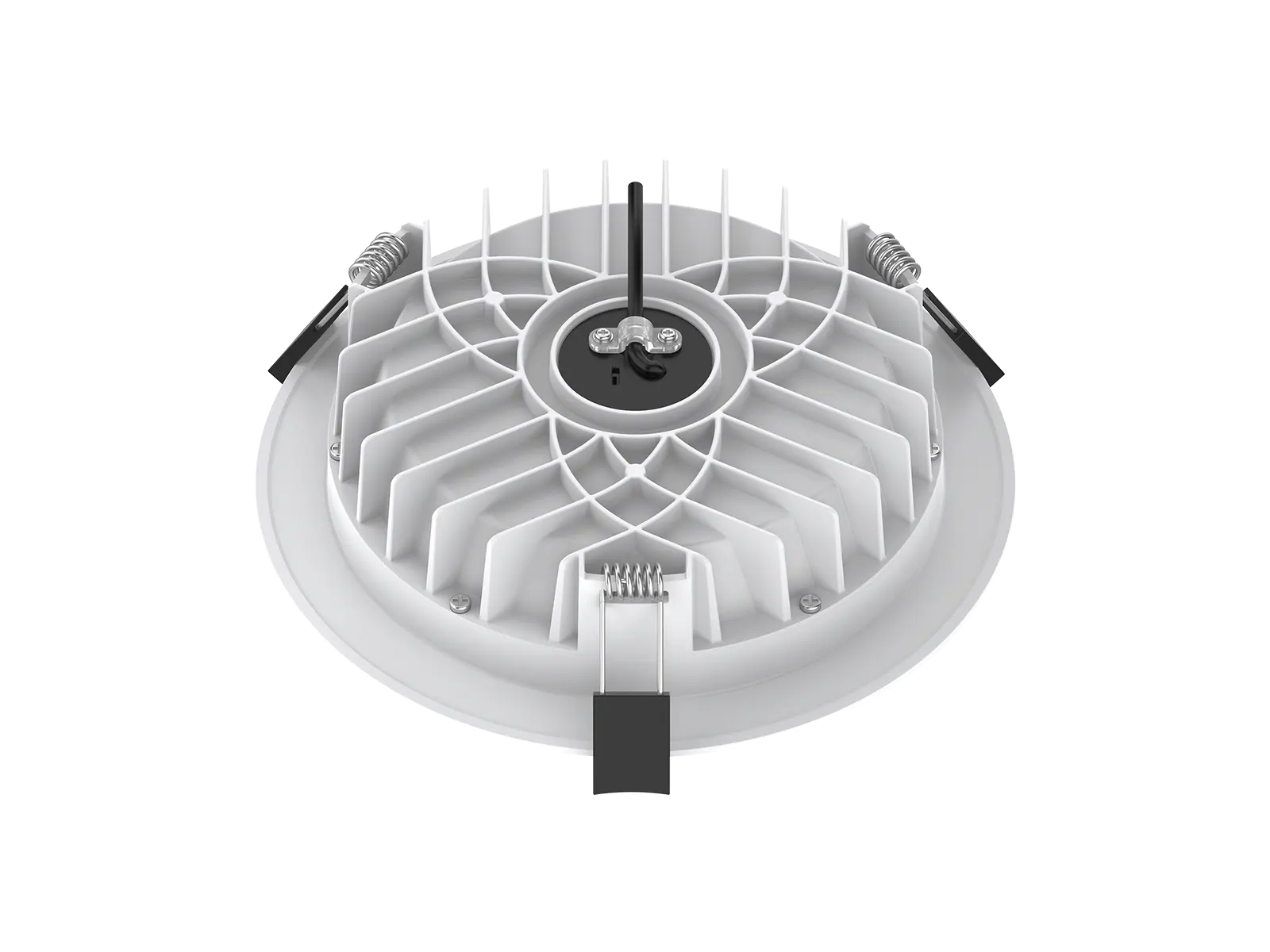

The CL59 G3.0 is an upgraded generation of CL59A G2.0. Structural follows version G2.0: has undergone structural improvements, resulting in a more streamlined heat sink and a more elegant and stylish appearance. It features a more high lumen SMD LED and PC diffuser, which ensures uniform lighting and high light efficiency. It can do single CCT and CCT changeable, functions has on/off and traic dimmable etc.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | CL59A-3-10W | CL59A-3-13W | CL59A-4-12W | CL59A-4-15W | CL59A-5-18W | CL59A-6-18W | CL59A-6-25W | CL59A-8-25W | CL59A-8-35W | CL59A-10-35W | CL59A-10-40W | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø110*44 | Ø145*48 | Ø170*49 | Ø190*49 | Ø228*48 | Ø280*56 | |||||||
| Cutout(mm) | Ø90-95 | Ø120-130 | Ø140-150 | Ø160-170 | Ø200-210 | Ø230-260 | |||||||
| Watt(W) | 10W | 13W | 12W | 15W | 18W | 18W | 25W | 25W | 35W | 35W | 40W | ||
| Rated Input Voltage | AC198-264V | ||||||||||||
| Input Voltage | AC220-240V | ||||||||||||
| LED Module Input | DC33-38V | ||||||||||||
| Light Source | SMD | ||||||||||||
| SDCM | <6 | ||||||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K||3-CCT:3000K+ 4000K+5700K | ||||||||||||
| CCT Selection DIP Switch | YES | ||||||||||||
| 1-CCT | Non-DIM | 1210-1220 | 1580-1610 | 1510-1580 | 1890-2060 | 2160-2310 | 2360-3610 | 3090-3170 | 3090-3360 | 4460-4900 | 5020-5470 | 5540-5980 | |
| Luminous Flux (lm) ±5% | DIM | 1150-1180 | 1420-1530 | 1390-1490 | 1760-1930 | 2160-2230 | 2290-3490 | 2910-3250 | 2890-3120 | 4290-5070 | 4740-4910 | 5410-5800 | |
| CRI80 | 3-CCT | Non-DIM | 1200-1220 | 15401590 | 1430-1580 | 1670-1840 | 2390-2590 | 2390-2610 | 3100-3380 | 3300-3580 | 4380-4790 | 5080-5410 | 5560-5960 |
| DIM | 1120-1130 | 1430-1480 | 1340-1430 | 1580-1750 | 2090-2240 | 2260-2500 | 3020-3270 | 3200-3470 | 4560-4830 | 4920-5360 | 5100-5490 | ||
| 1-CCT | Non-DIM | 1140-1210 | 1490-1580 | 1400-1530 | 1830-2040 | 2310-2560 | 2530-2590 | 3120-3410 | 3450-3460 | 4600-5140 | 4570-5680 | 4770-1980 | |
| Luminous Flux (lm) ±5% | DIM | 1070-1180 | 1370-1420 | 1320-1430 | 1710-1910 | 2260-2430 | 2420-2480 | 3000-3310 | 3310-3350 | 4390-5010 | 4910-5320 | 4660-1800 | |
| CRI80(UGR) | 3-CCT | Non-DIM | 1170-1200 | 1530-1540 | 1430-1540 | 1880-2040 | 2330-2510 | 2430-2480 | 3030-3260 | 3240-3490 | 4580-4980 | 5320-5680 | 5510-5930 |
| DIM | 1020-1130 | 1400-1480 | 1420-1510 | 1760-1860 | 2090-2310 | 2310-2340 | 2910-3030 | 3120-3360 | 4380-4820 | 5200-5410 | 5410-5780 | ||
| CRI | 80 | ||||||||||||
| Beam Angle(°) | Standard version : 100° / Anti-glare version: 80 ° | ||||||||||||
| UGR | - | ||||||||||||
| LED Driver | Driver built-out | ||||||||||||
| Dimming Option | Triac | ||||||||||||
| Sensor | - | ||||||||||||
| Emergency Kits | - | ||||||||||||
| Electrical Class | Class II | ||||||||||||
| Ingress Protection(IP Rating) | IP65(Below Ceiling), IP20(Inside Ceiling) | ||||||||||||
| Impact Resistance(IK Rating) | IK06 | ||||||||||||
| Product Finishing | White RAL9016 | ||||||||||||
| Optics Material | PC | ||||||||||||
| Housing Material | Die-Casting Aluminium | ||||||||||||
| Lifetime(hr) | 50,000h | ||||||||||||
| Glow wire test(°C) | 750°C | ||||||||||||
| Operating Temp.(°C) | -20°C ~45°C | ||||||||||||
| Storage Temp.(°C) | -20°C ~65°C | ||||||||||||
| Installation | Recessed | ||||||||||||
