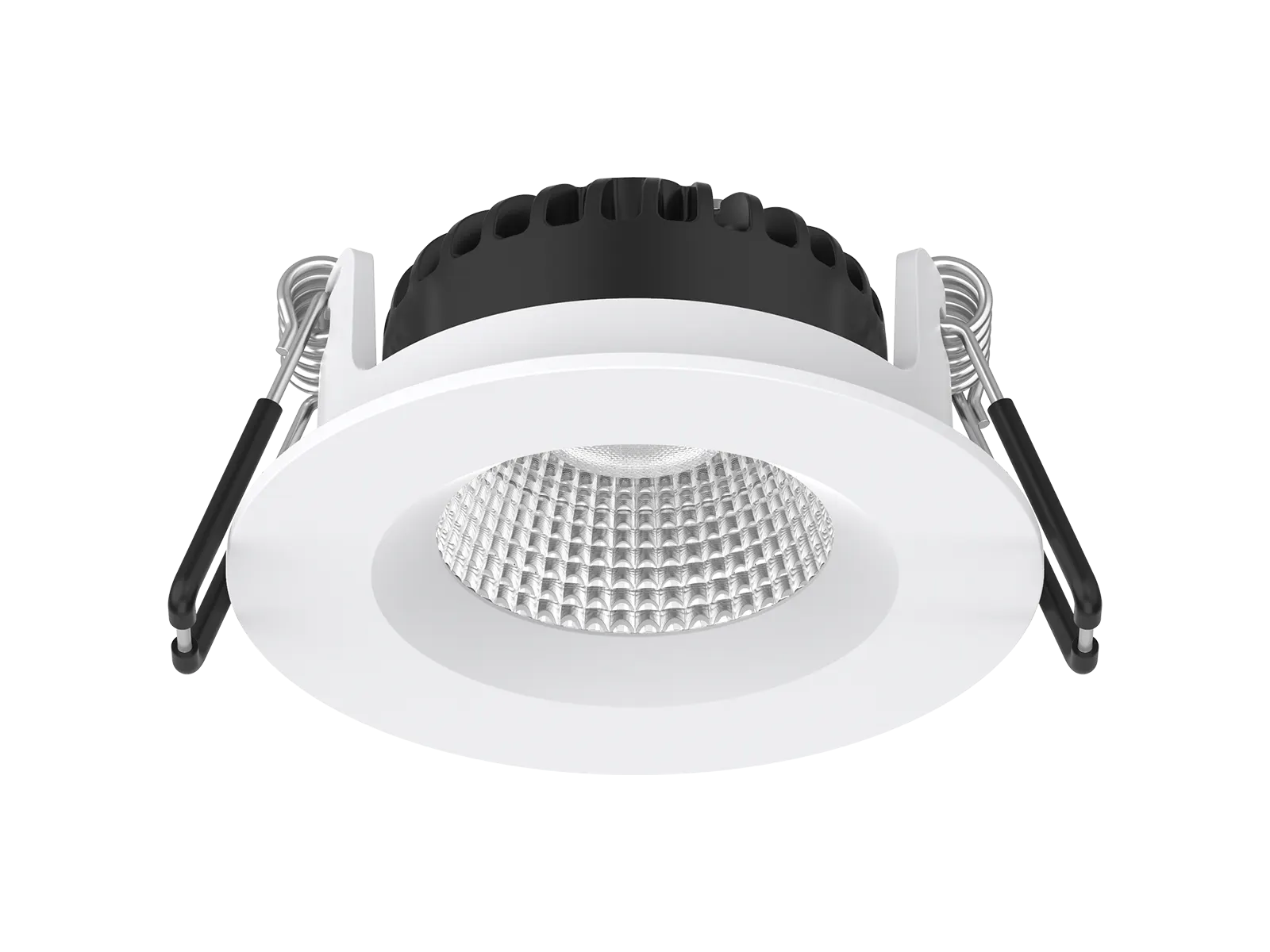

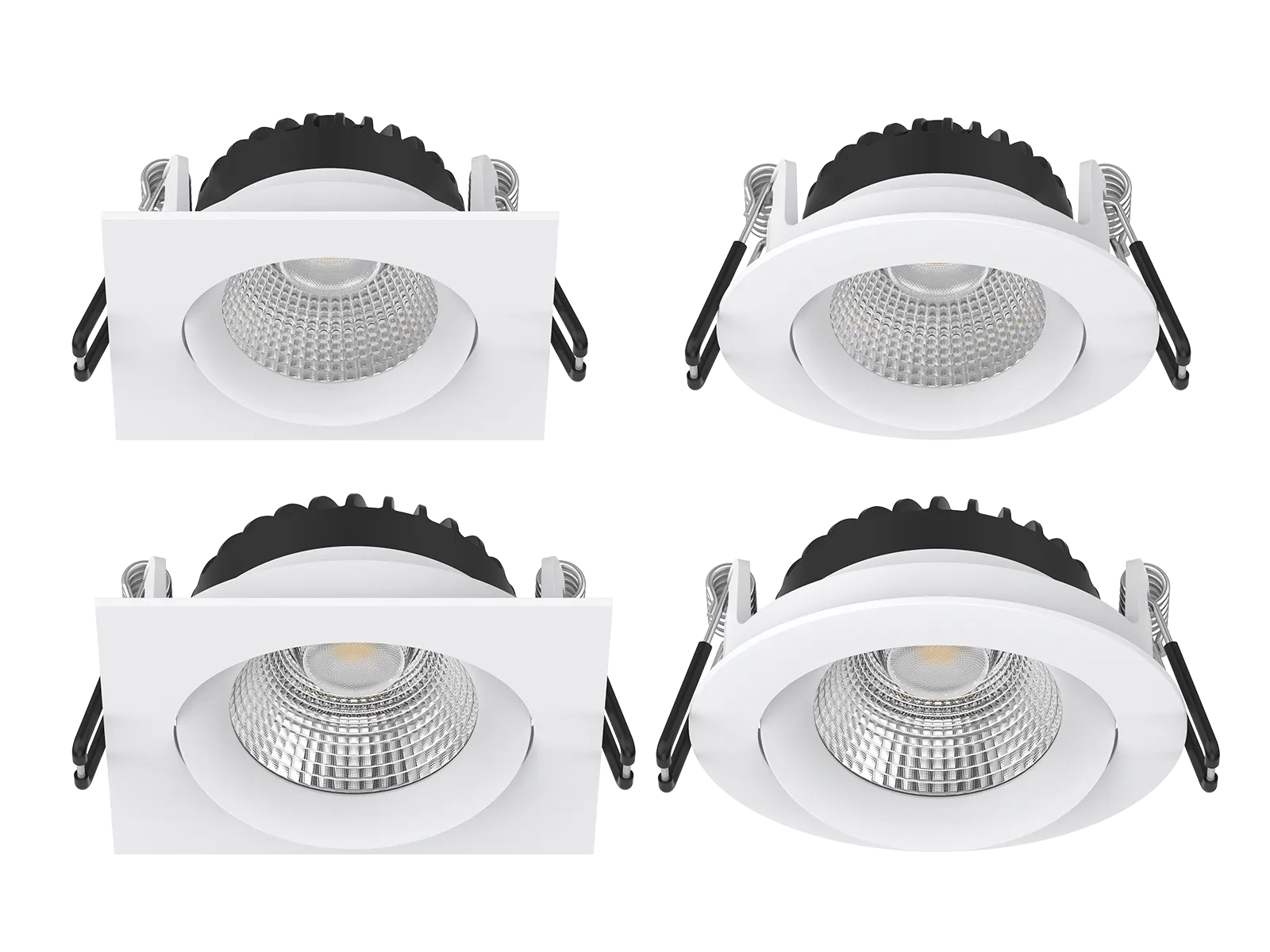

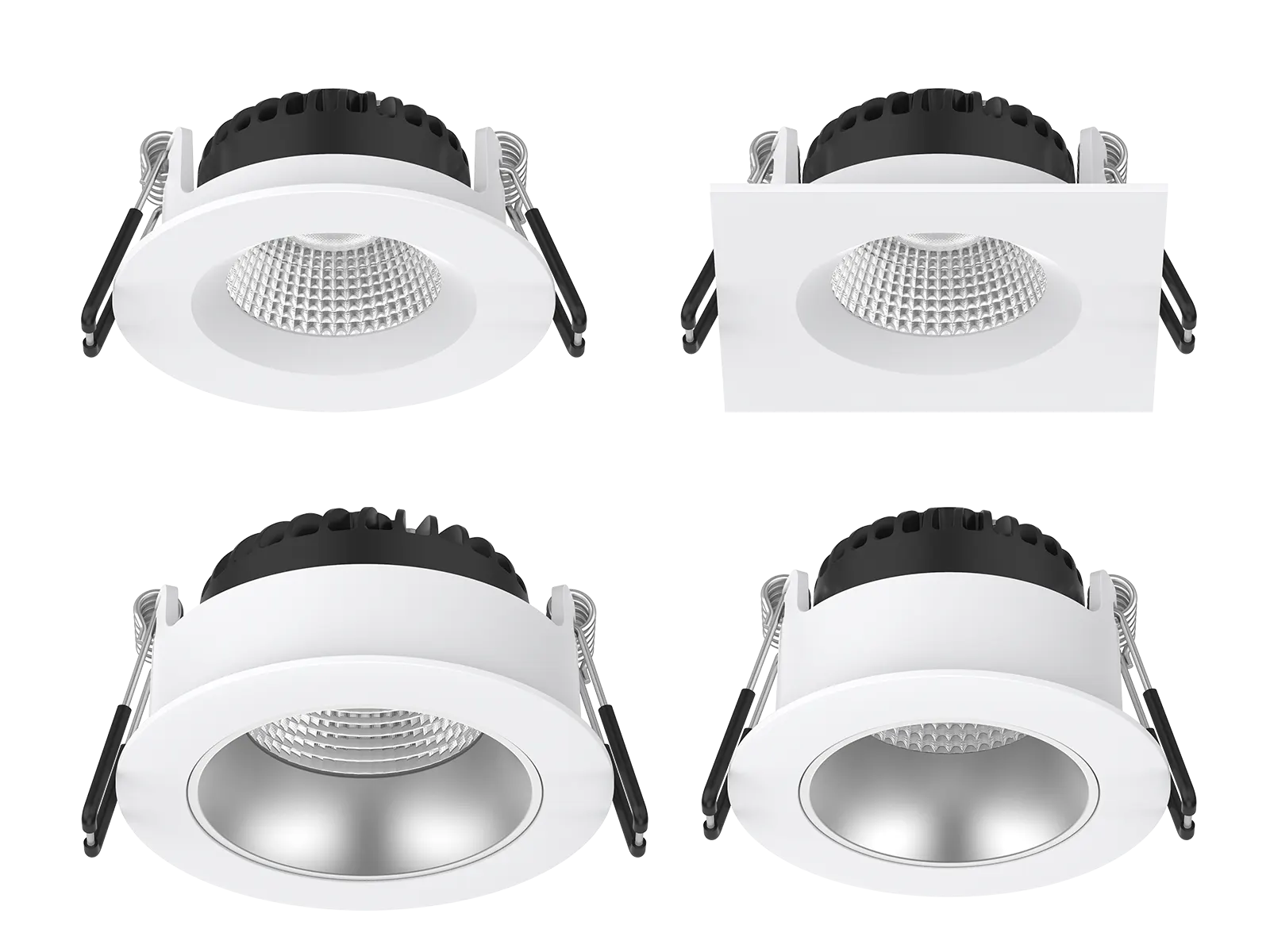

DL462 Series is a compact and refined modular design, the different trims are interchangeable, which meets different needs for our customer. The trim comes in three types: fixed, adjustable and deep trim, the fixed and adjustable trims have both round and square shape for options, The anti glare cover for the deep trim is also interchangeable, and it features three matte finishes: white, black, and silver.
The lens adopts an anti-glare optical design, achieving an efficiency of 100 lm/W. The housing is made of ADC12 aluminum alloy, which offers excellent heat dissipation. With a total height of only 40mm, the fixture is ideal for Nordic-style home renovations where installation height is often limited and it is 25°C IC Rated.
Applications: It is suitable for various application like hotels, bathrooms, lobbies, corridors, living rooms, offices, small furniture display cabinets, and more.
| Code | CL462A-2.5-6W | CL462A-3-8W | ||||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø80*H40 | L80*W80*H40 | Ø90*H40 | L90*W90*H40 | ||
| Cutout(mm) | Ø68 | Ø83 | ||||
| Watt(W) | 6W | 8W | ||||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | <5 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K || 3-CCT: 3000K+4000K+5000K | |||||
| CCT Selection | By DIP Switch | |||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | DIM | 540-620 | 540-620 | 720-820 | 720-820 |
| 3-CCT | DIM | 520-590 | 520-590 | 695-775 | 695-775 | |
| CRI | CRI90 | |||||
| Beam Angle(°) | 36°/60° | |||||
| UGR | 36°<19 | 60°<22 | ||||
| LED Driver | Built-out/Flicker Free | |||||
| Dimming Option | Triac | |||||
| Emergency Kits | NO | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP65 module, IP20 back side | |||||
| Impact Resistance(IK Rating) | IK06 | |||||
| Product Finishing | White RAL9016+Black RAL9005 | |||||
| Optics Material | PC | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°(25°C IC-rated) | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Recessed | |||||
| Code | DL462A-2.5-6W | DL462A-3-8W | ||||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø80*H40 | L80*W80*H40 | Ø80*H55 | Ø90*H52 | ||
| Cutout(mm) | Ø68 | Ø83 | ||||
| Watt(W) | 6W | 8W | ||||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | <5 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K || 3-CCT: 3000K+4000K+5000K | |||||
| CCT Selection | By DIP Switch | |||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | DIM | 540-620 | 540-620 | 510-600 | 750-820 |
| 3-CCT | DIM | 520-590 | 500-590 | 500-580 | 630-775 | |
| CRI | CRI90 | |||||
| Beam Angle(°) | 36°/60° | |||||
| UGR | 36°<19 | 60°<22 | ||||
| LED Driver | Built-out/Flicker Free | |||||
| Dimming Option | Triac | |||||
| Emergency Kits | NO | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP65 luminaire front side, IP50 back side | |||||
| Impact Resistance(IK Rating) | IK06 | |||||
| Product Finishing | White RAL9016+Black RAL9005 | |||||
| Optics Material | PC | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C(25°C IC-rated) | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Recessed | |||||
| Code | CL462B-2.5-6W | CL462B-3-8W | ||||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø80*H40 | L80*W80*H40 | Ø90*H40 | L90*W90*H40 | ||
| Cutout(mm) | Ø68 | Ø83 | ||||
| Watt(W) | 6W | 8W | ||||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | <5 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K || 3-CCT: 3000K+4000K+5000K | |||||
| CCT Selection | By DIP Switch | |||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | DIM | 520-600 | 520-600 | 700-800 | 700-800 |
| 3-CCT | DIM | 500-580 | 500-580 | 660-740 | 660-740 | |
| CRI | CRI90 | |||||
| Beam Angle(°) | 36°/60° | |||||
| UGR | 36°<19 | 60°<22 | ||||
| LED Driver | Built-out/Flicker Free | |||||
| Dimming Option | Triac | |||||
| Emergency Kits | NO | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP65 module, IP20 back side | |||||
| Impact Resistance(IK Rating) | IK06 | |||||
| Product Finishing | White RAL9016+Black RAL9005 | |||||
| Optics Material | PC | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C(25°C IC-rated) | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Recessed | |||||
| Code | DL462B-2.5-6W | DL462B-3-8W | ||||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø80*H40 | L80*W80*H40 | Ø80*H55 | Ø90*H52 | ||
| Cutout(mm) | Ø68 | Ø83 | ||||
| Watt(W) | 6W | 8W | ||||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | <5 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K || 3-CCT: 3000K+4000K+5000K | |||||
| CCT Selection | By DIP Switch | |||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | DIM | 520-600 | 520-600 | 500-580 | 690-795 |
| 3-CCT | DIM | 500-580 | 500-580 | 480-560 | 620-705 | |
| CRI | CRI90 | |||||
| Beam Angle(°) | 36°/60° | |||||
| UGR | 36°<19 | 60°<22 | ||||
| LED Driver | Built-out/Flicker Free | |||||
| Dimming Option | Triac | |||||
| Emergency Kits | NO | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP65 luminaire front side, IP50 back side | |||||
| Impact Resistance(IK Rating) | IK06 | |||||
| Product Finishing | White RAL9016+Black RAL9005 | |||||
| Optics Material | PC | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C(25°C IC-rated) | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Recessed | |||||
