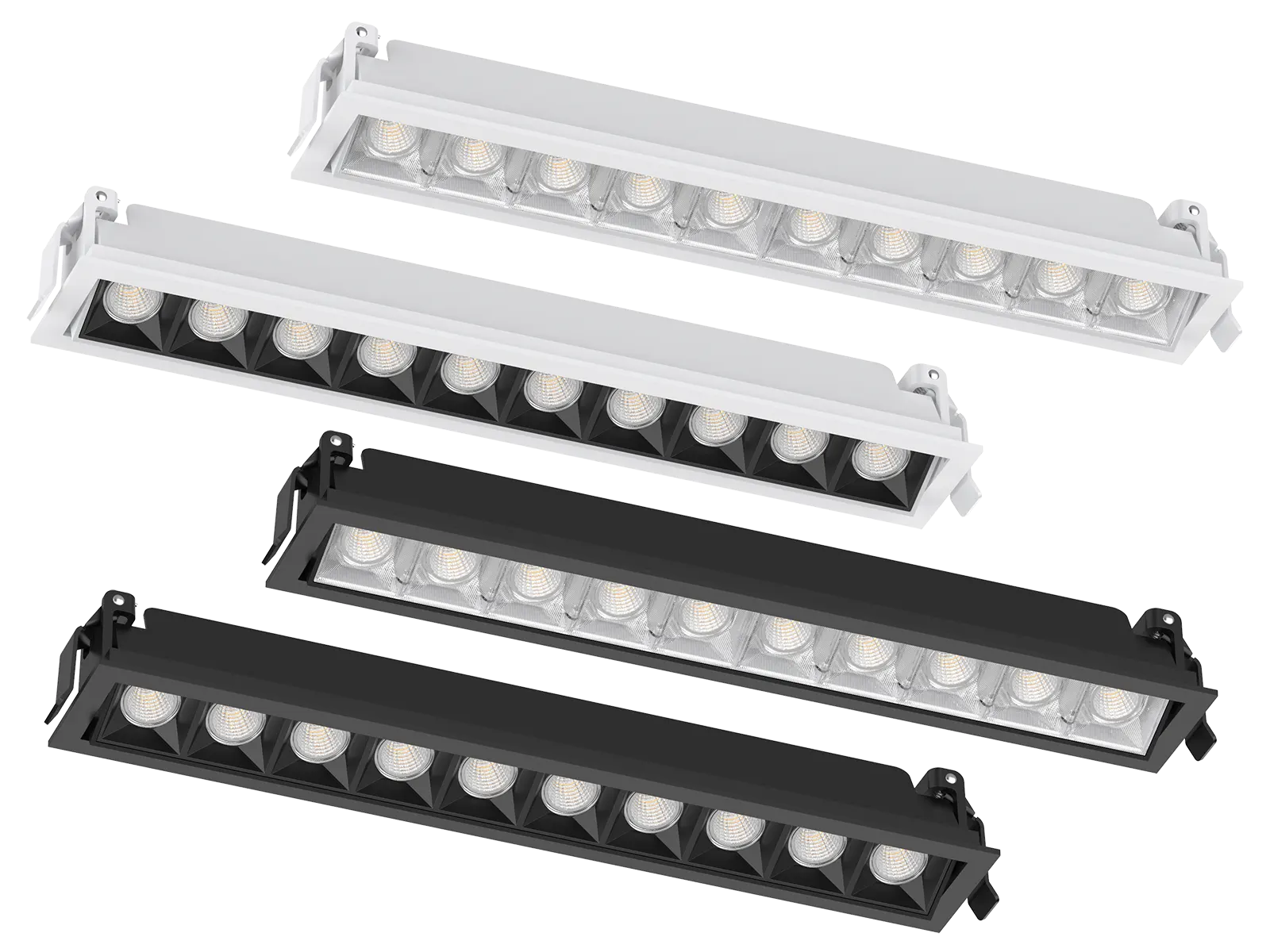

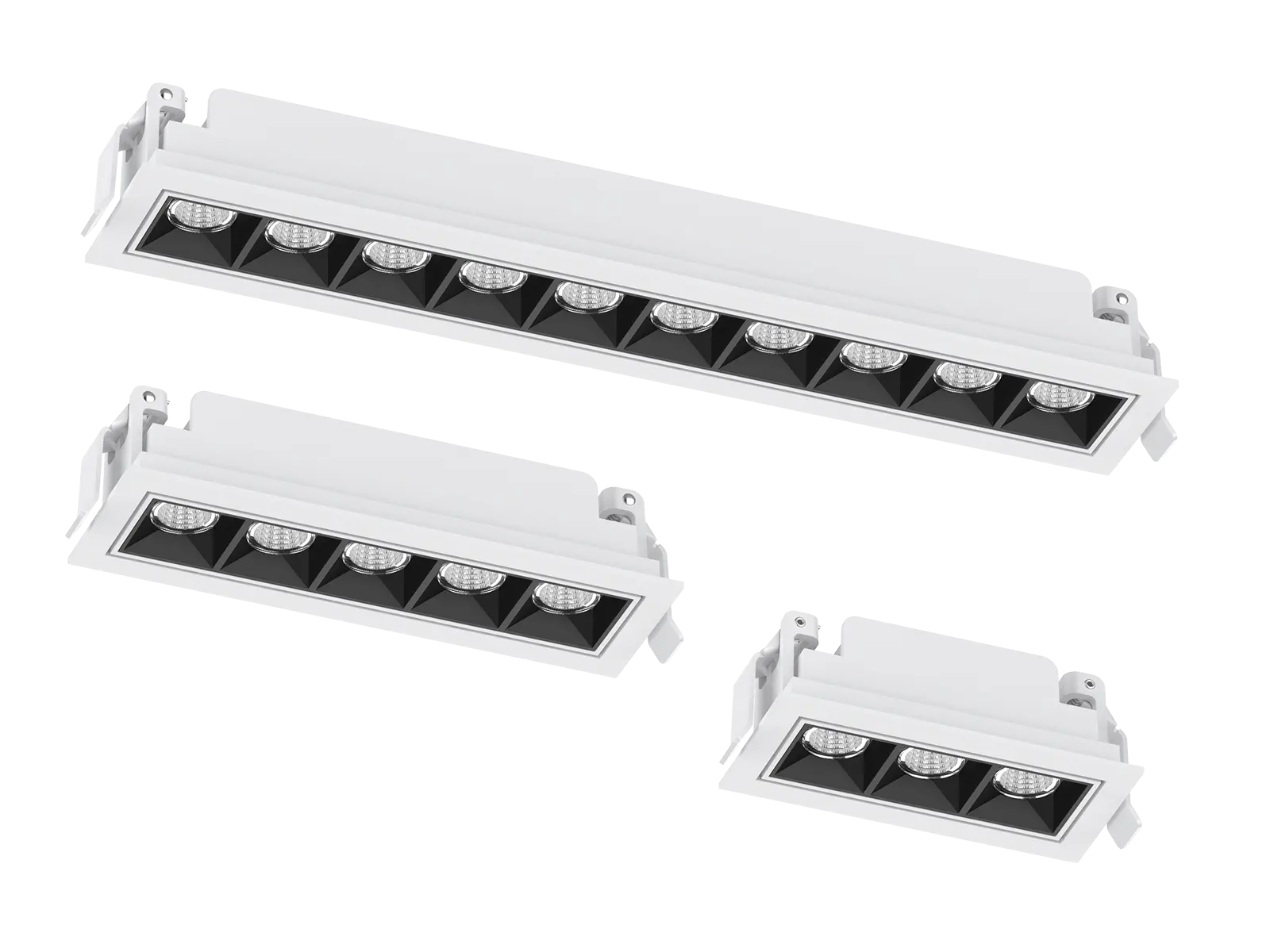

This is a linear recessed downlight, it adopts SMD light source with high lumen output and high color rendering index. The modular lens and multi-louver reflector design achieve anti-glare with a UGR<19 effect. The housing is made of die-cast ADC12 material, it offers excellent thermal management and long lifespan. With its elegant and minimalist appearance, it is an ideal choice for modern interior design. Available in various sizes to meet different application needs, this fixture ensures optimal lighting with uniform light distribution.
Applications: It is designed for general lighting applications in residential areas, such as living rooms, kitchens, bedrooms, and bathrooms.
| Code | CL452-114-6W | CL452-174-10W | CL452-324-20W | ||
|---|---|---|---|---|---|
| Dimension(mm) | L114*W53*H42 | L174*W53*H42 | L324*W53*H42 | ||
| Cutout(mm) | 105*45 | 165*45 | 315*45 | ||
| Watt(W) | 6W | 10W | 20W | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | DC33-38V | ||||
| Light Source | SMD | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K | ||||
| CCT Selection DIP Switch | NO | ||||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | 500-550 | 870-920 | 1790-1850 |
| CRI90 | DIM | 460-500 | 870-920 | 1760-1800 | |
| CRI | 90 | ||||
| Beam Angle(°) | 30°/45° | ||||
| UGR | <16 | <13 | |||
| LED Driver | Built-out, Flicker Free | ||||
| Dimming Option | Triac | ||||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK03 | ||||
| Product Finishing | White RAL9016/Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | Die-Casting Aluminium | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp(°C) | -20°C~45°C | ||||
| Storage Temp(°C) | -20°C~65°C | ||||
| Installation | Recessed | ||||
