CL444 LED Downlight

This is a versatile light that can switch between fixed and adjustable head configurations by simply changing the frame ring. 40mm height can fit to more ceilings and can be covered directly under insulation material. It features high-lumen SMD light sources with 3CCT adjustment. The ADC12 aluminum lamp body provides excellent heat dissipation. For quick install, it adopts loop in/out design driver with fast connector. Suitable for covering with insulation material directly
  • 18° tilted design, interchangeable fixed and tilted
  • Adjustable CCT 2700K+3000K+4000K
  • CRI80 110lm/w; CRI90 100lm/W
  • IP65 for front cover

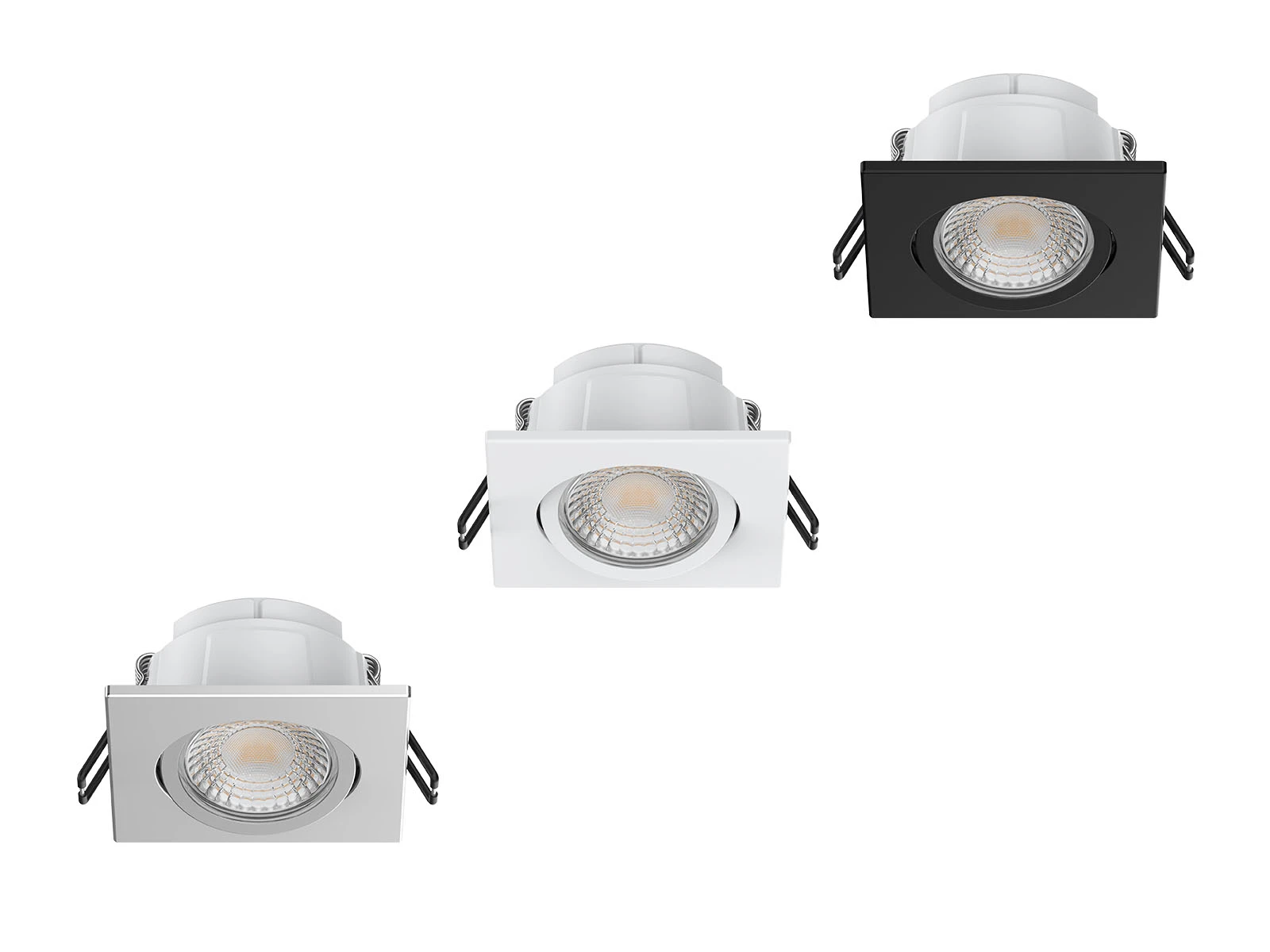

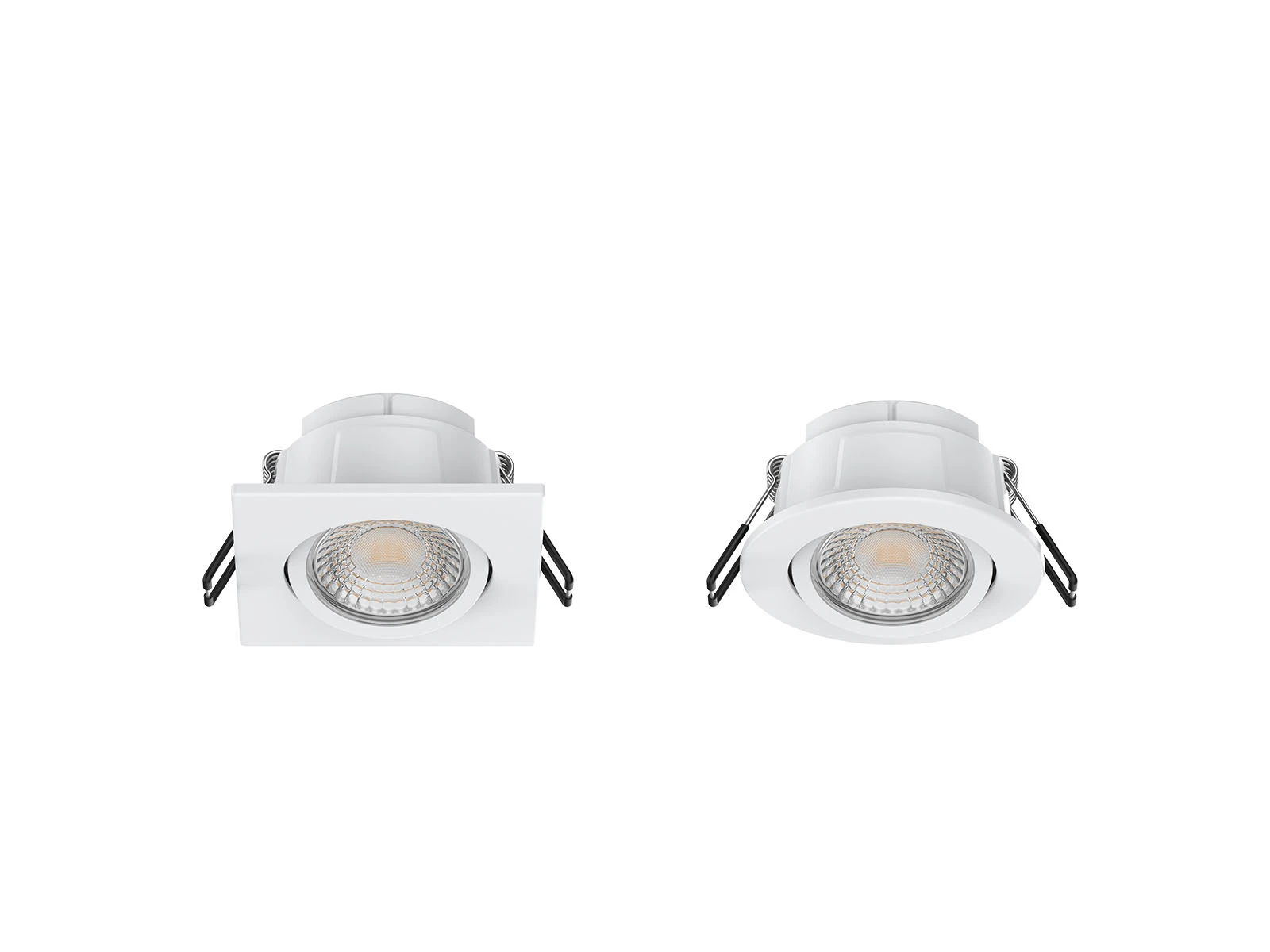

  • Square and round frame ring with black, white and brushed nickel
  • Easy installation with push terminals, loop-in / out design
  • Dimming way: Triac
  • External flicker free driver
APPLICATIONS: It is designed for general lighting applications in supermarket, shop, school, hotel etc. It is also widely used for residential lighting areas, such as bedroom, living room, corridors etc.
CODE CL444-2.5-5W CL444S-2.5-5W

Dimension(mm)

Ø82*H40

L82*W82*H40

Cutout(mm)

68-75

Watt(W)

5W

Input Voltage

AC230V

LED Module Input

DC33-38V

Light Source

SMD

CCT(K)

3-CCT: 2700K + 3000K + 4000K

CCT Selection DIP Switch

YES

Luminous Flux (lm) ±5%

CRI80

3-CCT

Non-DIM

-

DIM

520-560

Luminous Flux (lm) ±5%

CRI90

3-CCT

Non-DIM

-

DIM

450-480

Beam Angle (°)

60°

Dimming Option

Triac

Product weight(Kg)

N.W/PC

0.19

G.W/PC

0.29

Package weight(Kg)

N.W/CTN

9.12

G.W/CTN

15.2

Qty/CTN (PCS)

48

Carton Size(mm)

500*380*270mm

20GP(pcs)

25344

40HQ(pcs)

59616
