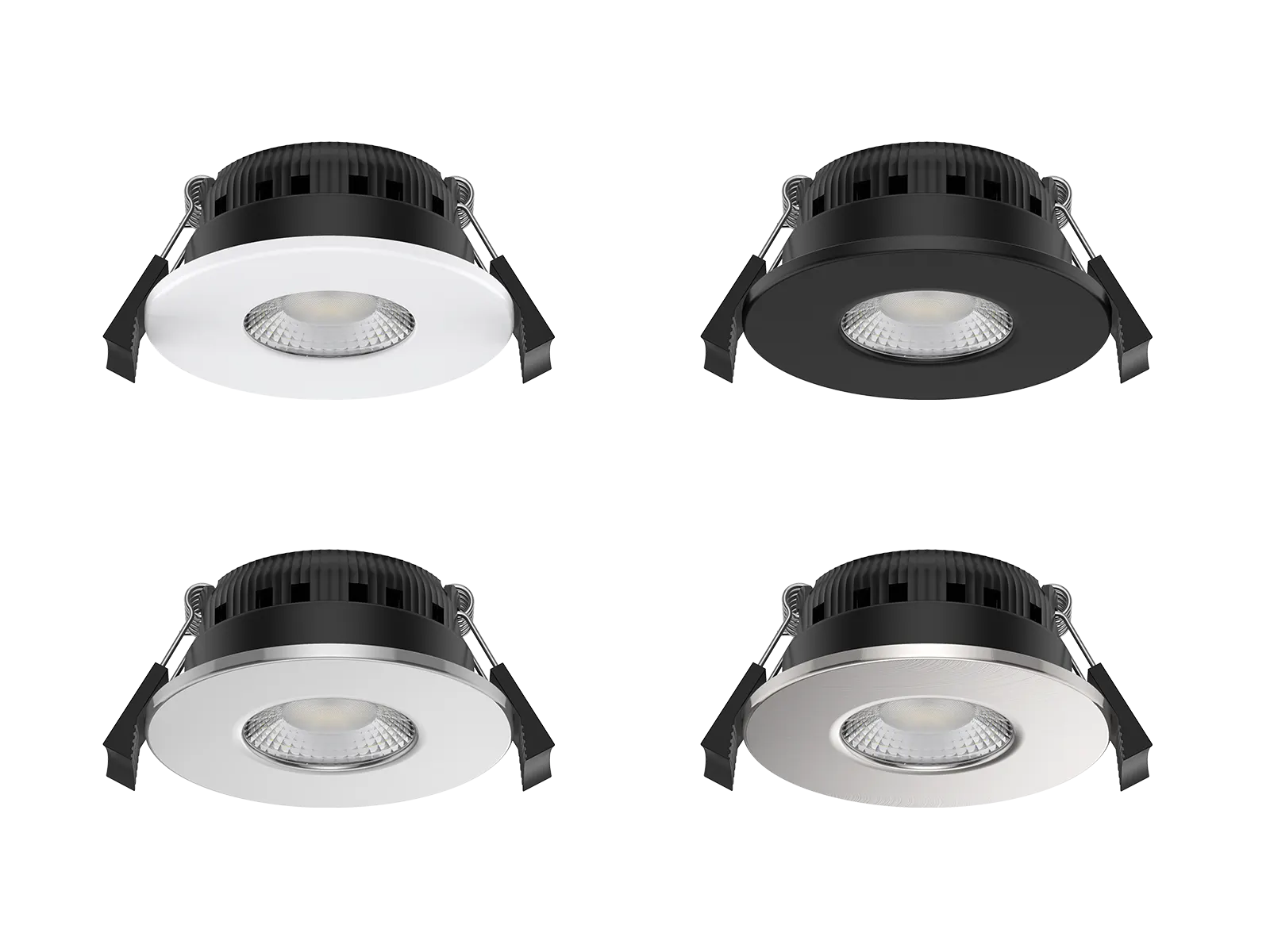

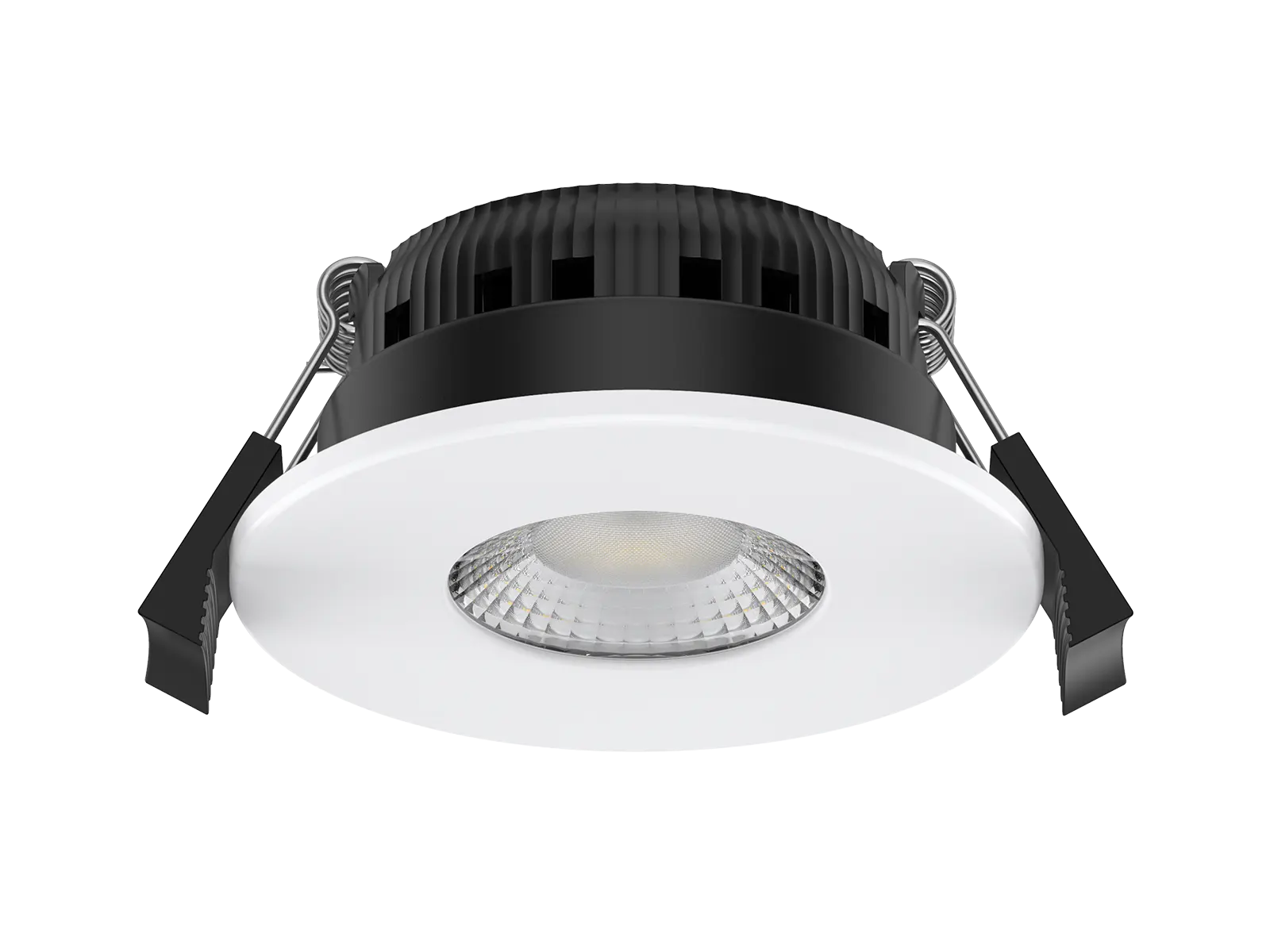

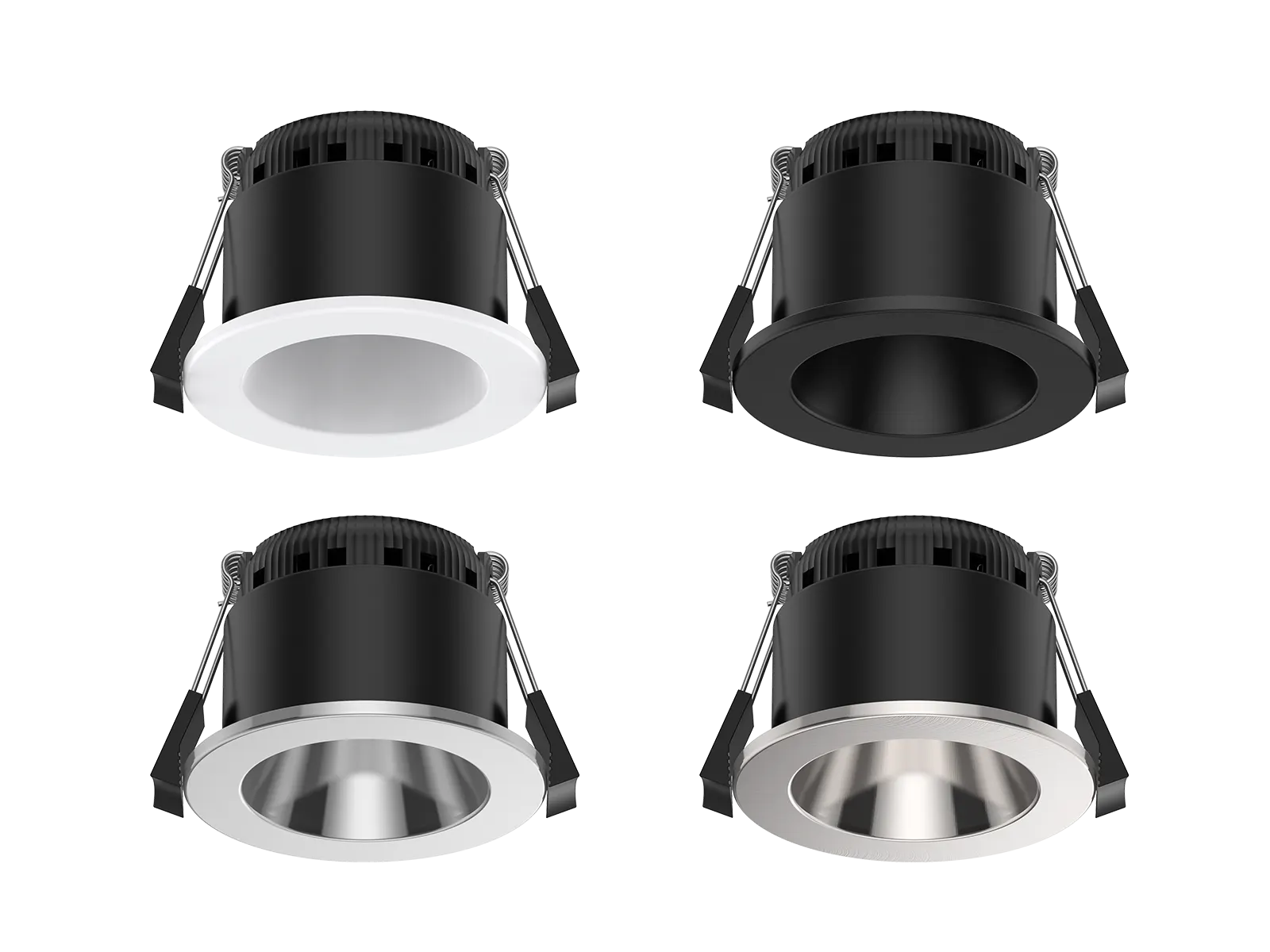

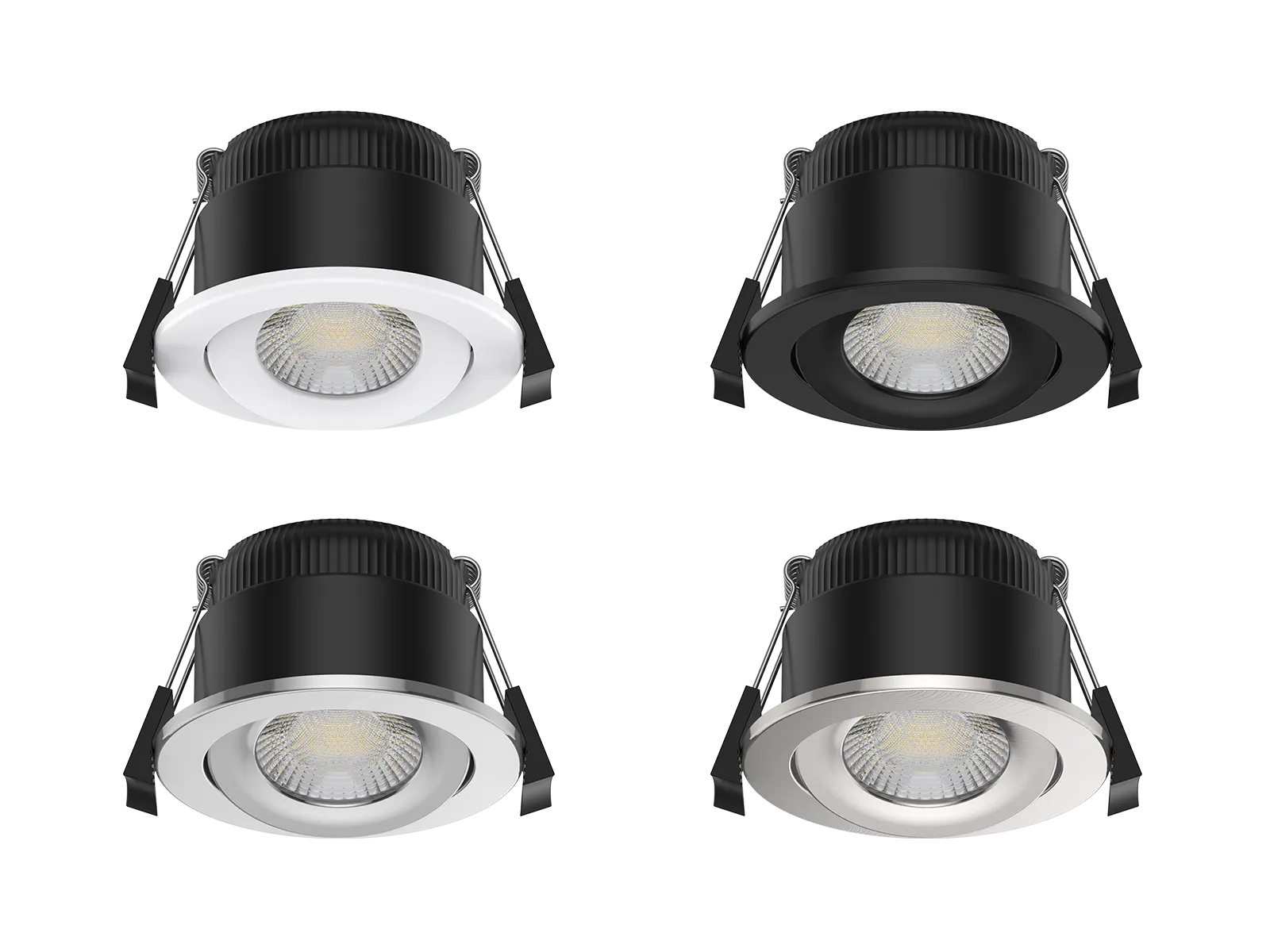

DL/CL439 is a fireproof downlight designed for the UK market, available in fixed and adjustable options, suitable for various installation environments. It features SMD high-efficiency light source and a high light transmittance lens. It has switchable CCT and wattage,as well as IP65 waterproofing for use in various installation environments. It comes with plug-and-play connectors for quick wiring, making installation convenient.
Applications: It is designed for general lighting applications in supermarket, shop, hotel, home etc
| CODE | CL439-2.5-6W | DL439A-2.5-6W | DL439B-2.5-6W | |||||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø85*50 | Ø85*35 | Ø85*60 | |||||
| Cutout(mm) | Ø68-Ø75 | Ø68-Ø75 | Ø68-Ø75 | |||||
| Watt(W) | 4W | 6W | 4W | 6W | 4W | 6W | ||
| Input Voltage | AC220-240V | |||||||
| Light Source | SMD | |||||||
| CCT(K) | 1-CCT: 3000K / 4000K/5000K/5700K || 4-CCT: 2700K+3000K+4000K+6500K | |||||||
| CCT Selection DIP Switch | YES | |||||||
| White | 490-560 | 720-820 | 500-560 | 730-810 | 500-550 | 740-800 | ||
| 1-CCT | Black | 480-550 | 700-800 | 470-550 | 630-720 | 490-540 | 620-710 | |
| Luminous Flux (lm) ±5% | Chrome | 500-560 | 720-820 | 480-560 | 730-810 | 500-550 | 730-800 | |
| CRI80 | White | 520-570 | 670-730 | 500-570 | 720-780 | 470-530 | 680-770 | |
| 4-CCT | Black | 490-530 | 620-680 | 470-530 | 690-760 | 460-520 | 670-760 | |
| Chrome | 510-570 | 650-710 | 490-560 | 710-780 | 470-530 | 680-770 | ||
| Beam Angle(°) | 60° | |||||||
| Dimming Option | Triac | |||||||
| Product weight(Kg) | N.W/PC | 0.275 | 0.27 | 0.28 | ||||
| G.W/PC | 0.34 | 0.33 | 0.35 | |||||
| Package weight(Kg) | N.W/CTN | 12.3 | 11.9 | 12.6 | ||||
| G.W/CTN | 13.45 | 13 | 13.8 | |||||
| Qty/CTN(PCS) | 36 | 36 | 36 | |||||
| Carton Size(cm) | 42.5*41*30.5 | 41*28.5*35.5 | 42.5*41*34.5 | |||||
| 20GP(pcs) | 17640 | 23760 | 15120 | |||||
| 40HQ(pcs) | 40320 | 55440 | 35280 | |||||
