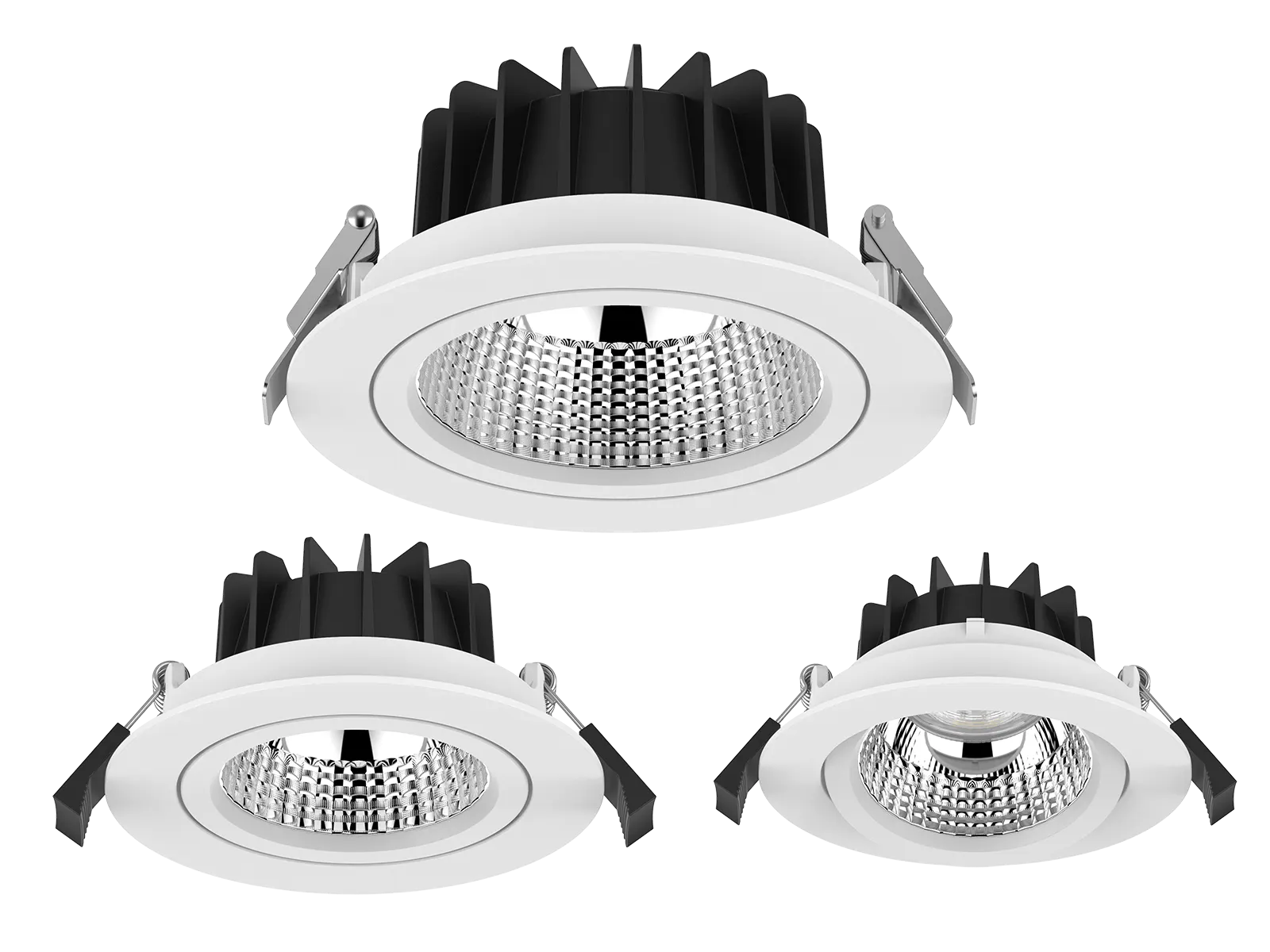

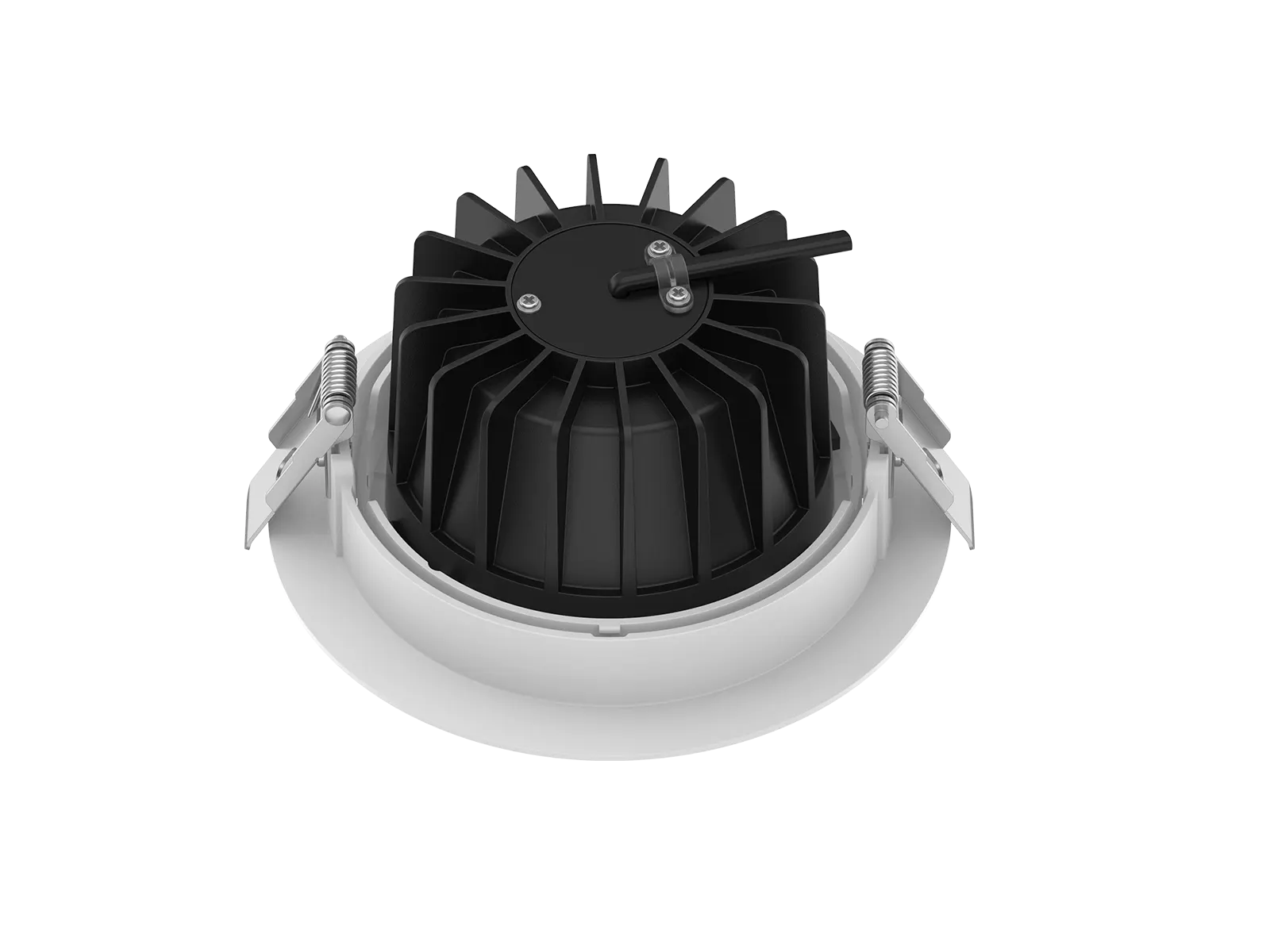

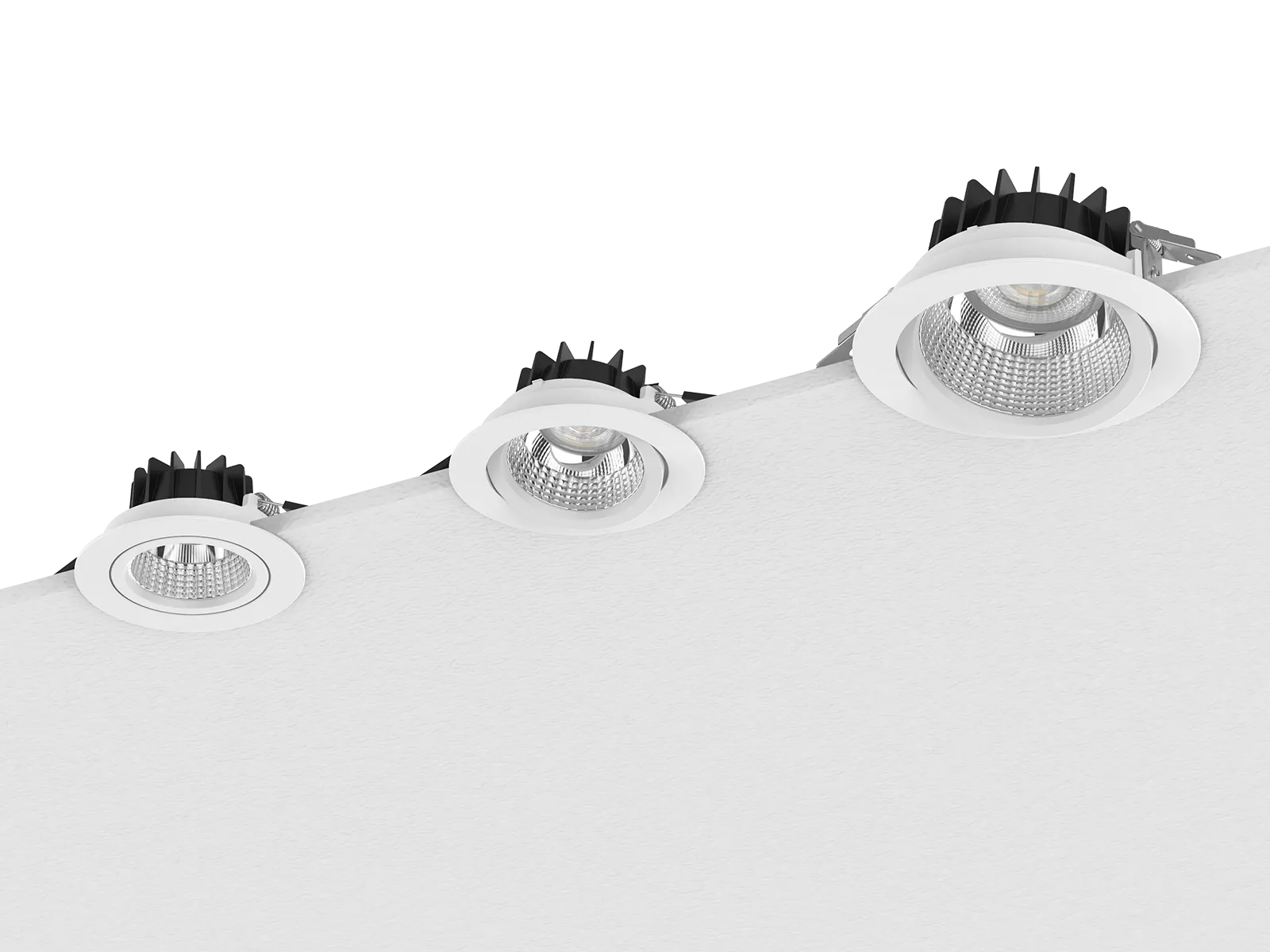

CL178 is tiltable downlight with traditional deep reflector (UGR<19) that provides perfect combination of high lighting efficiency, comfortable lighting and humanization design, without compromising on light performance (color rendering and color uniformity); CCT switchable and multiple beam angle is available, it offers a wide choice of options for creating the desired ambience.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | CL178-3-10W | CL178-3.5-10W | CL178-3.5-13W | CL178-3.5-15W | CL178-5-10W | CL178-5-18W | CL178-5-25W | ||
|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø110*H54 | Ø120*54 | Ø160*78 | ||||||
| Cutout(mm) | Ø90-95 | Ø100-110 | Ø140-150 | ||||||
| Watt(W) | 10W | 13W | 15W | 10W | 18W | 25W | |||
| Rated Input Voltage | AC220-240V | ||||||||
| Input Voltage | AC198-264VV | ||||||||
| LED Module Input | DC33-38V | ||||||||
| Light Source | COB | ||||||||
| SDCM | SDCM<5 | ||||||||
| CCT(K) | 1-CCT:2700K/ 3000K/4000K/5000K||3-CCT:3000K+ 4000K+5000K | ||||||||
| CCT Selection DIP Switch | YES | ||||||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 1100-1200 | 1100-1250 | 1350-1550 | 1520-1720 | 1210-1330 | 2050-2430 | 2800-3320 |
| DIM | 1100-1200 | 1050-1200 | 1300-1500 | 1450-1800 | 1150-1300 | 1950-2350 | 2700-3200 | ||
| Luminous Flux (lm) ±5% CRI90 | 3-CCT | Non-DIM | 900-1000 | 900-1000 | - | - | - | 1530-1900 | 2250-2600 |
| DIM | 900-1000 | 880-1000 | - | - | - | 1400-1750 | 2100-2500 | ||
| CRI | 1-CCT: CRI80 / 3CCT: CRI90 | ||||||||
| Beam Angle(°) | 24°/36°/60° | ||||||||
| UGR | UGR<19 (not available for 60°beam angle ) | ||||||||
| LED Driver | Driver built-out | ||||||||
| Dimming Option | Triac | ||||||||
| Electrical Class | Class II | ||||||||
| Ingress Protection(IP Rating) | P54(Only for LED module), IP40(For other part) | ||||||||
| Impact Resistance(IK Rating) | IK06 | ||||||||
| Product Finishing | Black RAL9005 / White RAL 9016 | ||||||||
| Optics Material | PC | ||||||||
| Housing Material | Die-casting Aluminum | ||||||||
| Lifetime(hr) | 50,000h | ||||||||
| Glow wire test(°C) | 750°C | ||||||||
| Operating Temp(°C) | -20°C~45°C | ||||||||
| Storage Temp(°C) | -20°C~65°C | ||||||||
| Installation | Recessed | ||||||||
