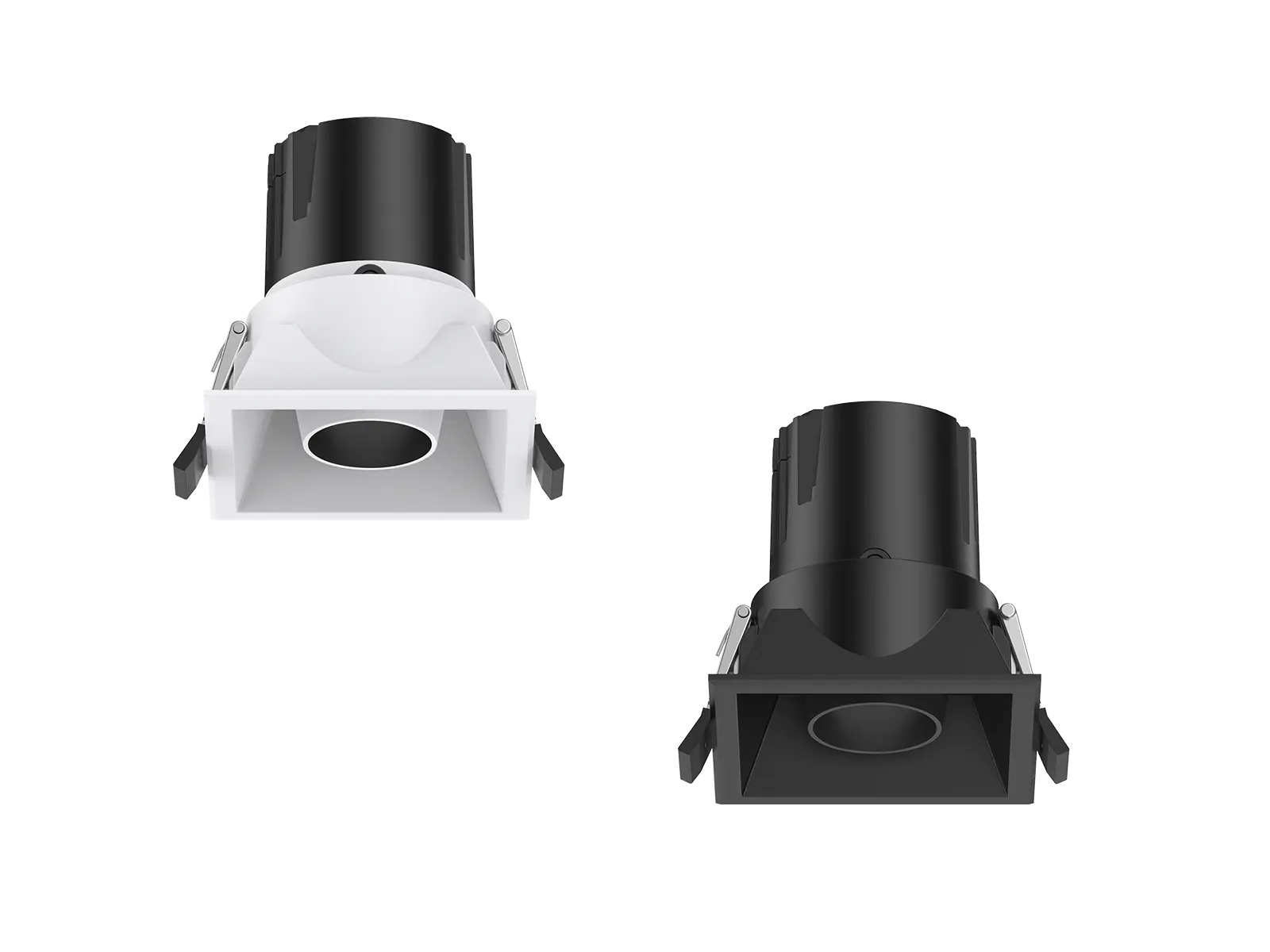

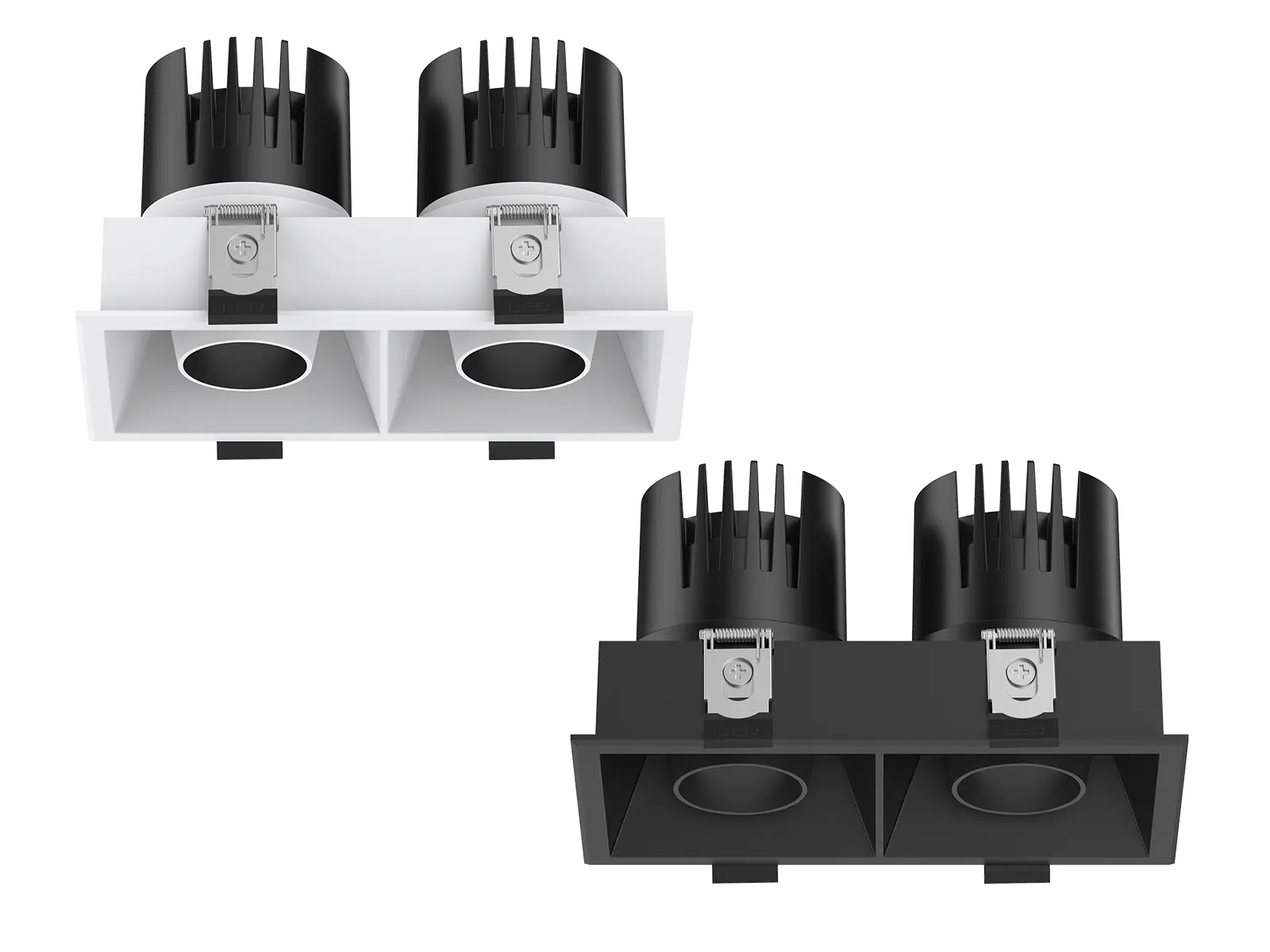

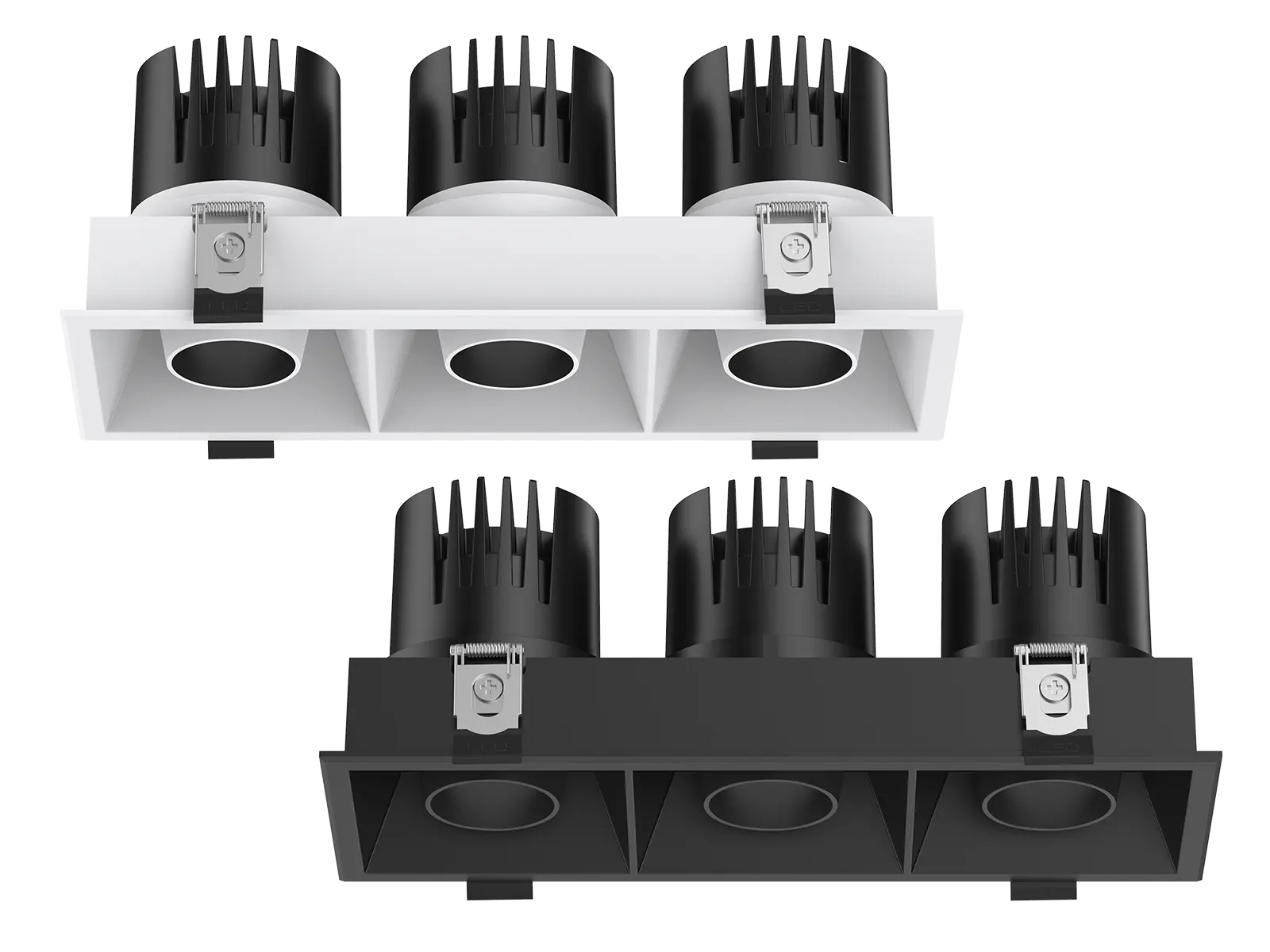

The CL177 features a simple and elegant design, equipped with a die-casting aluminum heat sink for excellent heat dissipation performance, Tilt 15° or 20° in all directions (360°) based on different size,has round and square version, square version with 1/2/3 head, optics adopt PMMA lens ensuring uniform light emission, adopt Bridgelux COB LEDs with high color rendering (CRI90) and excellent chromaticity consistency. And it features a deep-reflector design, anti-glare UGR<19.
Applications: It's widely used in indoor applications, such as office, living room, bedroom, study room, and hotel etc.
| Code | CL177-55-5W | CL177-55-7W | CL177-75-12W-A4 | CL177-95-18W-A4 | CL177S-55-5W | CL177S-55-7W | CL177S-75-12W-A4 | CL177S-75-2×12.5W-A4 | CL177S-75-3×11.6W-A4 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø64*H68 | Ø64*H68 | Ø85*H85 | Ø105*H115 | L64*W64*H73 | L64*W64*H73 | L85*W85*H89 | L157*W85*H89 | L230*W85*H89 | ||
| Cutout(mm) | Ø55 | Ø55 | Ø75 | Ø95 | 55*55 | 55*55 | 75*75 | 150*75 | 220*75 | ||
| Watt(W) | 5W | 7W | 12W Max | 18W Max | 5W | 7W | 12W Max | 2×12.5W Max | 3×11.6W Max | ||
| (10W/8W/6W | (15W/13W/10W | (10W/ 8W/ 6W | (2×11W/ 2×9W/ | (3×10W/ 3×8.3W/ | |||||||
| optional) | optional) | optional) | 2×7.5W optional) | 3×6.6W optional) | |||||||
| Rated Input Voltage | AC220-240V | ||||||||||
| Input Voltage | AC198-264V | ||||||||||
| LED Module Input | DC33-38V | ||||||||||
| Light Source | COB | ||||||||||
| SDCM | SDCM<5 | ||||||||||
| CCT(K) | 2700K/3000K/4000K/5000K | ||||||||||
| CCT Selection | - | ||||||||||
| Non-DIM | 170-250 | 240-360 | 12W:740-960 | 18W:1300-1450 | 165-250 | 230-350 | 12W:730-960 | 25W:1615-1950 | 35W:2170-2700 | ||
| (25°) | 10W:605-795 | 15W:1075-1200 | 10W:605-795 | 22W:1420-1715 | 30W:1860-2310 | ||||||
| 8W:505-625 | 13W:945-1065 | 8W:475-625 | 18W:1165-1420 | 25W:1675-2000 | |||||||
| 6W:380-470 | 10W:730-820 | 6W:360-470 | 15W:970-1185 | 20W:1340-1600 | |||||||
| Luminous Flux (lm) ±5% | Non-DIM | 240-250 | 240-360 | 12W:840-960 | 18W:1300-1450 | 165-250 | 230-350 | 12W:730-885 | 25W:1615-1950 | 35W:2570-2700 | |
| CRI90 | 1-CCT | (30°) | 10W:695-795 | 15W:1075-1200 | 10W:605-735 | 22W:1420-1715 | 30W:2200-2310 | ||||
| 8W:555-625 | 13W:945-1065 | 8W:475-590 | 18W:1165-1420 | 25W:1925-2000 | |||||||
| 6W:420-470 | 10W:730-820 | 6W:360-445 | 15W:970-1185 | 20W:1540-1600 | |||||||
| DIM | 170-180 | 240-360 | 12W:790-960 | 18W:1300-1450 | 165-250 | 230-350 | 12W:790-960 | 25W:1615-1950 | 35W:2250-2700 | ||
| (25°) | 10W:655-795 | 15W:1075-1200 | 10W:655-795 | 22W:1420-1715 | 30W:1925-2310 | ||||||
| 8W:435-625 | 13W:945-1065 | 8W:435-625 | 18W:1165-1420 | 25W:1685-2000 | |||||||
| 6W:330-470 | 10W:730-820 | 6W:330-470 | 15W:970-1185 | 20W:1350-1600 | |||||||
| DIM | 170-250 | 240-360 | 12W:730-935 | 18W:1300-1450 | 165-250 | 230-350 | 12W:730-960 | 25W:1615-1950 | 35W:2540-2700 | ||
| (30°) | 10W:605-775 | 15W:1075-1200 | 10W:605-795 | 22W:1420-1715 | 30W:2175-2310 | ||||||
| 8W:475-545 | 13W:945-1065 | 8W:475-545 | 18W:1165-2055 | 25W:1800-2000 | |||||||
| 6W:360-410 | 10W:730-820 | 6W:360-410 | 15W:970-1185 | 20W:1440-1600 | |||||||
| CRI | 90 | ||||||||||
| Beam Angle(°) | 25°/30° | ||||||||||
| UGR | <19 | ||||||||||
| LED Driver | Built-out,Flicker Free | ||||||||||
| Dimming Option | Triac | ||||||||||
| Sensor | NO | ||||||||||
| Emergency Kits | No | ||||||||||
| Electrical Class | Class II | ||||||||||
| Ingress Protection(IP Rating) | IP20 | ||||||||||
| Impact Resistance(IK Rating) | IK03 | ||||||||||
| Product Finishing | White RAL9016/Black RAL9005 | ||||||||||
| Optics Material | PMMA | ||||||||||
| Housing Material | Die-Casting Aluminium | ||||||||||
| Lifetime(hr) | 50,000h | ||||||||||
| Glow wire test(°C) | 650°C | ||||||||||
| Operating Temp.(°C) | -20°C~45°C | ||||||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||||||
| Installation | Recessed | ||||||||||
