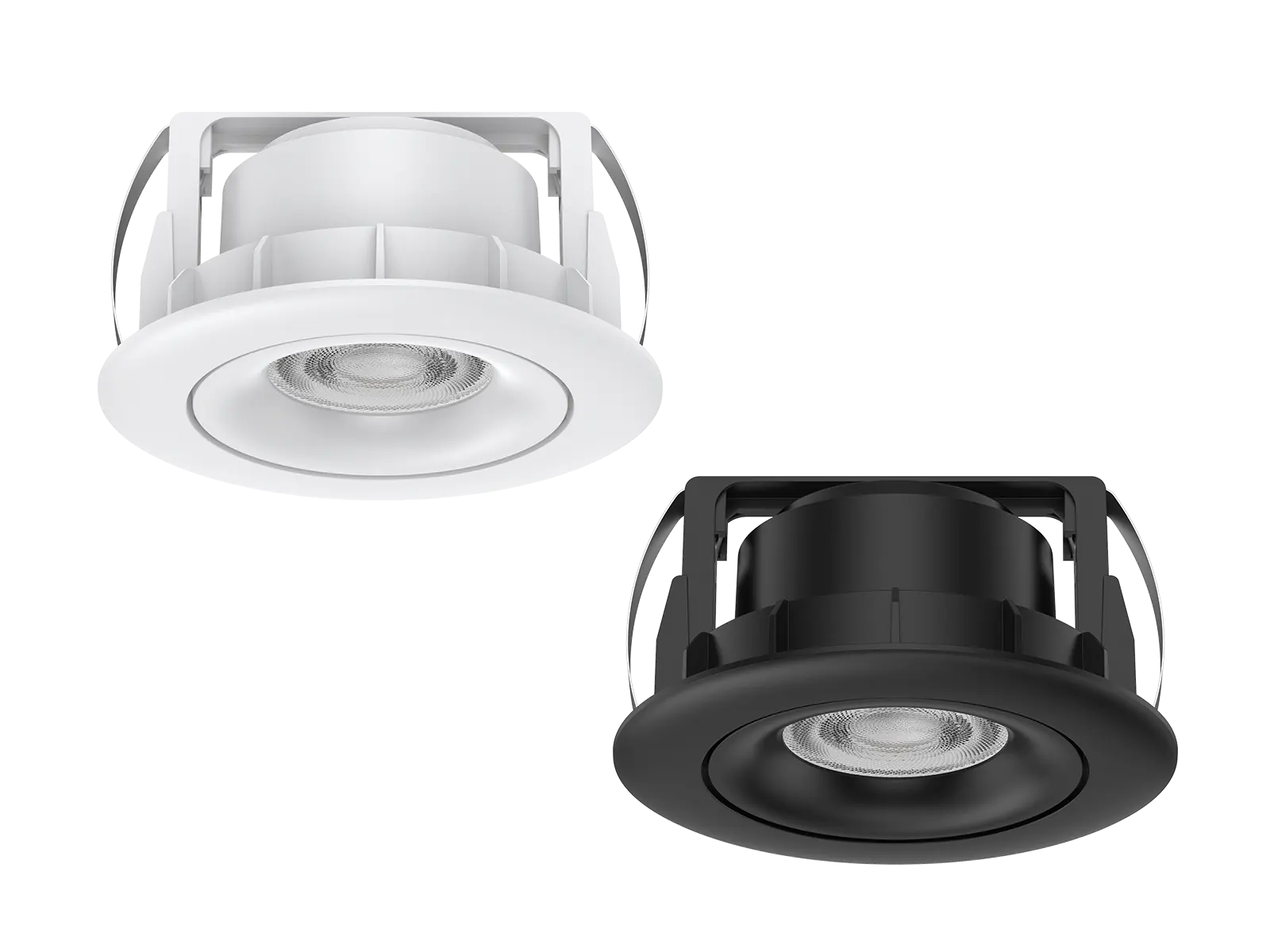

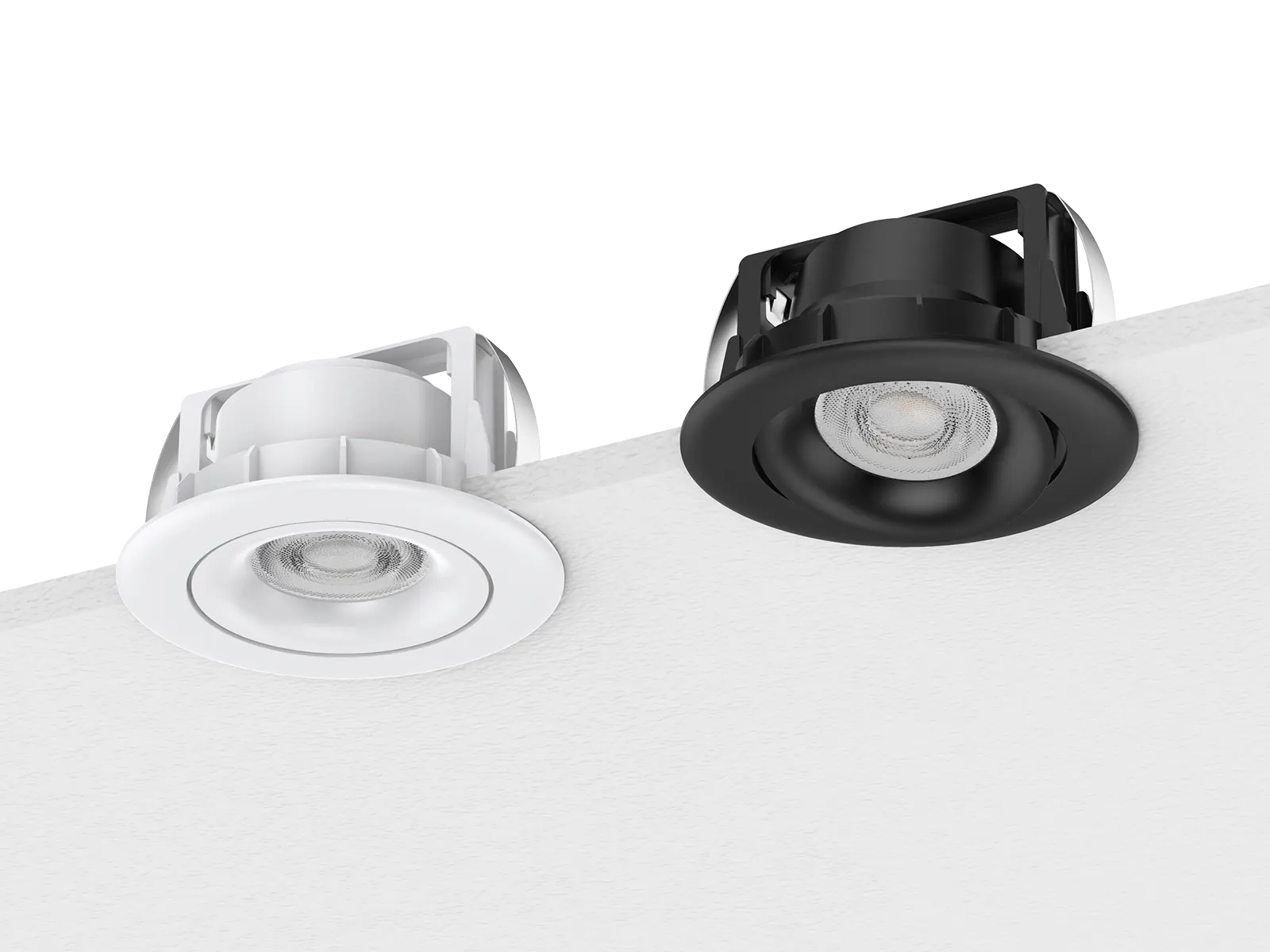

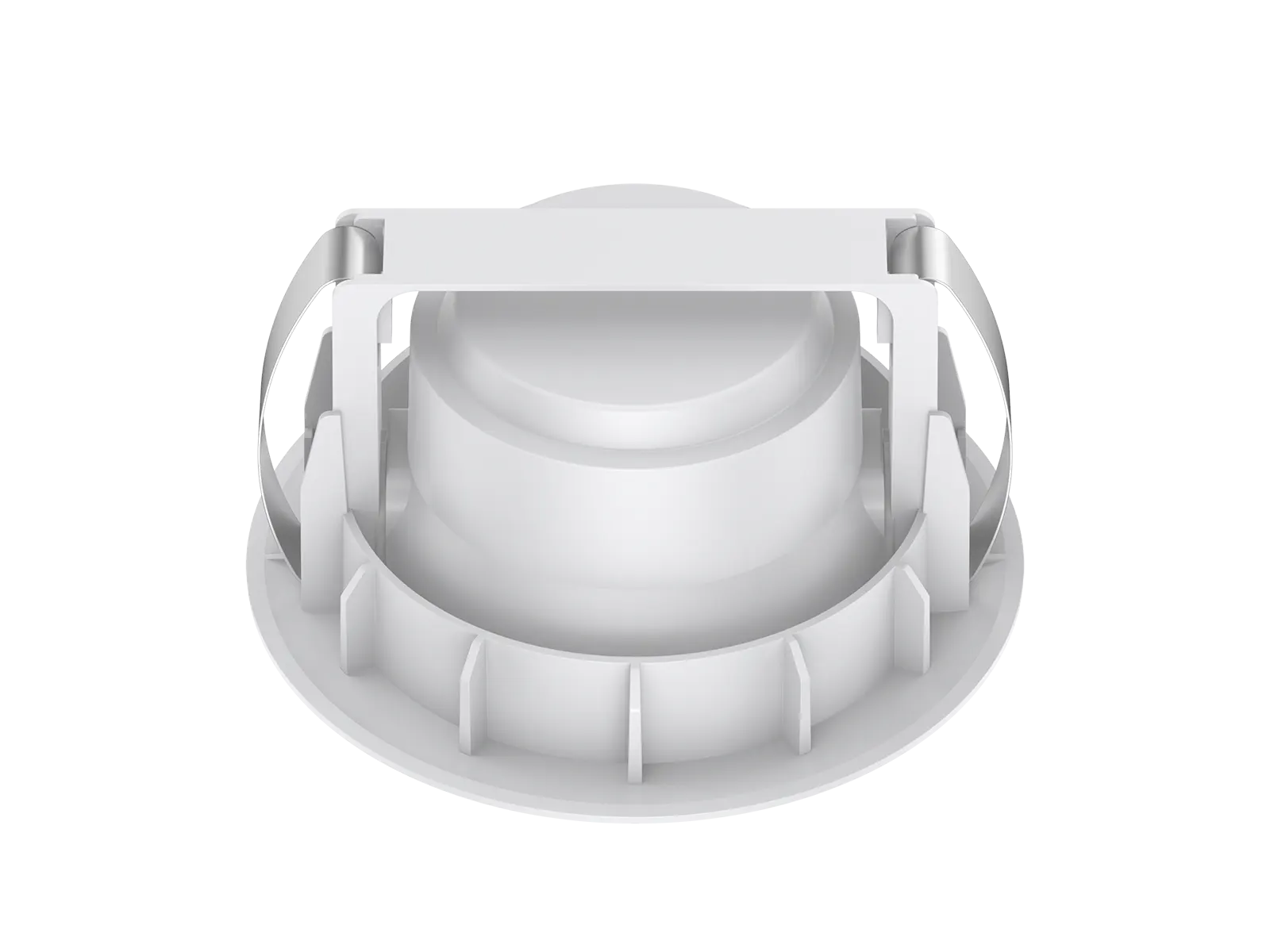

This is a compact downlight specifically designed for the Nordic market. It features shrapnel clip ears for quick and tool-free installation and removal without damaging the ceiling or hands,compatible with 10-20mm thick ceilings.The head of lamp can be rotated by 25 degrees in vertical direction. Adopts high-efficiency CRI90 COB led chip, and anti-glare design with UGR<19, it ensures soft, uniform,healthy light distribution. The human-centric design creates a cozy lighting environment, promoting happier and more efficient work and life.
Applications: It is designed for general lighting applications in home, office, hotel, supermarket, shop, school, reception, bar, corridor, etc.
| Code | CL176-3-6W-D | ||
|---|---|---|---|
| Dimension(mm) | Ø95*52 | ||
| Cutout(mm) | Ø83 | ||
| Watt(W) | 6W | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| LED Module Input | - | ||
| Light Source | COB | ||
| SDCM | <6 | ||
| CCT(K) | 1-CCT: 3000K/4000K 3-CCT: 2700K+3000K + 4000K | ||
| CCT Selection | YES | ||
| Luminous Flux (lm) ±5% | 1-CCT | DIM | 640-670 |
| CRI90 | 3-CCT | DIM | 530-560 |
| CRI | CRI90 | ||
| Beam Angle(°) | 44° | ||
| UGR | <19 | ||
| LED Driver | Built-in, Flicker Free | ||
| Dimming Option | Triac | ||
| Sensor | NO | ||
| Emergency Kits | NO | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP20(Inside Ceiling) | ||
| Impact Resistance(IK Rating) | IK04 | ||
| Product Finishing | White RAL9016/Black RAL9005 | ||
| Optics Material | PC | ||
| Housing Material | PC | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C(25° IC Rated) | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Recessed | ||
