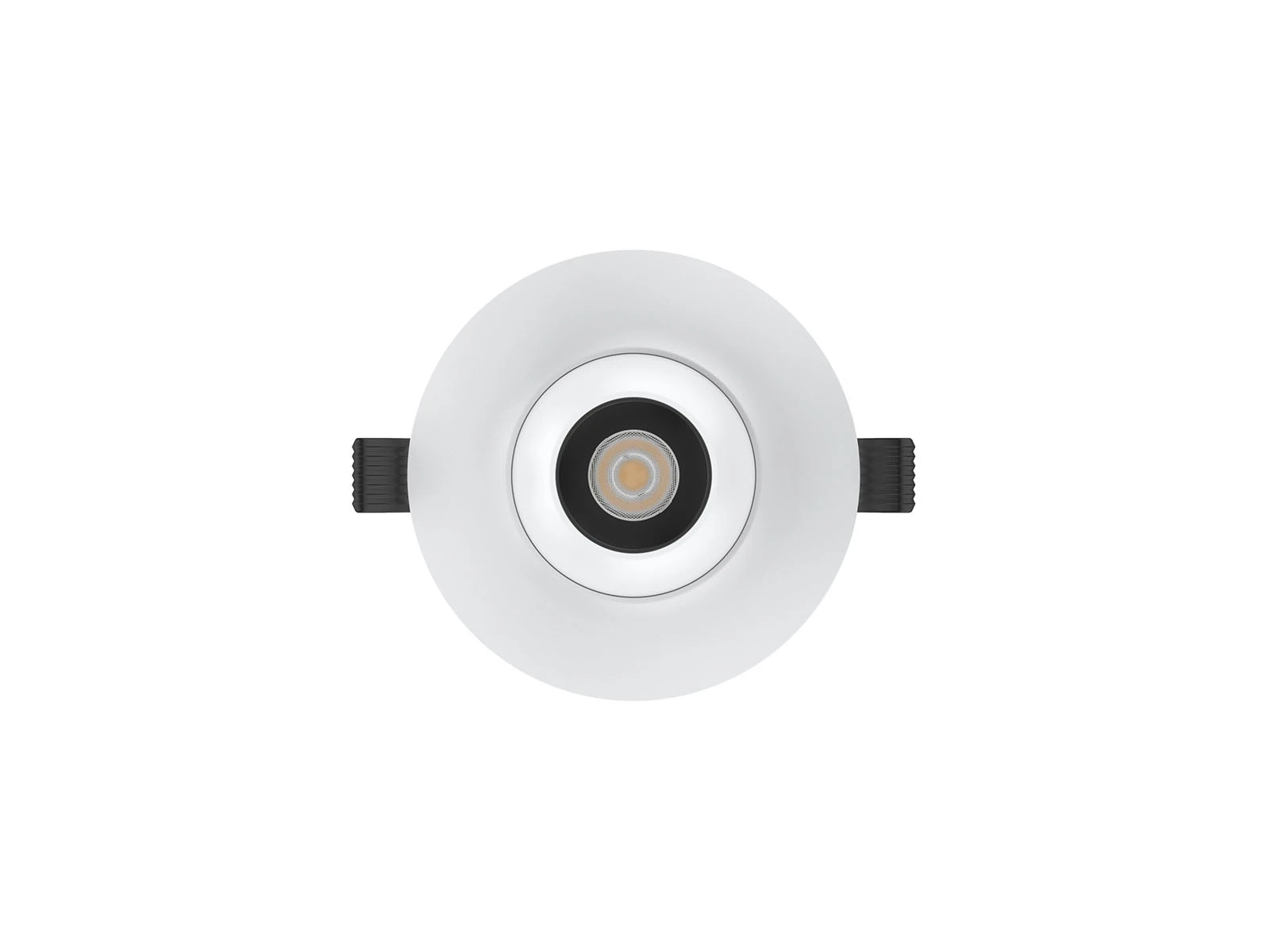

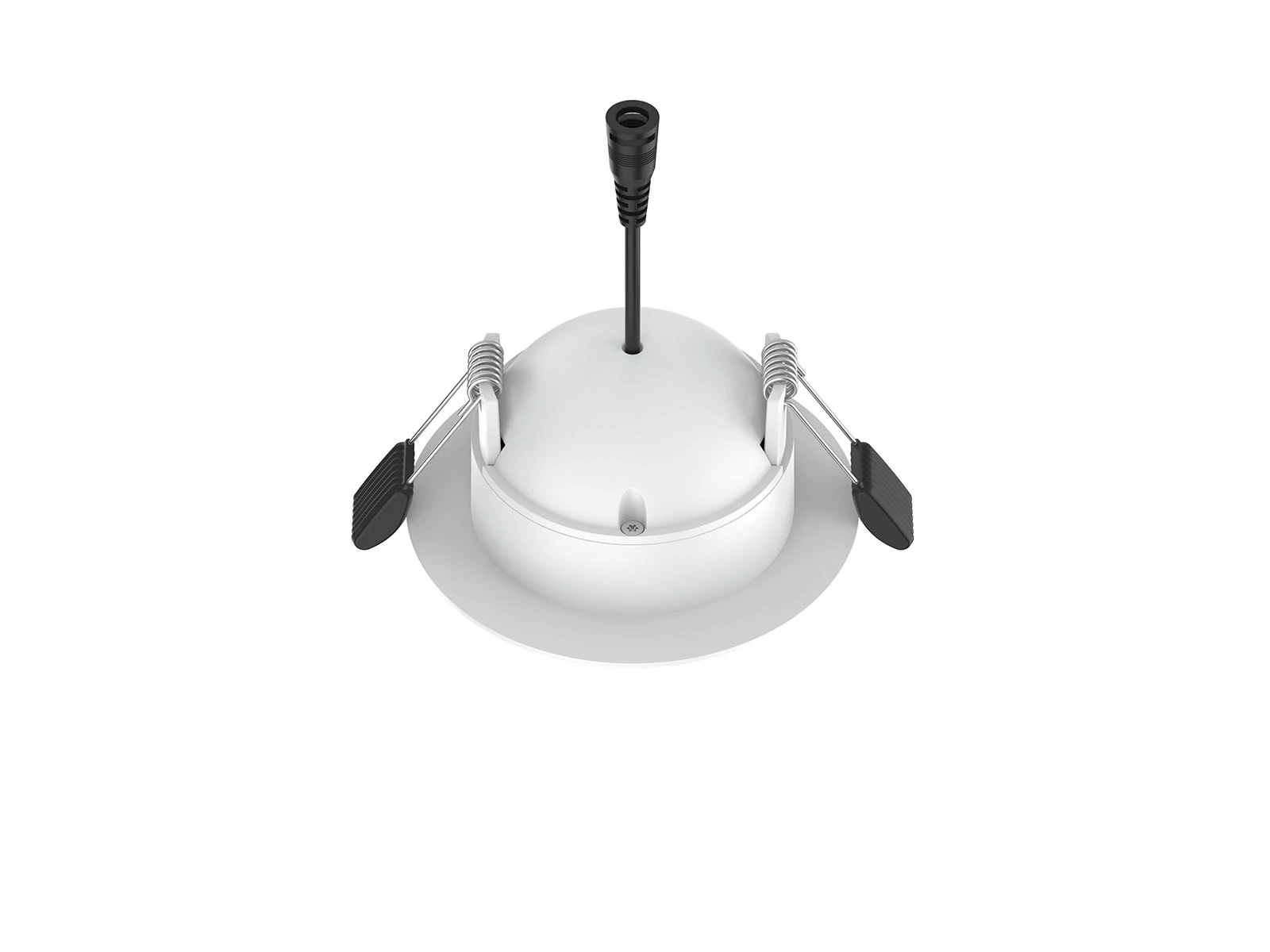

This collection is designed to offer a convenient and adaptable lighting solution that caters to both spot lighting and general lighting needs. It features a round recessed design that can be easily installed in ceilings. The purpose is to provide customers with a single fixture that can fulfill multiple lighting requirements, eliminating the need for separate fixtures and enhancing flexibility in lighting design. It aims to offer a seamless transition between focused spot lighting and ambient general lighting, providing versatility and convenience.
APPLICATIONS: It's applicable in architectural spaces, such as hotels, studios, cafe, corridors, museum etc.
| CODE | ART-CL175-3-10W | ART-CL175-6-15W | ||||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø115*73 | Ø186*75 | ||||
| Cutout(mm) | Ø83~95mm | Ø160~170mm | ||||
| Watt(W) | 10W | 10W(Spot lighting) | 5W(General lighting) | 15W(Spotlight+general light) | ||
| Input Voltage | AC220-240V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | COB | SMD | COB+SMD | ||
| CCT(K) | 1-CCT: / 3000K / 4000K || 2-CCT:3000K+4000K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 840-920 | 840-920 | 370-380 | 1170-1270 |
| DIM | 820-900 | 820-900 | 360-370 | 1160-1260 | ||
| DALI | 780-850 | 780-850 | 340-350 | 1100-1200 | ||
| 2-CCT | Non-DIM | 680-760 | 680-760 | 370-380 | 1010-1120 | |
| DIM | 650-740 | 650-740 | 360-370 | 1000-1110 | ||
| DALI | 630-730 | 630-730 | 340-350 | 980-1090 | ||
| Beam Angle(°) | 1-CCT | 30°/45°/60° | 30°/45°/60° | 110° | 30°/45°/60° | |
| 2-CCT | 24°/36°/45° | 24°/36°/45° | 110° | 24°/36°/45° | ||
| Dimming Option | Triac / DALI | |||||
| Product weight(Kg) | N.W/PC | 0.37 | 0.73 | |||
| G.W/PC | 0.50 | 0.95 | ||||
| Package weight(Kg) | N.W/CTN | 6.66 | 4.38 | |||
| G.W/CTN | 9.95 | 6.40 | ||||
| Qty/CTN (PCS) | 18 | 6 | ||||
| Carton Size(cm) | 53*39.5*35.5 | 47*30.5*35.5 | ||||
| 20GP(pcs) | 6480 | 3024 | ||||
| 40HQ(pcs) | 15498 | 7224 | ||||
