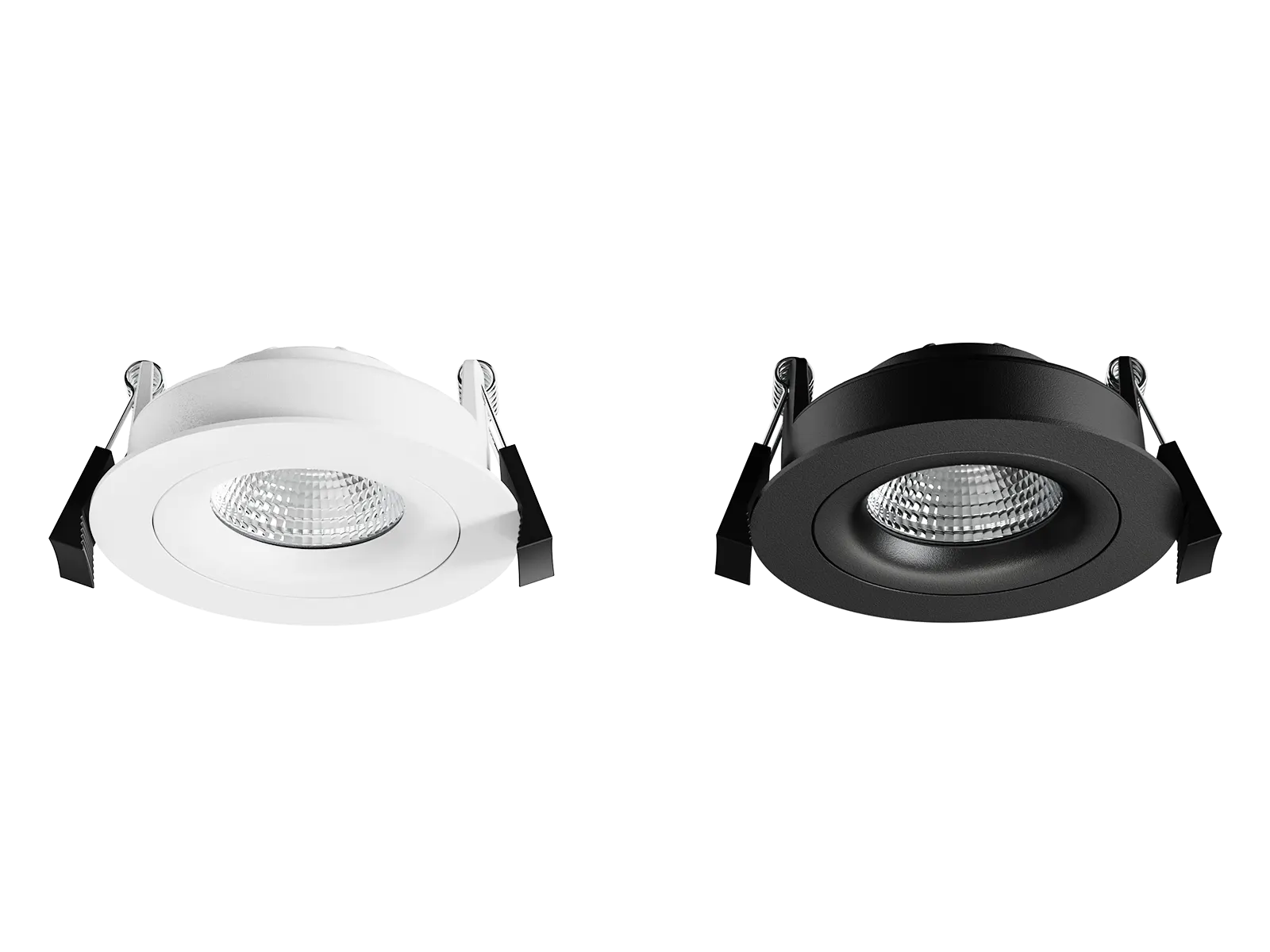

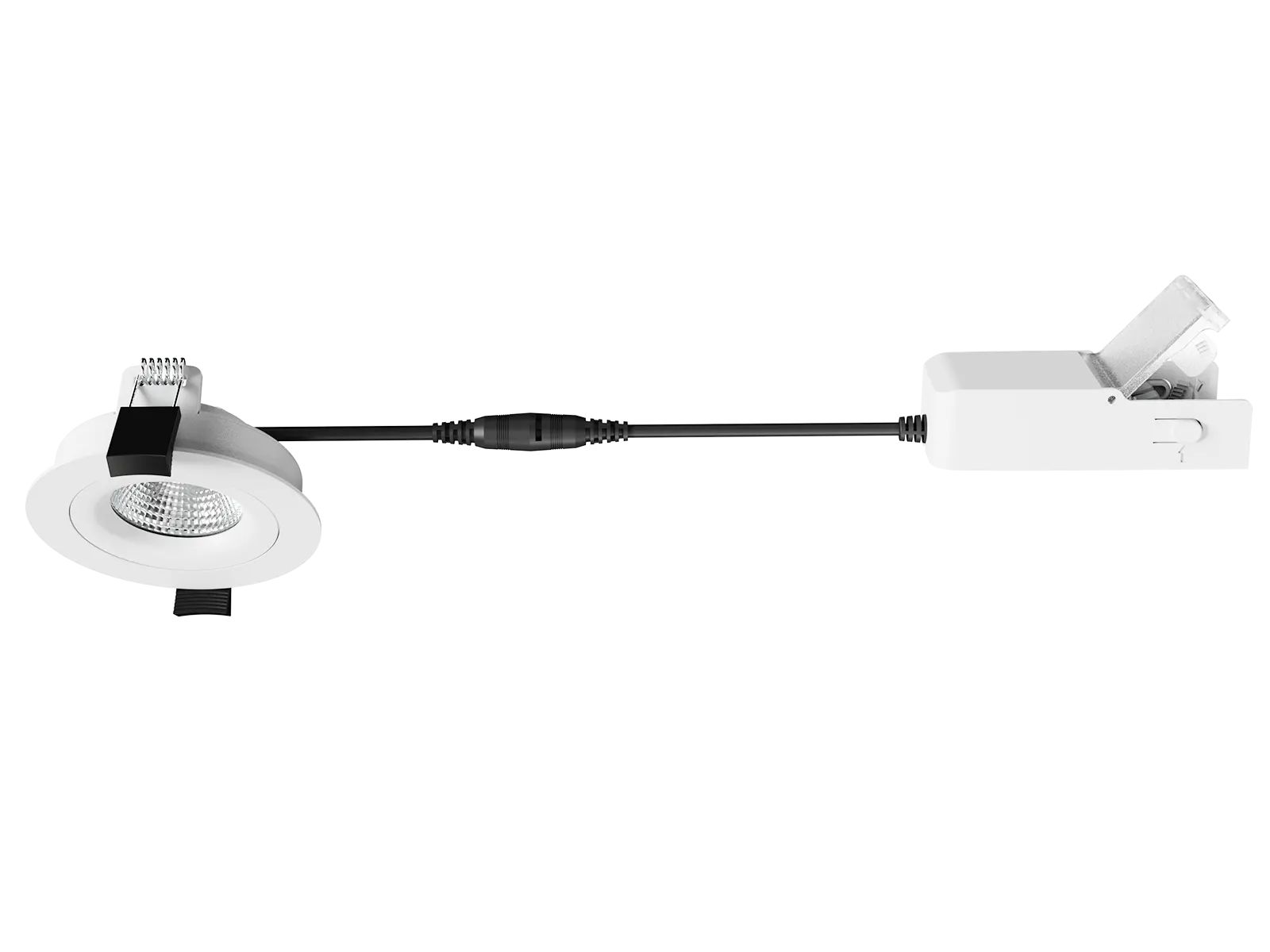

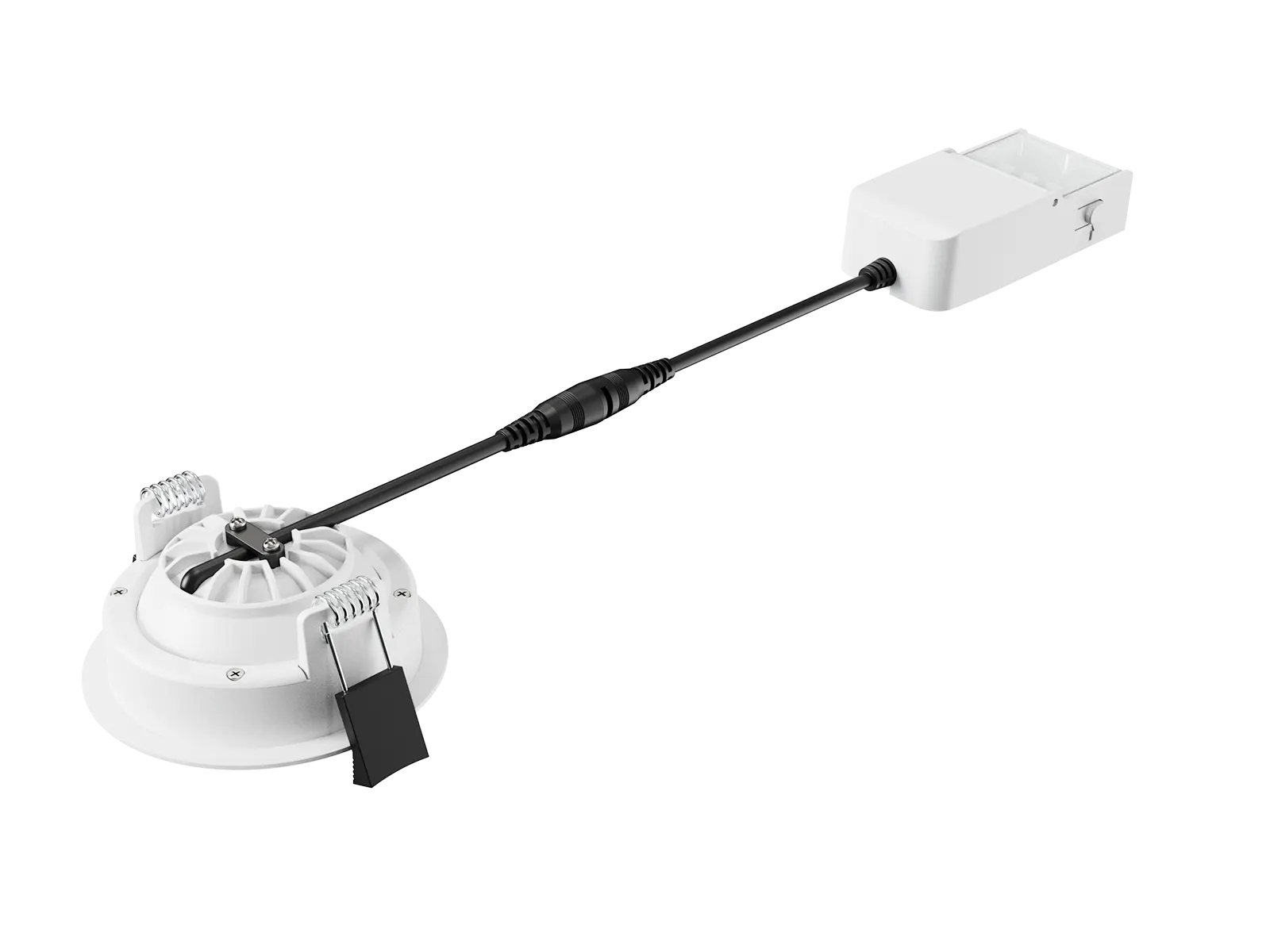

CL173 is a gyro appearance-designed downlight with height of 40mm, Suitable for ceiling installation in narrow spaces. It tilts 25degree in all directions (360°), perfectly meeting the requirements for different lighting angles, Adopts high-lumen COB light source, provides soft and comfortable lighting. The die-casting ADC12 aluminum housing ensures uniform heat dissipation, making it directly under insulation material. The driver utilizes push-type terminals with loop input/output design for easy installation.
Applications: It is designed for general lighting applications in supermarket, shop, school, hotel etc. It is also widely used for residential lighting areas, such as bedroom, living room, corridors etc.
| Code | CL173-2.5-8W | ||
|---|---|---|---|
| Dimension(mm) | Ø95*H40 | ||
| Cutout(mm) | Ø83 | ||
| Watt(W) | 8W | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| LED Module Input | DC33-38V | ||
| Light Source | COB | ||
| SDCM | SDCM<6 | ||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K / 3-CCT: 2700K+3000K+4000K / DIM TO WARM: 1800K-3000K | ||
| CCT Selection | By DIP Switch | ||
| Luminous Flux (lm) ±5% | 1-CCT | DIM | 700-800 |
| CRI90 | 3-CCT | DIM | 630-710 |
| DIM TO WARM | 650-700 | ||
| CRI | CRI90 | ||
| Beam Angle(°) | 36° | ||
| UGR | - | ||
| LED Driver | Built-out, Flicker Free | ||
| Dimming Option | Triac | ||
| Sensor | - | ||
| Emergency Kits | No | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP20(Inside Ceiling) | ||
| Impact Resistance(IK Rating) | IK03 | ||
| Product Finishing | White RAL9016 / Black RAL9005 | ||
| Optics Material | PC | ||
| Housing Material | Die-Casting Aluminium | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C (Can be covered under 25°C) | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Recessed | ||
