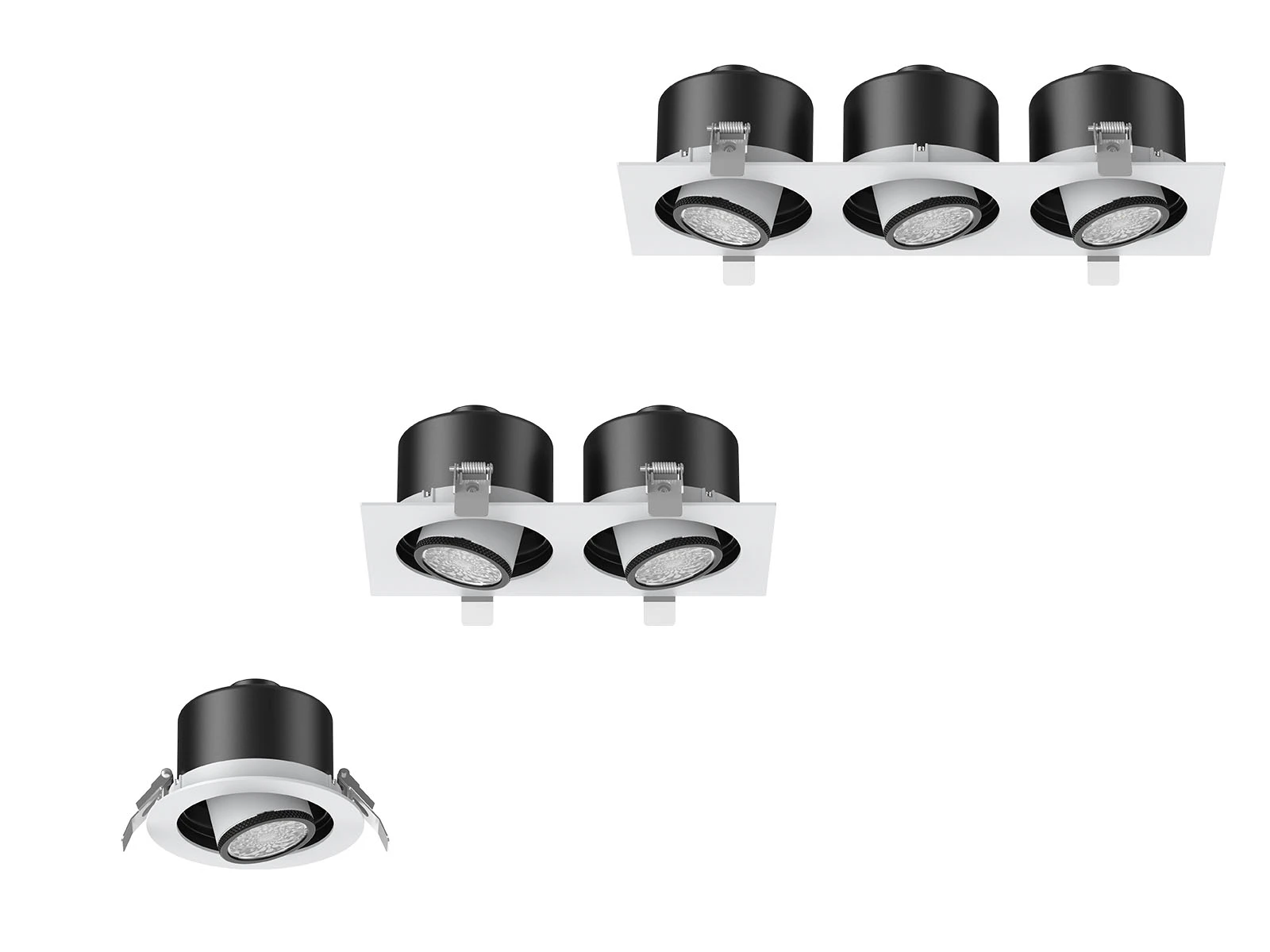

CL172 LED Downlight Three Types

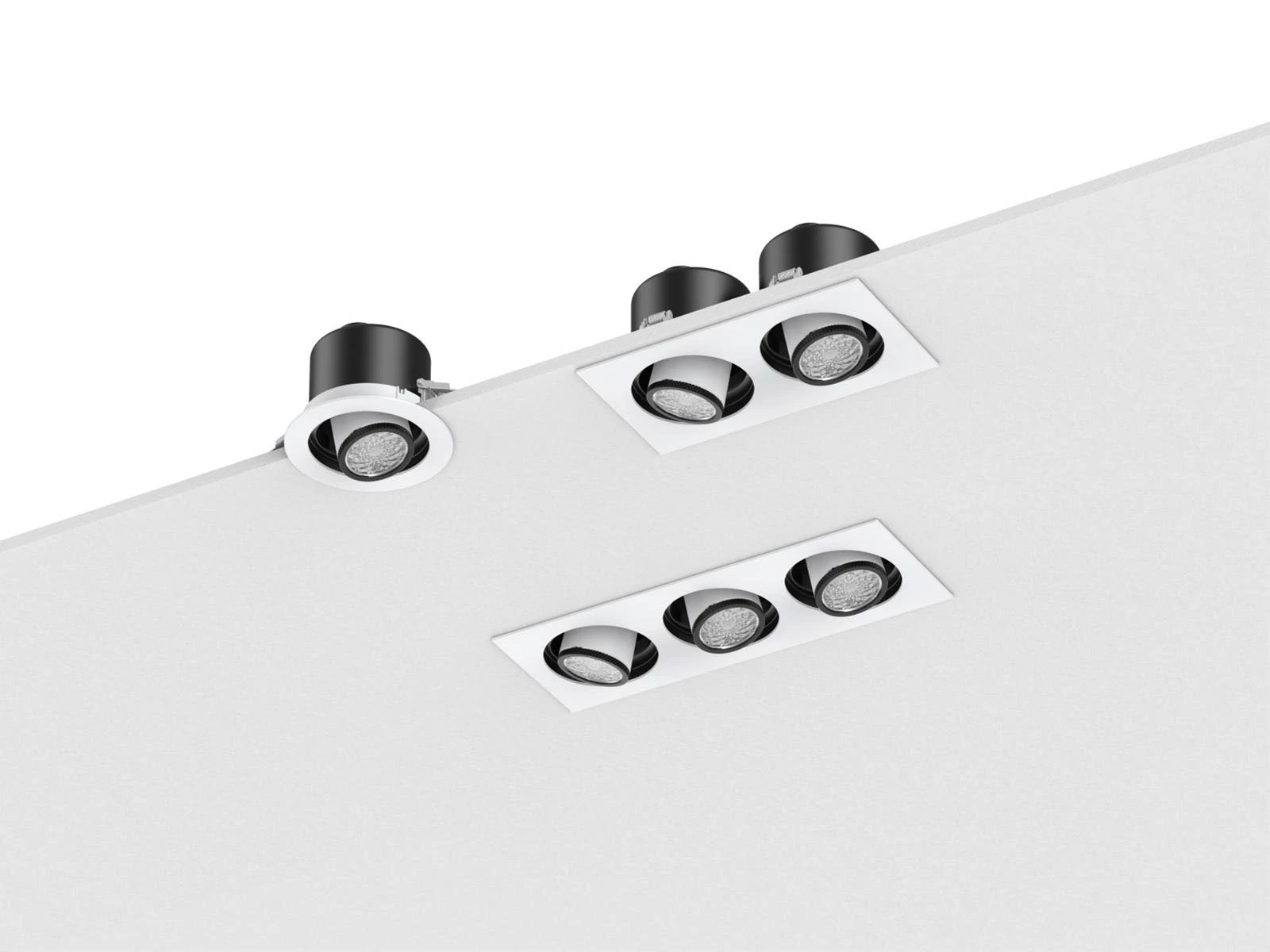

CL172 LED Downlight Series
CL172 LED Downlight
CL172 LED Downlight Driver Connection
CL172 LED Downlight Three Types
CL172 LED Downlight Series

CL172 LED Downlight

This collection is designed to provide flexibility and adaptability in lighting design. It features different frame shapes to suit various design preferences and applications. The key feature of the collection is the adjustable beam angle lens, allowing customers to easily adjust the beam angle onsite. Additionally, the beam angle adjustment ring can be customized with different colors to create product variations. This variety provides customers with options that can suit different architectural styles and design preferences. It aims to cater to architectural lighting, highlight areas, and meeting rooms along walls, providing a versatile and adjustable downlight solution. It is also a very good option for lighting designers due to its versatility and beam angle adjustability

  • Adjustable beam angle lens 20°~50°
  • The fixtures offer 190° rotation and 35° tilting angles
  • Round single head, rectangular double and triple head for option
  • CRI90 high color rendering light source
  • Osram flicker free on/off driver

Application: It's designed for architecture lighting, highlight areas, and meeting rooms along walls, providing a versatile and adjustable downlight solution.

CODE ART-CL172R-4-10W ART-CL172S-4-2X10W ART-CL172S-4-3X10W

Dimension(mm)

Ø132*H94

L245*W132*H94

L359*W132*H94

Cutout(mm)

Ø120-125

120-125*230-235

120-125*340-345

Watt(W)

1X10W

2X10W

3X10W

Input Voltage

AC220-240V

LED Module Input

DC36V

Light Source

COB

CCT(K)

1-CCT: 3000K / 4000K

CCT Selection DIP Switch

NO

Luminous Flux (lm) ±5%

CRI90

1-CCT

Non-DIM

830-900

1620-1790

2520-2700

DIM

780-860

1550-1660

2340-2590

Beam Angle (°)

20°-50°

Dimming Option

Triac

Product weight(Kg)

N.W/PC

0.73

1.35

1.95

G.W/PC

0.87

1.57

2.22

Package weight(Kg)

N.W/CTN

8.76

8.10

7.80

G.W/CTN

11.15

10.05

9.59

Qty/CTN (PCS)

12

6

4

Carton Size(cm)

36*36*35.5

40*29*35.5

40.5*40*24.5

20GP(pcs)

6480

3888

2520

40HQ(pcs)

15624

9282

5600
