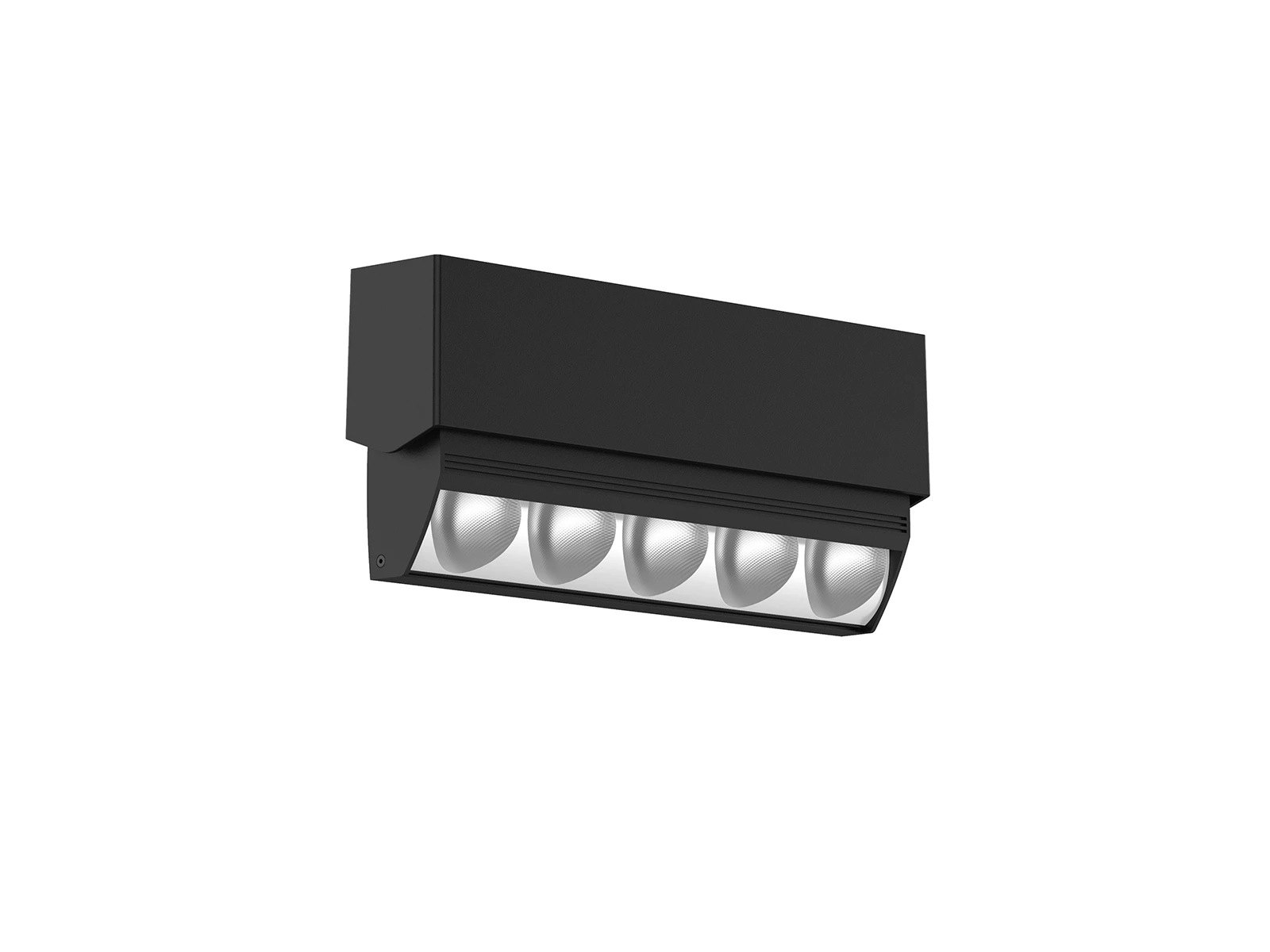

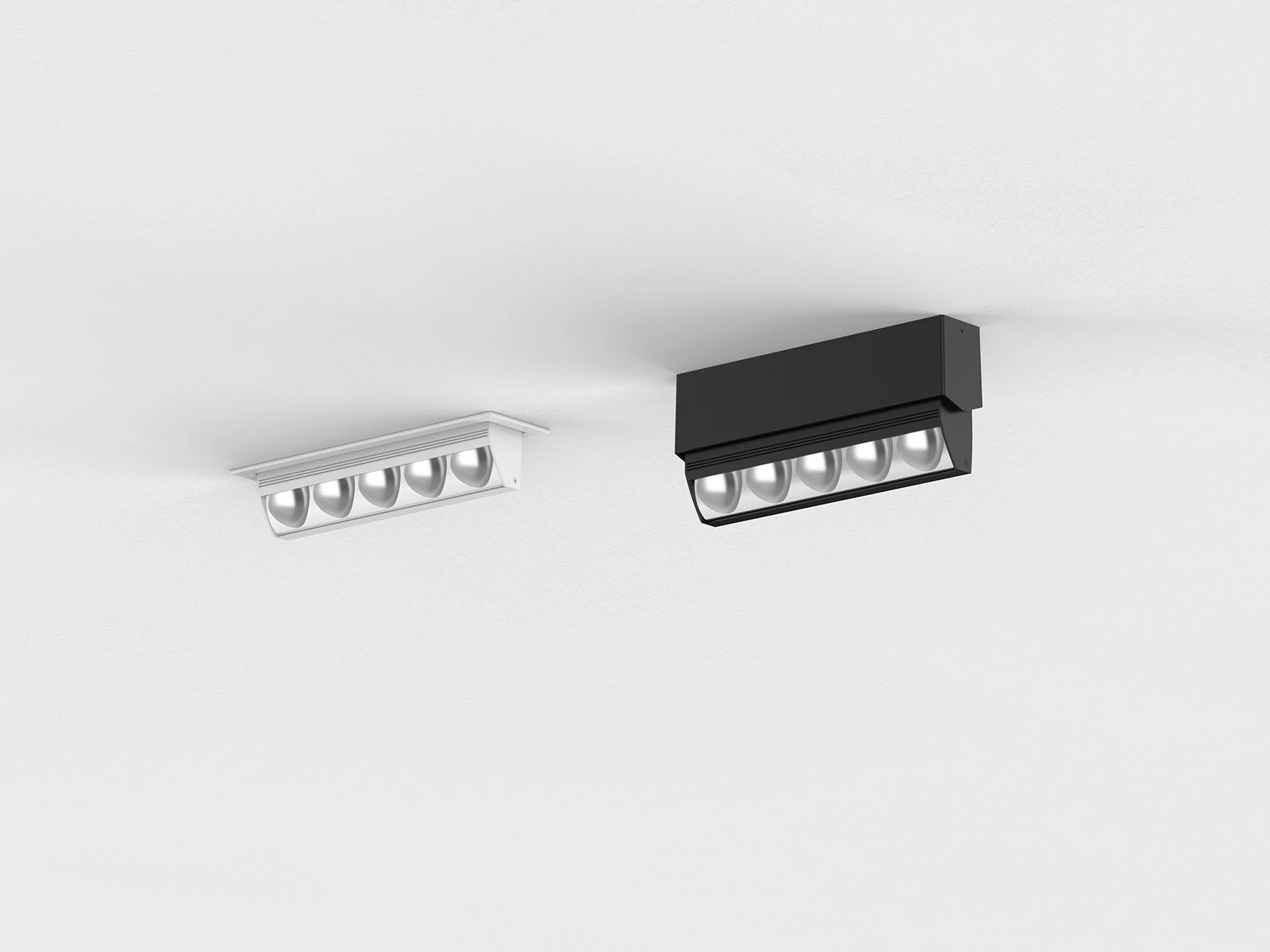

This is a wall washing downlight that utilizes a polarized reflector to effectively avoid seeing the light source directly, thereby reducing external perception of the luminous area. It uses high lumen COB LED to reach high efficiency. The ADC12 aluminum shell features die-cast aluminum heat sink, providing excellent heat dissipation and ensuring a long lifespan for the luminaire. Despite its compact size, it can provide a wide coverage with uniform light output and an extensive lighting area. There are recessed and ceiling mounting options, with 20° vertical rotation, it can easily adapt to various shelf heights and orientations. Besides, this downlight is available for with triac dim and DALI dim which is an ideal lighting choice for shopping malls, museums, retails store etc.
Application Areas: It is suitable for supermarkets, retails store, shelves, museums, corridors etc.
| Code | CL121A-35W | CL121A-40W | CL121B-35W | CL121B-40W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L343*W88*H100 | L323*W61*H140 | ||||
| Cutout(mm) | L320*W65mm | - | ||||
| Watt(W) | 35W | 40W | 35W | 40W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | ≤5 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K | |||||
| CCT Selection DIP Switch | NO | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 4200-4500 | 4900-5150 | 4200-4500 | 4900-5150 |
| DIM | 4200-4500 | 4900-5150 | 4200-4500 | 4900-5150 | ||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 3400-3750 | 4000-4400 | 3200-3650 | 3800-4200 |
| DIM | 3300-3550 | 3650-4050 | 3200-3500 | 3600-4000 | ||
| DALI | 3400-3750 | 4000-4400 | 3400-3750 | 4000-4400 | ||
| CRI | 80 / 90 | |||||
| Beam Angle(°) | Asymmetric 45*35° | |||||
| LED Driver | Driver built-out | Driver built-in | ||||
| Dimming Option | Triac / DALI | |||||
| Electrical Class | Class II | Class I | ||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK06 | |||||
| Product Finishing | White RAL9016, Black RAL9005 | |||||
| Optics Material | PC | |||||
| Housing Material | Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp(°C) | -20°C~40°C | |||||
| Storage Temp(°C) | -20°C~65°C | |||||
| Installation | Recessed | Surface mount | ||||
