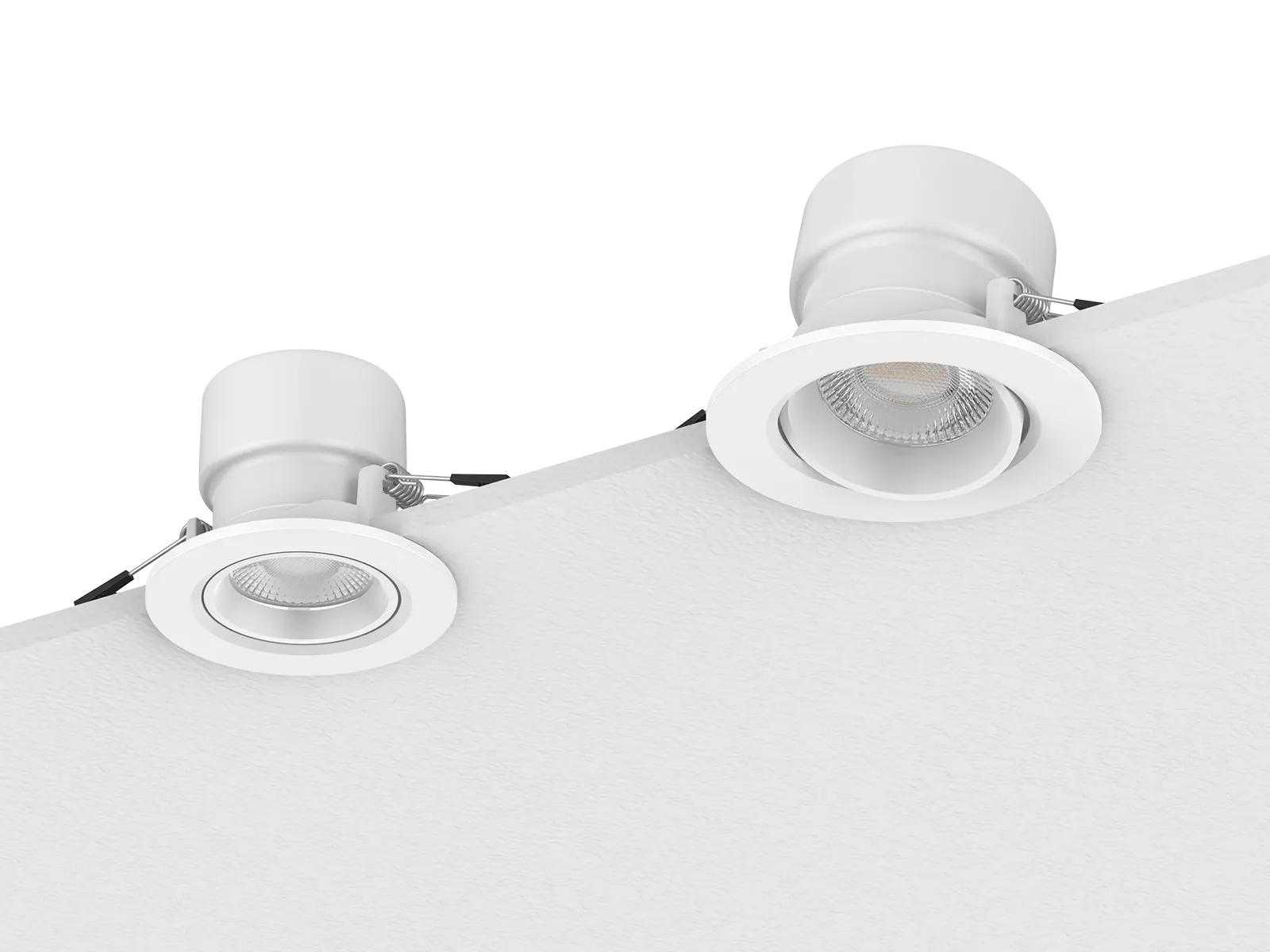

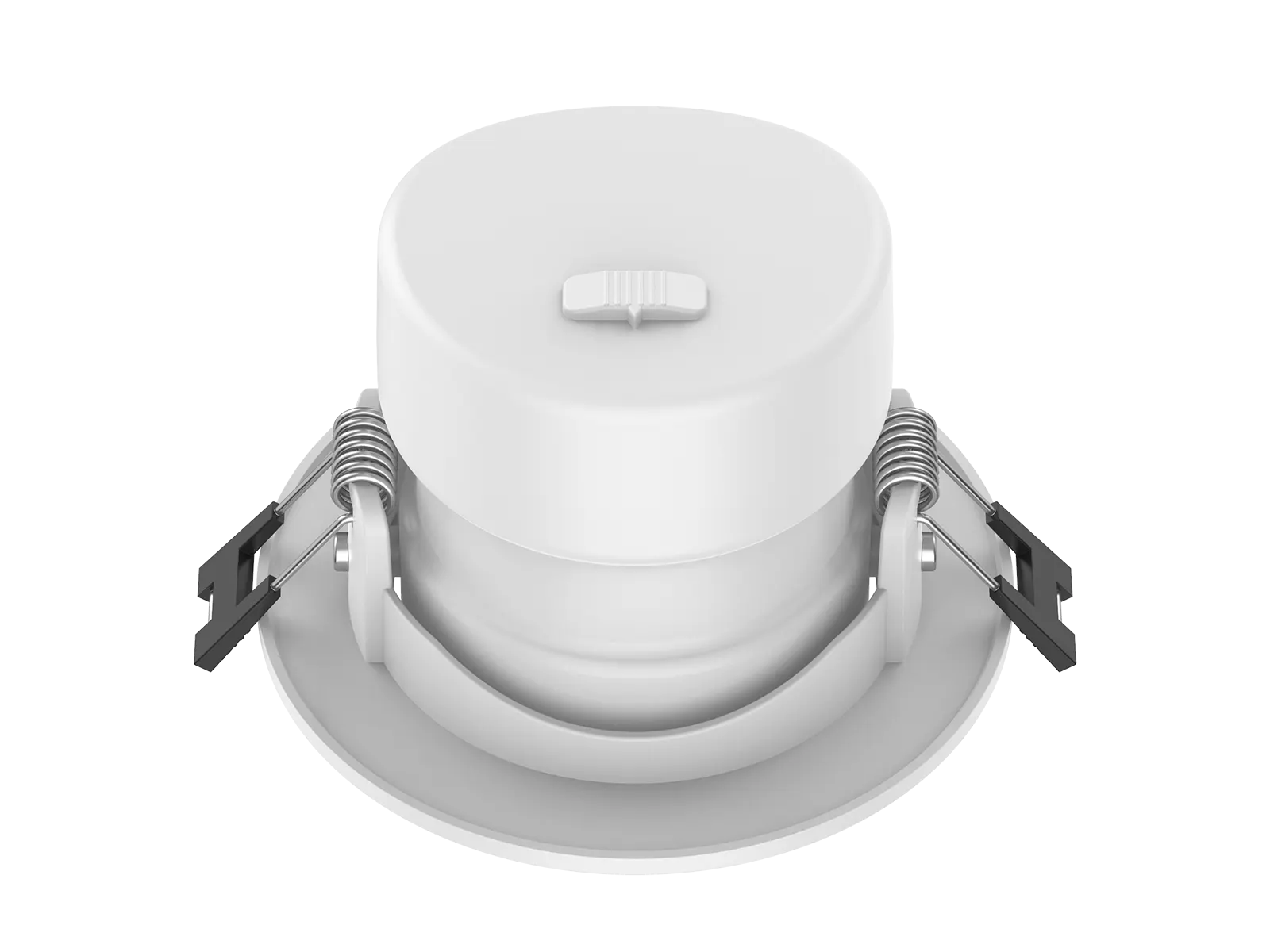

CL101 G2.0 is the iterative upgrade of the CL101 downlight, This upgrade offers improved performance and new features, including a 3CCT color temperature adjustment and increased luminous efficiency of 120lm/w. It retains the previous product's characteristics with elegant and no visible screws, seamless ceiling integration. The lamp body is crafted from die-cast and thermally conductive plastic, ensures excellent heat dissipation. Utilizing SMD chips along with lens optics results in a good light output.
Applications: It is widely used for public areas, such as stairway, lobby, reception, corridors etc.
| CODE | CL101-2.5-6W CL101-3-8W | |||
|---|---|---|---|---|
| Dimension(mm) | Ø85*68 | Ø105*74 | ||
| Cutout(mm) | Ø70-75 | Ø90-95 | ||
| Watt(W) | 6W | 8W | ||
| Input Voltage | AC198-264V | |||
| LED Module Input | DC48-58V | DC66-76V | ||
| Light Source | SMD2835 | |||
| CCT(K) | 3-CCT: 3000K + 4000K+5700K | |||
| CCT Selection DIP Switch | YES | |||
| Luminous Flux (lm) ±5% | 3-CCT | Non-DIM | - | |
| CRI80 | DIM | 540-630 | 790-900 | |
| Beam Angle(°) | 36°/ 60° | |||
| Dimming Option | Triac | |||
| Product weight(Kg) | N.W/PC | 0.15 | 0.19 | |
| G.W/PC | 0.23 | 0.28 | ||
| Package weight(Kg) | N.W/CTN | 5.4 | 6.84 | |
| G.W/CTN | 8.28 | 10.08 | ||
| Qty/CTN (PCS) | 36 | 36 | ||
| Carton Size(cm) | 52*40.5*29.5 | 47*45*40.5 | ||
| 20GP(pcs) | 15372 | 10800 | ||
| 40HQ(pcs) | 35136 | 26352 | ||
