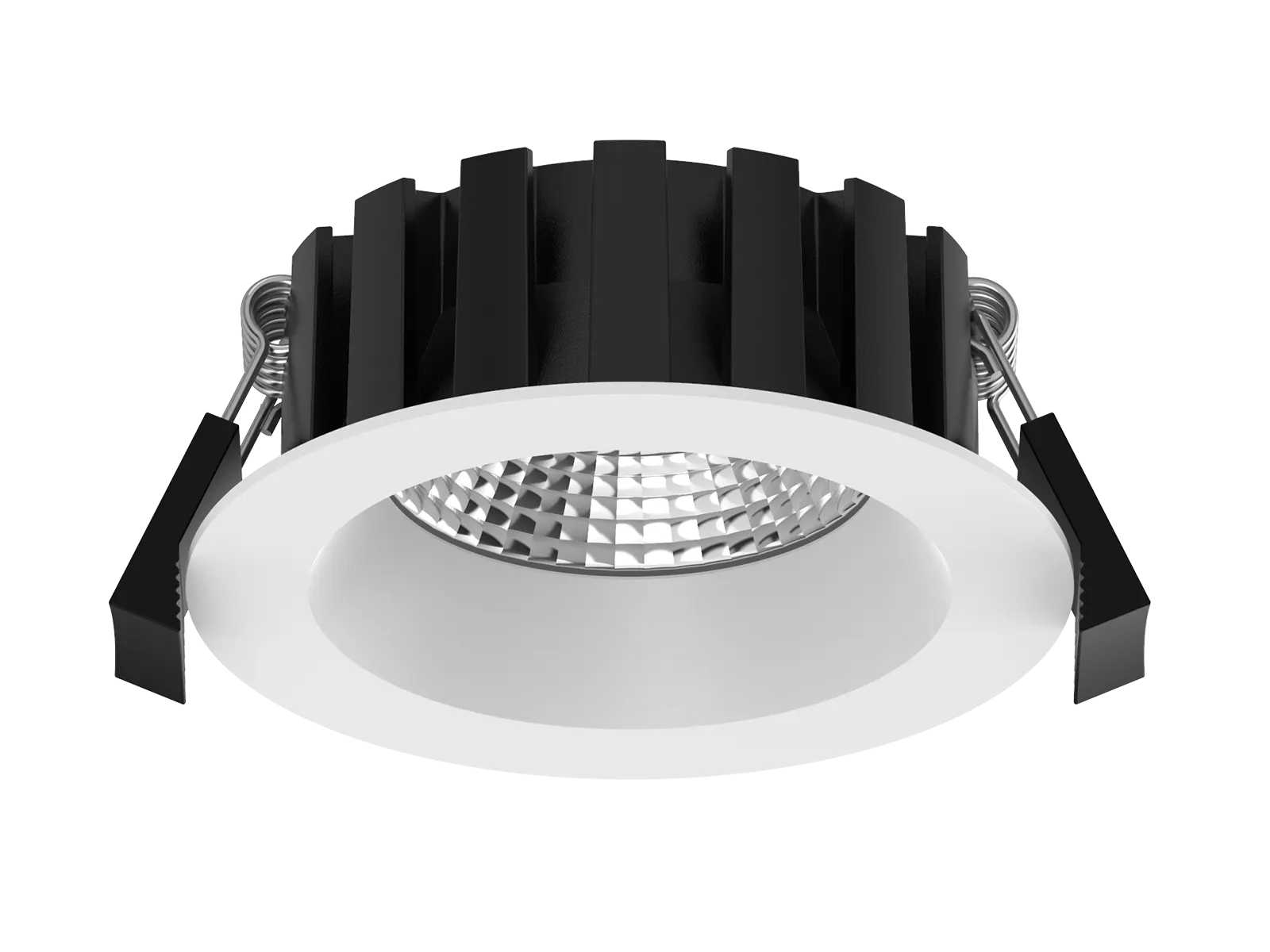

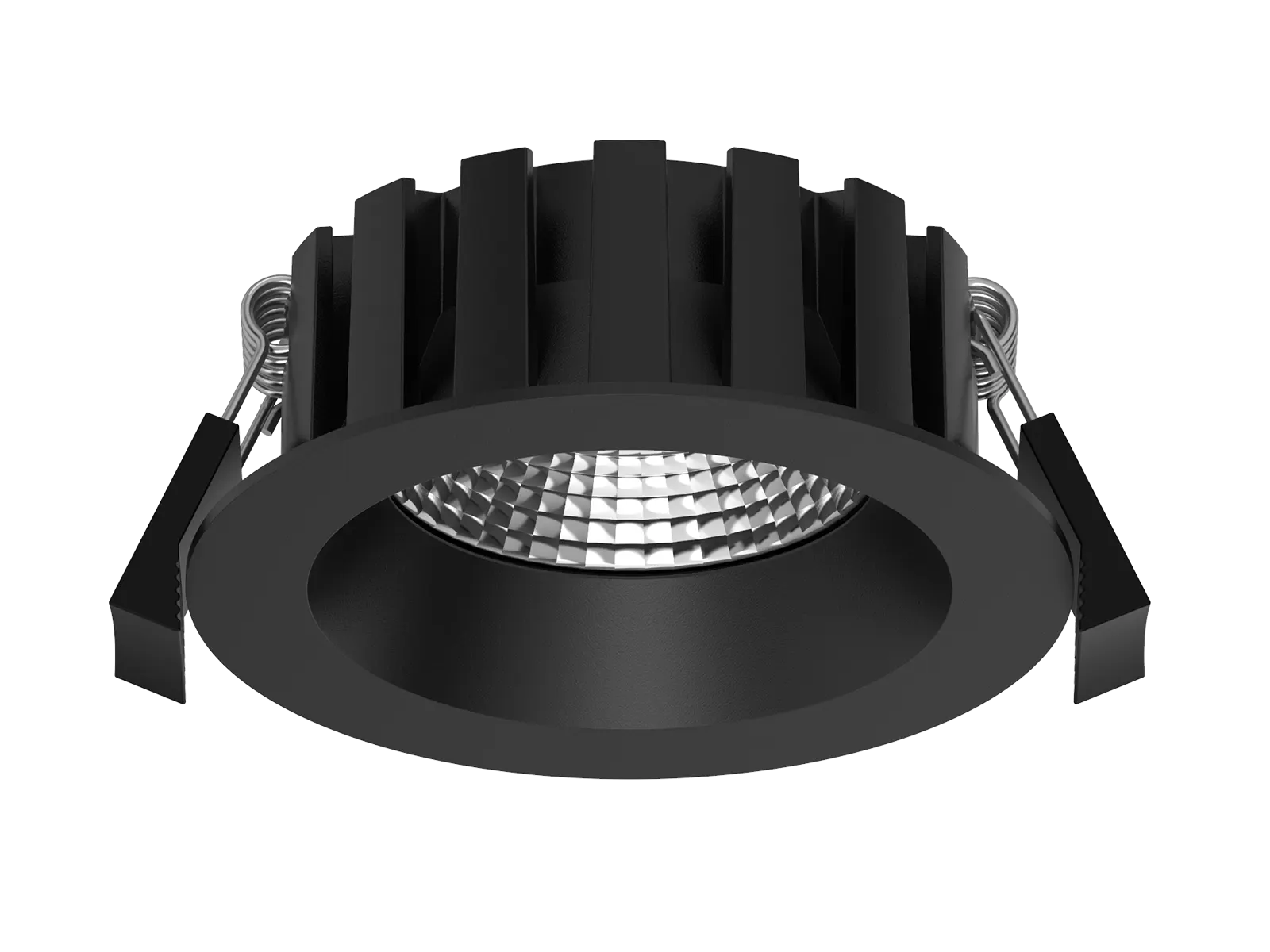

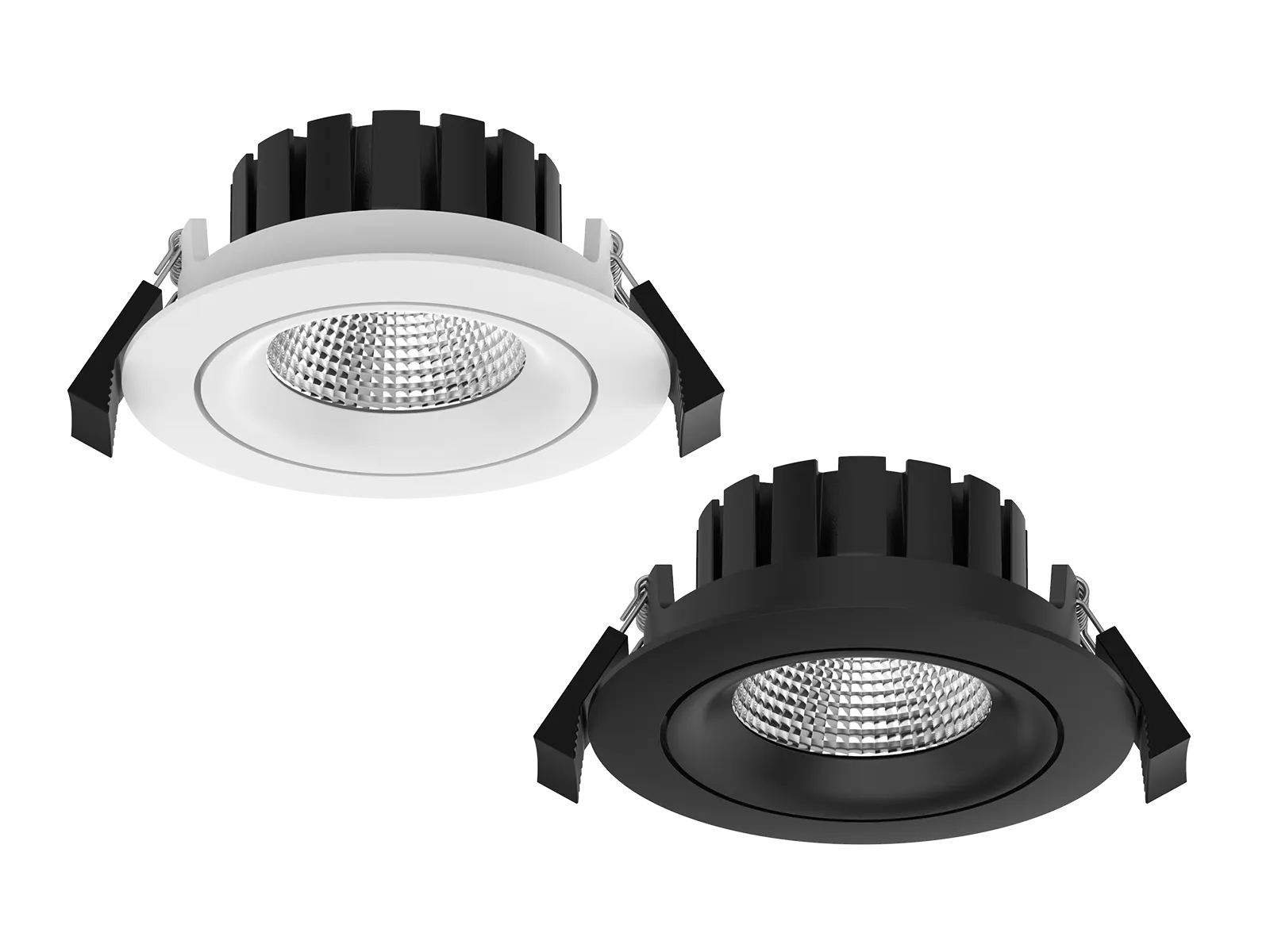

The CL/DL76 is a recessed downlight designed specifically for the Nordic and European market. With a height of 40mm, it can be installed in various ceiling types and covered directly by insulation material. It comes in fixed and adjustable versions, available in square and round shapes with single or double heads. The fixture features an ADC12 aluminum housing for excellent thermal management, ensuring stability and a long lifespan. It uses a high-lumen COB light source and a PC reflector to provide uniform and superior lighting output. For quick installation, it adopts loop in/out design driver with fast connector.
APPLICATIONS: It's widely used in indoor applications, such as residential, bathroom, shopping mall, office etc.
| CODE | CL76-2.5-8W | CL76B-2.5-8W | CL76B-15W | DL76-2.5-8W | |
|---|---|---|---|---|---|
| Dimension(mm) | Ø95*H42 | L95*W95*H42 | L190*W95*H42 | Ø95*H40 | |
| Cutout(mm) | Ø82-88 | 182*85 | Ø82-88 | ||
| Watt(W) | 8W | 2*7.5W | 8W | ||
| Input Voltage | AC200-240V | ||||
| LED Module Input | DC33-38V | ||||
| Light Source | COB | ||||
| CCT(K) | 1-CCT: 2700K / 3000K / 4000K || 2000K-3000K(Dim to warm) | ||||
| Luminous Flux (lm) ±5% CRI90 | DIM | 710-770 | 710-770 | 1280-1425 | 710-770 |
| Dim to warm | 140-590 | 140-590 | 280-1180 | 140-590 | |
| Beam Angle (°) | 36° / 60° | ||||
| Dimming Option | Triac | ||||
| Sensor | NO | ||||
| Product weight(Kg) | N.W/PC | 0.34 | 0.34 | 0.5 | 0.26 |
| G.W/PC | 0.41 | 0.39 | 0.66 | 0.33 | |
| Package weight(Kg) | N.W/CTN | 8.16 | 8.16 | 12 | 6.24 |
| G.W/CTN | 10.38 | 10.11 | 16.78 | 8.46 | |
| Qty/CTN (PCS) | 24 | 24 | 24 | 24 | |
| Carton Size(cm) | 39.5*29*28.5 | 39.5*29*28.5 | 48*36*45.5 | 39.5*29*28.5 | |
| 20GP(pcs) | 19152 | 19152 | 9120 | 19152 | |
| 40HQ(pcs) | 49464 | 49464 | 18240 | 49464 | |
| Code | CL76-2.5-8W(G2.0) | CL76B-2.5-8W(G2.0) | CL76B-15W(G2.0) | DL76-2.5-8W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø95*H42 | L95*W95*H42 | L190*W95*H42 | Ø95*H40 | ||
| Cutout(mm) | Ø82-88 | 182*85 | Ø82-88 | |||
| Watt(W) | 8W | 2*7.5W | 8W | |||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | SDCM<5 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 730-790 | 730-790 | 1320-1470 | 730-790 |
| DIM | 710-770 | 710-770 | 1280-1425 | 710-770 | ||
| CRI | CRI90 | |||||
| Beam Angle(°) | 36° / 60° | |||||
| LED Driver | Built-out, Flicker Free | |||||
| Dimming Option | Triac | |||||
| Sensor | NO | |||||
| Emergency Kits | NO | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP20(Inside Ceiling) | |||||
| Impact Resistance(IK Rating) | IK03 | |||||
| Product Finishing | White RAL9016/ Black RAL9005 | |||||
| Optics Material | PC | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 650° | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Recessed | |||||
