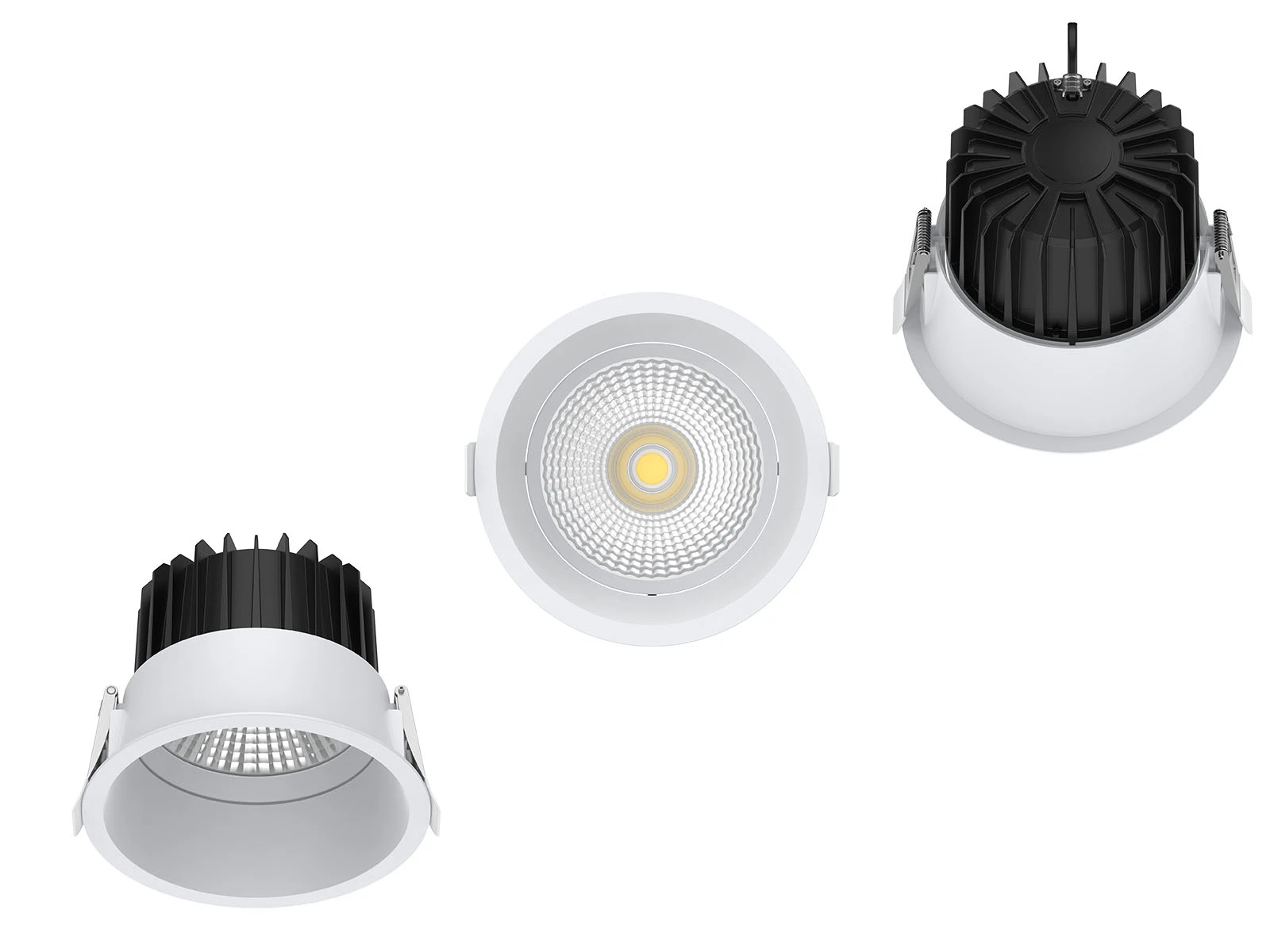

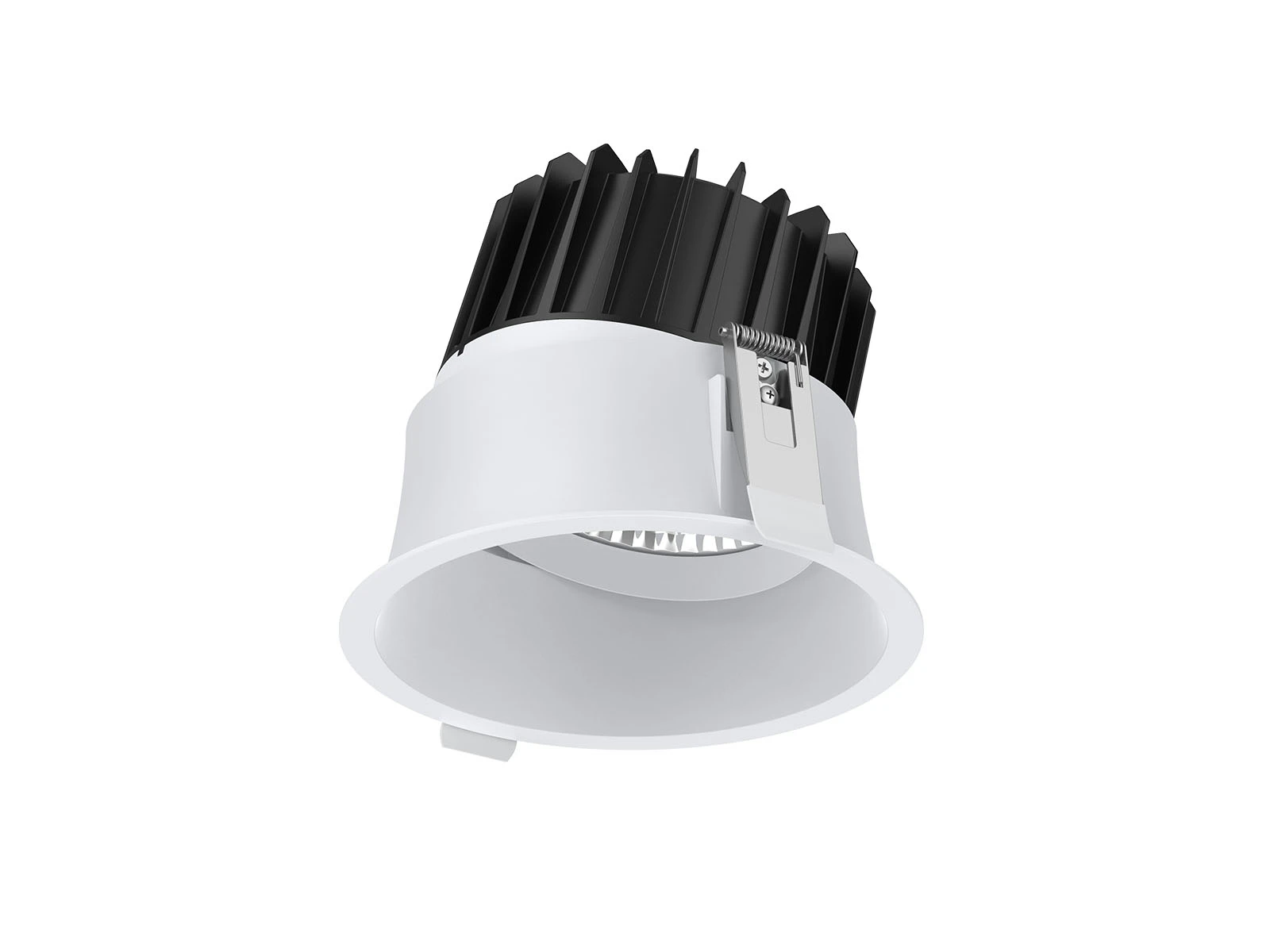

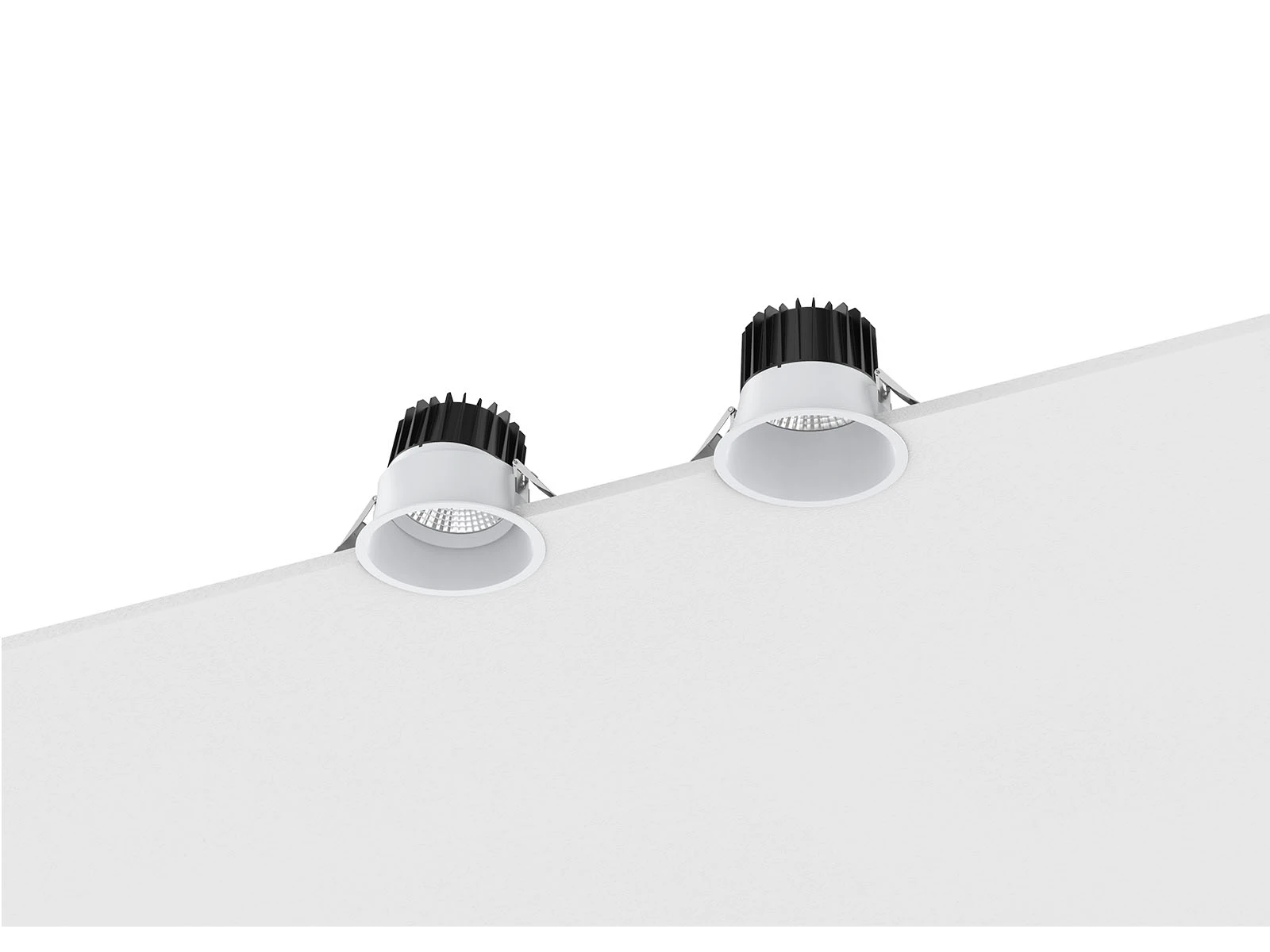

CL/DL440 is a series of downlights with a simple design and a 10mm narrow bezel. It features high-efficiency LED chips from the brand Bridgelux, a deep reflector and a transparent PC cover with excellent light transmission. The ADC12 material ensures effective heat dissipation. The series includes both fixed and adjustable models, with the adjustable version offering a 15-degree rotation.
Application Areas: It's widely used in indoor applications, such as residential, bathroom, shopping mall, office etc.
|
Code |
CL440-3-10W |
CL440-4-13W |
CL440-4-18W |
CL440-6-18W |
CL440-6-25W |
CL440-6-35W |
||
|---|---|---|---|---|---|---|---|---|
|
Dimension(mm) |
Ø110*90 |
Ø150*120 |
Ø190*149 |
|||||
|
Cutout(mm) |
Ø90-100 |
Ø130-140 |
Ø170-180 |
|||||
|
Watt(W) |
10W |
13W |
18W |
18W |
25W |
35W |
||
|
Rated Input Voltage |
AC220-240V |
|||||||
|
Input Voltage |
AC198-264V |
|||||||
|
LED Module Input |
DC33-38V |
|||||||
|
Light Source |
COB |
|||||||
|
SDCM |
<5 |
|||||||
|
CCT(K) |
1-CCT: 2700K/3000K/4000K/5000K 3-CCT: 3000K+4000K+5000K |
|||||||
|
CCT Selection DIP Switch |
YES |
|||||||
|
Luminous Flux (lm) ±5% CRI90 |
1-CCT |
Non-DIM |
890-1000 |
1270-1400 |
1700-1930 |
1720-1980 |
2500-2740 |
3370-3630 |
|
|
|
DIM |
820-950 |
1190-1310 |
1620-1860 |
1640-1890 |
2420-2650 |
3170-3420 |
|
|
3-CCT |
Non-DIM |
790-830 |
1300-1370 |
1750-1890 |
1700-1800 |
2330-2450 |
3070-3230 |
|
|
|
DIM |
810-880 |
1180-1200 |
1690-1790 |
1690-1790 |
2260-2370 |
2890-3090 |
|
CRI |
90 |
|||||||
|
Beam Angle(°) |
24°/36°/60° |
|||||||
|
UGR |
24°/36° |
<15 |
<14 |
<15 |
<11 |
<12 |
<14 |
|
|
|
60° |
<17 |
<15 |
<16 |
<15 |
<16 |
<17 |
|
|
LED Driver |
Driver built-out |
|||||||
|
Dimming Option |
Triac |
|||||||
|
Electrical Class |
Class II |
|||||||
|
Ingress Protection(IP Rating) |
IP44(Only for LED cover),IP20(For other part) |
|||||||
|
Impact Resistance(IK Rating) |
IK08 |
|||||||
|
Product Finishing |
White RAL9016 |
|||||||
|
Optics Material |
PC& Aluminium |
|||||||
|
Housing Material |
Die-Casting Aluminium |
|||||||
|
Lifetime(hr) |
50,000h |
|||||||
|
Glow wire test(°C) |
750 |
|||||||
|
Operating Temp(°C) |
-20°C~45°C |
|||||||
|
Storage Temp(°C) |
-20°C~65°C |
|||||||
|
Installation |
Recessed |
|||||||
|
Code |
DL440-3- 10W |
DL440-4- 13W |
DL440-4- 18W |
DL440-6- 18W |
DL440-6- 25W |
DL440-6- 35W |
DL440-8- 18W |
DL440-8- 25W |
DL440-8- 35W |
DL440-8- 40W |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimension(mm) |
Ø110*H90 |
Ø150*H120 |
Ø190*H149 |
Ø220*H149 |
||||||||
|
Cutout(mm) |
Ø90-100 |
Ø130-140 |
Ø170-180 |
Ø200-210 |
||||||||
|
Watt(W) |
10W |
13W |
18W |
18W |
25W |
35W |
18W |
25W |
35W |
40W |
||
|
Rated Input Voltage |
AC220-240V |
|||||||||||
|
Input Voltage |
AC198-264V |
|||||||||||
|
LED Module Input |
DC33-38V |
|||||||||||
|
Light Source |
COB |
|||||||||||
|
SDCM |
<5 |
|||||||||||
|
CCT(K) |
1-CCT: 2700K/3000K/4000K/5000K 3-CCT: 3000K+4000K+5000K |
|||||||||||
|
CCT Selection DIP Switch |
YES |
|||||||||||
|
Luminous Flux (lm) ±5% CRI90 |
1-CCT |
Non-DIM |
890-1110 |
1270-1400 |
1700-1960 |
1720-1950 |
2500-2770 |
3370-3630 |
1720-2010 |
2520-2850 |
3430-3640 |
3660-3880 |
|
DIM |
820-970 |
1190-1310 |
1700-1900 |
1640-1940 |
2420-2650 |
3170-3420 |
1640-1890 |
2440-2580 |
3230-3420 |
3650-3870 |
||
|
3-CCT |
Non-DIM |
900-970 |
1300-1380 |
1750-1850 |
1770-1870 |
2330-2450 |
2950-3180 |
1800-1900 |
2480-2580 |
3050-3260 |
- |
|
|
DIM |
830-910 |
1180-1230 |
1630-1730 |
1620-1720 |
2260-2370 |
2900-3130 |
1670-1770 |
2350-2500 |
2960-3180 |
- |
||
|
CRI |
90 |
|||||||||||
|
Beam Angle (°) |
24°/36°/60° |
|||||||||||
|
UGR |
24°/36° |
<13 |
<14 |
<15 |
<11 |
<12 |
<14 |
<11 |
<12 |
<13 |
<13 |
|
|
60° |
<16 |
<16 |
<17 |
<16 |
<16 |
<18 |
<16 |
<17 |
<18 |
<18 |
||
|
LED Driver |
Driver built-out |
|||||||||||
|
Dimming Option |
Triac |
|||||||||||
|
Electrical Class |
Class II |
|||||||||||
|
Ingress Protection(IP Rating) |
IP44(Below Ceiling), IP20(Inside Ceiling) |
|||||||||||
|
Impact Resistance(IK Rating) |
IK08 |
|||||||||||
|
Product Finishing |
White RAL9016 |
|||||||||||
|
Optics Material |
PC& Aluminium |
|||||||||||
|
Housing Material |
Die-Casting Aluminium |
|||||||||||
|
Lifetime(hr) |
50,000h |
|||||||||||
|
Glow wire test(°C) |
750 |
|||||||||||
|
Operating Temp(°C) |
-20°C~45°C |
|||||||||||
|
Storage Temp(°C) |
-20°C~65°C |
|||||||||||
|
Installation |
Recessed |
|||||||||||
