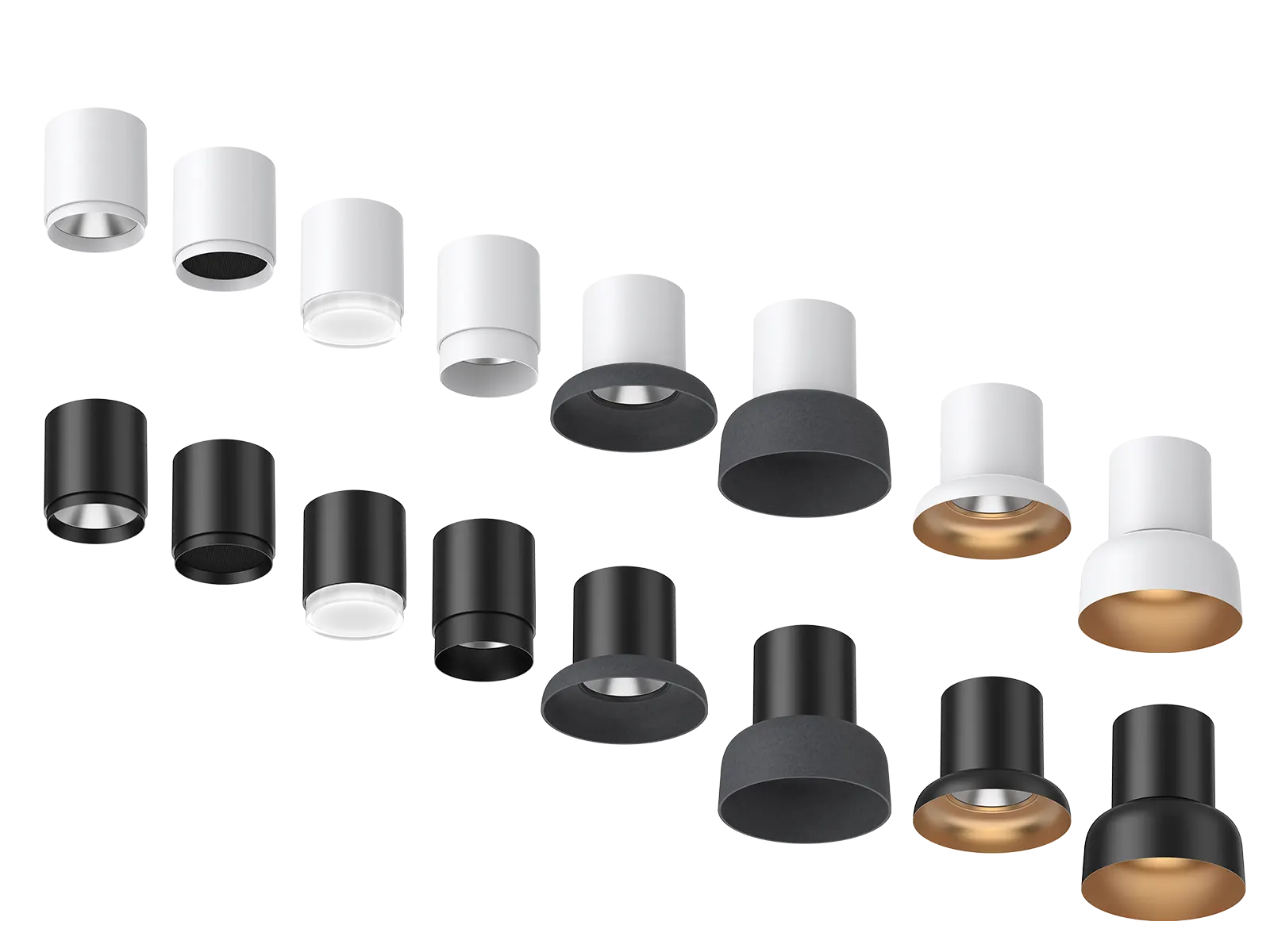

DL399 1

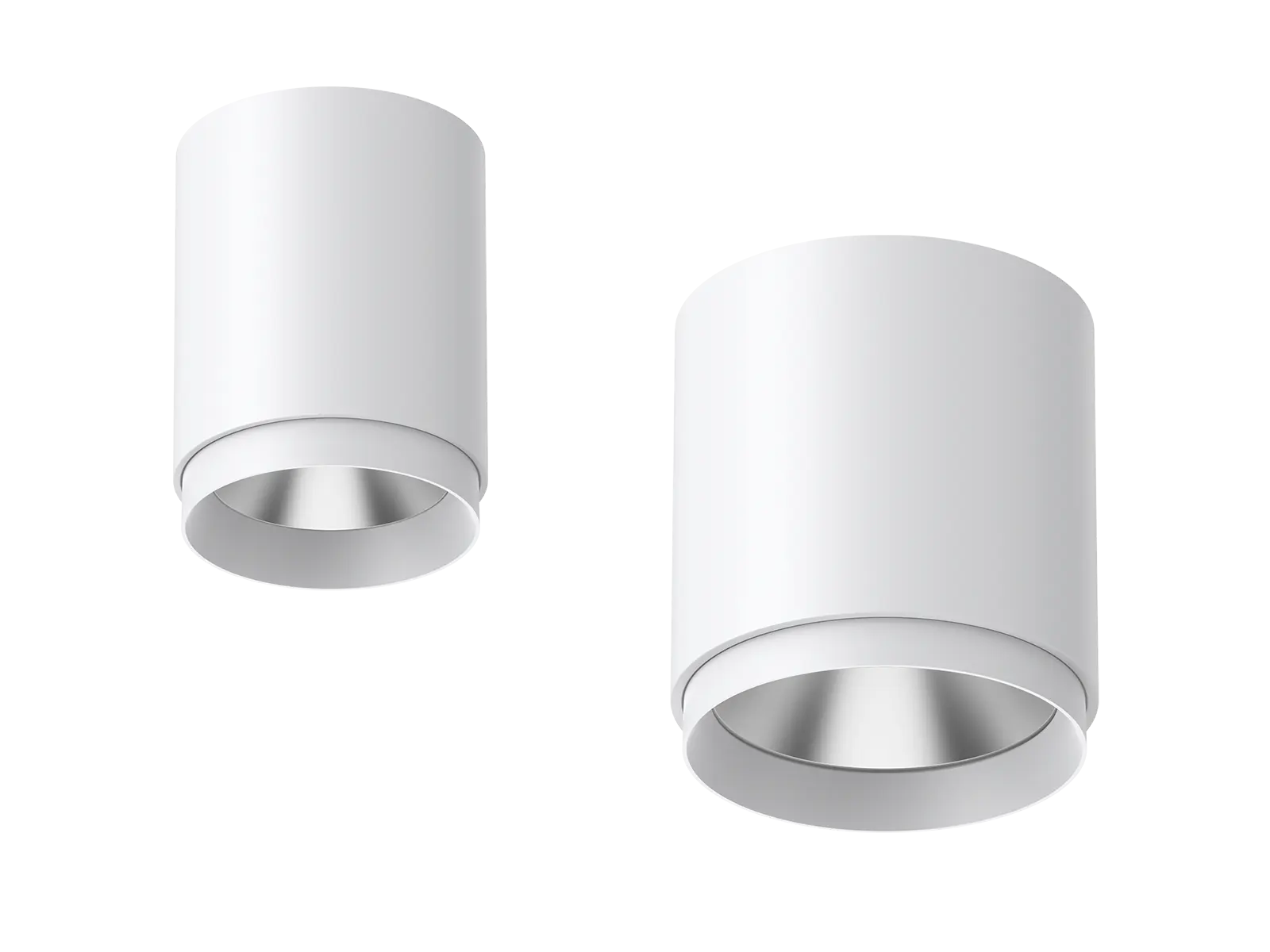

DL399 2
ART-DL399 LED Downlight
DL399 1
DL399 2

ART-DL399 LED Downlight

The DL399 series is highly distinctive modular design, offering multiple lamp head options to cater to various installation environments. With modular design concept, the reflector, optic lens and light source can be easily replaced. The same module for different accessories. The module can be taken off from front. This recessed downlight can fit 6-25mm thickness ceiling which offers wider installation possibility. ADC12 aluminium deep housing provides a good thermal management and ensure long lifespan, combine with the optic design, it can reach UGR<19 and offers better visual experience.

  •  Modular design enabling effortless upgrades and maintenance
  •  Additional cosmetic and acoustic accessories
  •  Reliable bracket fixation system can fit 6-25mm thickness ceiling
  •  Optic lens with 36°and 60°options
  •  Reflector color options: matt silver, matt golden, matt white, matt black
  •  Light source: single CCT, 3000K+4000K dual CCT, 2700K-6500K tunable white
  •  Front bracket options: Standard, deep bracket, honeycomb bracket, acrylic mask, acoustic bracket
  •  UGR<19 (Not available for white reflector 4inch 18W 36°&60°, 6inch 30W 60° . Not available for silver reflector 4inch 18W 60°)
  •  Dimming way: Triac, DT6 DALI, DT8 DALI
  •  External flicker free driver

Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.

Specification Files IES & LDT Files
Specifications

(Trim Flat)

CODE ART-DL399-4-10W ART-DL399-4-13W ART-DL399-4-18W ART-DL399-6-18W ART-DL399-6-25W ART-DL399-6-30W
Dimension(mm) Ø139*87 Ø180*103
Cutout (mm) Ø120 Ø160
Watt(W) 10W 13W 18W 18W 25W 30W
Input Voltage AC220-240V
LED Module Input DL33-38V
Light Source COB
CCT(K) 1-CCT: 2700K/3000K/4000K/5000K || 2-CCT: 3000K + 4000K
CCT Selection DIP Switch YES
36° Non-DIM 1150-1200 1400-1470 1880-2050 2150-2350 3000-3200 3500-3700
Luminous Flux (lm) ±5% DIM 1100-1150 1350-1420 1800-1970 2100-2300 2900-3100 3400-3600
CRI80 1-CCT 60° Non-DIM 1200-1250 1450-1550 2000-2150 2000-2150 2800-3000 3200-3400
DIM 1150-1200 1400-1450 1920-2050 1920-2100 2700-2900 3100-3300
36° Non-DIM 900-970 1080-1140 1450-1550 1800-1850 2400-2450 2600-2750
Luminous Flux (lm) ±5% DIM 850-920 1030-1100 1420-1500 1750-1800 2350-2400 2550-2700
CRI90 2-CCT 60° Non-DIM 950-1000 1200-1300 1620-1700 1650-1700 2100-2200 2500-2550
DIM 900-950 1150-1250 1600-1650 1600-1650 2050-2150 2400-2450



Compared to silver reflector version: White reflector has same lumen output, golden reflector has 3% lumen decrease, black reflector has 8% lumen decrease



Beam Angle (°) 36° / 60°
UGR UGR<19 (Not available for white reflector 4inch 18W 36°&60°, 6inch 30W 60° . Not available for silver reflector 4inch 18W 60°)
Dimming Option Triac / DALI
Sensor NO
Emergency NO
N.W/PC(KG) 0.64 1.01
G.W/CTN(KG) 11 6.3
Qty/CTN (PCS) 12 4
Carton Size(mm) 515*390*255 470*265*315







(Trim Halo)



CODE ART-DL399-4-10W ART-DL399-4-13W ART-DL399-4-18W ART-DL399-6-18W ART-DL399-6-25W ART-DL399-6-30W
Dimension(mm) Ø135*105 Ø175*121
Cutout (mm) Ø120 Ø160
Watt(W) 10W 13W 18W 18W 25W 30W
Input Voltage AC220-240V
LED Module Input DL33-38V
Light Source COB
CCT(K) 1-CCT: 2700K/3000K/4000K/5000K || 2-CCT: 3000K + 4000K
CCT Selection DIP Switch YES
Luminous Flux (lm) ±5% CRI80 1-CCT 36° Non-DIM 1150-1200 1350-1400 1850-2020 2100-2180 2950-3050 3400-3550
DIM 1100-1150 1300-1350 1780-1950 2030-2100 2850-2950 3300-3450
60° Non-DIM 1200-1250 1450-1520 2050-2150 2000-2100 2750-2850 3200-3300
DIM 1150-1200 1400-1470 1980-2080 1920-2020 2650-2750 3100-3200
Luminous Flux (lm) ±5% CRI90 2-CCT 36° Non-DIM 900-970 1100-1180 1520-1620 1750-1850 2500-2550 2700-2800
DIM 850-920 1050-1130 1450-1550 1700-1800 2400-2450 2600-2700
60° Non-DIM 950-1000 1150-1250 1620-1720 1600-1650 2200-2300 2500-2600
DIM 900-950 1100-1200 1550-1650 1550-1600 2100-2200 2400-2500



Compared to silver reflector version: White reflector has same lumen output, golden reflector has 3% lumen decrease, black reflector has 8% lumen decrease

Beam Angle (°) 36° / 60°
UGR UGR<19 (Not available for white reflector 4inch 18W 36°&60°, 6inch 30W 60° . Not available for silver reflector 4inch 18W 60°)
Dimming Option Triac/ DALI
Sensor NO
Emergency NO
N.W/PC(KG) 0.7 1.12
G.W/CTN(KG) 11.8 6.8
Qty/CTN (PCS) 12 4
Carton Size(mm) 515*390*315 470*265*375



 (Trim Cylinder)



CODE ART-DL399-4-10W ART-DL399-4-13W ART-DL399-4-18W ART-DL399-6-18W ART-DL399-6-25W ART-DL399-6-30W
Dimension(mm) Ø135*136 Ø175*152
Cutout (mm) Ø120 Ø160
Watt(W) 10W 13W 18W 18W 25W 30W
Input Voltage AC220-240V
LED Module Input DL33-38V
Light Source COB
CCT(K) 1-CCT: 2700K/3000K/4000K/5000K || 2-CCT: 3000K + 4000K
CCT Selection DIP Switch YES
Luminous Flux (lm) ±5% CRI80 1-CCT 36° Non-DIM 1050-1120 1250-1300 1780-1880 2050-2150 2950-3050 3350-3500
DIM 1000-1050 1200-1250 1700-1800 1950-2050 2850-2950 3250-3400
60° Non-DIM 1100-1150 1400-1450 1920-2020 1950-2100 2750-2850 3150-3300
DIM 1050-1100 1350-1400 1840-1940 1900-2000 2650-2750 3050-3200
Luminous Flux (lm) ±5% CRI90 2-CCT 36° Non-DIM 850-920 1000-1100 1420-1520 1730-1800 2400-2460 2650-2730
DIM 800-870 950-1050 1340-1440 1650-1720 2300-2400 2550-2630
60° Non-DIM 900-980 1100-1180 1550-1620 1500-1600 2100-2200 2350-2450
DIM 850-920 1050-1120 1470-1540 1420-1520 2000-2100 2250-2350

Compared to silver reflector version: White reflector has same lumen output, golden reflector has 3% lumen decrease, black reflector has 8% lumen decrease

Beam Angle (°) 36° / 60°
UGR UGR<19 (Not available for white reflector 4inch 18W 36°&60°, 6inch 30W 60° . Not available for silver reflector 4inch 18W 60°)
Dimming Option Triac / DALI
Sensor NO
Emergency NO
N.W/PC(KG) 0.84 1.32
G.W/CTN(KG) 13.7 7.6
Qty/CTN (PCS) 12 4
Carton Size(mm) 515*390*365 470*265*405
