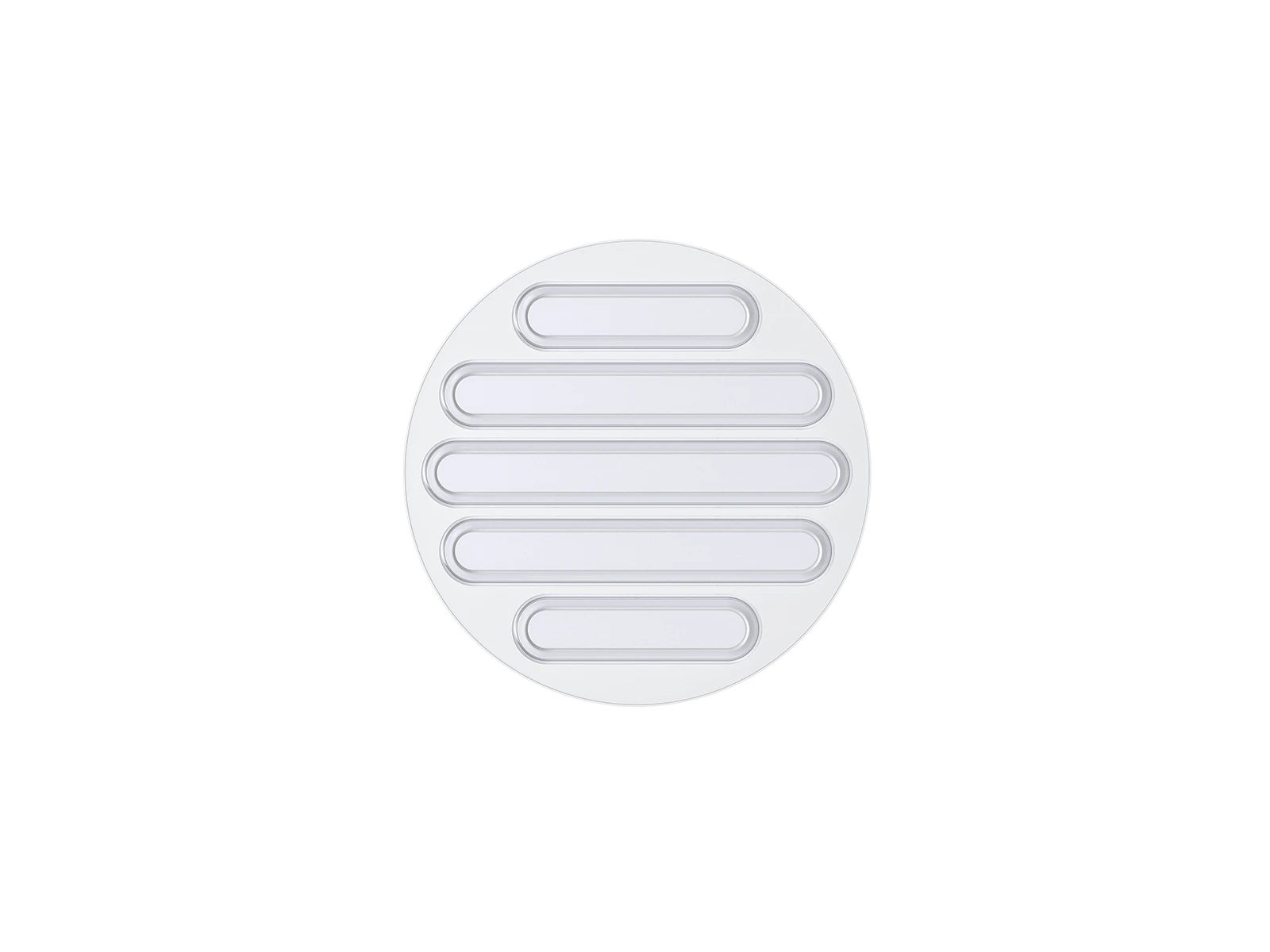

This ceiling light is designed to offer customers a lighting fixture that not only provides illumination but also serves as a design statement. The purpose is to create a visually striking contrast between the illuminated "light stripes" and the rest of the cover. This design concept aims to enhance the overall aesthetics of the fixture and make it easily recognizable.
APPLICATIONS: It can be widely used in architectural spaces, corridors, and other areas.
| CODE | ART-AL214-12-12W | ART-AL214-12-18W | ART-AL214-12-25W | ART-AL214-12-25W-A3 | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø300x54 | |||||
| Watt(W) | 12W | 18W | 25W | 25W Max.(18W/12W optional) | ||
| Input Voltage | AC220-240V | |||||
| LED Module Input | DC60-75V | |||||
| Light Source | SMD | |||||
| CCT(K) | 1-CCT: 3000K / 4000K || 2-CCT: 3000K & 4000K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 1510-1610 | 2120-2260 | 2780-2950 | 25W: 2800-2960 18W: 2030-2180 12W: 1360-1460 |
| DIM | 1240-1330 | 2020-2150 | 2700-2860 | - | ||
| DALI | 1400-1500 | 2140-2280 | 2780-2950 | - | ||
| 2-CCT | Non-DIM | 1510-1610 | 2120-2260 | 2780-2950 | 25W: 2800-2960 18W: 2030-2180 12W: 1360-1460 | |
| DIM | 1240-1330 | 2020-2150 | 2700-2860 | - | ||
| DALI | 1400-1500 | 2140-2280 | 2780-2950 | - | ||
| Beam Angle(°) | 110° | |||||
| Dimming Option | Triac / DALI | - | ||||
| Product weight(Kg) | N.W/PC | 1.41 | ||||
| G.W/PC | 1.63 | |||||
| Package weight(Kg) | N.W/CTN | 8.46 | ||||
| G.W/CTN | 10.54 | |||||
| Qty/CTN(PCS) | 6 | |||||
| Carton Size(cm) | 42*35.5*36 | |||||
| 20GP(pcs) | 2952 | |||||
| 40HQ(pcs) | 7224 | |||||
