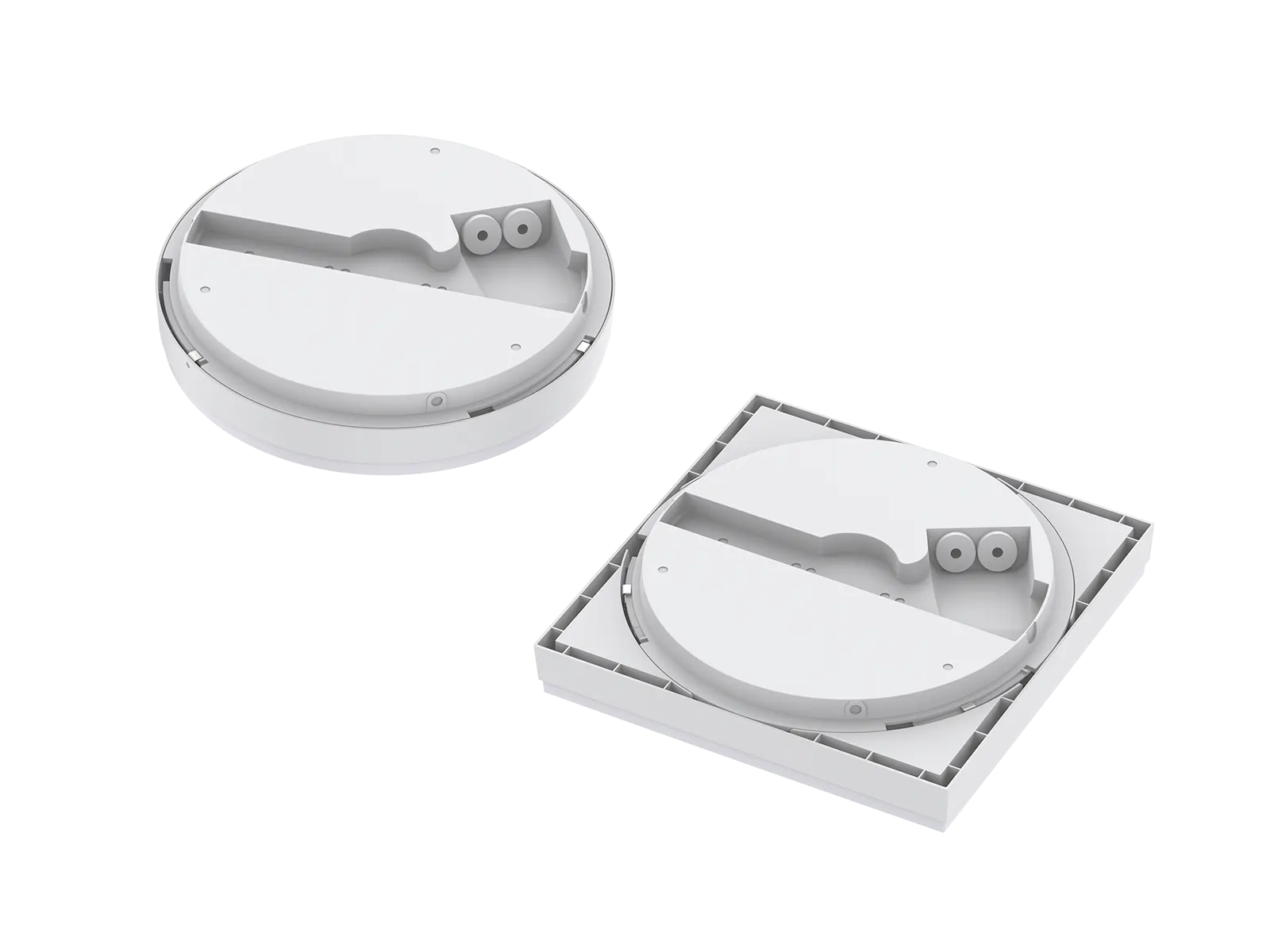

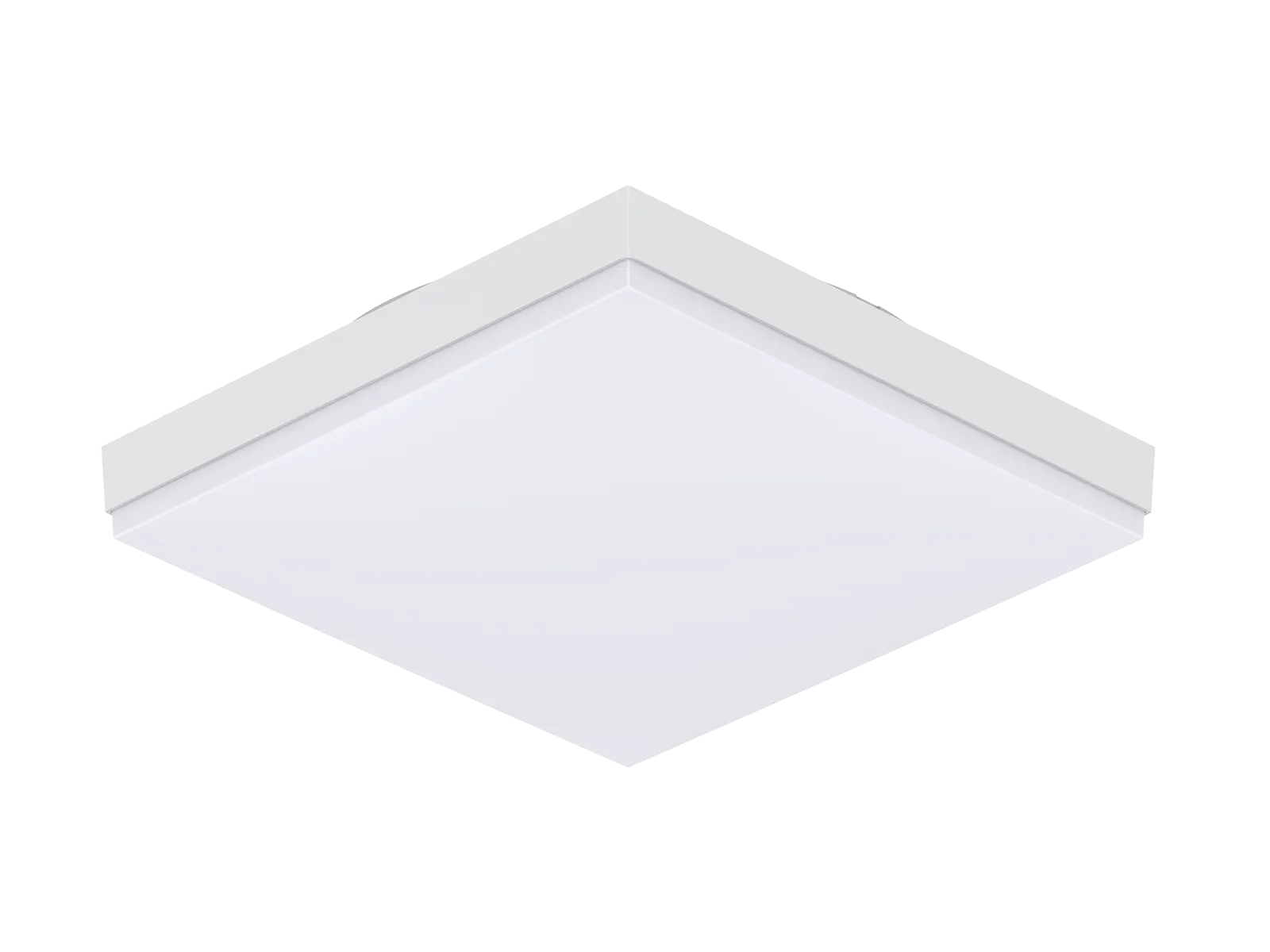

The AL87 features a frameless design that provides a uniform and soft illumination across the entire surface when viewed from the front. The sides also contribute a subtle ambiance, with a wide light emission angle for broader coverage. With a high luminous efficacy of 120LM/W, it integrates multiple functions and various dimming options. Available in round and square shapes, with flexible and convenient installation, making it suitable for various residential and commercial settings.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | AL87-11-12W | AL87-11-18W | AL87-11-25W | AL87-14-25W | AL87-14-30W | AL87B-11-25W | AL87B-14-30W | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø275*65 | Ø350*65 | 275*275*65 | 350*350*65 | ||||||
| Cutout (mm) | - | |||||||||
| Watt(W) | 12W | 18W | 25W | 25W | 30W | 25W | 30W | |||
| Rated Input Voltage | AC220-240V | |||||||||
| Input Voltage | AC198-264V | |||||||||
| LED Module Input | - | |||||||||
| Light Source | SMD | |||||||||
| SDCM | ≤6 | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||||||||
| CCT Selection DIP Switch | YES | |||||||||
| 1-CCT | Non-DIM | 1500-1700 | 2100-2300 | 2800-3050 | 2800-3000 | 3500-3700 | 2900-3300 | 3500-3700 | ||
| Luminous Flux (lm) ±5% | DIM | 1400-1500 | 2100-2200 | 2750-3000 | 2700-2900 | 3500-3700 | 2850-3200 | 3500-3700 | ||
| CRI80 | 3-CCT | Non-DIM | 1500-1700 | 2100-2300 | 2800-3050 | 2800-3000 | 3500-3700 | 2900-3300 | 3500-3700 | |
| DIM | 1400-1500 | 2100-2200 | 2750-3000 | 2700-2900 | 3500-3700 | 2850-3200 | 3500-3700 | |||
| CRI | ≥80 | |||||||||
| Beam Angle (°) | 120° | |||||||||
| UGR | - | |||||||||
| LED Driver | Driver built-in | |||||||||
| Dimming Option | Triac/ DALI | Triac/ DALI/ 0-10V | ||||||||
| Sensor | Microwave Sensor | |||||||||
| Emergency Kits | YES | YES | NO | YES | YES | NO | YES | |||
| Electrical Class | Class II | |||||||||
| Ingress Protection(IP Rating) | Ceiling Surface Mount IP54 | |||||||||
| Impact Resistance(IK Rating) | IK08 | |||||||||
| Product Finishing | White RAL9016 | |||||||||
| Optics Material | PP | |||||||||
| Housing Material | PP | |||||||||
| Lifetime (hr) | 50,000h | |||||||||
| Glow wire test (°C) | 750°C | |||||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||||
| Installation | Ceiling Surface Mount | |||||||||
