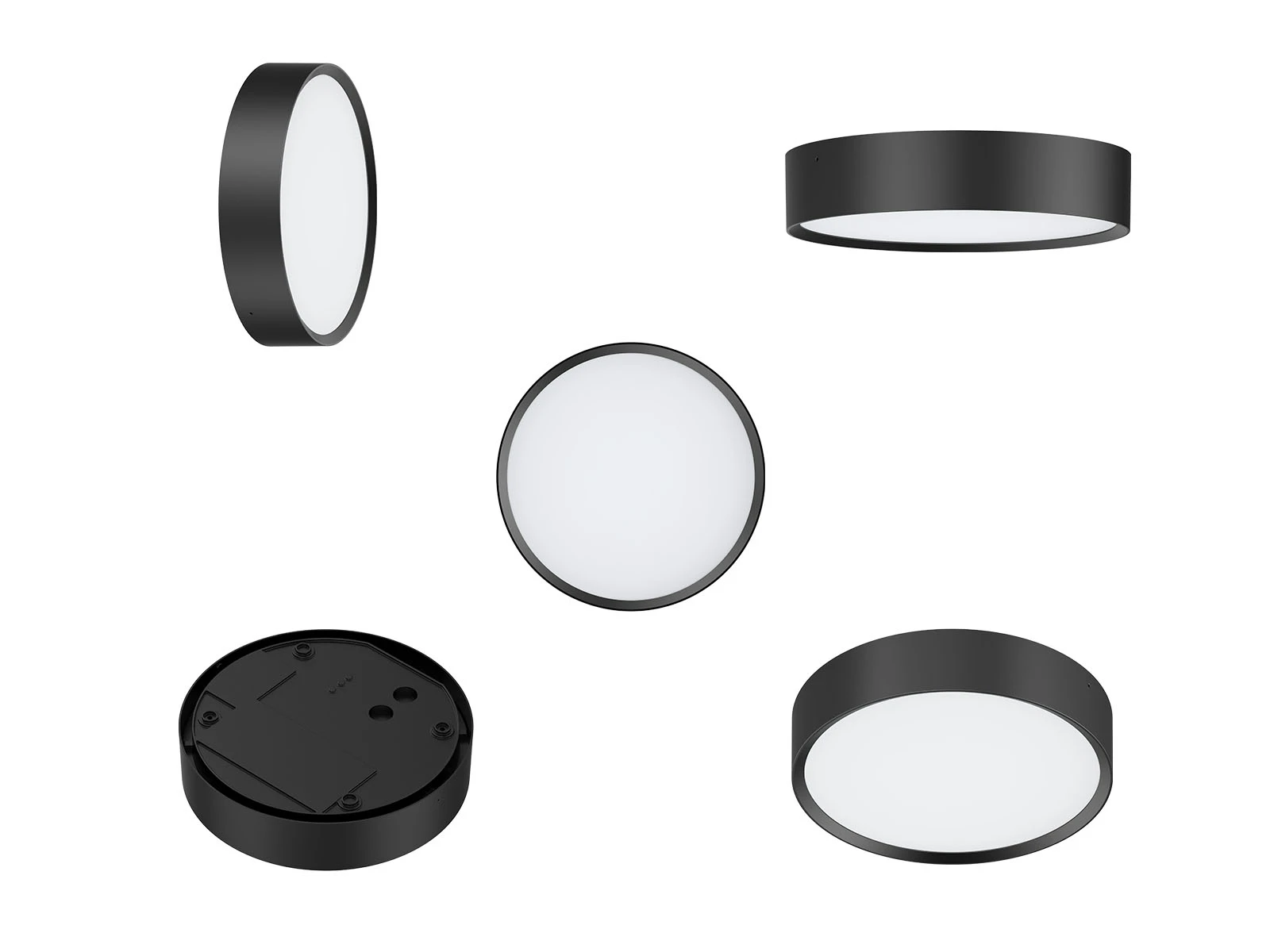

The AL65 features an integrated design, utilizing die-cast aluminum for the housing to ensure structural strength and durability. The optical component is equipped with 2835 SMD light sources and a 94-V2 flame-retardant PC lampshade, achieving a combination of high transparency and safety. This product supports wall-mounted installation and has an IP65 protection rating and IK10 impact resistance. It allows for flexible adjustments of color temperature and power, and can be optionally equipped with sensor and emergency functions, fully adapting to various outdoor complex environment application needs.
Application Areas: It is designed for general lighting applications. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | AL65-10-18W-A3 | ||
|---|---|---|---|
| Dimension(mm) | Ø250*58 | ||
| Watt(W) | 18W Max.(15W/12W optional) | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 1-CCT: 3000K/4000K || 2-CCT: 3000K + 4000K | ||
| CCT Selection | By DIP Switch | ||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 18W: 1880-2020 15W: 1600-1820 12W: 1220-1450 |
| 2-CCT | Non-DIM | 18W: 1880-2020 15W: 1600-1820 12W: 1220-1450 | |
| CRI | CRI80 | ||
| Beam Angle(°) | 110° | ||
| LED Driver | Built-in | ||
| Sensor | Microwave sensor | ||
| Emergency Kits | YES | ||
| Electrical Class | Class I | ||
| Ingress Protection(IP Rating) | Wall Mount IP65 | ||
| Impact Resistance(IK Rating) | IK10 | ||
| Product Finishing | Black(RAL9005) | ||
| Optics Material | PC(diffuser) | ||
| Housing Material | Die-Casting Aluminium | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Wall Mount | ||
