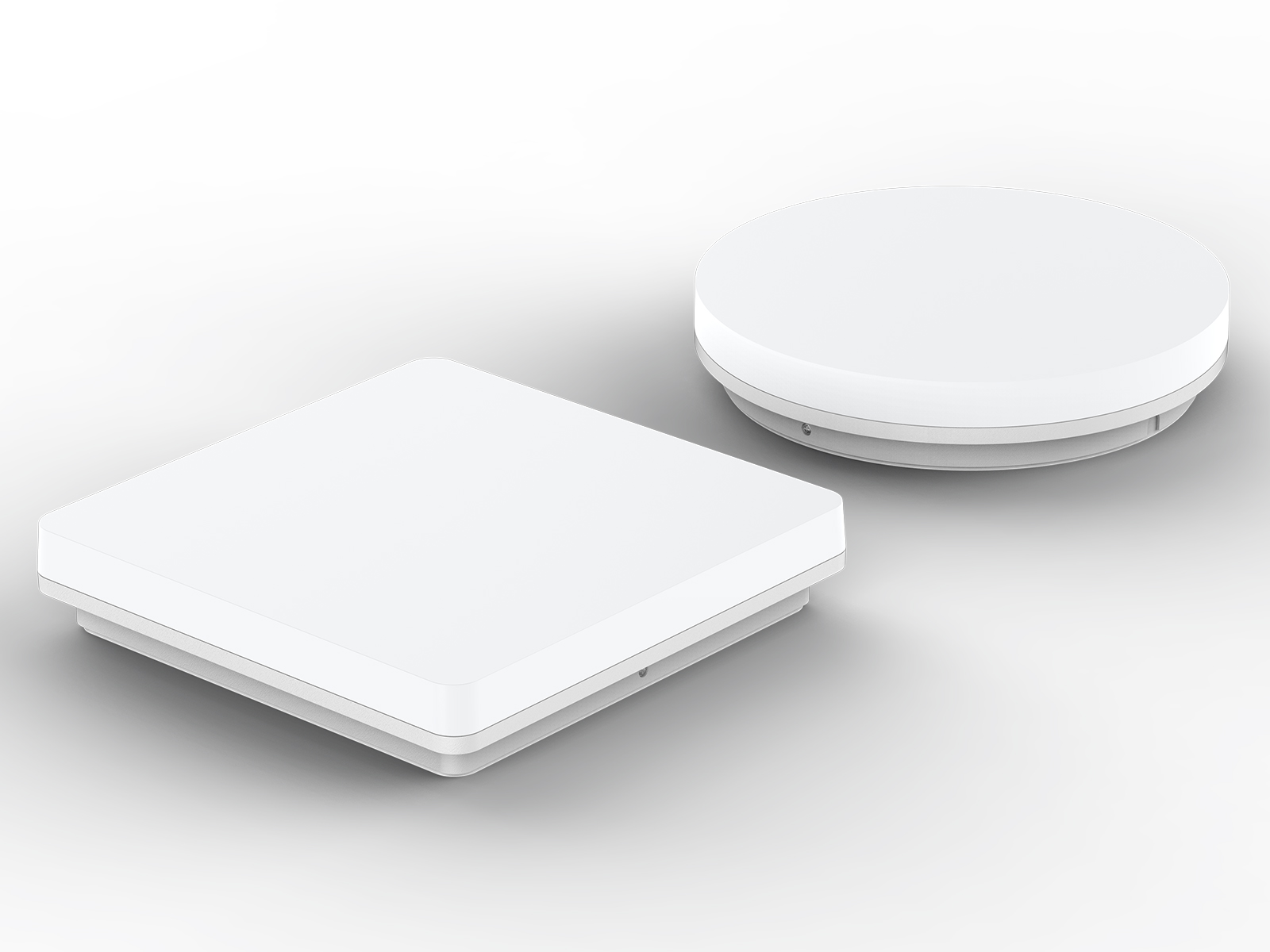

Surface mounted ceiling light adopts high lumen SMD LED, fire-rated PC diffuser with even light output. IP54 waterproof structural design, it is an ideal replacement for wet locations. Triac dimmable function available.
Sensor ceiling light features:
Sensor Function:
| Model No. | AL53-10-15W-S5 | AL53-12-25W-S5 | AL53-16-35W-S5 | ||
| Watt(W) | 15W | 25W | 35W | ||
| Dimension(mm) | Ø50*50 | Ø00*58 | Ø00*63 | ||
| Rated Input Voltage(V) | AC100-240V | ||||
| Input Voltage(V) | AC85-265V | ||||
| LED | SMD | ||||
| SDCM | <6 (@3000K 4000K 5000K) | ||||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K || 3-CCT: 3000K+4000K+5700K | ||||
| "Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | 1410-1500 | 2370-2600 | 3150-3400 |
| DIM | – | – | – | ||
| 3-CCT | Non-DIM | 1410-1500 | 2370-2600 | 3150-3400 | |
| DIM | – | – | – | ||
| CRI | ≥80 | ||||
| Beam Angle (°) | 120° | ||||
| LED Driver | Built-in | ||||
| DIM | 10 brightness levels controlled by infrared remote | ||||
| Microwave Sensor | Yes | ||||
| CCT Selection swith | Yes | ||||
| Protection Class | Class Ⅱ | ||||
| IP Rating | IP54 | ||||
| IK Rating | IK10 | ||||
| Finishing color | White RAL 9016 | ||||
| Material | PC | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (°C) | 750℃(Cover) 850℃(Lamp Base) | ||||
