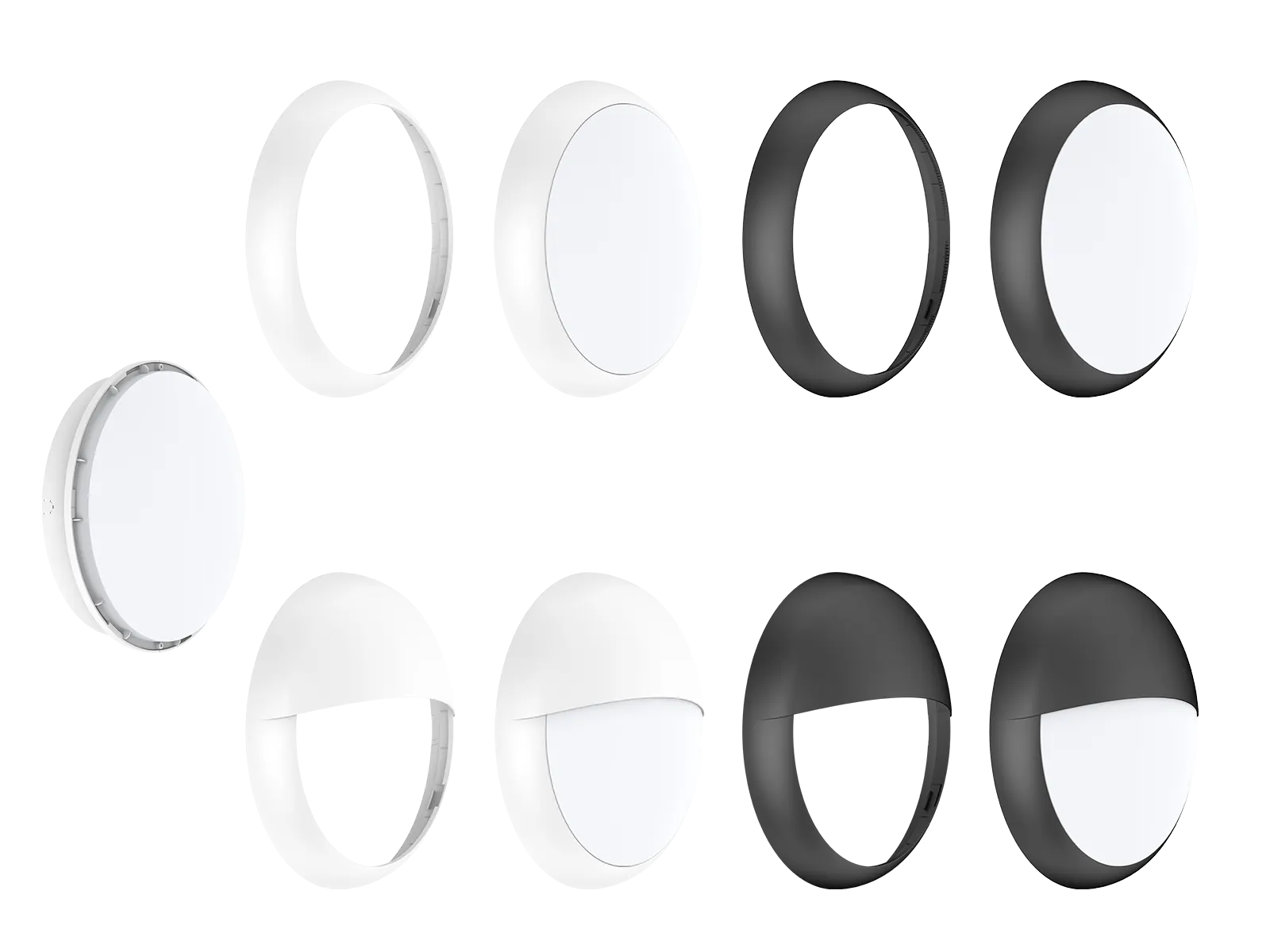

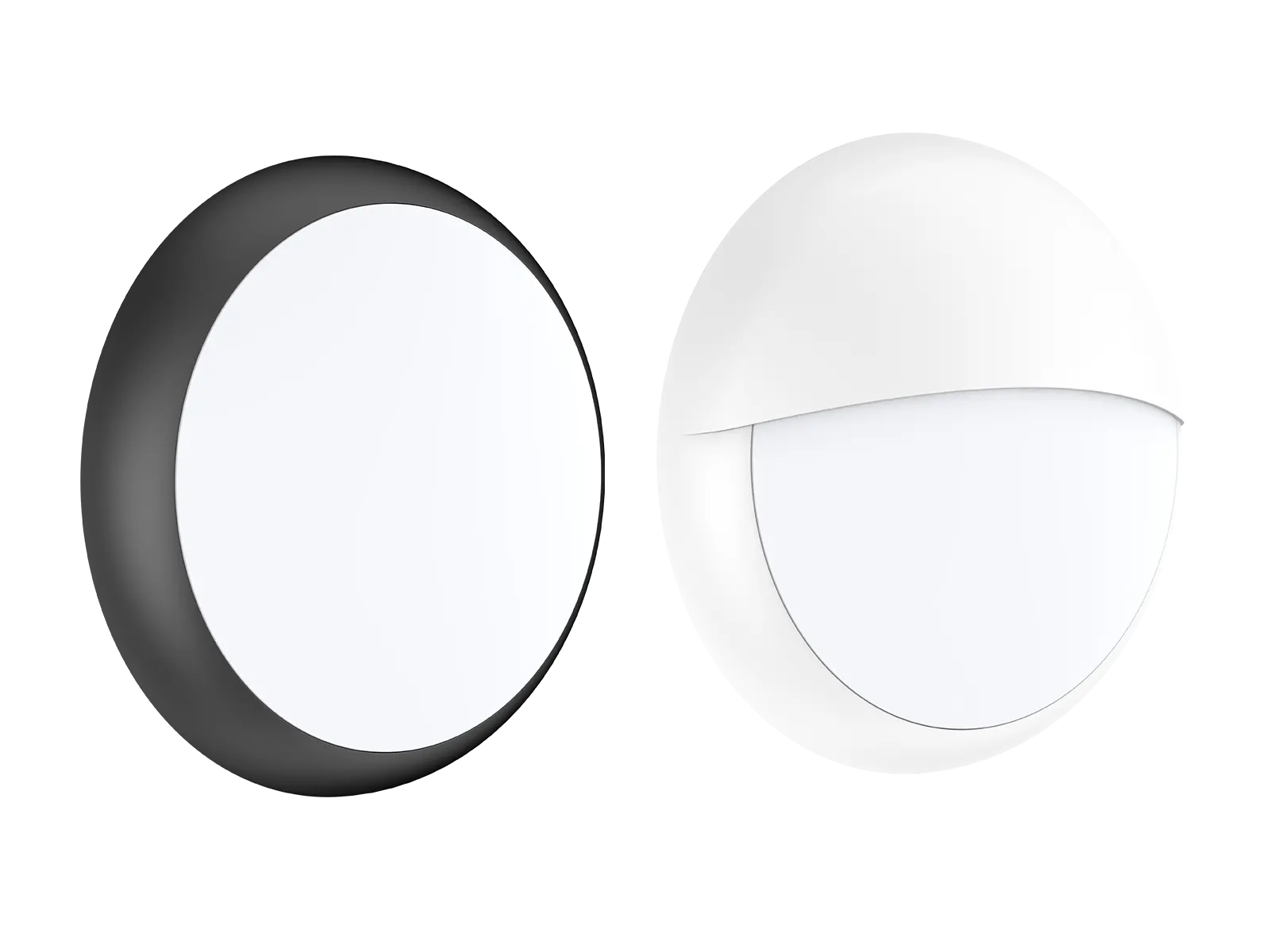

AL247 is an outdoor IP65 IK10 waterproof wall light. Its driver and LED PCB are modular design, making it extremely convenient for customers to replace components. Two different decorative rings are available, circular and semi-circular, it can be used in different scenarios. Sensor and emergency functions are supported with modular design, users can DIY and combine features as needed. In addition, E27 lamp housing is available to match with E27 light sources, making it widely suitable for a variety of applications.
Applications: Suitable for general lighting in places such as supermarkets, stores, schools, hotels, and more. It is also widely used in public areas like stairways, lobbies, reception areas, and exterior walls along corridors.
| Code | AL247A-12-16W-A3C3 | |||
|---|---|---|---|---|
| Dimension(mm) | Ø300*96 | |||
| Cutout(mm) | - | |||
| Watt(W) | 16W Max.(12W/9W optional) | |||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| LED Module Input | - | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 3-CCT: 3000K + 4000K+6500K | |||
| CCT Selection | By DIP Switch | |||
| Luminous Flux (lm) ±5% | 3-CCT | Non-DIM | 16W: 1810-2020 | 16W: 1230-1440 |
| CRI80 | 12W: 1370-1500 | 12W: 950-1100 | ||
| 9W: 1050-1130 | 9W: 700-800 | |||
| The above test data are based on white housing: the luminous fux of black housing is 25% lower than that of white | ||||
| CRI | CRI 80 | |||
| Beam Angle(°) | 120° | |||
| UGR | - | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | NO | |||

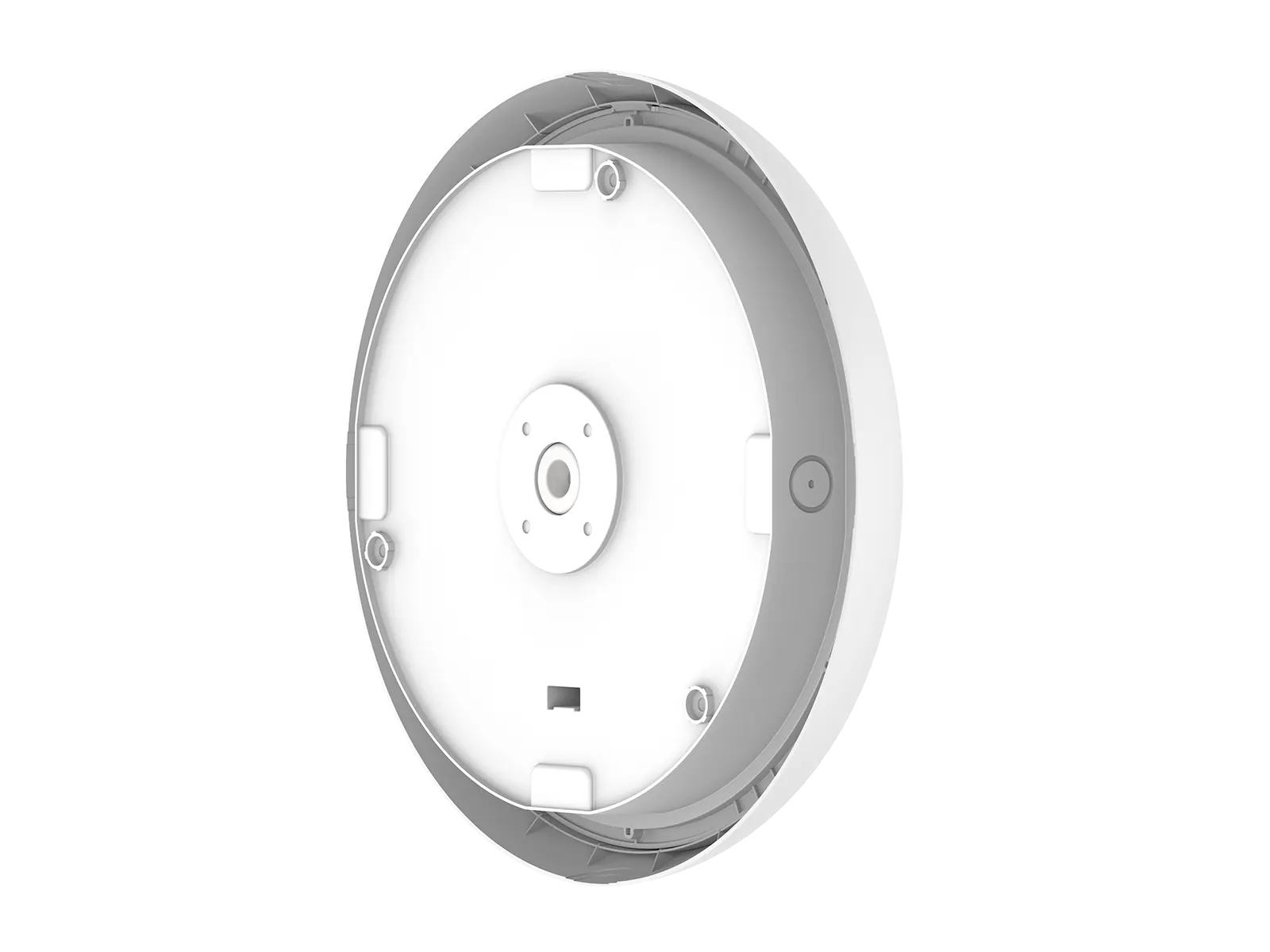

| Sensor | Microwave sensor & Daylight sensor | |||
| Emergency Kits | YES | |||
| Electrical Class | Class II | |||
| Ingress Protection(IP Rating) | Wall Mount IP65 | |||
| Impact Resistance(IK Rating) | IK10 | |||
| Product Finishing | White RAL9016, Black RAL9005 | |||
| Optics Material | PC | |||
| Housing Material | PC+ABS | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20°C ~45°C | |||
| Storage Temp.(°C) | -20°C ~60°C | |||
| Installation | Wall mount | |||
