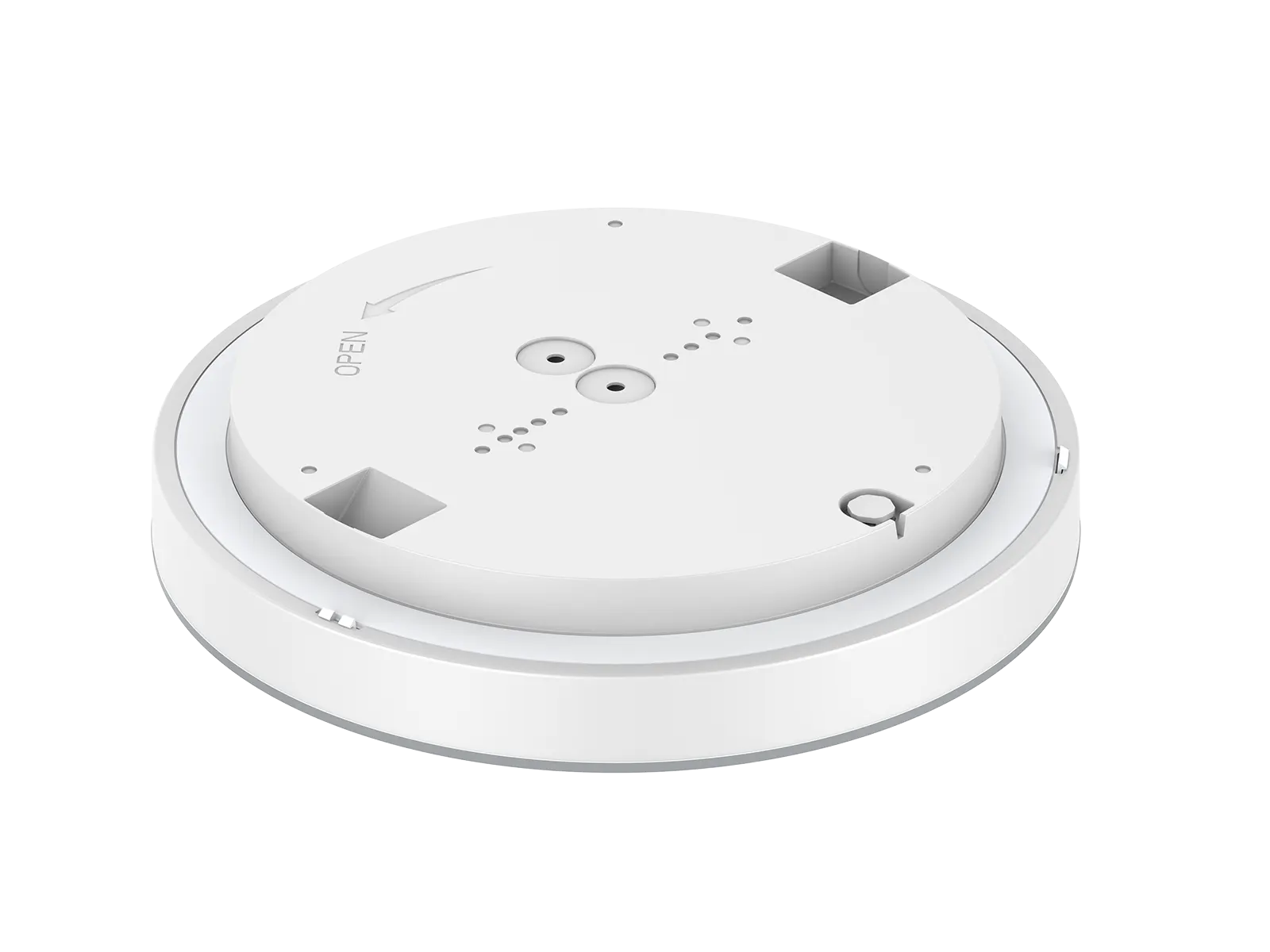

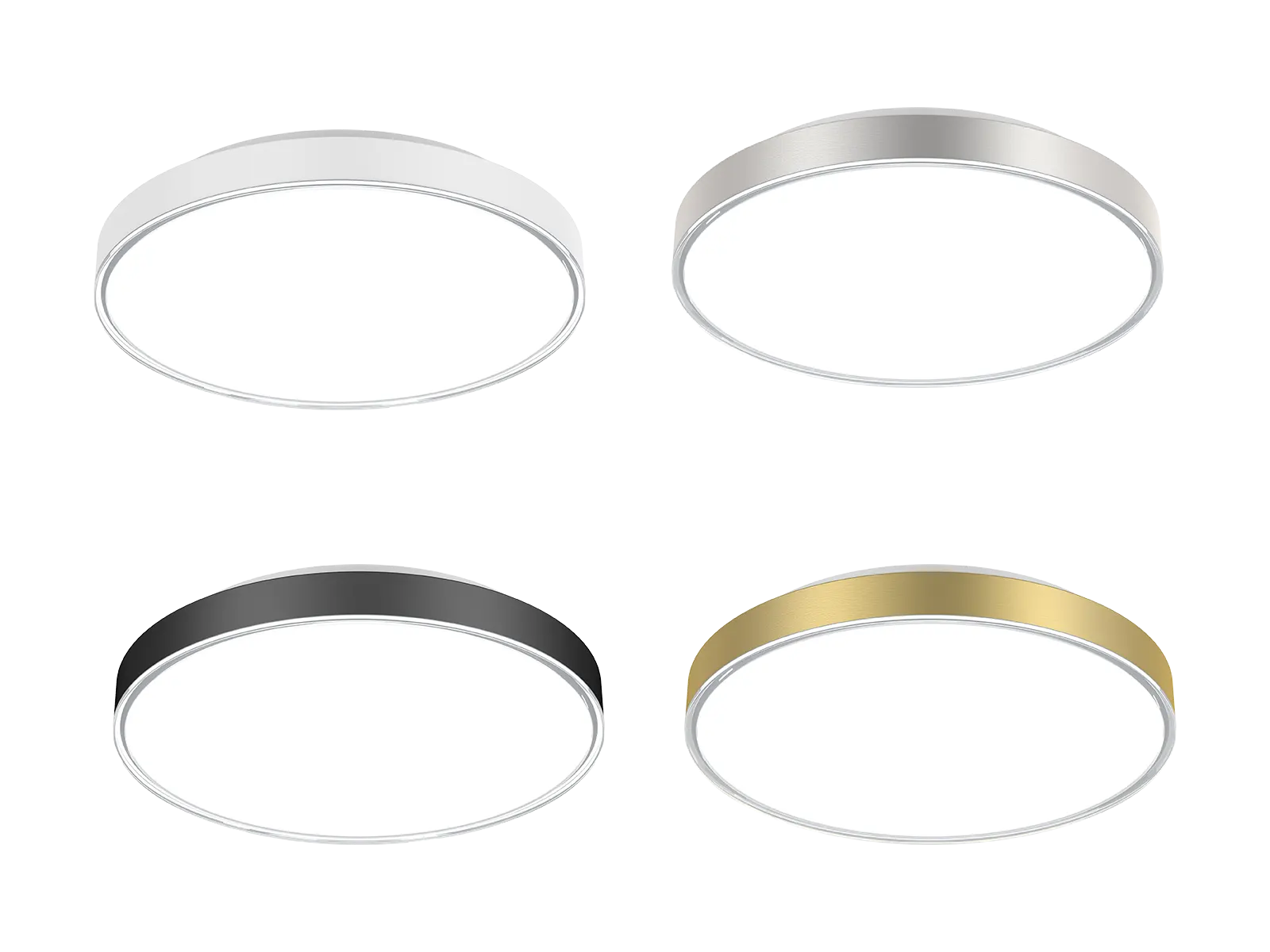

AL246 is a ceiling light with a glass-like texture and aesthetic. Light radiates through the glass textured cover, creating a soft and comfortable atmosphere. A metal decorative ring adds a distinctive, high-quality luxurious feel, while the ultra-slim body and screw-free appearance provide a clean, minimalist look that perfectly complements any space and delivers an unparalleled lighting experience. The metal ring is available in multiple colors. The product line is extensive and fully featured, compatible with both rear-entry and side-entry wiring for easy installation. It comes in a complete range of sizes, offers high protection ratings, multiple mounting options, and a variety of harmonious styles-making it suitable for a wide range of commercial and residential settings.
Applications: Suitable for architectural spaces, museums, art galleries, commercial areas, public spaces, offices, hotels, studios, libraries, and similar environments.
| Code | AL246A-10-12W | AL246A-12-24W | AL246A-16-30W | AL246B-10-12W | AL246B-12-24W | AL246B-16-30W | ||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø250*54 | Ø300*54 | Ø400*54 | Ø250*54 | Ø300*54 | Ø400*54 | ||
| Watt(W) | 12W Max. | 24W Max. | 30W Max. | Direct light 10W | Direct light 21W | Direct light 28W | ||
| Indirect light 3W | Indirect light 2W | |||||||
| Direct light 8.3W | Direct light 15.7W | Direct light 22.4W | ||||||
| Indirect light 1.7W | Indirect light 2.3W | Indirect light 1.6W | ||||||
| Direct light 6.7W | Direct light 10.5W | Direct light 16.8W | ||||||
| Indirect light 1.3W | Indirect light 1.5W | Indirect light 1.2W | ||||||
| Rated Input Voltage | AC220-240V | |||||||
| Input Voltage | AC198-264V | |||||||
| LED Module Input | - | |||||||
| Light Source | SMD2835 | |||||||
| SDCM | SDCM<6 | |||||||
| CCT(K) | 1-CCT: 3000K/4000K || 2-CCT: 3000K+4000K | |||||||
| CCT Selection | By DIP Switch | |||||||
| Non-DIM | 12W: 1440-1500 | 24W: 3050-3180 | 30W: 3720-3900 | 12W: 1390-1450 | 24W: 3000-3130 | 30W: 3770-3990 | ||
| 10W: 1150-1200 | 18W: 2240-2340 | 24W: 2980-3110 | 10W: 1120-1160 | 18W: 2200-2290 | 24W: 3030-3180 | |||
| 1-CCT | 8W: 870-910 | 12W: 1440-1500 | 18W: 2250-2330 | 8W: 860-880 | 12W: 1400-1450 | 18W: 2290-2380 | ||
| Triac Dim | 12W: 1440-1500 | 24W: 2930-3060 | 30W: 3930-4010 | 12W: 1370-1440 | 24W: 2890-3020 | 30W: 3730-3980 | ||
| 10W: 1180-1230 | 18W: 2150-2250 | 24W: 3160-3220 | 10W: 1130-1180 | 18W: 2200-2220 | 24W: 2990-3160 | |||
| Luminous Flux (lm) ±5% | 8W: 930-970 | 12W: 1380-1440 | 18W: 2400-2440 | 8W: 890-930 | 12W: 1340-1400 | 18W: 2250-2340 | ||
| CRI80 | DALI | 12W: 1480-1540 | 24W: 2990-3120 | 30W: 3940-4110 | 12W: 1440-1500 | 24W: 2940-3070 | 30W: 3880-4040 | |
| 10W: 1190-1240 | 18W: 2230-2330 | 24W: 3140-3270 | 10W: 1160-1200 | 18W: 2190-2280 | 24W: 3080-3210 | |||
| 8W: 910-940 | 12W: 1480-1540 | 18W: 2340-2430 | 8W: 880-910 | 12W: 1440-1500 | 18W: 2280-2390 | |||
| Non-DIM | 12W: 1440-1500 | 24W: 3050-3180 | 30W: 3720-3900 | 12W: 1390-1450 | 24W: 3000-3130 | 30W: 3770-3990 | ||
| 10W: 1150-1200 | 18W: 2240-2340 | 24W: 2980-3110 | 10W: 1120-1160 | 18W: 2200-2290 | 24W: 3030-3180 | |||
| 2-CCT | 8W: 870-910 | 12W: 1440-1500 | 18W: 2250-2330 | 8W: 860-880 | 12W: 1400-1450 | 18W: 2290-2380 | ||
| Triac Dim | 12W: 1440-1500 | 24W: 2930-3060 | 30W: 3930-4010 | 12W: 1370-1440 | 24W: 2890-3020 | 30W: 3730-3980 | ||
| 10W: 1180-1230 | 18W: 2150-2250 | 24W: 3160-3220 | 10W: 1130-1180 | 18W: 2200-2220 | 24W: 2990-3160 | |||
| 8W: 930-970 | 12W: 1380-1440 | 18W: 2400-2440 | 8W: 890-930 | 12W: 1340-1400 | 18W: 2250-2340 | |||
| DALI | 12W: 1480-1540 | 24W: 2990-3120 | 30W: 3940-4110 | 12W: 1440-1500 | 24W: 2940-3070 | 30W: 3880-4040 | ||
| 10W: 1190-1240 | 18W: 2230-2330 | 24W: 3140-3270 | 10W: 1160-1200 | 18W: 2190-2280 | 24W: 3080-3210 | |||
| 8W: 910-940 | 12W: 1480-1540 | 18W: 2340-2430 | 8W: 880-910 | 12W: 1440-1500 | 18W: 2280-2390 | |||
| Non-DIM | 12W: 1280-1350 | 24W: 2750-2860 | 30W: 3350-3510 | 12W: 1250-1310 | 24W: 2700-2820 | 30W: 3340-3590 | ||
| 10W: 1030-1080 | 18W: 2020-2100 | 24W: 2680-2800 | 10W: 1010-1040 | 18W: 1980-2060 | 24W: 2730-2860 | |||
| 1-CCT | 8W: 780-820 | 12W: 1300-13500 | 18W: 2030-2100 | 8W: 770-790 | 12W: 1260-1310 | 18W: 2060-2140 | ||
| Triac Dim | 12W: 1230-1400 | 24W: 2630-2750 | 30W: 3540-3610 | 12W: 11230-1230 | 24W: 2690-2720 | 30W: 3360-3580 | ||
| 10W: 1060-1100 | 18W: 1940-2030 | 24W: 2850-2900 | 10W: 1020-1060 | 18W: 1980-2000 | 24W: 2690-2840 | |||
| Luminous Flux (lm) ±5% | 8W: 840-870 | 12W: 1240-123 | 18W: 2160-2200 | 8W: 720-840 | 12W: 1210-1260 | 18W: 2030-2110 | ||
| CRI90 | DALI | 12W: 1330-1380 | 24W: 2690-2810 | 30W: 3550-3700 | 12W: 1300-1350 | 24W: 2450-2760 | 30W: 3490-3640 | |
| 10W: 1070-1110 | 18W: 2000-2100 | 24W: 2830-2950 | 10W: 1050-1080 | 18W: 1970-2050 | 24W: 2770-2890 | |||
| 8W: 820-950 | 12W: 1330-1390 | 18W: 2110-2190 | 8W: 790-820 | 12W: 1230-1350 | 18W: 2050-2150 | |||
| Non-DIM | 12W: 1280-1350 | 24W: 2750-2860 | 30W: 3350-3510 | 12W: 1250-1310 | 24W: 2700-2820 | 30W: 3340-3590 | ||
| 10W: 1030-1080 | 18W: 2020-2100 | 24W: 2680-2800 | 10W: 1010-1040 | 18W: 1980-2060 | 24W: 2730-2860 | |||
| 2-CCT | 8W: 780-820 | 12W: 1300-13500 | 18W: 2030-2100 | 8W: 770-790 | 12W: 1260-1310 | 18W: 2060-2140 | ||
| Triac Dim | 12W: 1230-1400 | 24W: 2630-2750 | 30W: 3540-3610 | 12W: 11230-1230 | 24W: 2690-2720 | 30W: 3360-3580 | ||
| 10W: 1060-1100 | 18W: 1940-2030 | 24W: 2850-2900 | 10W: 1020-1060 | 18W: 1980-2000 | 24W: 2690-2840 | |||
| 8W: 840-870 | 12W: 1240-123 | 18W: 2160-2200 | 8W: 720-840 | 12W: 1210-1260 | 18W: 2030-2110 | |||
| DALI | 12W: 1330-1380 | 24W: 2690-2810 | 30W: 3550-3700 | 12W: 1300-1350 | 24W: 2450-2760 | 30W: 3490-3640 | ||
| 10W: 1070-1110 | 18W: 2000-2100 | 24W: 2830-2950 | 10W: 1050-1080 | 18W: 1970-2050 | 24W: 2770-2890 | |||
| 8W: 820-950 | 12W: 1330-1390 | 18W: 2110-2190 | 8W: 790-820 | 12W: 1230-1350 | 18W: 2050-2150 | |||
| CRI | 80 / 90 | |||||||
| Beam Angle(°) | 110° | |||||||
| UGR | - | |||||||
| LED Driver | Built-in, Flicker Free | |||||||
| Dimming Option | Triac / DALI | |||||||
| Sensor | Microwave sensor | |||||||
| Emergency Kits | YES | |||||||
| Electrical Class | Class II | |||||||
| Ingress Protection(IP Rating) | IP54 | |||||||
| Impact Resistance(IK Rating) | IK06 | |||||||
| Product Finishing | White RAL9016 | |||||||
| Optics Material | White polymer cover, PC | |||||||
| Housing Material | PC | |||||||
| Lifetime(hr) | 50,000h | |||||||
| Glow wire test(°C) | 650°C | |||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||
| Storage Temp.(°C) | -20°C~60°C | |||||||

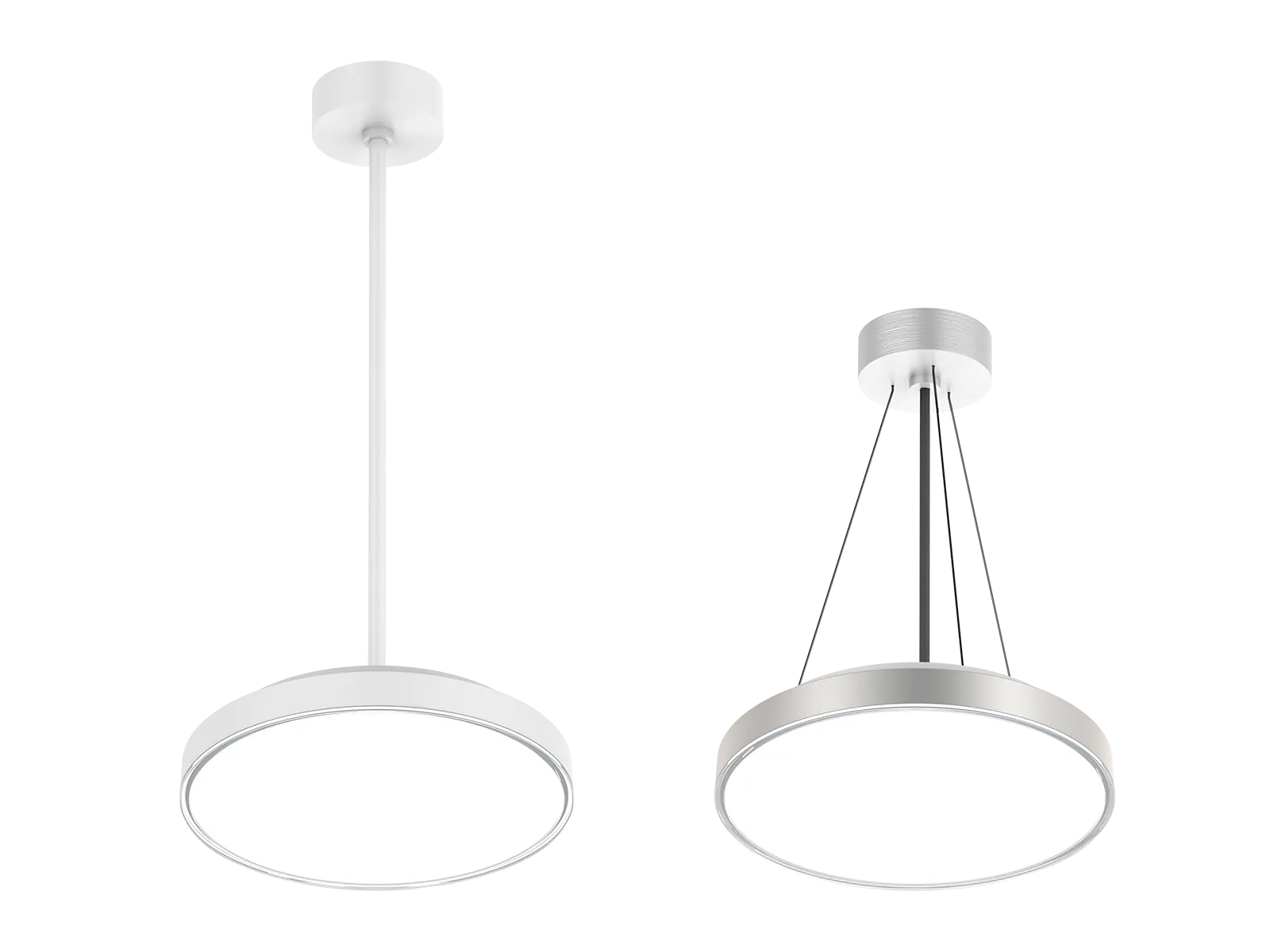

| Installation | Ceiling Surface Mount/Pendant | |||||||
