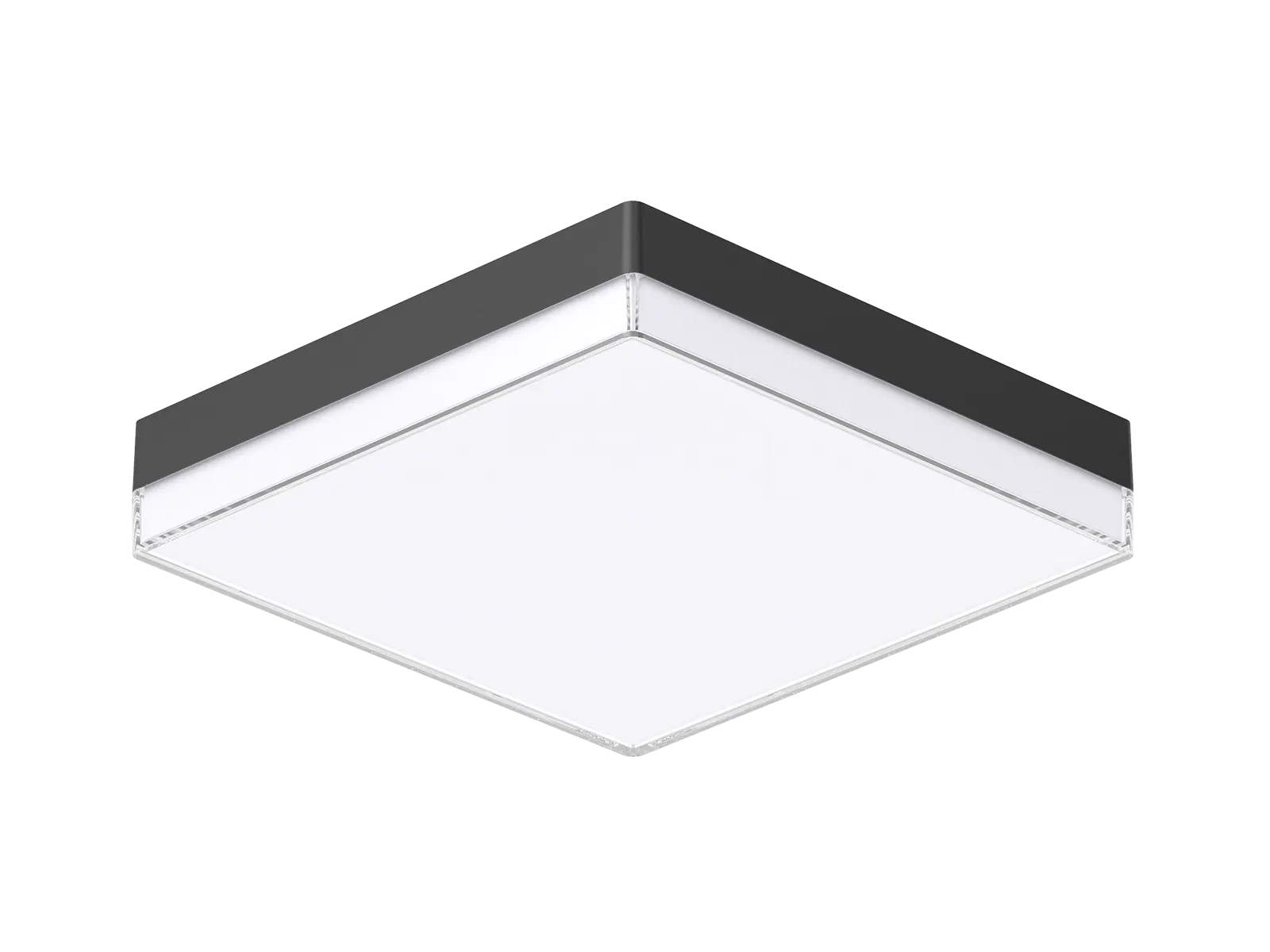

AL245 is designed to provide customers with a lighting fixture that not only illuminates the space but also creates a unique and cosy impression and ambience. The primary design feature is its sleek and square shape, which not only enhances its aesthetic appeal but also adds a touch of elegance and softness to the overall design, ensuring visually pleasing light diffusion. Additionally, the decorative cover utilizes white polymer material that resembles glass texture, simple and sleek, showcasing a high-end texture, widely used in various residential and commercial spaces.
Applications: Hotels, high-end residential spaces, living rooms, bathrooms, offices, architectural spaces, corridors, and other indoor general lighting.
| Code | AL245-12-25W-A3 | AL245-12-25W-SA3 | ||
|---|---|---|---|---|
| Dimension(mm) | 300*300*66 | |||
| Cutout(mm) | - | |||
| Watt(W) | 25W Max.(18W/12W optional) | |||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| LED Module Input | - | |||
| Light Source | SMD | |||
| SDCM | <4 | |||
| CCT(K) | 1-CCT: 3000K/4000K 2-CCT: 3000K+4000K | |||
| CCT Selection | By DIP Switch | |||
| 1-CCT | Non-DIM | 25W: 3020-3210 | 25W: 3060-3260 | |
| Luminous Flux (lm) ±5% | 18W: 2200-2340 | 18W: 2230-2380 | ||
| CRI80 | 12W: 1450-1610 | 12W: 1470-1580 | ||
| 2-CCT | Non-DIM | 25W: 3020-3210 | 25W: 3060-3260 | |
| 18W: 2200-2340 | 18W: 2230-2380 | |||
| 12W: 1450-1610 | 12W: 1470-1580 | |||
| CRI | CRI80 | |||
| Beam Angle(°) | 120° | |||
| UGR | - | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | - | |||
| Sensor | - | Microwave sensor | ||
| Emergency Kits | No | |||
| Electrical Class | Class II | |||
| Ingress Protection(IP Rating) | IP54 (Ceiling Surface Mount) / IP54 (Wall Mount) | |||
| Impact Resistance(IK Rating) | IK06 | |||
| Product Finishing | White RAL9016 / Black RAL9005 | |||
| Optics Material | White polymer cover | |||
| Housing Material | PC | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 650°C | |||
| Operating Temp.(°C) | -20°C~45°C | |||
| Storage Temp.(°C) | -20°C~60°C | |||
| Installation | Ceiling Surface Mount & Wall Mount | |||
