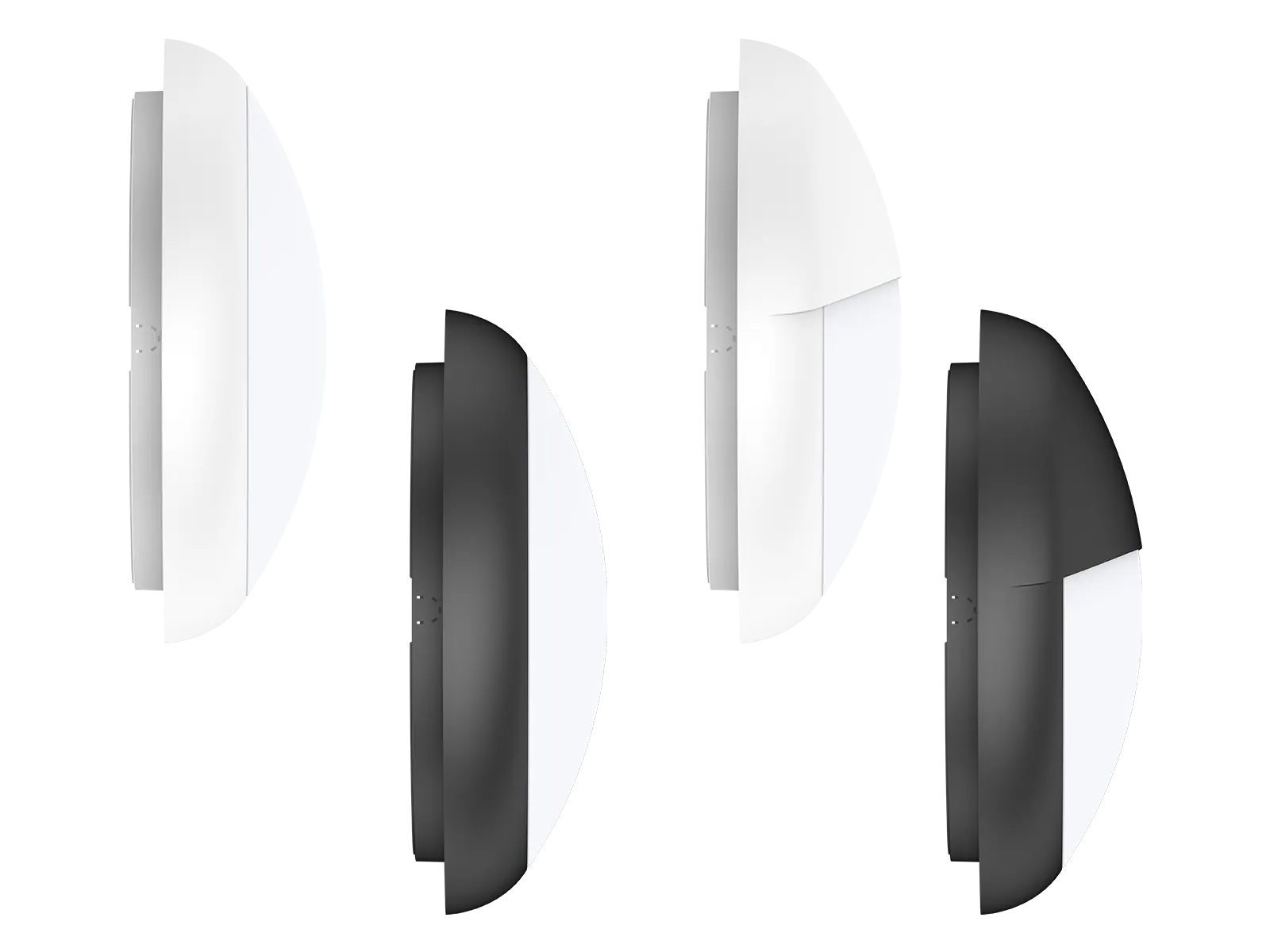

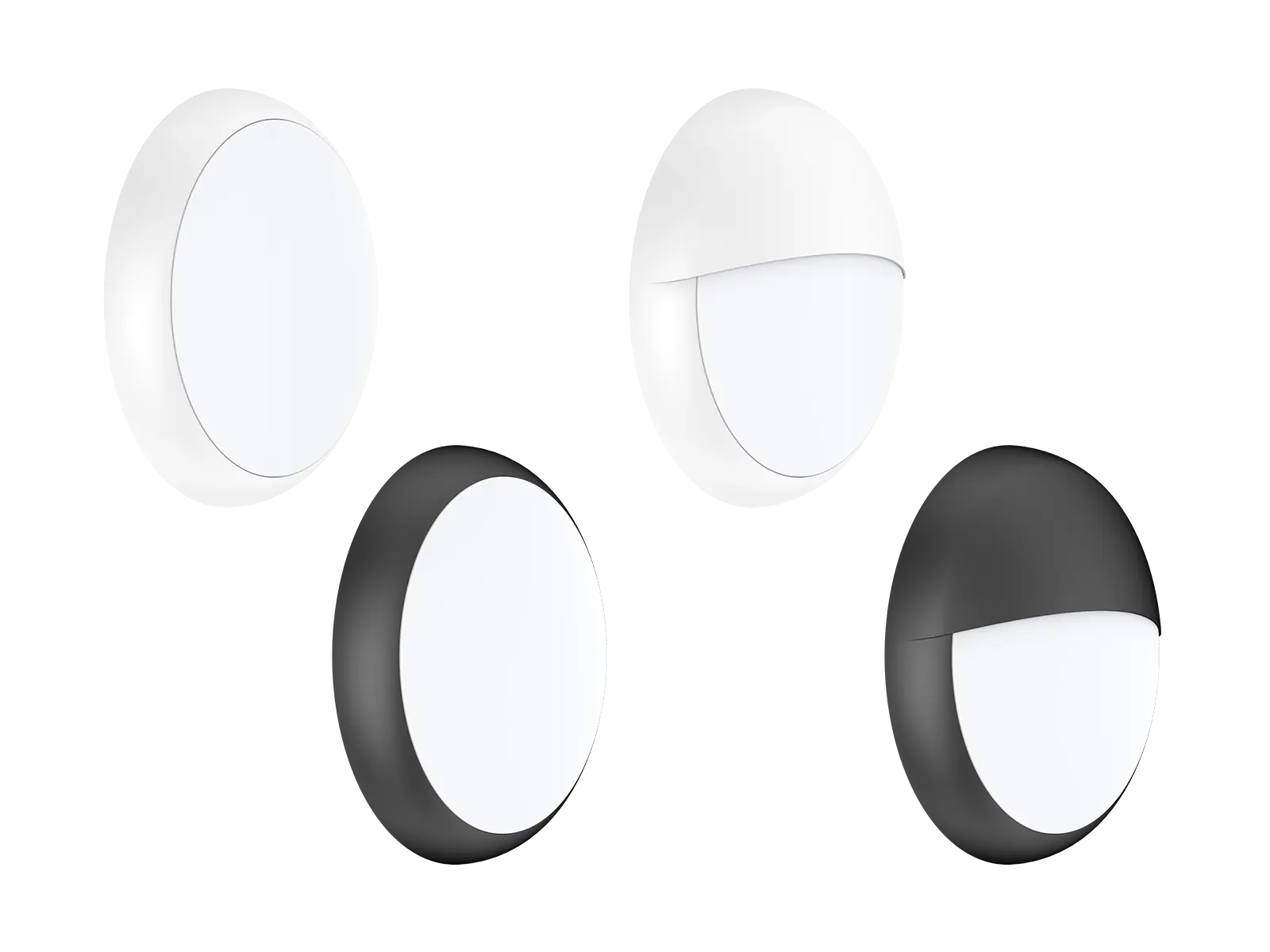

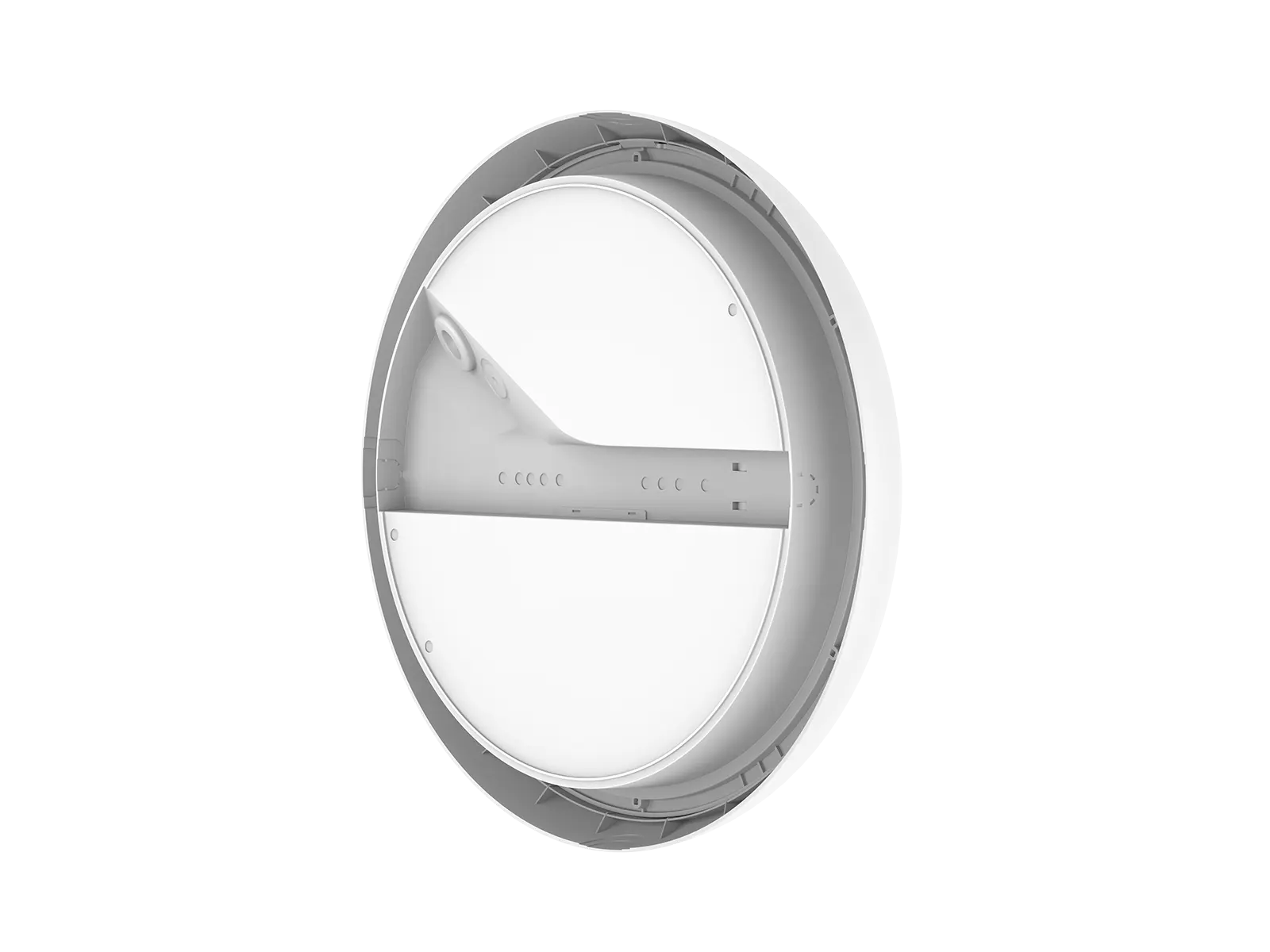

AL243 is an outdoor bulkhead designed with an IP65 waterproof rating, ensuring durability in various weather conditions. It features a modular design for both the driver and the LED PCB, allowing for effortless replacement by customers.Users can choose between two distinct bezel shapes: circular and eyelid. Additionally, the AL243 offers multiple options, including polarized versions, E27 lamp holder version, microwave sensor and PIR sensor (with an override function included).The installation and maintenance process is straightforward and efficient, making this versatile lighting solution suitable for a wide range of commercial and residential applications.
Applications: Common lighting for supermarkets, stores, schools, hotels, and other locations, widely used in public areas such as stairs, lobbies, reception areas, and corridors.
| Code | AL243A-12-16W-A3C3 | AL243A-12-22W-A3C3 | AL243B-12-16W-A3 | AL243B-12-22W-A3 | ||||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø300*96 | Ø300*96 | Ø300*96 | Ø300*96 | ||||
| Cutout(mm) | - | |||||||
| Watt(W) | 16W Max. | 22W Max. | 16W Max. | 22W Max. | ||||
| (12W/9W optional) | (18W/15W optional) | (12W/9W optional) | (18W/15W optional) | |||||
| Rated Input Voltage | AC220-240V | |||||||
| Input Voltage | AC198-264V | |||||||
| LED Module Input | - | |||||||
| Light Source | SMD | |||||||
| SDCM | <6 | |||||||
| CCT(K) | 3-CCT: 3000K + 4000K+5700K | 1-CCT: 3000K/4000K/5000K/5700K | ||||||
| CCT Selection DIP Switch | Yes | No | ||||||
| Luminous Flux (lm) 5% | 1-CCT | Non-DIM | - | - | - | - | 16W: 1720-1890 | 22W: 2390-2600 |
| CRI80 | 12W:1330-1470 | 18W: 2040-2190 | ||||||
| 9W: 990-1100 | 15W: 1730-1850 | |||||||
| 3-CCT | Non-DIM | 16W: 1610-1860 | 16W: 1230-1440 | 22W: 2090-2420 | 22W: 1550-1830 | - | - | |
| 12W:1240-1430 | 12W:950-1100 | 18W: 1790-2100 | 18W: 1350-1570 | |||||
| 9W:920-1030 | 9W:700-800 | 15W: 1780-1710 | 15W: 1130-1280 | |||||
| The above test data are based on white housing: the luminous fux of black housing is 25% lower than that of white | ||||||||
| CRI | 80 | |||||||
| Beam Angle(°) | 120° | 90° (Asymmetric 60°) | ||||||
| UGR | - | |||||||
| LED Driver | Built-in; Flicker Free | |||||||
| Dimming Option | NO | |||||||
| Sensor | 1. Microwave sensor & Daylight sensor | - | ||||||
| 2. PIR sensor | ||||||||
| Emergency Kits | No | |||||||
| Electrical Class | Class II | |||||||
| Ingress Protection(IP Rating) | Wall Mount IP65 | |||||||
| Impact Resistance(IK Rating) | IK10 | |||||||
| Product Finishing | White RAL9016, Black RAL9005 | |||||||
| Optics Material | PC | |||||||
| Housing Material | PC+ABS | |||||||
| Lifetime(hr) | 50,000h | |||||||
| Glow wire test(°C) | 750°C | |||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||
| Storage Temp.(°C) | -20°C~60°C | |||||||
| Installation | Wall mount | |||||||
