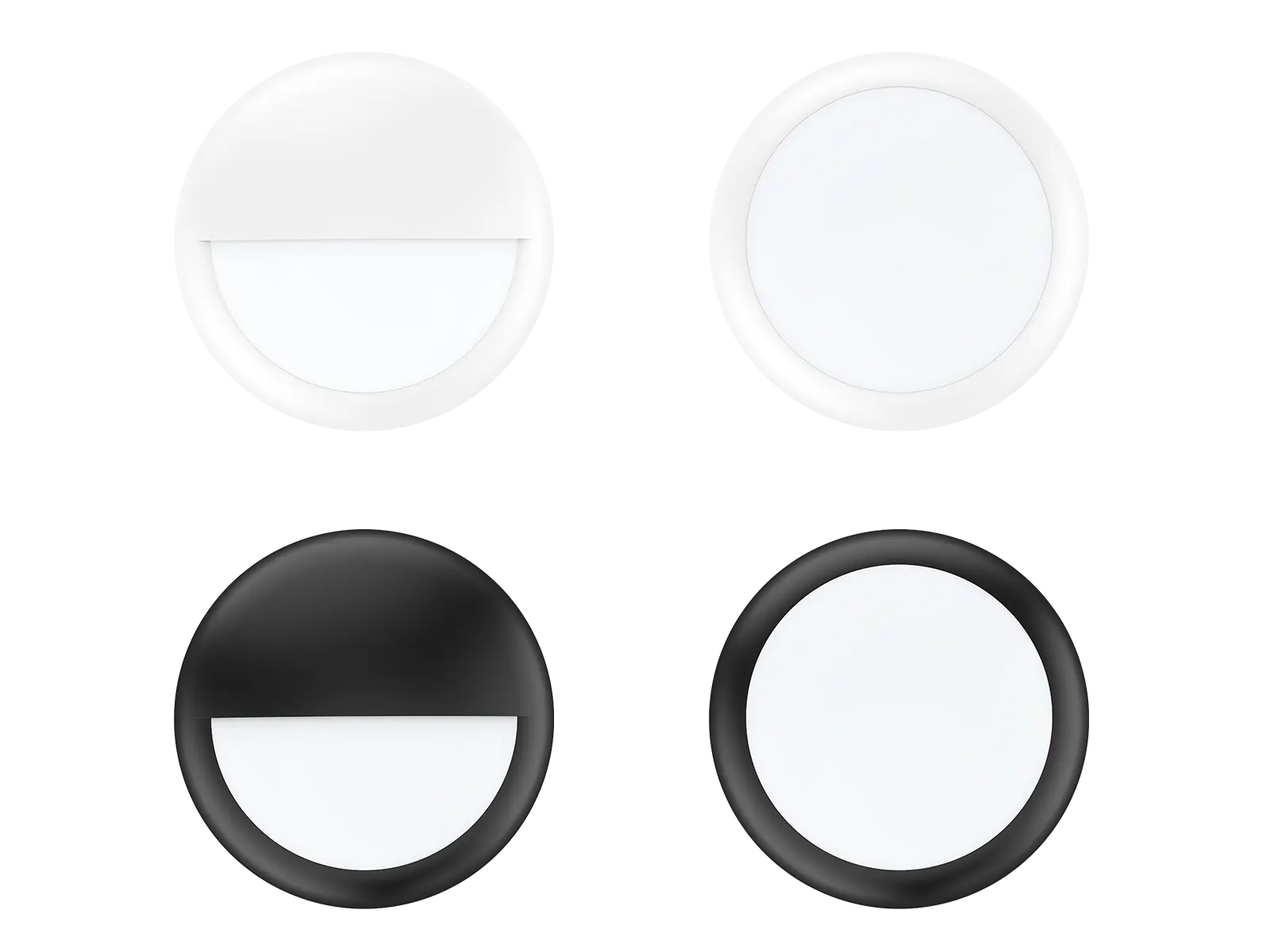

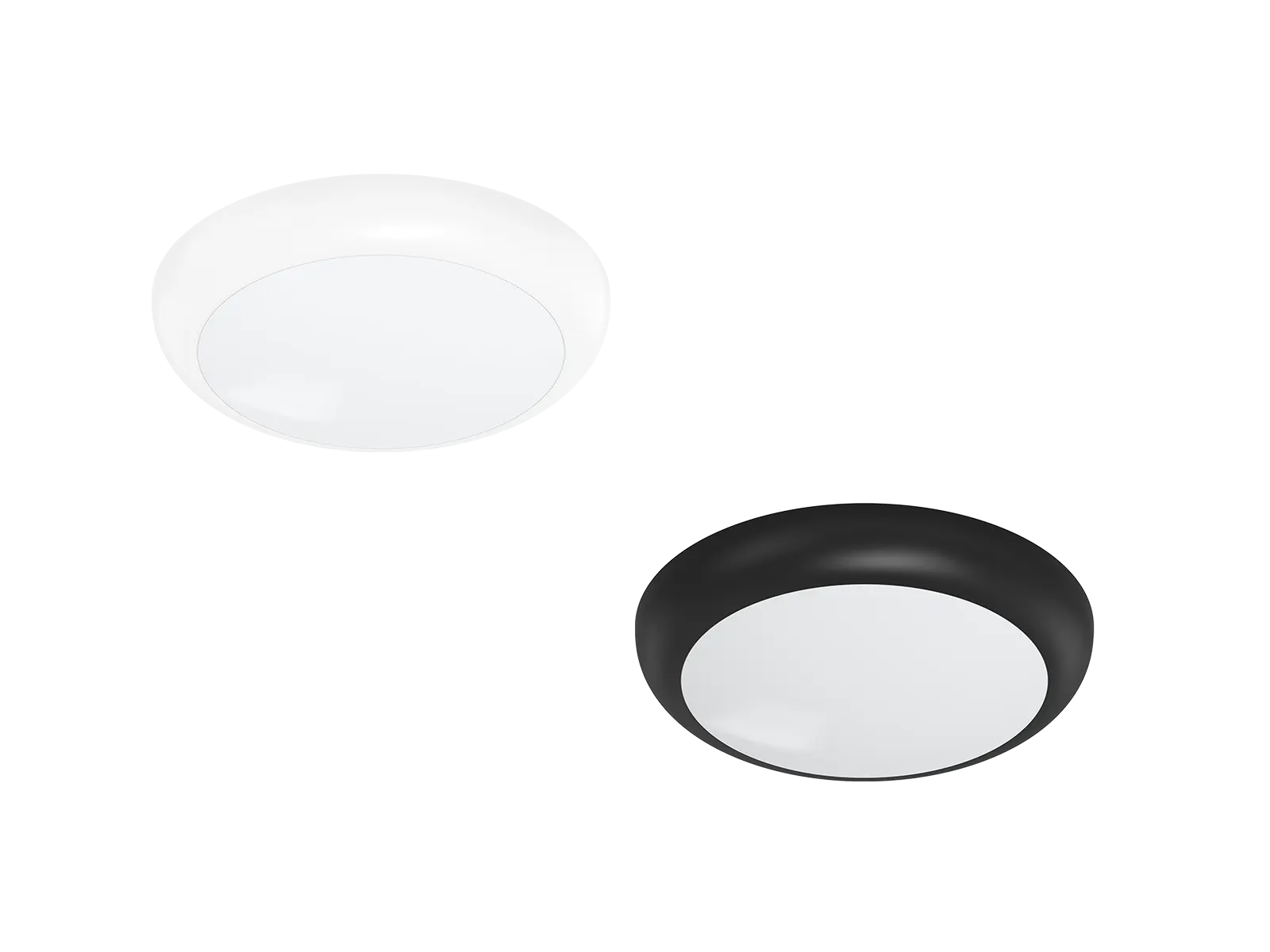

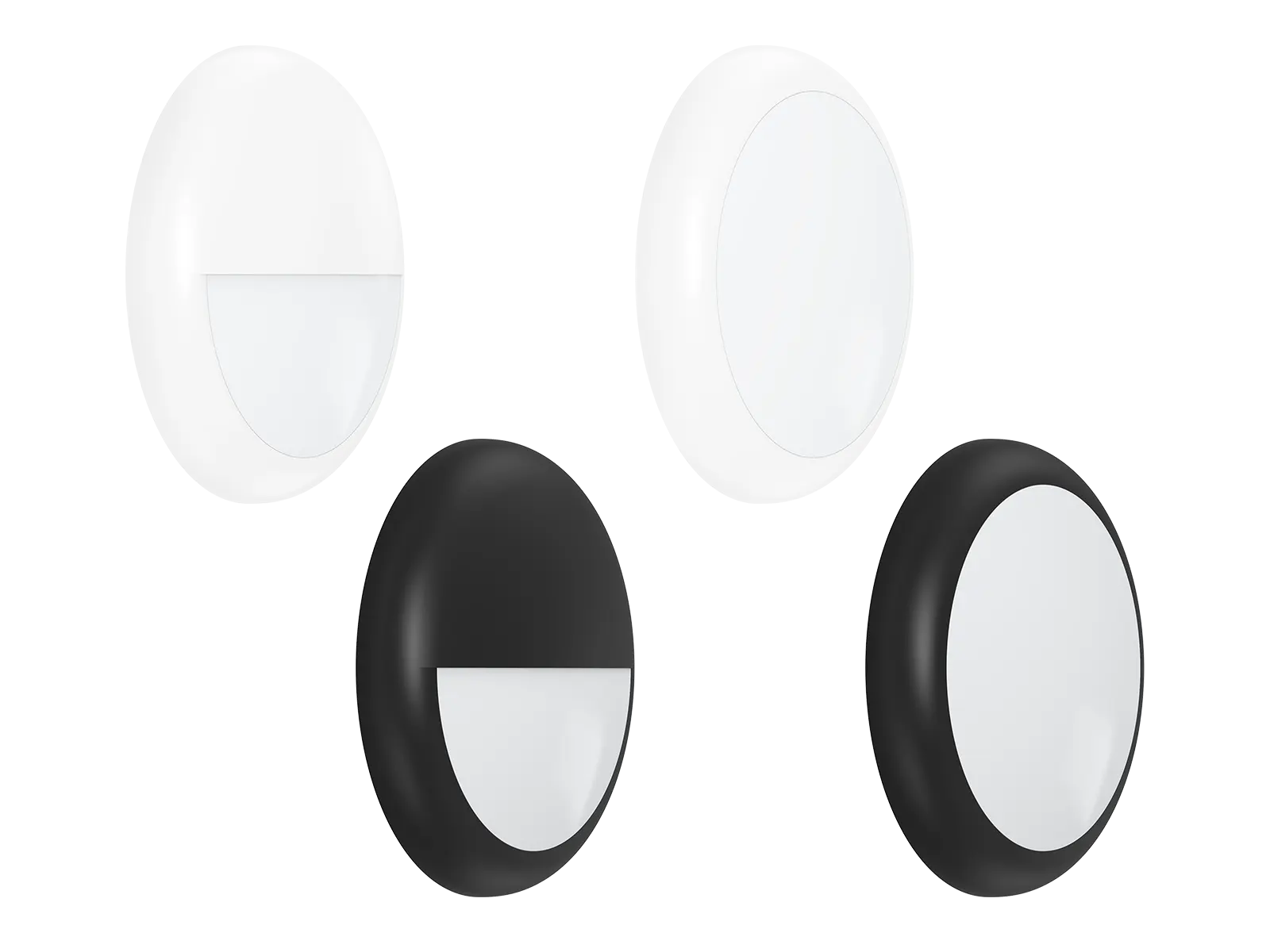

AL241 is an outdoor IP65 waterproof bulkhead with screwless design. The modular design allows for easy replacement, enabling features to be customized as needed. It can enhance standard lighting functions with options such as sensor, emergency, and both emergency and sensor. With the high light efficiency design, it provides soft and uniform illumination, offering users a comfortable lighting experience. Two different bezels options are available, making it widely applicable in various scenarios. The installation and disassembly are quick and easy, allowing for manual and rapid module replacement, in line with current market trends.
Applications: Suitable for general lighting in offices, supermarkets, stores, schools, hotels, and other locations. It is also widely used in public areas such as stairways, lobbies, reception areas, and corridors.
| Code | AL241-12-16W-A3C3 | ||
|---|---|---|---|
| Dimension(mm) | Ø330xH78 | ||
| Watt(W) | 16W Max.(12W/9W optional) | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 3-CCT: 3000K + 4000K + 6500K | ||
| CCT Selection | By DIP Switch | ||
| Luminous Flux (lm) ±5% | 3-CCT | Non-DIM | 16W: 2080-2160 |
| CRI80 | 12W: 1600-1680 | ||
| 9W: 1120-1180 | |||
| The above luminous flux values are based on tests without bezel. | |||
| CRI | CRI80 | ||
| Beam Angle(°) | 120° | ||
| LED Driver | Built-in | ||
| Sensor | Microwave sensor +Daylight sensor | ||
| Emergency Kits | YES | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP65 | ||
| Impact Resistance(IK Rating) | IK10 | ||
| Product Finishing | White RAL9016 | ||
| Optics Material | PC | ||
| Housing Material | PC | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 650°C | ||
| Operating Temp.(°C) | -20°C~45°C | ||
| Storage Temp.(°C) | -20°C~60°C | ||
| Installation | Surface mount & wall mount | ||
