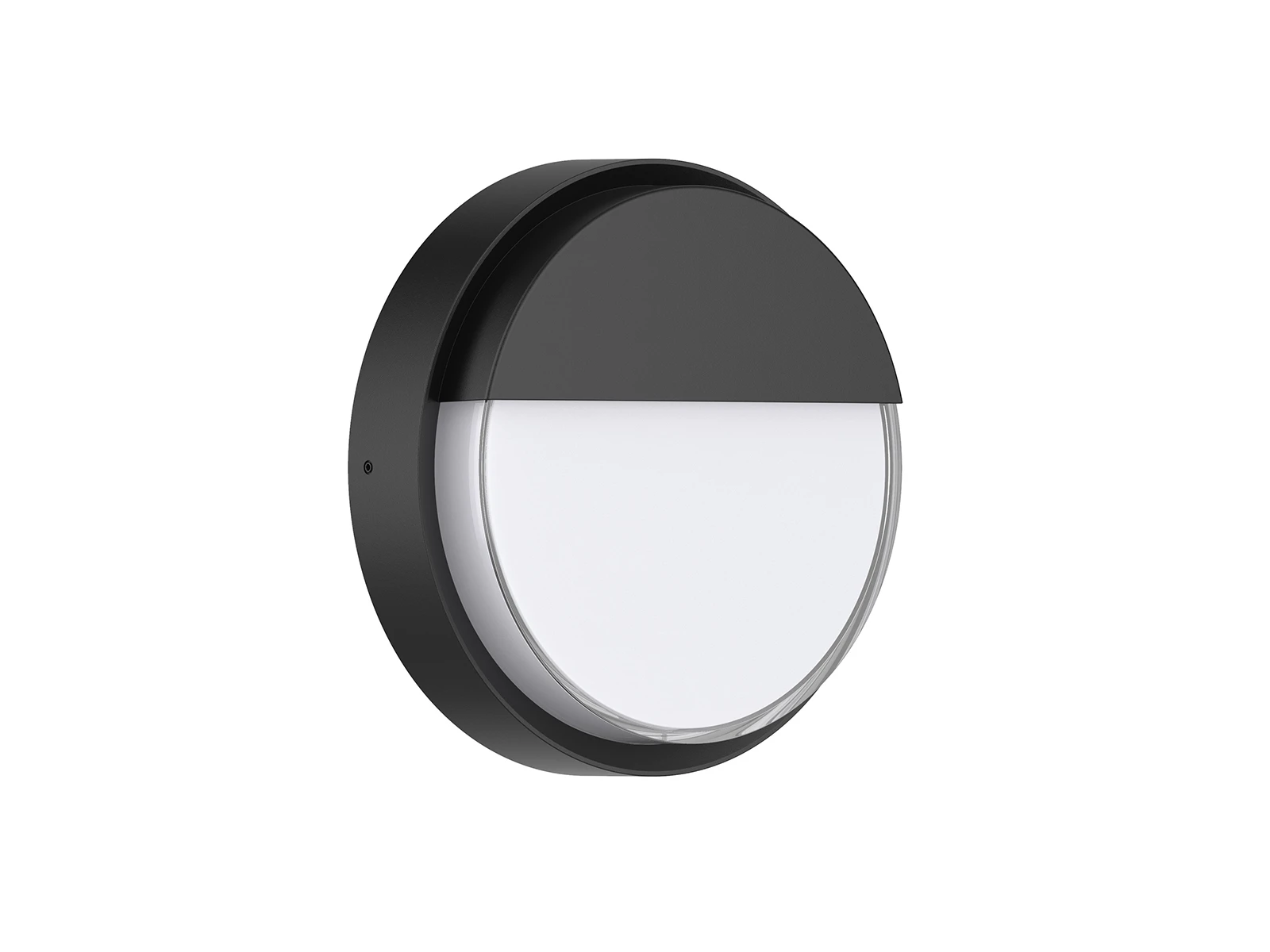

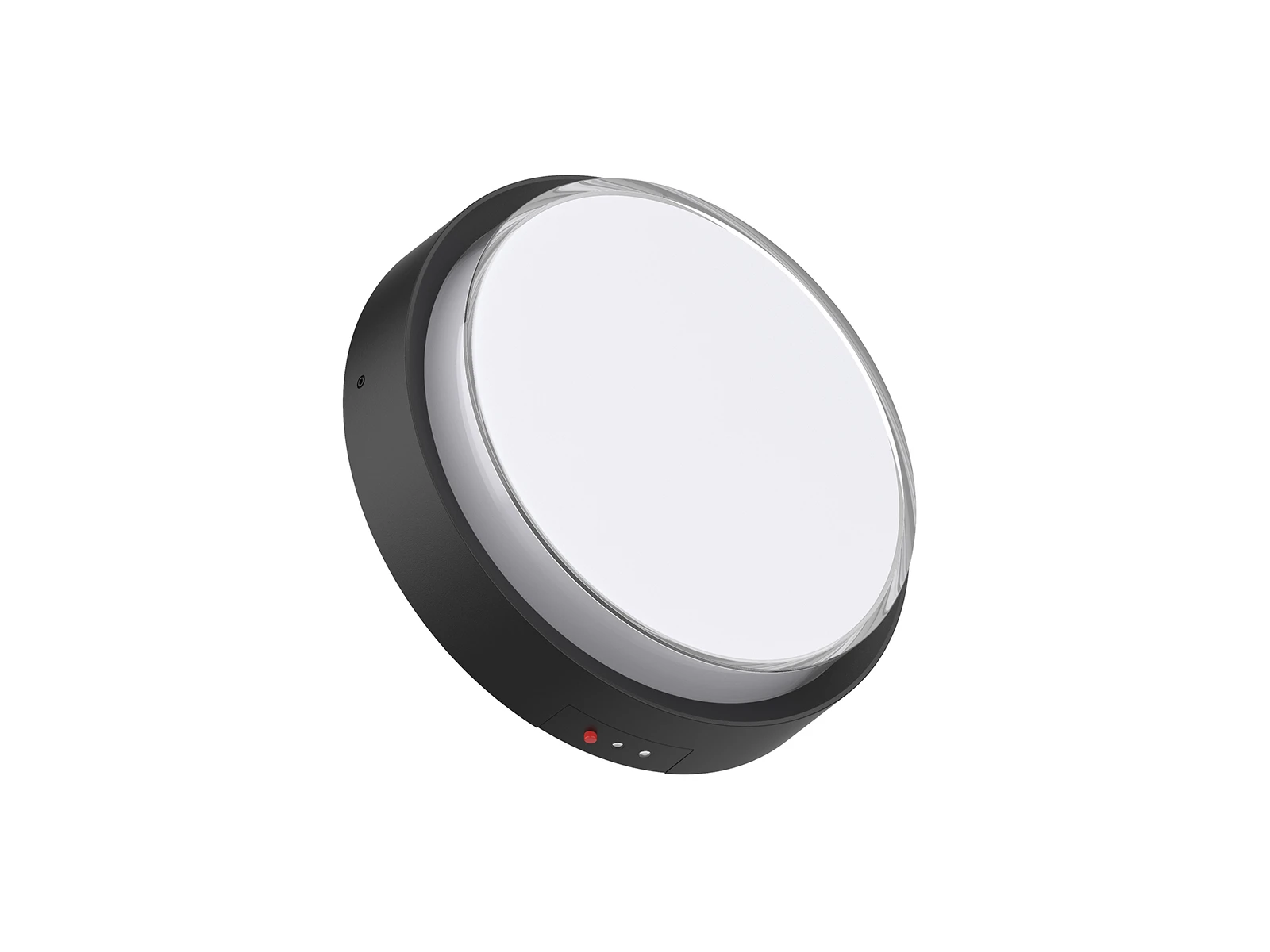

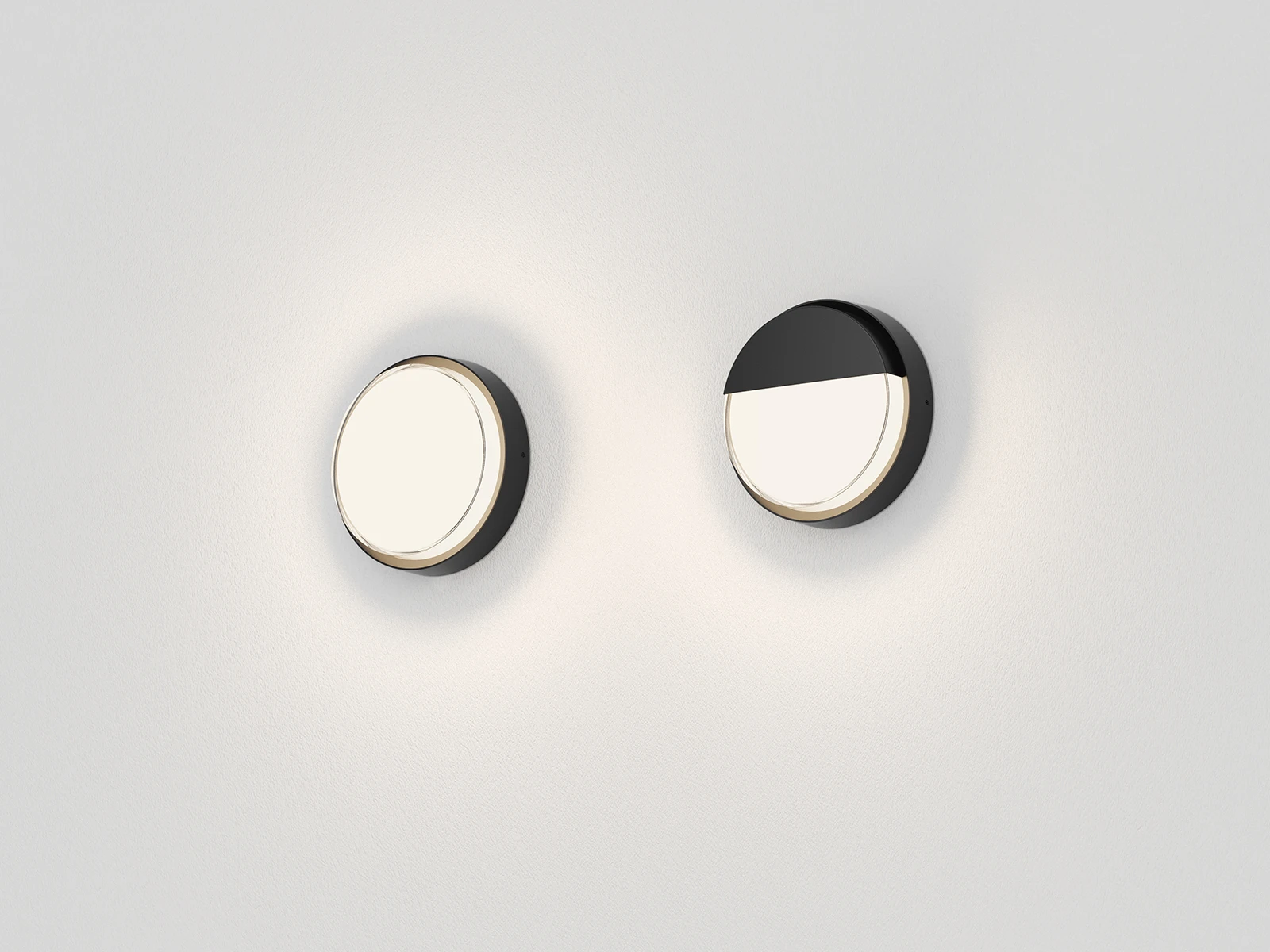

This bulkhead features a dual-layer shade design, consisting of a transparent outer shade and a frosted inner shade, giving the fixture a glass feeling appearance while providing soft and even light output that is not harsh on the eyes. The optical component utilizes 2835 SMD light sources. Structurally, it is made of ADC12 aluminium housing, ensuring excellent thermal management. To meet the demands of various application fields, the entire fixture is IP65 rated for water proof and offers optional features such as adjustable power, adjustable CCT, triac dimming, DALI dimming, and emergency functionality.
Application Areas: It’s widely used in indoor and outdoor scene lighting areas, such as yard, green landscape, business street, garden, park etc.
| Code | AL239-10-18W-A3 | AL239-10-18W-A3 | ||||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø250*H67 | Ø250*H70 | ||||
| Watt(W) | 18W Max.(15W/12W optional) | |||||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| Light Source | SMD | |||||
| SDCM | SDCM<6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K||2-CCT:3000K+ 4000K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 18W: 1850-1950 15W: 1550-1650 12W: 1250-1350 | 18W: 1250-1350 15W: 1050-1150 12W: 800-900 | ||
| DIM | 18W: 1750-1850 15W: 1450-1550 12W: 1200-1300 | 18W: 1150-1250 15W: 950-1050 12W: 750-850 | ||||
| DALI | 18W: 1750-1850 15W: 1450-1550 12W: 1200-1300 | 18W: 1150-1250 15W: 950-1050 12W: 750-850 | ||||
| 2CCT | Non-DIM | 18W: 1850-1950 15W: 1550-1650 12W: 1250-1350 | 18W: 1250-1350 15W: 1050-1150 12W: 800-900 | |||
| DIM | 18W: 1750-1850 15W: 1450-1550 12W: 1200-1300 | 18W: 1150-1250 15W: 950-1050 12W: 750-850 | ||||
| DALI | 18W: 1750-1850 15W: 1450-1550 12W: 1200-1300 | 18W: 1150-1250 15W: 950-1050 12W: 750-850 | ||||
| CRI | CRI 80 | |||||
| Beam Angle(°) | 120° | |||||
| LED Driver | Built-in | |||||
| Dimming Option | Triac/ DALI | |||||
| Emergency Kits | YES | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP65 | |||||
| Impact Resistance(IK Rating) | IK10 | |||||
| Product Finishing | Black RAL9005, White RAL9016, Gray RAL7015 | |||||
| Optics Material | White polymer cover | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Wall mount | |||||
