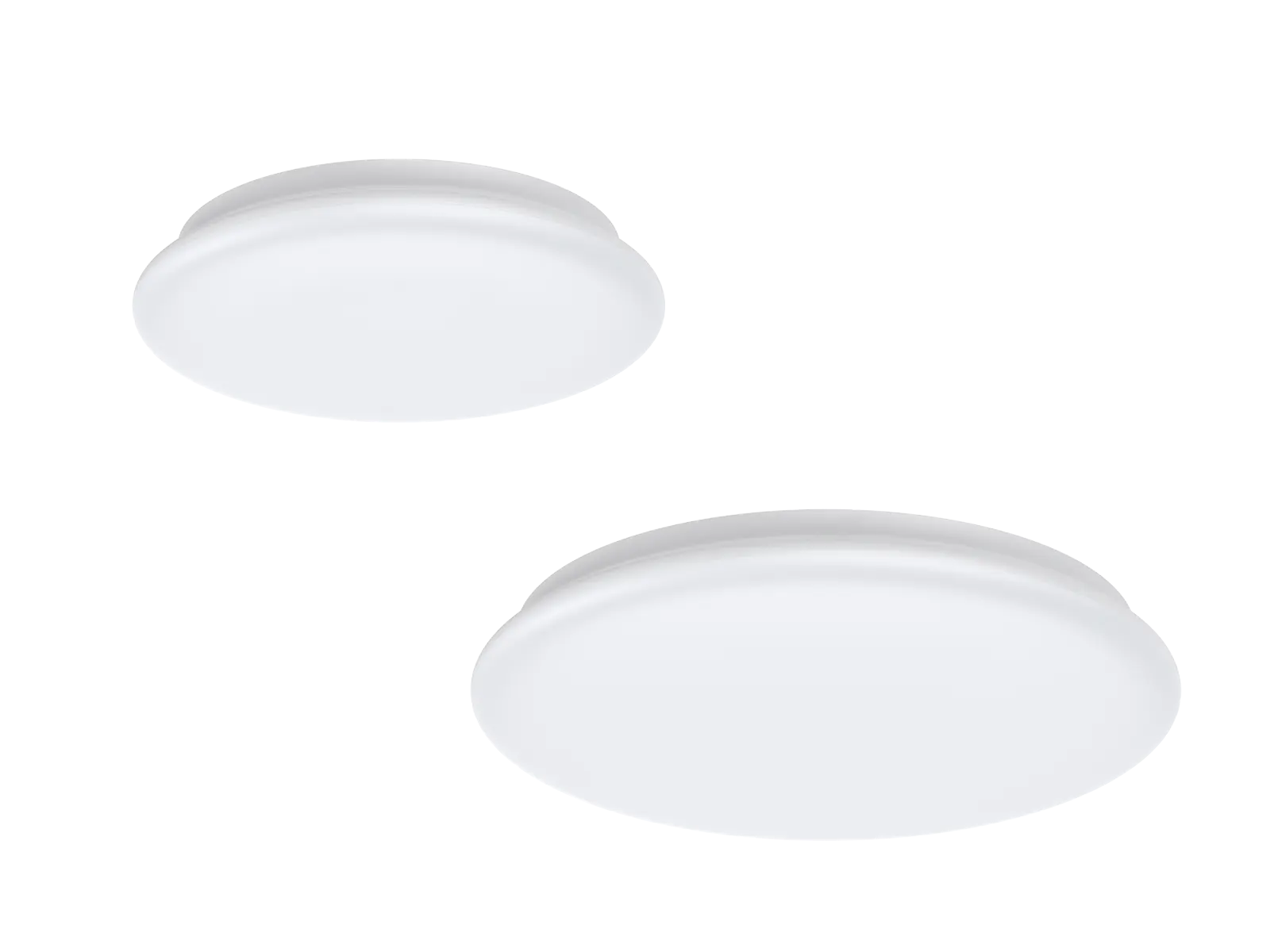

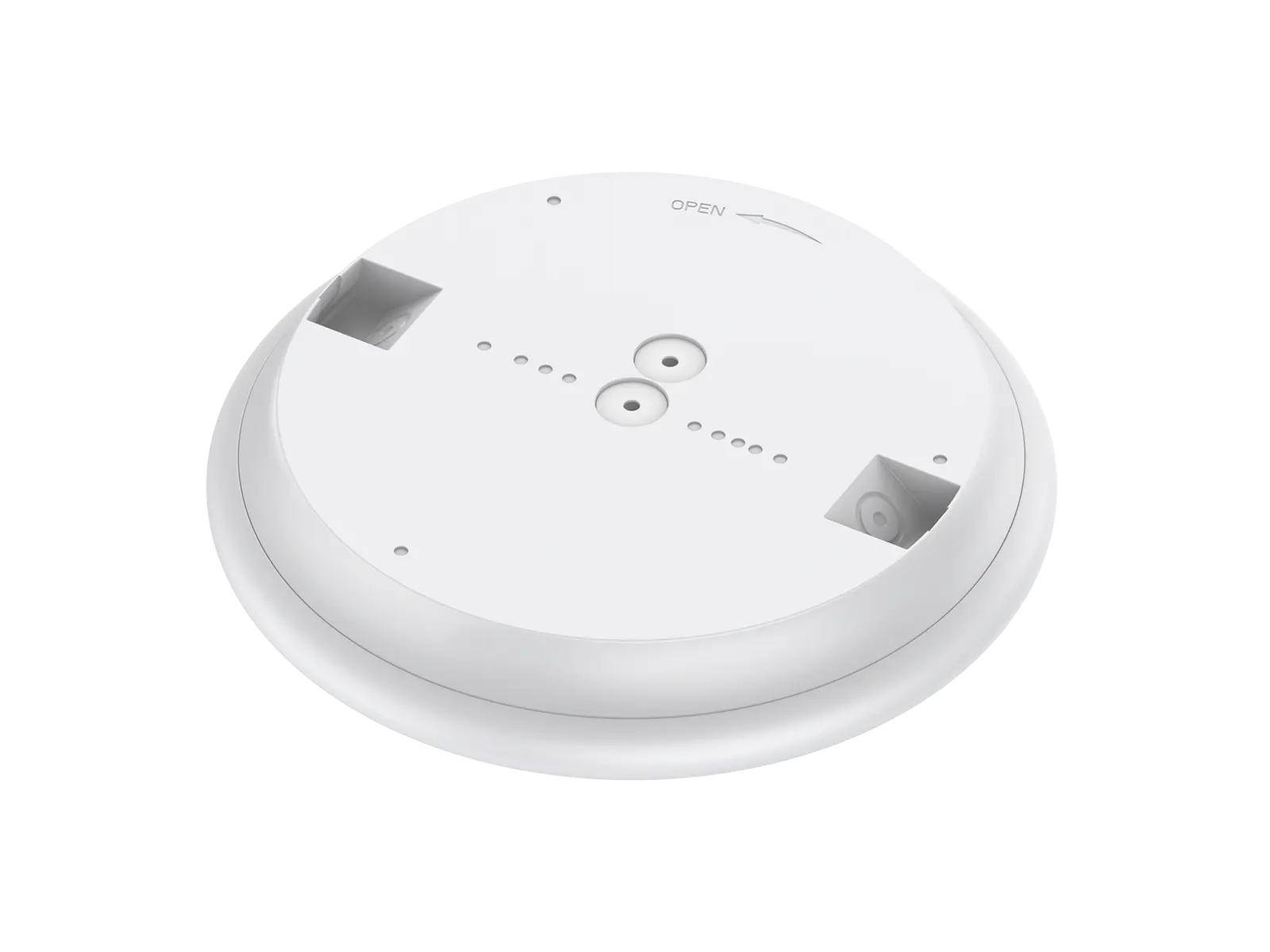

The AL233 series features an innovative curved aesthetic design that outlines a simple and modern character with smooth lines. The product is designed with high light efficiency, reaching up to 140 lm/W. It incorporates a modular driver design with a pluggable setup, allowing for quick replacement of the driver module, making installation and maintenance easy. This ceiling light is compatible with various mounting methods, including ceiling mounted, wall mounted and pendant installations, widely adapting to different application needs, such as commercial application and residential application.
Applications: It is widely used in office, shopping mall, home, balcony, hotel etc.
| Code | AL233-12-24W-A3 | AL233-16-30W-A3 | |
|---|---|---|---|
| Dimension(mm) | Ø300*58 | Ø400*58 | |
| Watt(W) | 24W Max. (18W/12W optional) | 30W Max. (24W/18W optional) | |
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 1-CCT: 3000K/4000K/ || 2-CCT: 3000K + 4000K | ||
| CCT Selection DIP Switch | Yes | ||
| 1CCT & 2CCT Luminous Flux (lm) ±5% CRI80 | Non-DIM | 24W: 3200-3450 18W: 2200-2450 12W: 1460-1650 | 30W: 3800-4100 24W: 3000-3400 18W: 2350-2550 |
| DIM | 24W: 3050-3250 18W: 2150-2400 12W: 1380-1600 | 30W: 3650-3950 24W: 2850-3250 18W: 2250-2400 | |
| DALI | 24W: 3180-3250 18W: 2150-2400 12W: 1560-1700 | 30W: 3880-4200 24W: 2850-3250 18W: 2350-2550 | |
| CRI | 80 | ||
| Beam Angle (°) | 120° | ||
| LED Driver | Built-in, Flicker Free | ||
| Dimming Option | Triac / DALI | ||
| Sensor | Microwave sensor & Daylight sensor | ||
| Emergency Kits | YES | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP54 | ||
| Impact Resistance(IK Rating) | IK08 | ||
| Product Finishing | White RAL9016 | ||
| Optics Material | PC | ||
| Housing Material | PC | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C ~45°C | ||
| Storage Temp.(°C) | -20°C ~60°C | ||

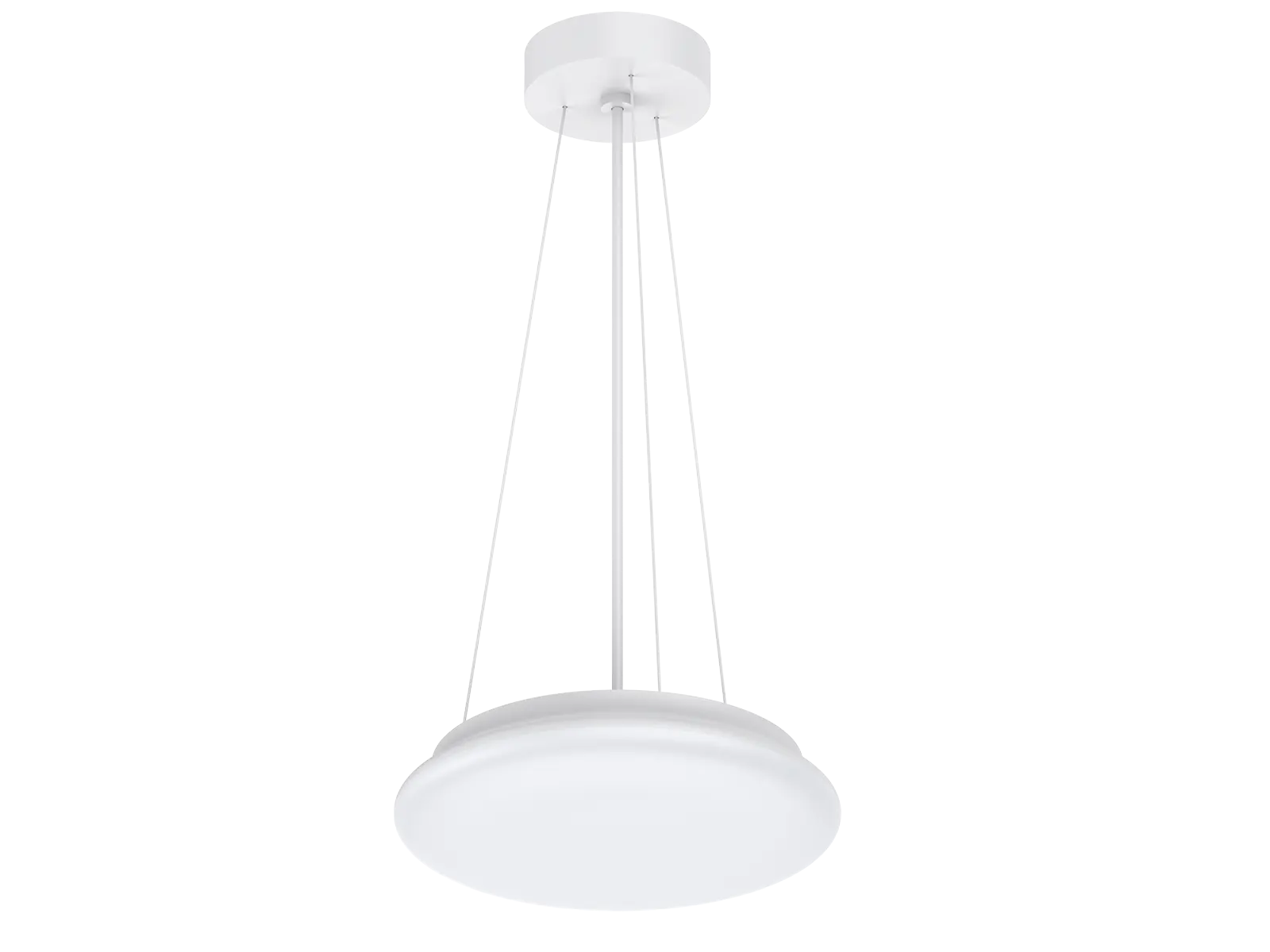

| Installation | Surface mount / Wall mount / Pendant | ||
