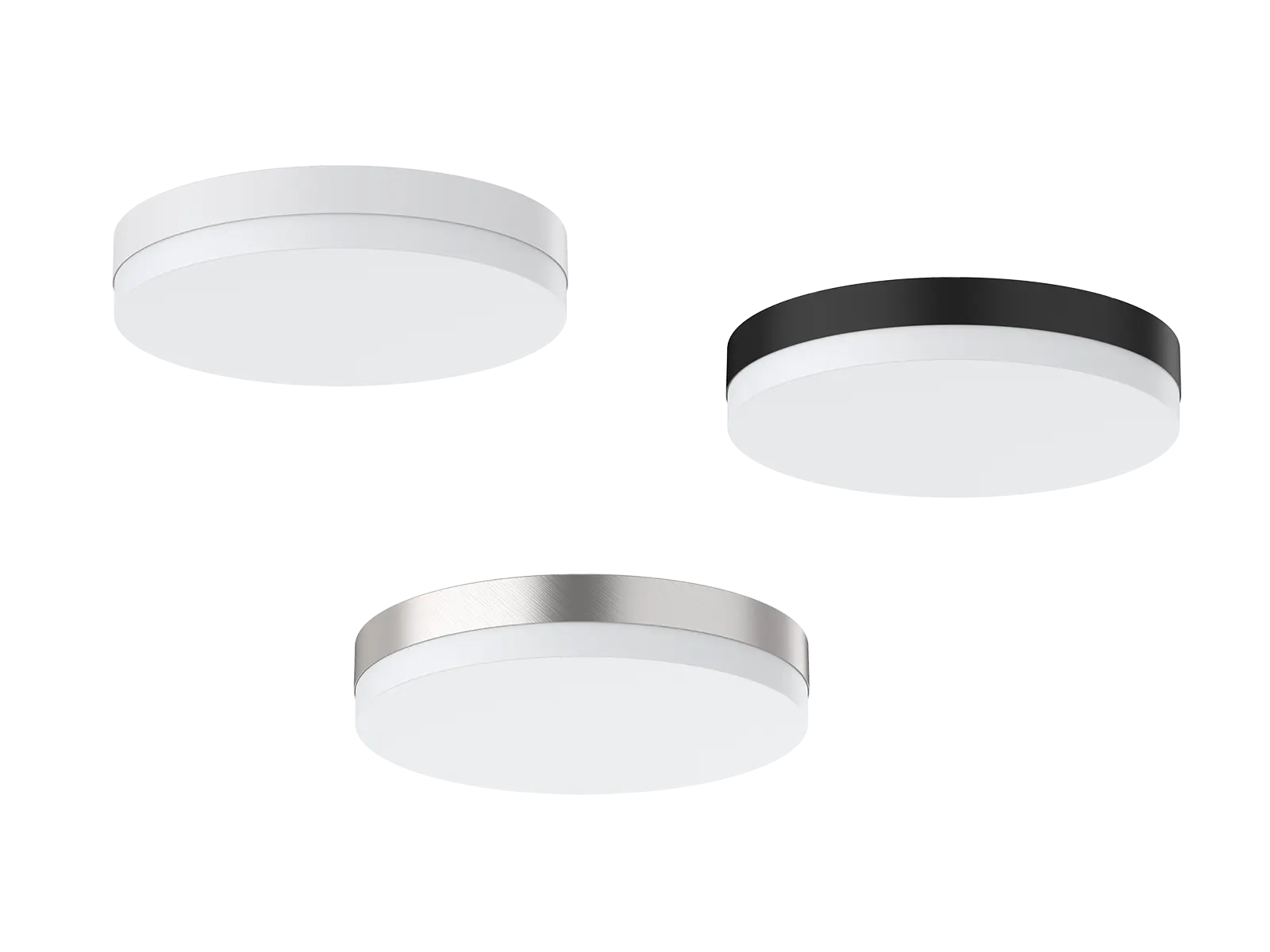

The AL232 series is an elegantly designed ceiling light that features a frameless right-angle design, presenting a simple and stylish appearance with sharp edges. Once installed, it shows no visible screws and fits seamlessly with the ceiling, showcasing high-end quality and texture. The product boasts a high luminous efficacy of up to 140lm/W, different functions are available. The driver and light source are modular design, allowing for quicker and more convenient installation and replacement. This ceiling light can be ceiling mounted, wall mounted, suspended by steel wire rope or rod, making it widely applicable in various commercial and residential settings.
Applications: It is widely used in office, shopping mall, home, balcony, hotel etc.
| Code | AL232-12-16W-A3C2 | AL232-14-24W-A3C2 | AL232-16-30W-A3C2 | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø302*59 | Ø352*59 | Ø402*59 | ||
| Cutout(mm) | - | ||||
| Watt(W) | 16W Max.(12W/9W optional) | 24W Max.(18W/12W optional) | 30W Max.(24W/18W optional) | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | <6 | ||||
| CCT(K) | 2-CCT: 3000K + 4000K | ||||
| CCT Selection | Yes | ||||
| Non-DIM | 16W: 2030-2220 | 24W: 2230-2560 | 30W: 3810-4220 | ||
| Luminous Flux (lm) ±5% | 2-CCT | 12W: 1130-1240 | 18W: 2360-2600 | 24W: 3130-3440 | |
| CRI80 | 9W: 1100-1220 | 12W: 1530-1690 | 18W: 2290-2500 | ||
| DIM | 16W: 1970-2170 | 24W: 2940-3240 | 30W: 3730-4120 | ||
| 12W: 1500-1670 | 18W: 2240-2500 | 24W: 2980-3320 | |||
| 9W: 1110-1230 | 12W: 1390-1540 | 18W: 2270-2510 | |||
| CRI | 80 | ||||
| Beam Angle(°) | 120° | ||||
| UGR | - | ||||
| LED Driver | Built-in, Flicker Free | ||||
| Dimming Option | Triac | ||||
| Sensor | Microwave sensor & Daylight sensor | ||||
| Emergency Kits | YES | ||||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | Ceiling surface mount IP54 / Pendant IP40 | ||||
| Impact Resistance(IK Rating) | IK03 | ||||
| Product Finishing | White RAL9016 | ||||
| Optics Material | PMMA | ||||
| Housing Material | PC | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 650°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C ~60°C | ||||
| Installation | Surface mount / Pendan | ||||
