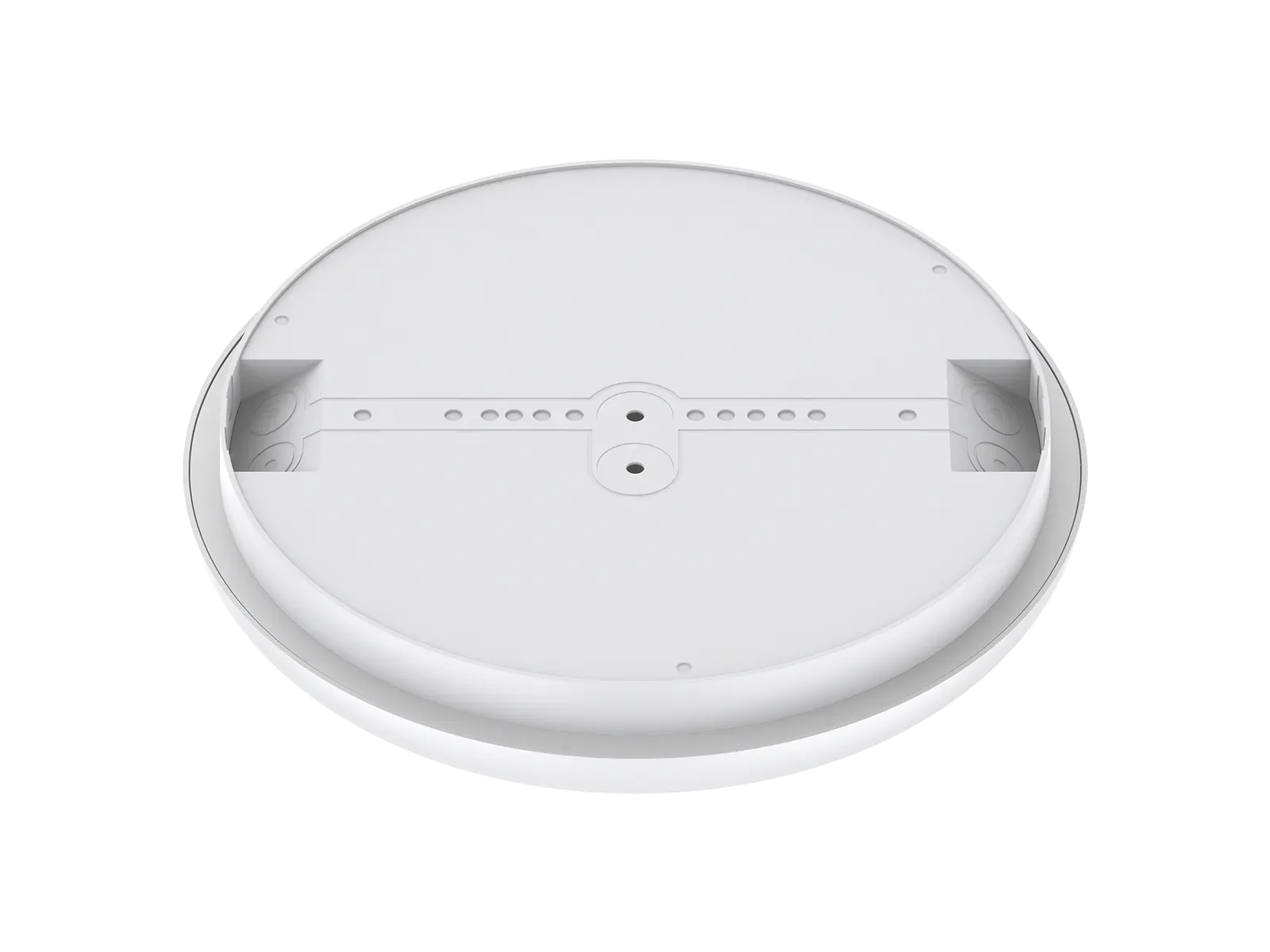

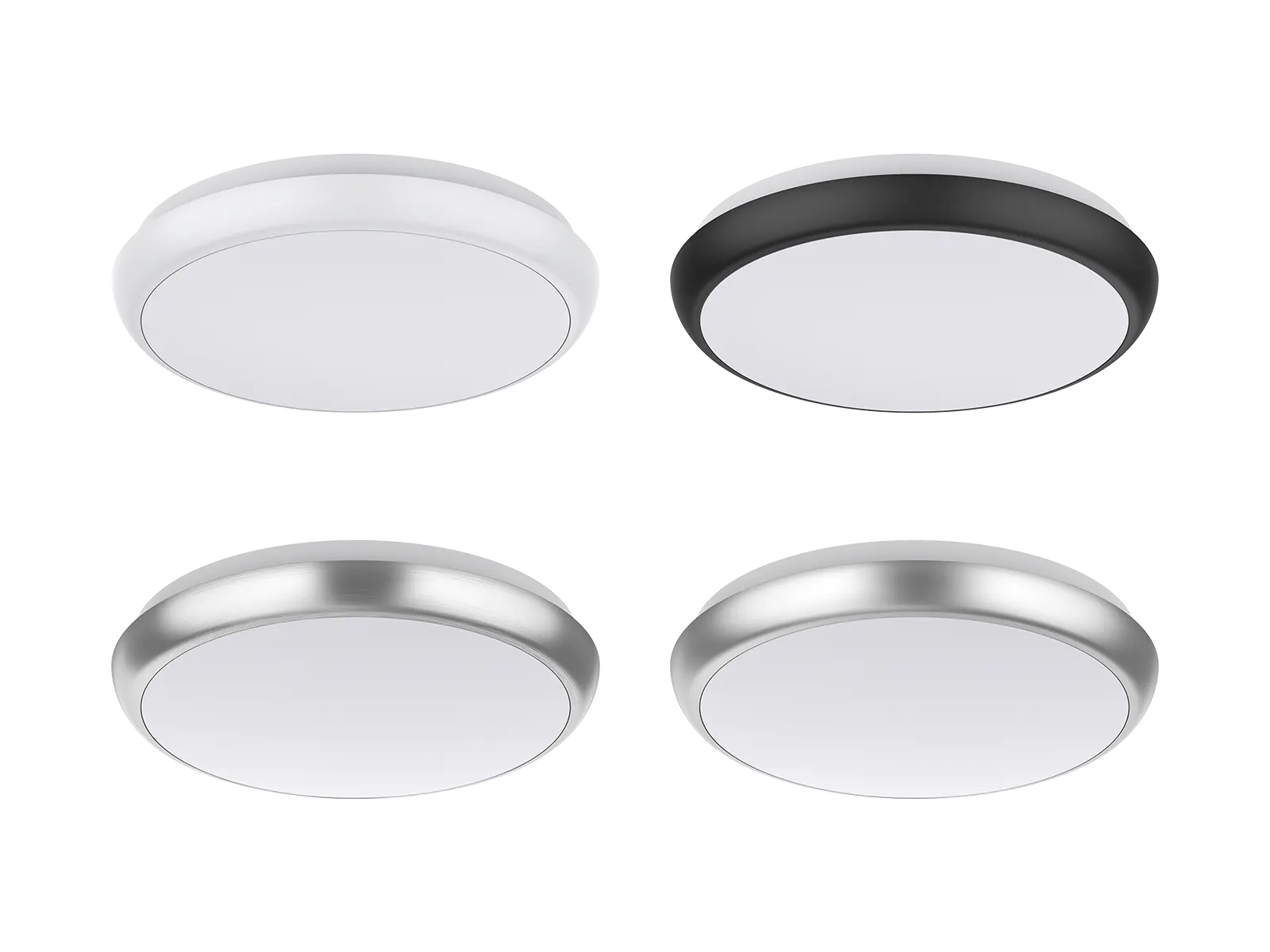

AL231 product adopts modular design concept, featuring a screwless surface design with a delicate and textured appearance. It provides uniform and soft lighting, offering users a comfortable lighting experience. The installation method is simple, with modular design allowing for easy replacement of light sources and driver, fully meeting market trends and high standards for products. Additionally, the product supports both back entry and side entry, providing flexible installation options, and can be paired with trims in various colors (including white, black, silver, and nickel brushed) according to customer needs. It can be widely applied in different installation locations.
Applications: It is designed for general lighting applications: supermarkets, stores, schools, hotels, and other locations. It is also widely used in public areas, such as lobbies and corridors.

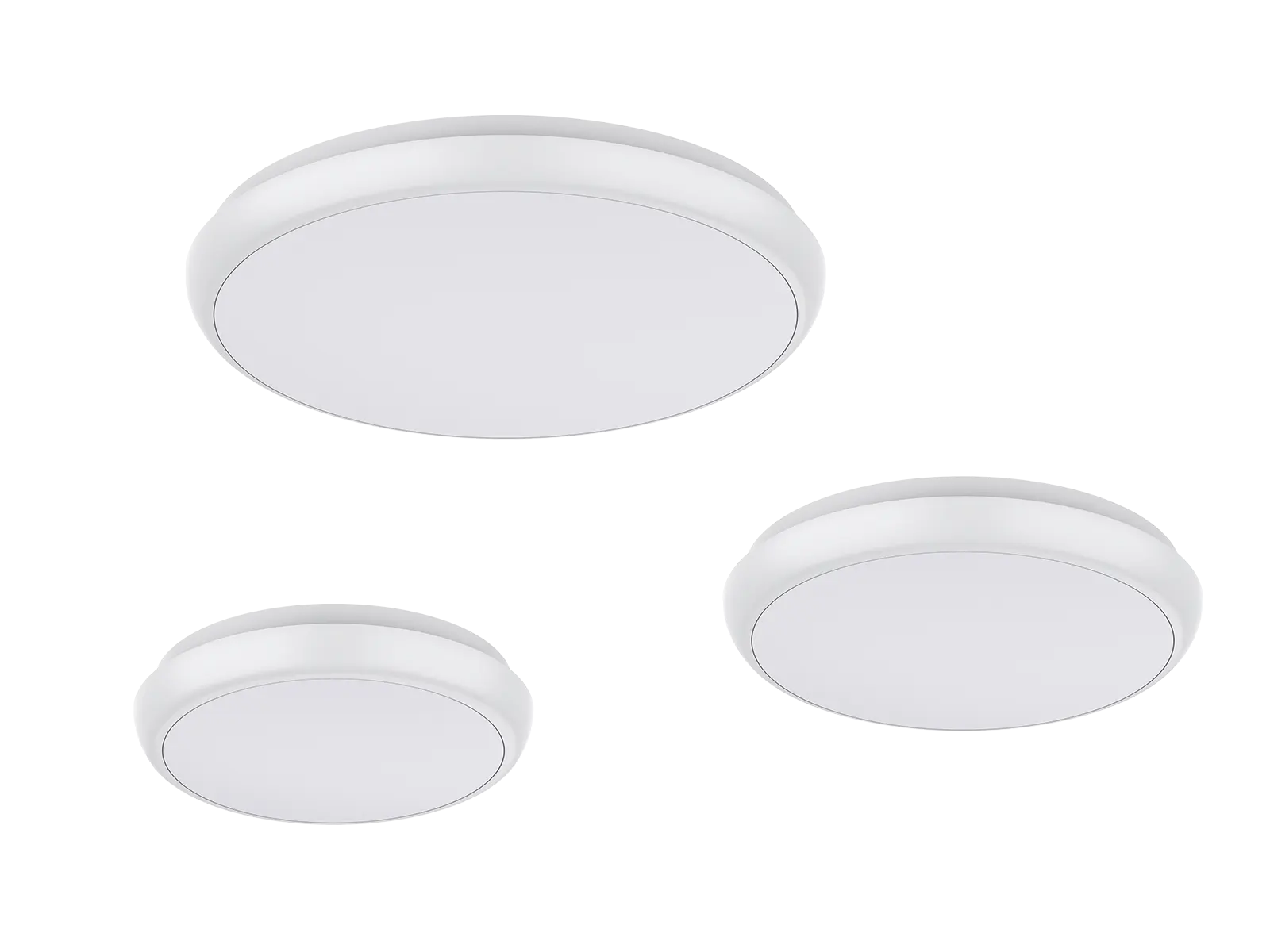

Code | AL231-10-12W-A3 | AL231-12-18W-A3 | AL231-12-24W-A3 | AL231-16-30W-A3 | ||
---|---|---|---|---|---|---|
Dimension(mm) | Ø250*55 | Ø300*55 | Ø300*55 | Ø400*55 | ||
Watt(W) | 12W Max.(10W/8W optional) | 18W Max.(15W/12W optional) | 24W Max.(18W/12W optional) | 30W Max.(24W/18W optional) | ||
Rated Input Voltage | AC 220-240V | |||||
Input Voltage | AC198-264V | |||||
Light Source | SMD | |||||
SDCM | <6 | |||||
CCT(K) | 1-CCT: 3000K/4000K, 2-CCT: 3000K+4000K | |||||
CCT Selection DIP Switch | YES | |||||
Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 12W: 1400-1590 10W: 1200-1300 8W: 900-1000 | 18W: 2250-2420 15W: 1900-2020 12W: 1500-1600 | 24W: 2930-3120 18W: 2200-2350 12W: 1420-1520 | 30W: 3880-4100 24W: 3140-3320 18W: 2300-2470 |
DIM | 12W: 1330-1520 10W: 1110-1210 8W: 930-1040 | 18W: 2110-2275 15W: 1720-1840 12W: 1360-1460 | 24W: 2760-2950 18W: 2030-2170 12W: 1380-1430 | 30W: 3700-3920 24W: 2960-3140 18W: 2160-2330 | ||
DALI | 12W: 1330-1520 10W: 1280-1400 8W: 930-1040 | 18W: 2200-2370 15W: 1810-1930 12W: 1360-1460 | 24W: 2840-3040 18W: 2200-2350 12W: 1500-1620 | 30W: 3880-4100 24W: 2960-3140 18W: 2240-2420 | ||
2-CCT | Non-DIM | 12W: 1400-1590 10W: 1200-1300 8W: 900-1000 | 18W: 2250-2420 15W: 1900-2020 12W: 1500-1600 | 24W: 2930-3120 18W: 2200-2350 12W: 1420-1520 | 30W: 3880-4100 24W: 3140-3320 18W: 2300-2470 | |
DIM | 12W: 1330-1520 10W: 1110-1210 8W: 930-1040 | 18W: 2110-2275 15W: 1720-1840 12W: 1360-1460 | 24W: 2760-2950 18W: 2030-2170 12W: 1380-1430 | 30W: 3700-3920 24W: 2960-3140 18W: 2160-2330 | ||
DALI | 12W: 1330-1520 10W: 1280-1400 8W: 930-1040 | 18W: 2200-2370 15W: 1810-1930 12W: 1360-1460 | 24W: 2840-3040 18W: 2200-2350 12W: 1500-1620 | 30W: 3880-4100 24W: 2960-3140 18W: 2240-2420 | ||
CRI | CRI 80 | |||||
Beam Angle(°) | 110° | |||||
LED Driver | Built-in, Flicker Free | |||||
Dimming Option | Triac / DALI | |||||
Sensor | Microwave sensor & Daylight sensor | |||||
Emergency Kits | - | YES | ||||
Electrical Class | Class II | |||||
Ingress Protection(IP Rating) | Ceiling Surface Mount IP54/ Wall Mount IP50 | |||||
Impact Resistance(IK Rating) | IK08 | |||||
Product Finishing | White RAL9016 | |||||
Optics Material | PC | |||||
Housing Material | PC | |||||
Lifetime(hr) | 5,0000h | |||||
Glow wire test(°C) | 850°C | |||||
Operating Temp.(°C) | -20°C ~45°C ( Emergency: 0-25°C ) | |||||
Storage Temp.(°C) | -20°C ~60°C | |||||
Installation | Ceiling Surface Mount/ Wall Mount |
