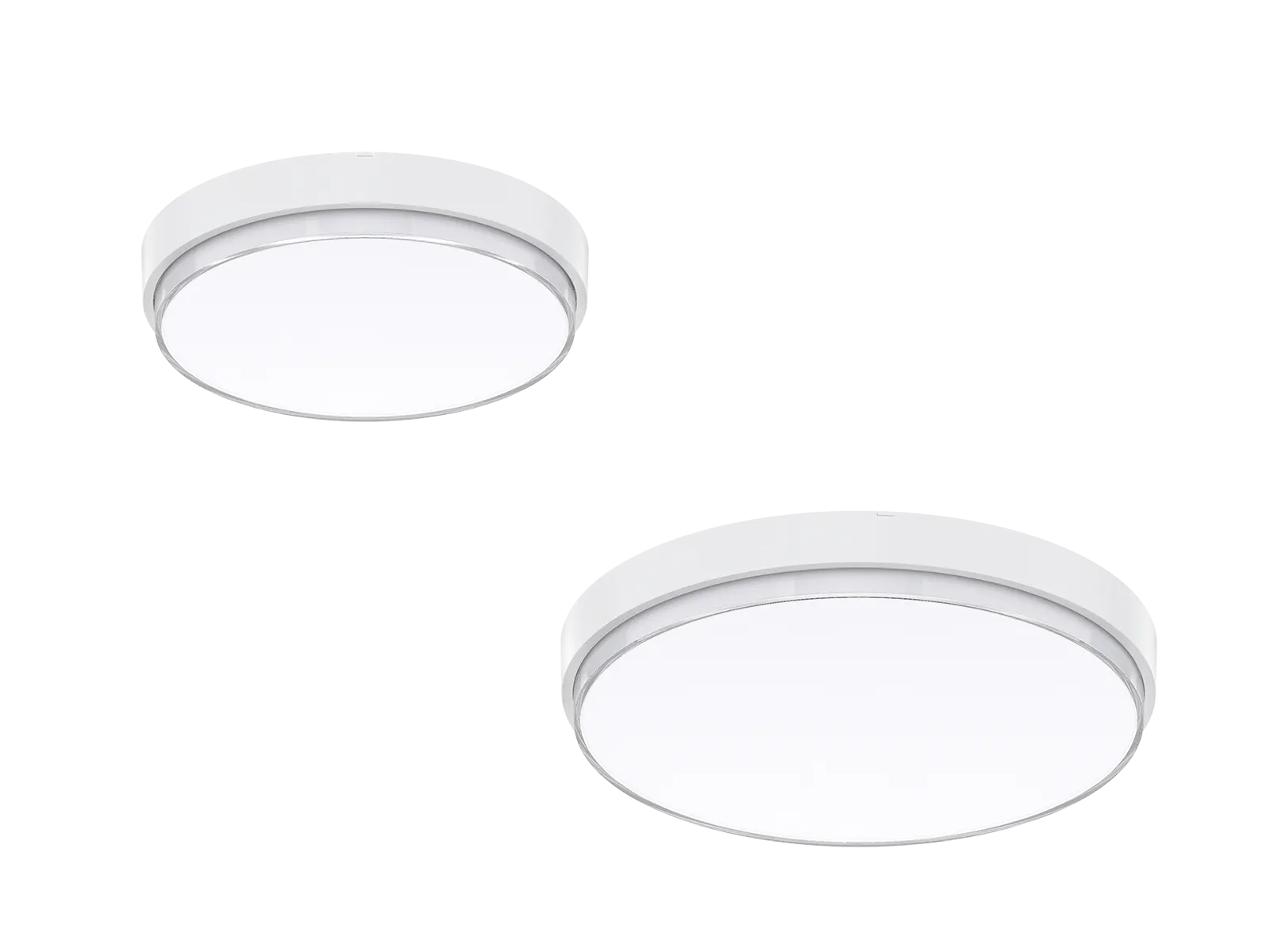

AL225 is a ceiling light with a screwless design. It features a dual-layer lampshade design that mimics the texture of glass. The outer cover is made of transparent PMMA material, while the inner cover is made of milky white PC material. The lighting is soft and even, providing a warm and comfortable lighting experience. The entire lamp is modular design, LED module and driver module are all replaceable, making the lighting fixture align with current trends. The luminaire is multifunctional with high light efficiency design, with a flexible and concise installation suitable for various locations.
Applications: Hotels, high-end residential spaces, living rooms, bathrooms, offices, architectural spaces, corridors, and other areas.
| Code | AL225-12-24W-A3C2 | AL225-16-30W-A3C2 | |
|---|---|---|---|
| Dimension(mm) | Ø300*60mm | Ø400*60mm | |
| Watt(W) | 24W Max. (18W/12W optional) | 30W Max. (24W/18W optional) | |
| Rated Input Voltage | AC220~240V | ||
| Input Voltage | AC198-264V | ||
| Light Source | SMD2835 | ||
| SDCM | SDCM<5 | ||
| CCT(K) | 2-CCT: 3000K+4000K | ||
| CCT Selection DIP Switch | YES | ||
| Luminous Flux (lm) ±5% CRI80 | Non-DIM | 24W: 3000-3200 18W: 2100-2300 12W: 1500-1600 | 30W: 3700-4000 24W: 3000-3200 18W: 2250-2400 |
| DIM | 24W: 2800-3000 18W: 2100-2300 12W: 1350-1450 | 30W: 3600-3800 24W: 3000-3200 18W: 2200-2400 | |
| DALI | 24W: 3000-3200 18W: 2300-2500 12W: 1500-1600 | 30W: 3800-4100 24W: 2900-3100 18W: 2400-2500 | |
| CRI | CRI 80 | ||
| Beam Angle (°) | 120° | ||
| LED Driver | Driver built-in | ||
| Dimming Option | Triac / DALI | ||
| Sensor | Microwave sensor & Daylight sensor | ||
| Emergency Kits | YES | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP54 | ||
| Impact Resistance(IK Rating) | IK06 | ||
| Product Finishing | White RAL9016, Black RAL9005 | ||
| Optics Material | White polymer cover | ||
| Housing Material | PC | ||
| Lifetime(hr) | 5,0000h | ||
| Glow wire test(°C) | PC 850°C | ||
| Operating Temp.(°C) | -20°C~45°C | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Surface mount / Pendant /wall mount | ||
