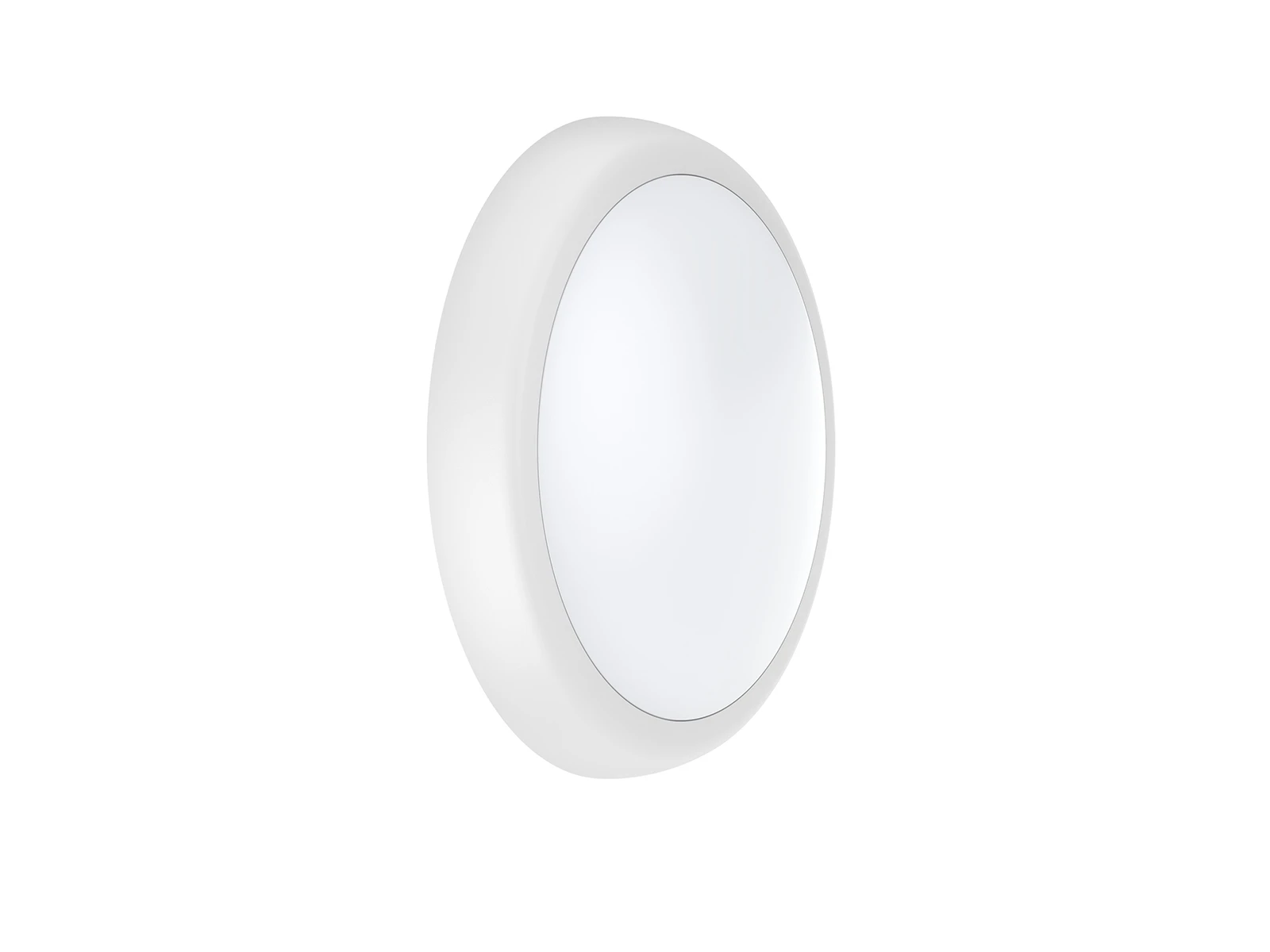

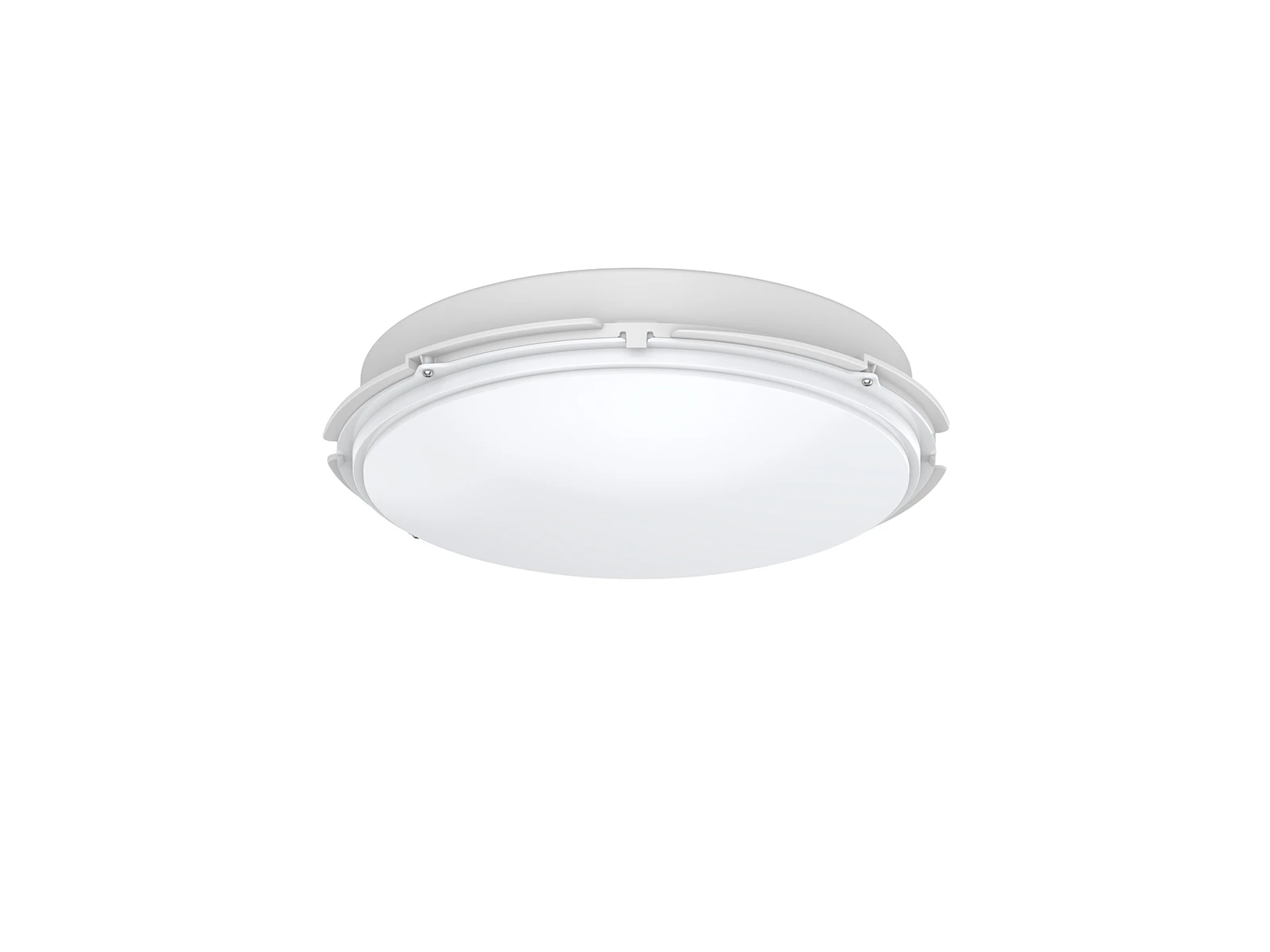

AL224 is a modular design bulkhead, where 3 different decorative covers can be freely selected and interchanged, providing flexibility and variability. The light source and driver are with modular design, allowing for direct replacement. The bulkhead is designed with IP65 IK08 rating, making it waterproof, impact-resistant, and suitable for outdoor use. With a high light efficiency 140lm/w design, it emits soft and textured light, bring great lighting experience. This light fixture has great advantages of light weight, high light efficiency, anti-theft features and back and side entry wiring options, and it can be both ceiling mounted and wall mounted, making it suitable for a wide range of installation locations.
IP65 IK08 rating.
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | AL224-12-18W-A4 | ||
|---|---|---|---|
| Dimension(mm) | Ø318*H90.8 | ||
| Watt(W) | 18W Max.(15W/13W/10W optional) | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 1-CCT: 3000K/4000K/ || 3-CCT: 3000K + 4000K+5700K | ||
| CCT Selection DIP Switch | YES | ||
| Luminous Flux (lm)±5% CRI80 | 1-CCT | Non-DIM | 10W: 1300-1400 13W: 1700-1800 15W: 2000-2100 18W: 2400-2550 |
| 3-CCT | Non-DIM | 10W: 1300-1420 13W: 1700-1840 15W: 2000-2140 18W: 2400-2600 | |
| CRI | 80 | ||
| Beam Angle(°) | 110° | ||
| LED Driver | Driver built-in | ||
| Sensor | Microwave sensor + Daylight sensor | ||
| Emergency Kits | YES | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP65 | ||
| Impact Resistance(IK Rating) | IK08 | ||
| Product Finishing | White RAL9016, Black RAL9005 | ||
| Optics Material | PC | ||
| Housing Material | ABS | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 650°C | ||
| Operating Temp(°C) | -20°C ~45°C | ||
| Storage Temp(°C) | -20°C ~60°C | ||
| Installation | Surface mount & Wall mount | ||
