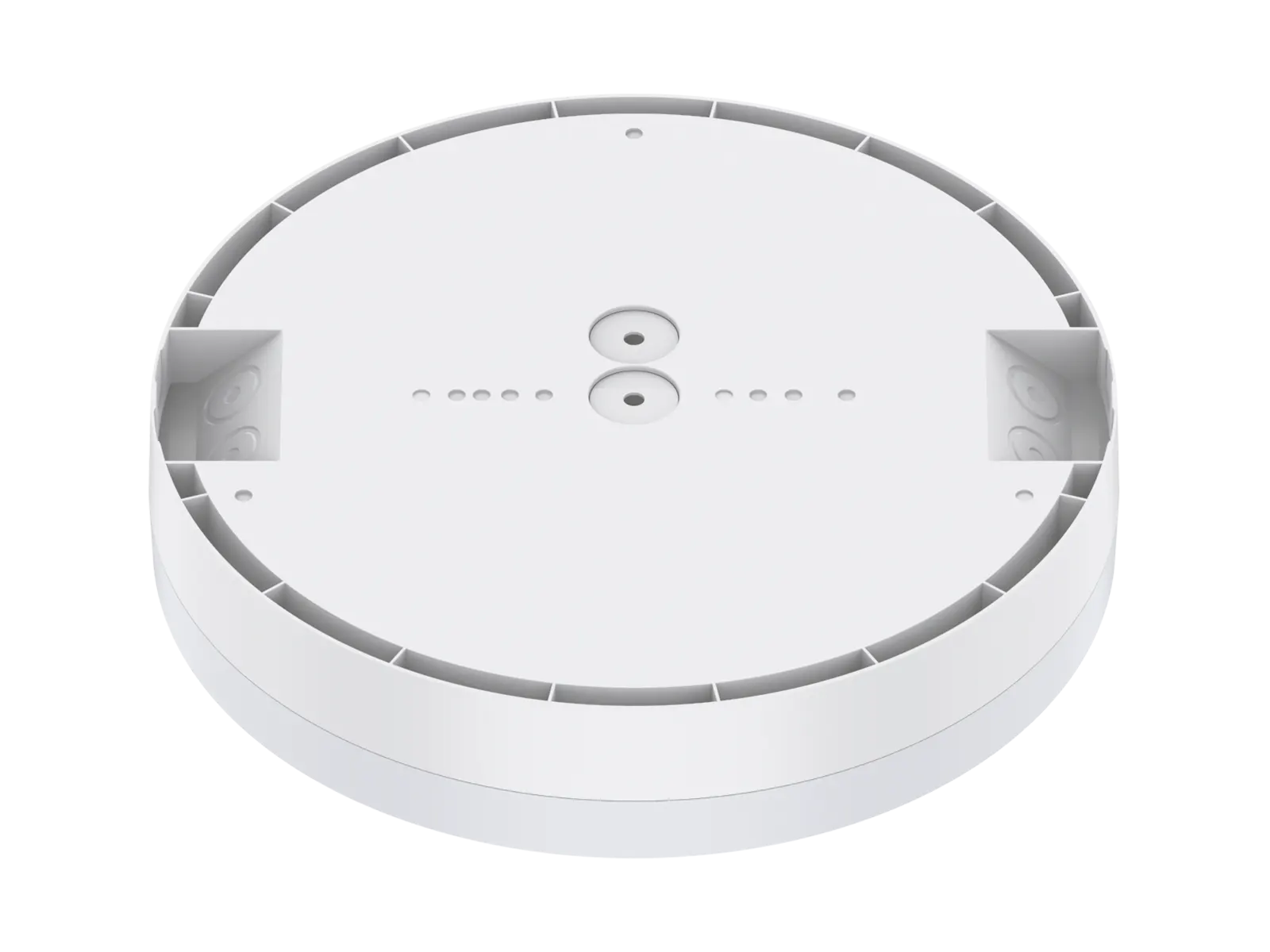

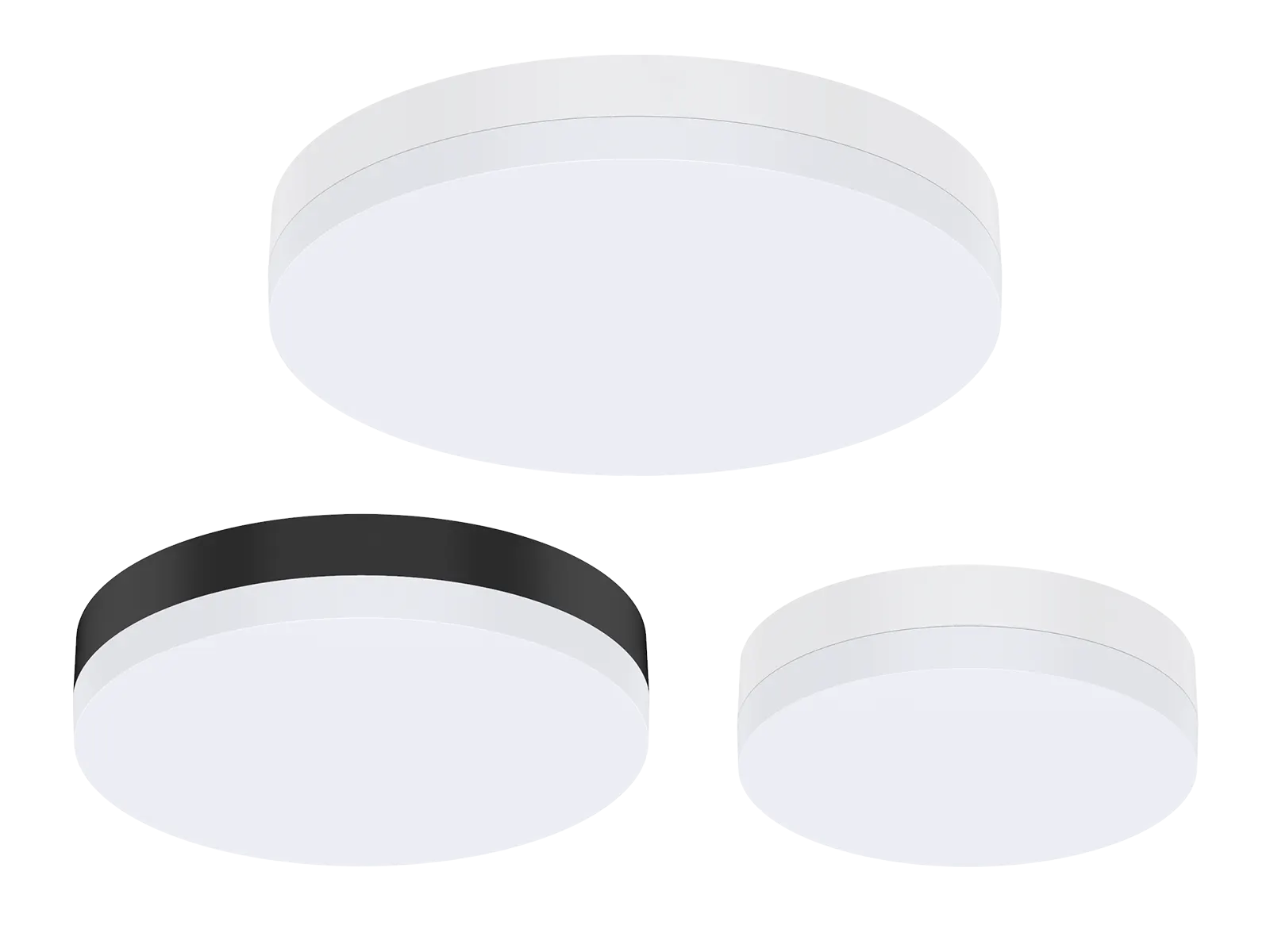

AL223 is a frameless designed ceiling light with a right-angled edge design, exuding a high- quality texture. The lamp is divided into two parts, adopting a modular design where the driver module can be replaceable. With a screwless design, it appears clean and simple, providing uniform illumination and soft lighting, offering users a comfortable lighting experience. Easy to install, it supports both ceiling mounted and pendant installation, adapting to various installation scenarios.
Application: It is designed for general lighting applications in bedroom, living room, hallway and office etc.
| Code | AL223-8-12W-A3C2 | AL223-11-18W-A3C2 | AL223-14-30W-A3C2 | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø220*56mm | Ø275*56mm | Ø350*56mm | ||
| Watt(W) | 12W Max. | 18W Max. | 30W Max. | ||
| (10W/8W optional) | (15W/12W optional) | (24W/18W optional) | |||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | <6 | ||||
| CCT(K) | 2-CCT: 3000K + 4000K | ||||
| CCT Selection DIP Switch | Yes | ||||
| Non-DIM | 12W: 1400-1480 | 18W: 2300-2450 | 30W: 3800-4050 | ||
| Luminous Flux (lm) ±5% | 2-CCT | 10W: 1150-1250 | 15W: 1900-2030 | 24W: 3100-3300 | |
| CRI80 | 8W: 880-960 | 12W: 1520-1620 | 18W: 2300-2450 | ||
| DIM | 12W: 1400-1480 | 18W: 2250-2350 | 30W: 3700-3900 | ||
| 10W: 1150-1250 | 15W: 1820-1920 | 24W:3000-3200 | |||
| 8W: 880-960 | 12W: 1520-1620 | 18W: 2250-2380 | |||
| CRI | CRI 80 | ||||
| Beam Angle(°) | 120° | ||||
| UGR | - | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | Triac & DALI | ||||
| Sensor | Microwave sensor +Daylight sensor | ||||
| Emergency Kits | - | YES | |||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | IP54 | ||||
| Impact Resistance(IK Rating) | IK07 | ||||
| Product Finishing | White RAL9016 & Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | PC | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 650°C | ||||
| Operating Temp.(°C) | -20°C ~45°C | ||||
| Storage Temp.(°C) | -20°C ~60°C | ||||

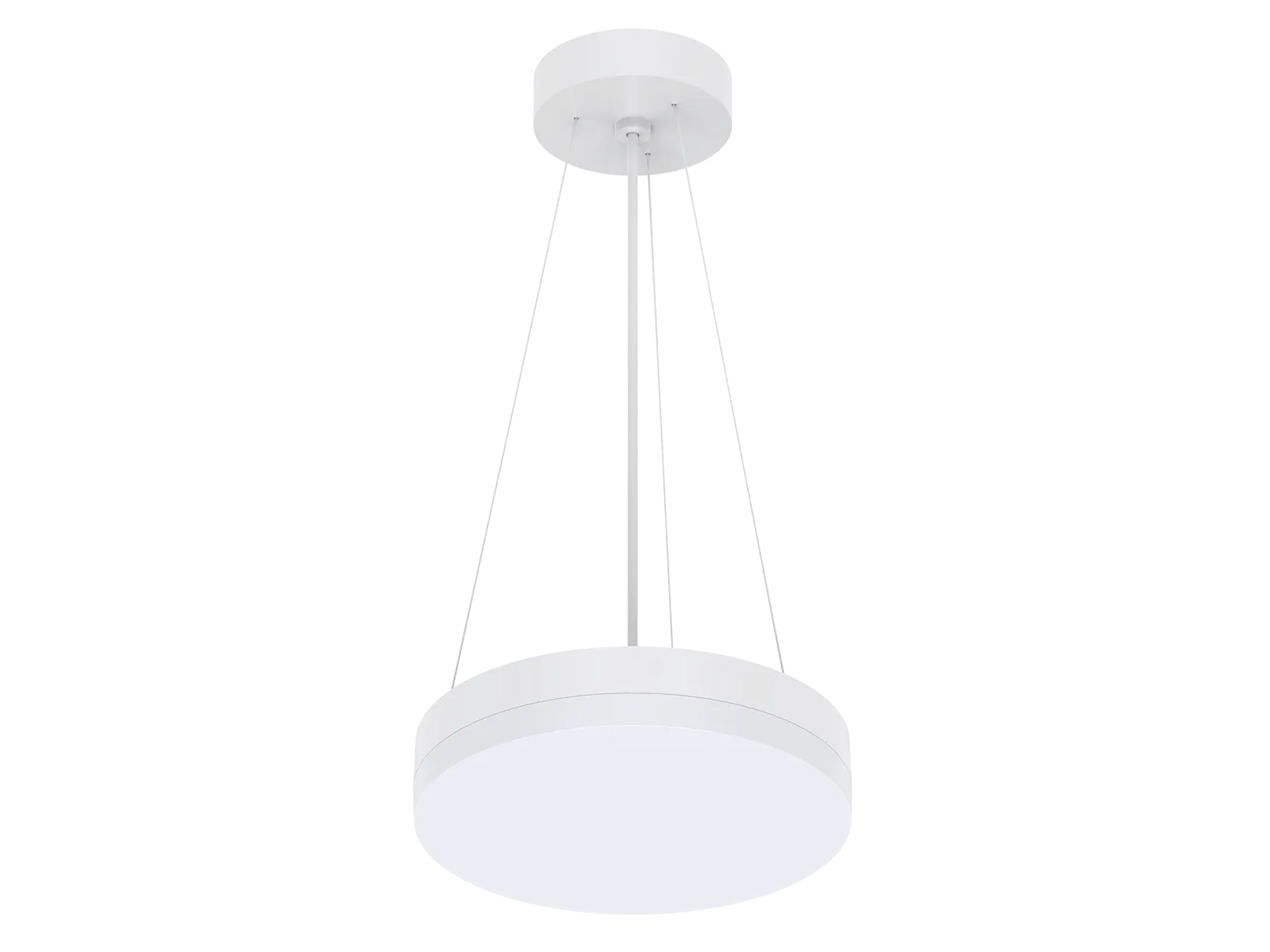

| Installation | Surface mount | Surface mount & Pendant | |||
