AL221 Vandal Resistant Lighting

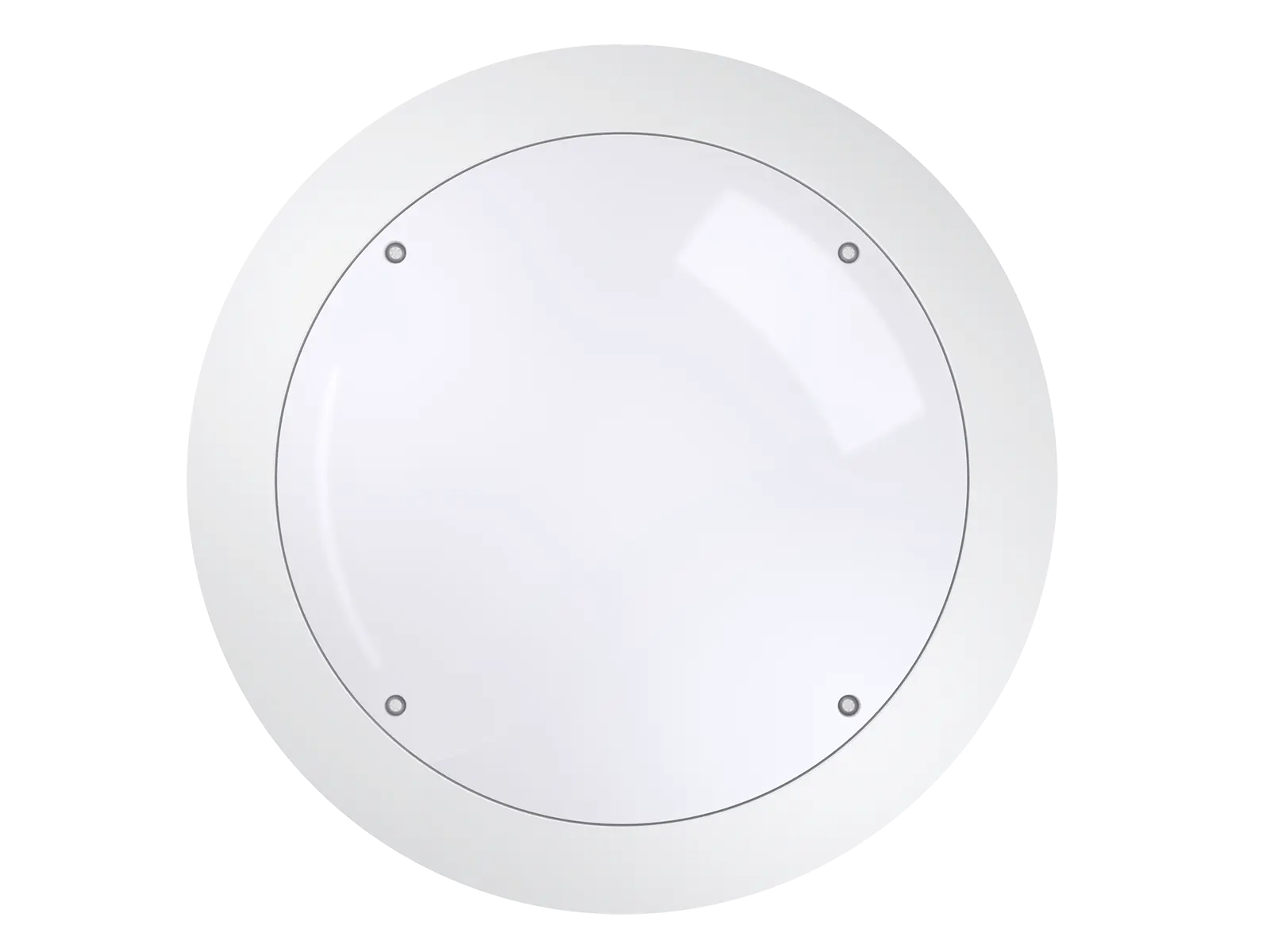

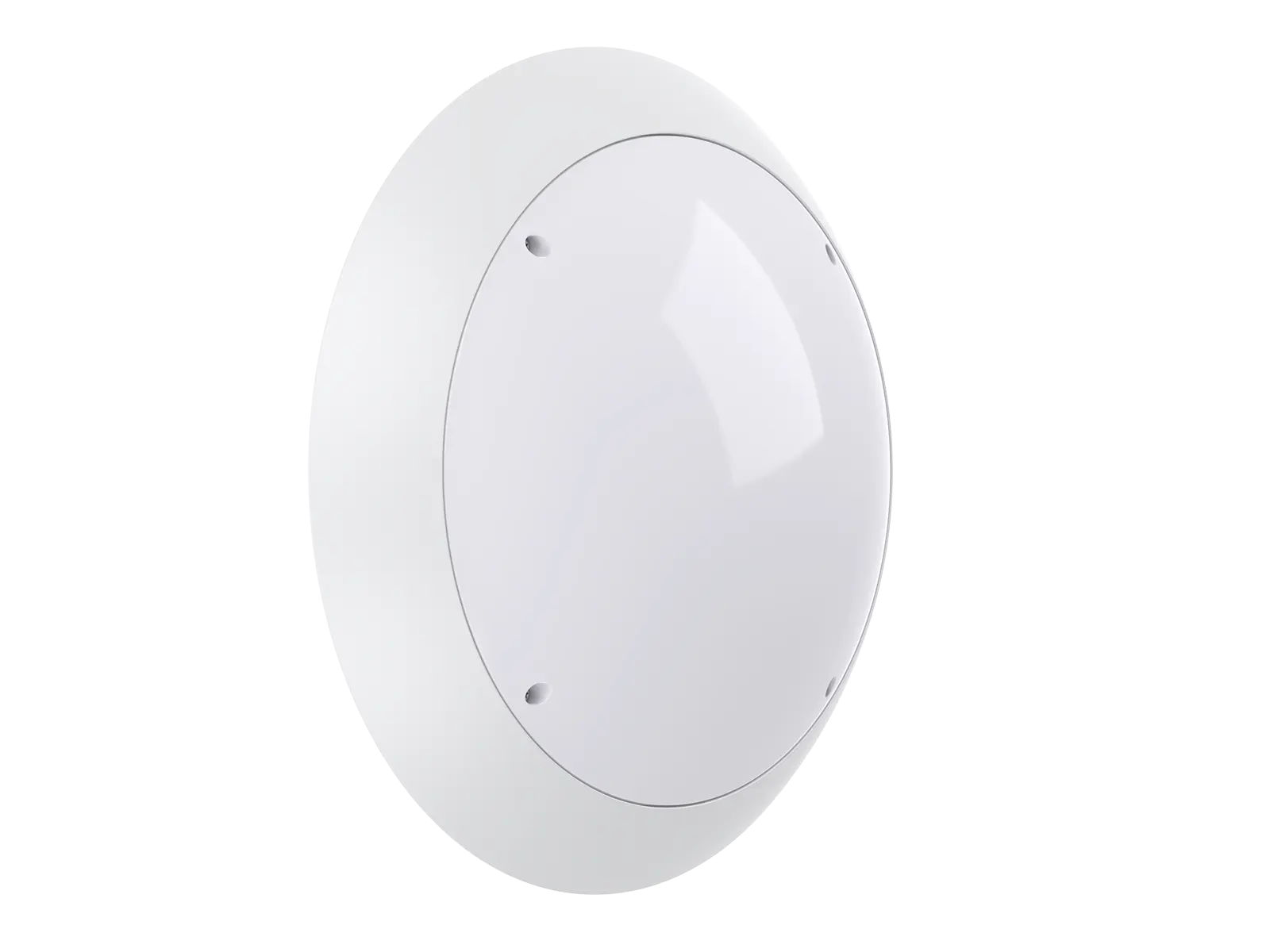

AL221 ceiling light is a high-strength impact-resistant, waterproof and theft-proof ceiling light. The sturdy aluminum die-cast housing and thick PC housing make the luminaire achieve IK20( 250J). Anti-theft screws and waterproof rings are closely matched to achieve waterproof rating up to IP66. The streamlined and smooth exterior design not only gives the luminaire a clean and fresh look but also enhances the robustness of the luminaire.

  •  High light efficiency 130LM/W @ 4000K

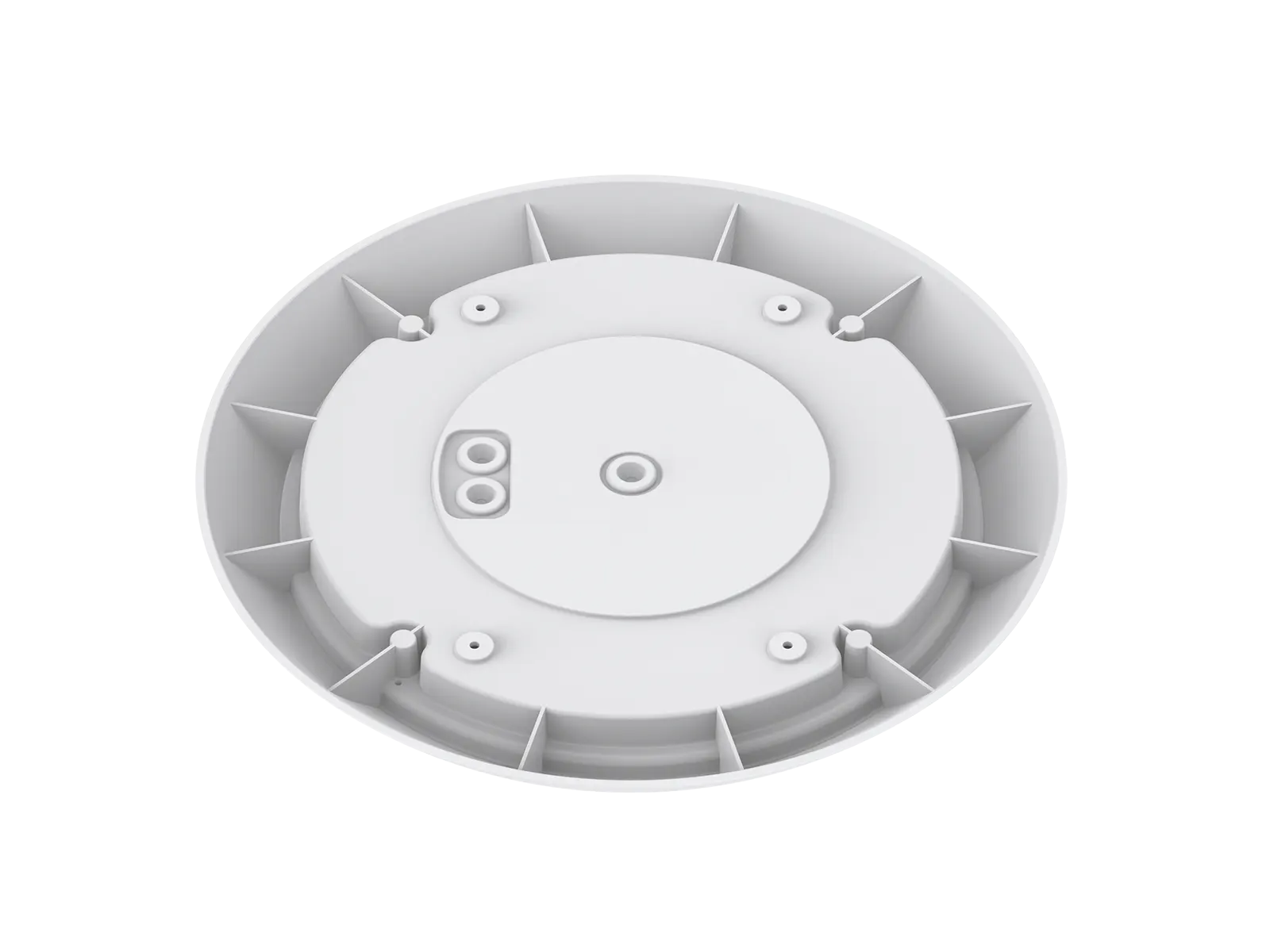

  •  Installation holes comply with the British BEZA box hole positions
  •  Impact resistance rating: IK20 (250 joules of energy)
  •  Ingress protection rating: IP66
  •  1-CCT & 2-CCT are optional
  •  Night light, emergency and sensor functions are DIY design, can be purchased as functional packages separately
  •  DALI dimming is available
  •  Ultra-long lifespan design, L80B20 70,000 hours

Applications: Prisons or special locations requiring anti-theft, impact resistance and waterproof capabilities in poor environmental conditions.

CODE AL221-18-16W AL221-18-32W
Dimension(mm) Ø455*H115mm
Watt(W) 16W 32W
Input Voltage AC198-264V
Light Source SMD
CCT(K) 1-CCT: 3000K / 4000K & 2-CCT: 3000K+4000K
CCT Selection DIP Switch YES
1-CCT Non-DIM 2000-2100 4100-4250
Luminous Flux (lm) ±5% DALI 2100-2200 4300-4500
CRI80 2-CCT Non-DIM 2000-2100 4100-4250
DALI 2100-2200 4300-4500
Beam Angle (°) 120°
Dimming Option DALI
Sensor Microwave sensor + Daylight sensor
Emergency YES
Product weight(Kg) N.W/PC 4.2
G.W/PC 5.5
Package weight(Kg) N.W/CTN 8.4
G.W/CTN 11
Qty/CTN (PCS) 2
Carton Size(cm) 54*32.5*55
20GP(pcs) 592
40HQ(pcs) 1208
