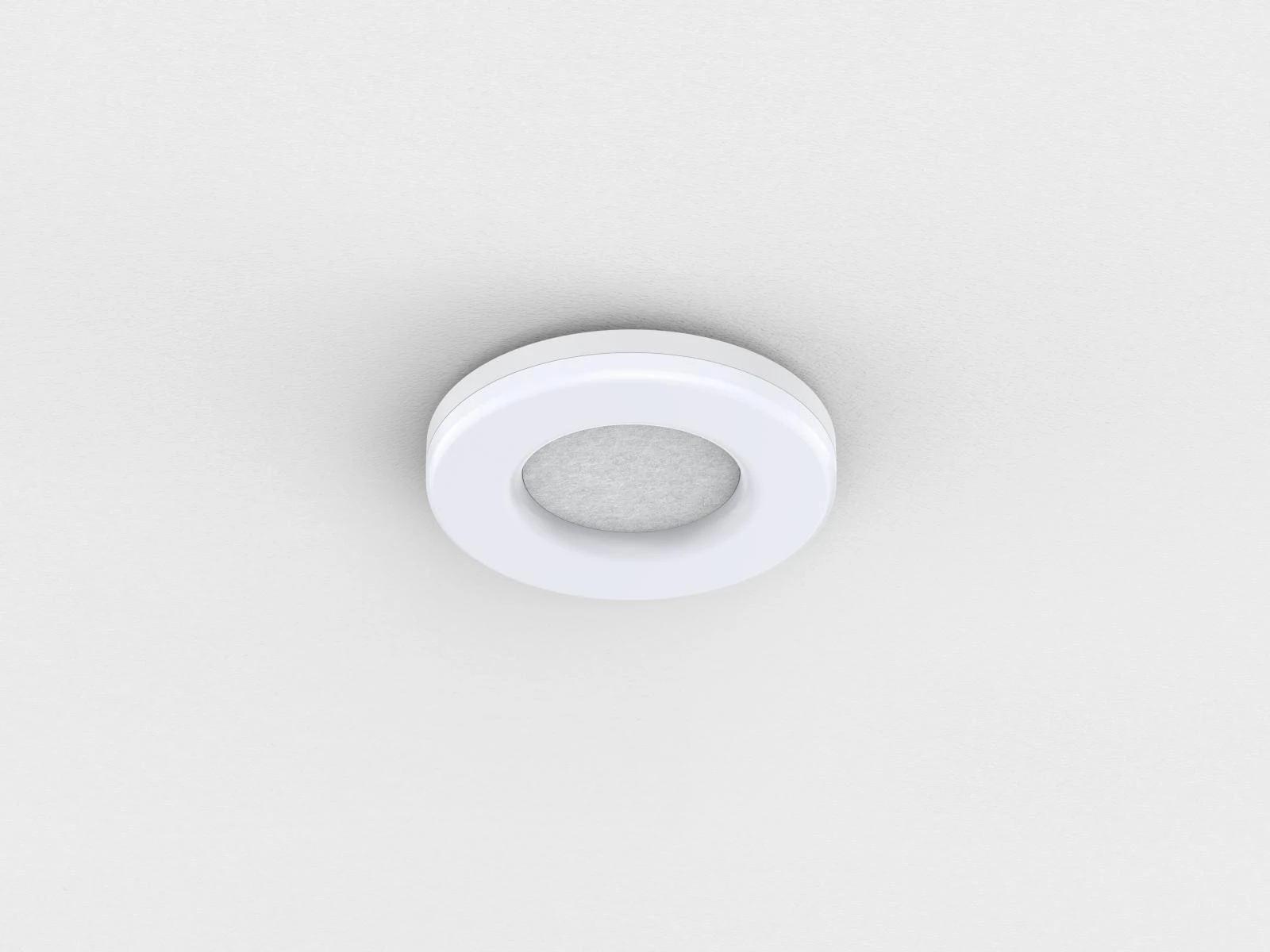

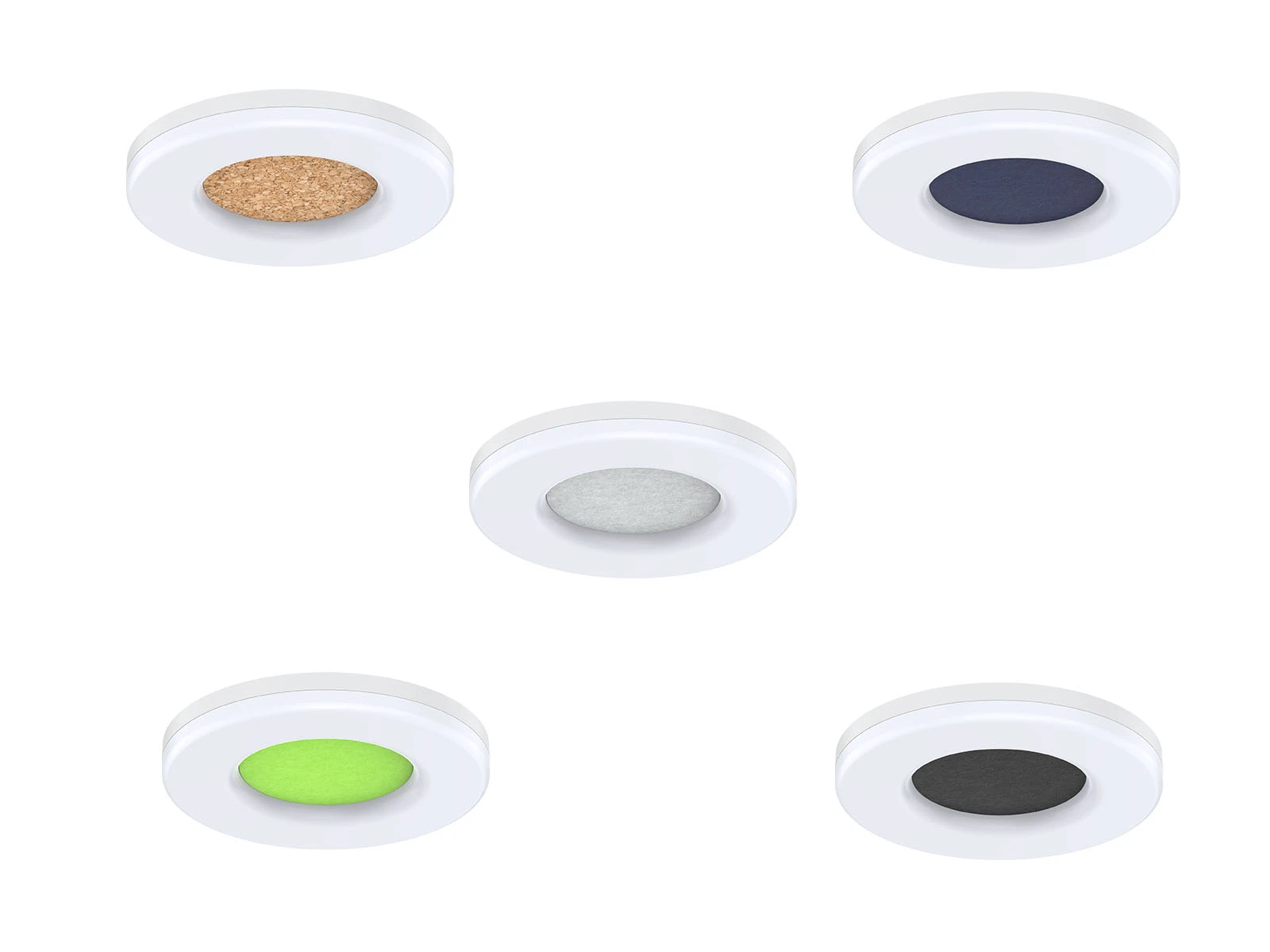

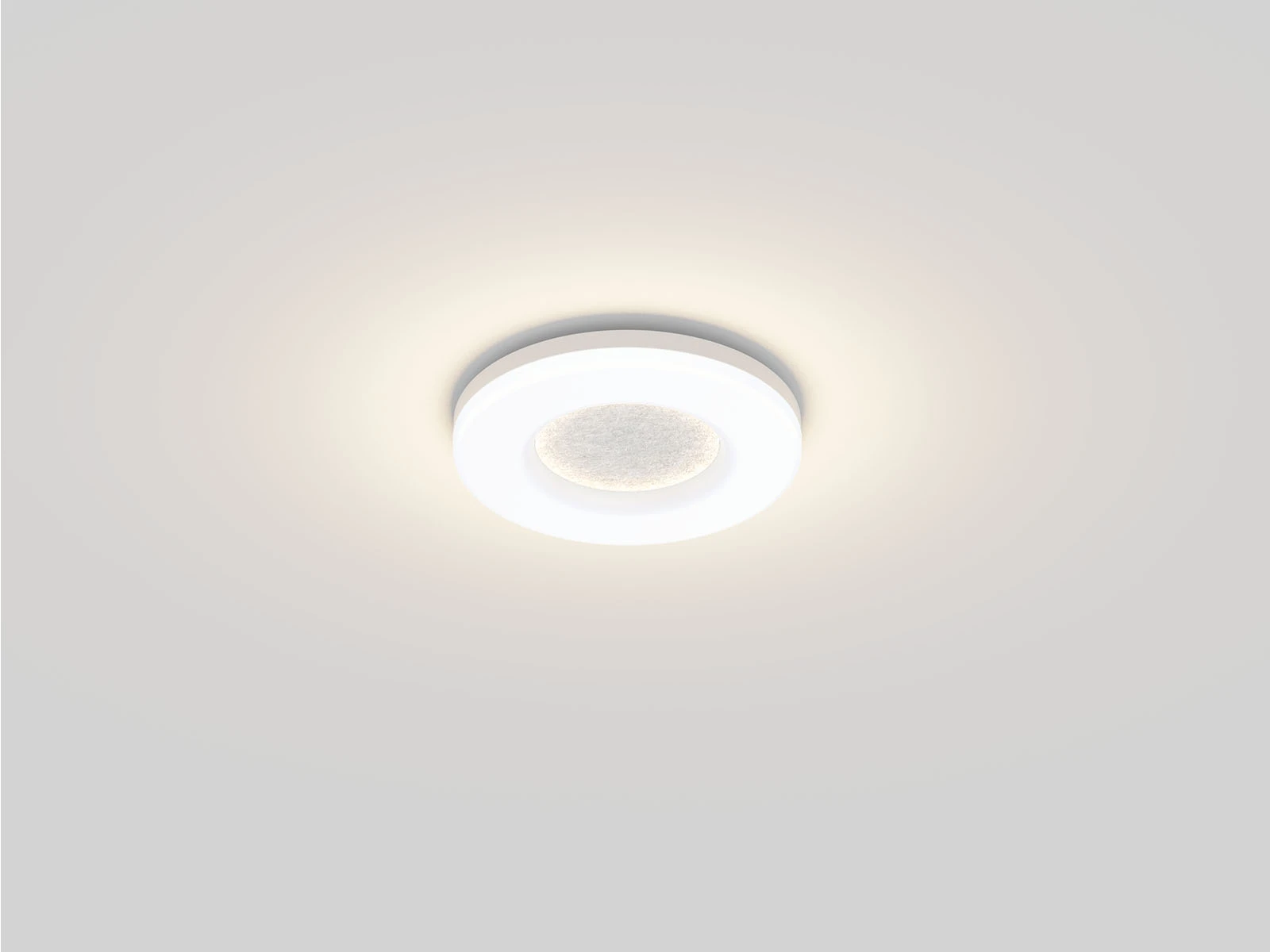

AL215 is an ultra-thin design ceiling light that features a round shape and minimalist design, embodying harmony and texture. It provides uniform and soft illumination with its edgeless and circular light emission, creating a warm and comfortable environment for end users. Its greatest advantage lies in its center position design, allowing for DIY customization with flexible material and color choices, creating personalized and visually appealing lighting fixtures. It is suitable for various installation positions, can be surface mounted and pendant. Meanwhile, it support both side and back wiring options and can be connection in series.
Application Areas: Hotel, high-end residential spaces, living rooms, bathrooms, offices, shopping malls, corridors, and other indoor general lighting applications.
Code |
AL215-14-18W |
AL215-14-25W |
AL215-14-30W |
AL215-14-30W-A3 |
||
---|---|---|---|---|---|---|
Dimension(mm) |
Ø350*60mm |
|||||
Cutout(mm) |
|
|||||
Watt(W) |
18W |
25W |
30W |
30W/25W/18W |
||
Rated Input Voltage |
AC220-240V |
|||||
Input Voltage |
AC198-264V |
|||||
LED Module Input |
- |
|||||
Light Source |
SMD |
|||||
SDCM |
<6 |
|||||
CCT(K) |
1-CCT:/3000K/4000K || 2-CCT: 3000K+4000K |
|||||
CCT Selection DIP Switch |
YES |
|||||
Luminous Flux (lm) ±5% CRI80 |
1-CCT |
Non-DIM |
2100-2250 |
2850-3100 |
3500-3800 |
30W:3550-3700 25W:3000-3250 18W:2150-2350 |
|
|
TRIAC |
2000-2150 |
2750-3050 |
3400-3650 |
- |
|
|
DALI |
2100-2250 |
2850-3100 |
3500-3800 |
|
|
2-CCT |
Non-DIM |
2100-2250 |
2850-3100 |
3500-3800 |
30W:3550-3700 25W:3000-3250 18W:2150-2350 |
|
|
TRIAC |
2000-2150 |
2750-3050 |
3400-3650 |
- |
|
|
DALI |
2000-2150 |
2750-3050 |
3400-3650 |
|
CRI |
80 |
|||||
Beam Angle (°) |
120° |
|||||
UGR |
- |
|||||
LED Driver |
Driver built-in |
|||||
Dimming Option |
Triac / DALI |
- |
||||
Sensor |
- |
|||||
Emergency Kits |
NO |
|||||
Electrical Class |
Class II |
|||||
Ingress Protection(IP Rating) |
IP54 |
|||||
Impact Resistance(IK Rating) |
IK08 |
|||||
Product Finishing |
White RAL9016 |
|||||
Optics Material |
PC |
|||||
Housing Material |
PC |
|||||
Lifetime(hr) |
50,000h |
|||||
Glow wire test(°C) |
750°C |
|||||
Operating Temp(°C) |
-20°C~45°C |
|||||
Storage Temp(°C) |
-20°C~65°C |
|||||

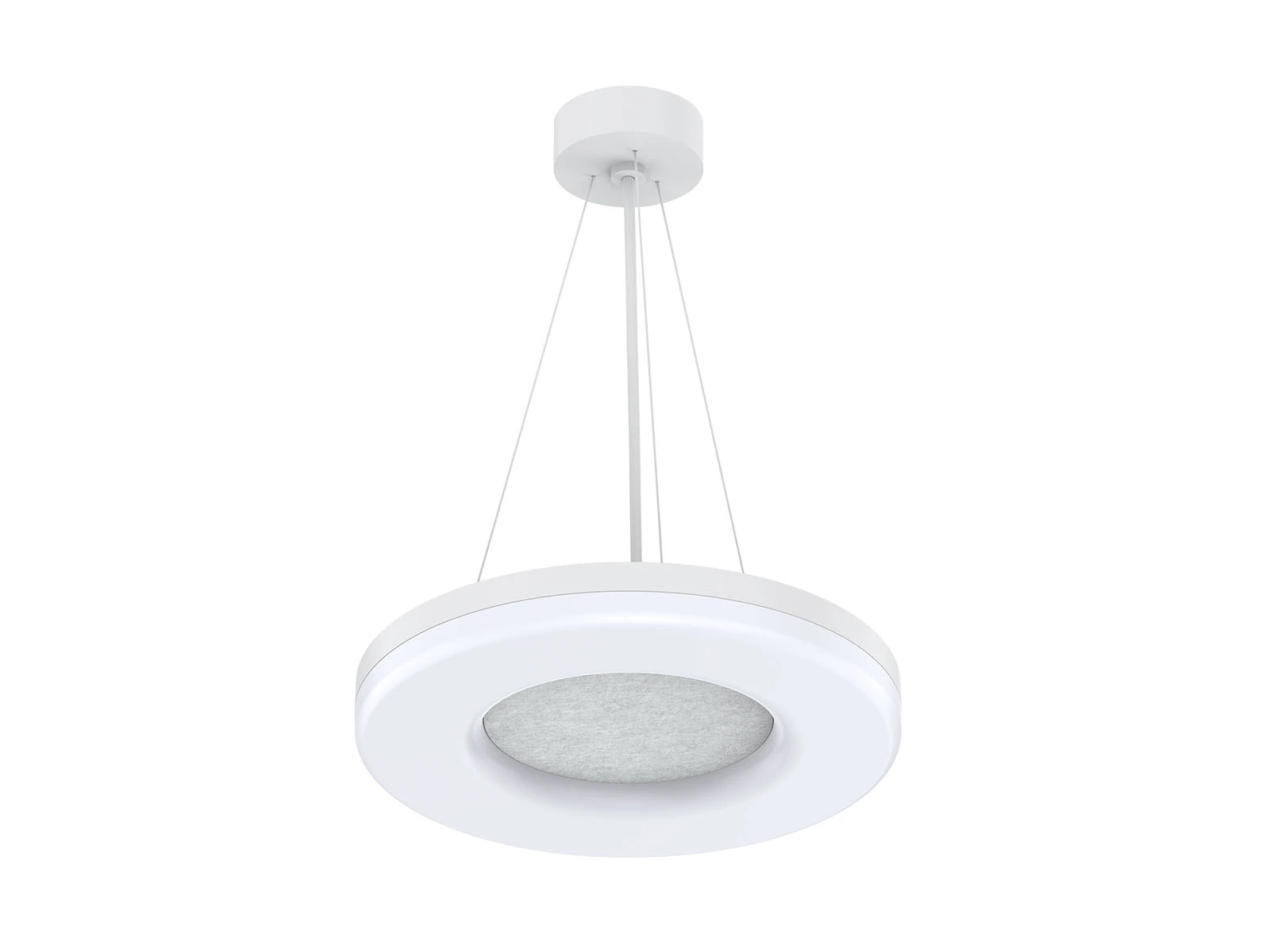

Installation |
Surface mount / Pendant |
