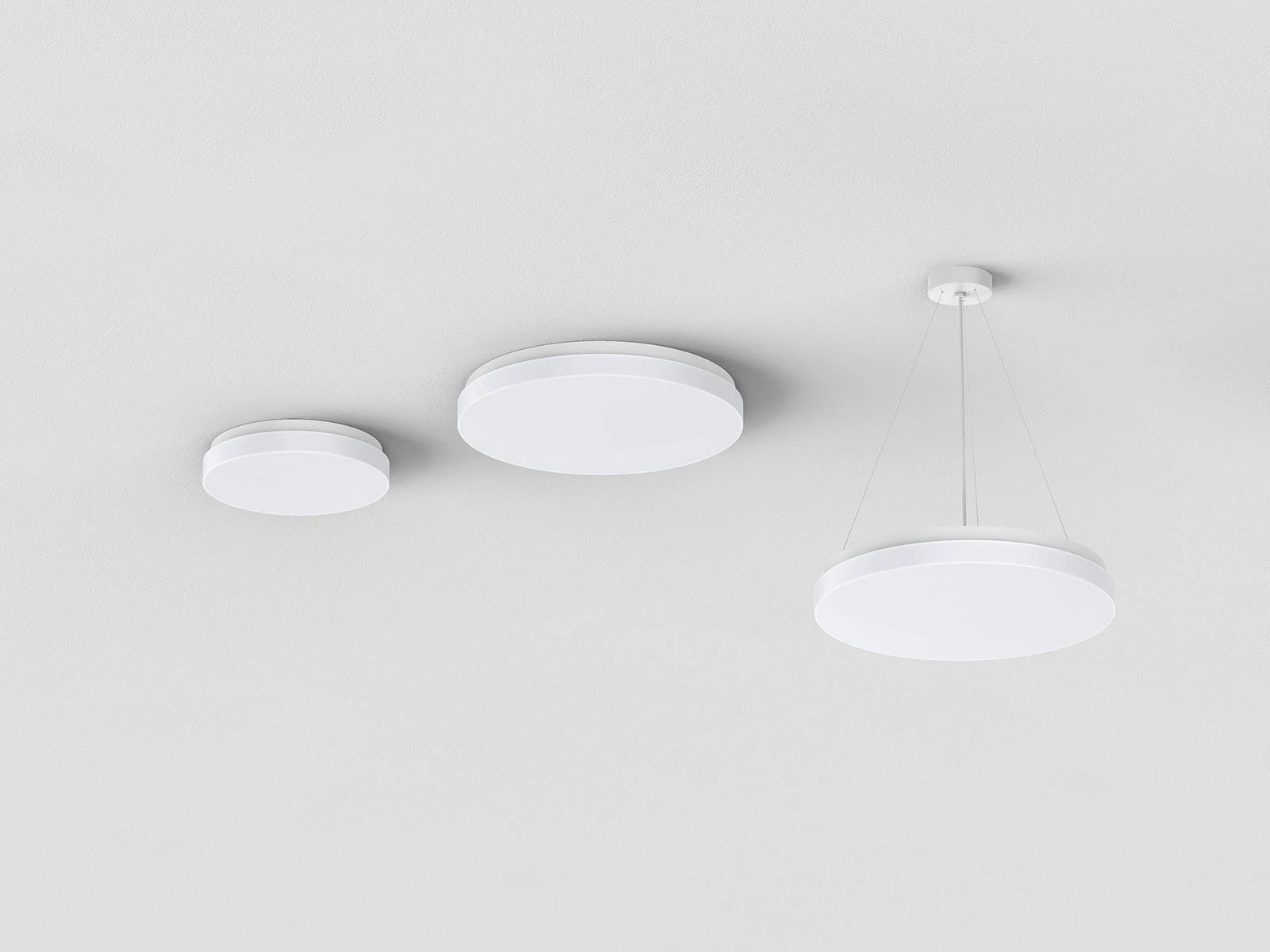

AL212 is a high-quality and high-end ceiling light, all-around front, side, and back illumination and frameless design, highlighting the three-dimensional sense and texture of the product while also enhancing the ambiance of the environment. Multifunctional modular design, different driver modules with varying functions can be quickly replaced to accommodate different installation locations, such as DALI dimming with adjustable power, non-dim with adjustable power, etc. High light efficiency design, whole lamp SDCM<3, the light provides an unparalleled lighting experience. Built-in flicker free driver, protection rating IP54 IK06, side wiring and back wiring are optional, it is flexible for different installations.
Application Areas: It is designed for general lighting indoor applications: hotel, home, canteen, office, shopping malletc.
| Code | AL212-10-12W-AC2 | AL212-12-25W-AC2 | AL212-16-30W-AC2 | AL212-24-50W-AC2 | |
|---|---|---|---|---|---|
| Dimension(mm) | Ø250*81 | Ø300*81 | Ø400*81 | Ø600*84 | |
| Watt(W) | 12W / 8W | 25W / 18W | 30W / 25W | 50W / 35W | |
| Rated Input Voltage | AC220-240V/DC60-75V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | SMD | ||||
| SDCM | <3 | ||||
| CCT(K) | 2-CCT: 3000K + 4000K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% CRI80 | Non- DIM | 12W: 1400-1500 8W: 920-1020 | 25W: 2870-3000 18W: 2150-2250 | 30W: 3600-3750 25W:3120-3200 | 50W: 6100-6450 35W:4370-4480 |
| CRI | 80 | ||||
| Beam Angle (°) | 130° | ||||
| LED Driver | Driver built-in | ||||
| Emergency Kits | - | YES | |||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | IP54 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016 | ||||
| Optics Material | PMMA | ||||
| Housing Material | PC | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (°C) | 650°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Surface mount / Pendant | ||||
| Code | AL212-10-15W- A2S7C2 | AL212-12-20W- A3S7C2 | AL212-16-25W- A3S7C2 | AL212-24-50W- A2S7C2 | |
|---|---|---|---|---|---|
| Dimension(mm) | Ø250*81 | Ø300*81 | Ø400*81 | Ø600*84 | |
| Watt(W) | 15W / 7W | 2OW / 15W / 10W | 25W / 20W / 15W | 50W / 35W | |
| Rated Input Voltage | AC220-240V/DC60-75V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | SMD | ||||
| SDCM | <3 | ||||
| CCT(K) | 2-CCT: 3000K + 4000K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% CRI80 | Non- DIM(S7) | 15W: 1650-1720 7W: 810-920 | 20W: 2500-2350 15W: 1750-1950 10W: 1200-1300 | 25W: 3000-3150 20W: 2450-2560 15W: 1900-2010 | 50W: 6100-6450 35W:4370-4480 |
| CRI | 80 | ||||
| Beam Angle (°) | 130° | ||||
| LED Driver | Driver built-in | ||||
| Sensor | Microwave sensor +Daylight sensor | ||||
| Emergency Kits | - | YES | |||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | IP54 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016 | ||||
| Optics Material | PMMA | ||||
| Housing Material | PC | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 650°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Surface mount / Pendant | ||||
| Code | AL212-10-12W- A2DAP2 | AL212-12-25W- A2DAP2 | AL212-16-30W- A2DAP2 | AL212-24-50W- A2DAP2 | |
|---|---|---|---|---|---|
| Dimension(mm) | Ø250*81 | Ø300*81 | Ø400*81 | Ø600*84 | |
| Watt(W) | 12W / 8W | 25W / 18W | 30W / 25W | 50W / 35W | |
| Rated Input Voltage | AC220-240V/DC60-75V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | SMD | ||||
| SDCM | <3 | ||||
| CCT(K) | 2-CCT:3000K + 4000K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% CRI80 | DALI | 12W: 1350-1460 8W: 890-1000 | 25W: 2860-2950 18W: 2100-2230 | 30W: 3570-3650 25W:3100-3180 | 50W: 6100-6350 35W:4370-4480 |
| CRI | 80 | ||||
| Beam Angle (°) | 130° | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | DALI | ||||
| Emergency Kits | - | YES | |||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | IP54 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016 | ||||
| Optics Material | PMMA | ||||
| Housing Material | PC | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (°C) | 650°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Surface mount / Pendant | ||||
