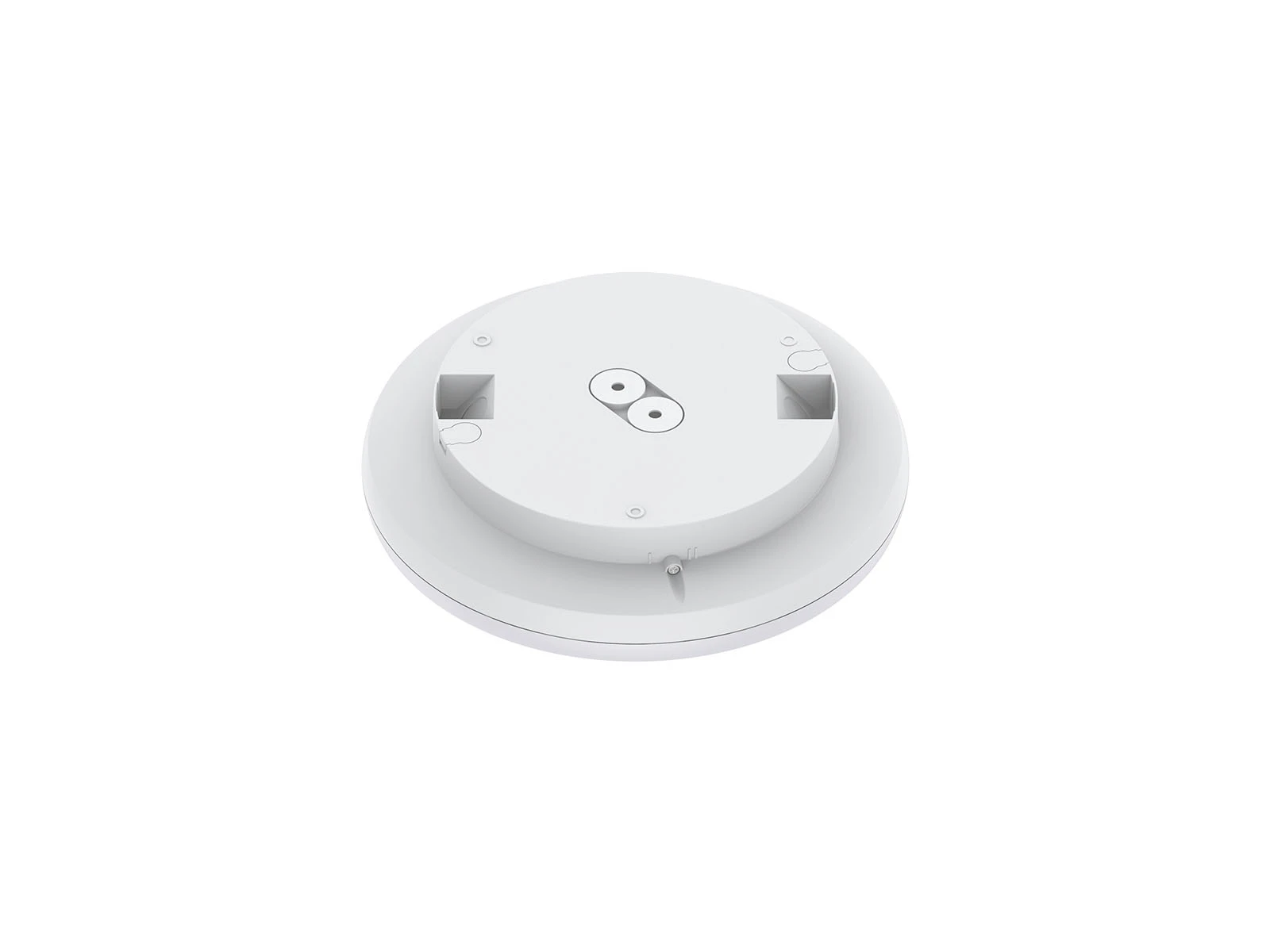

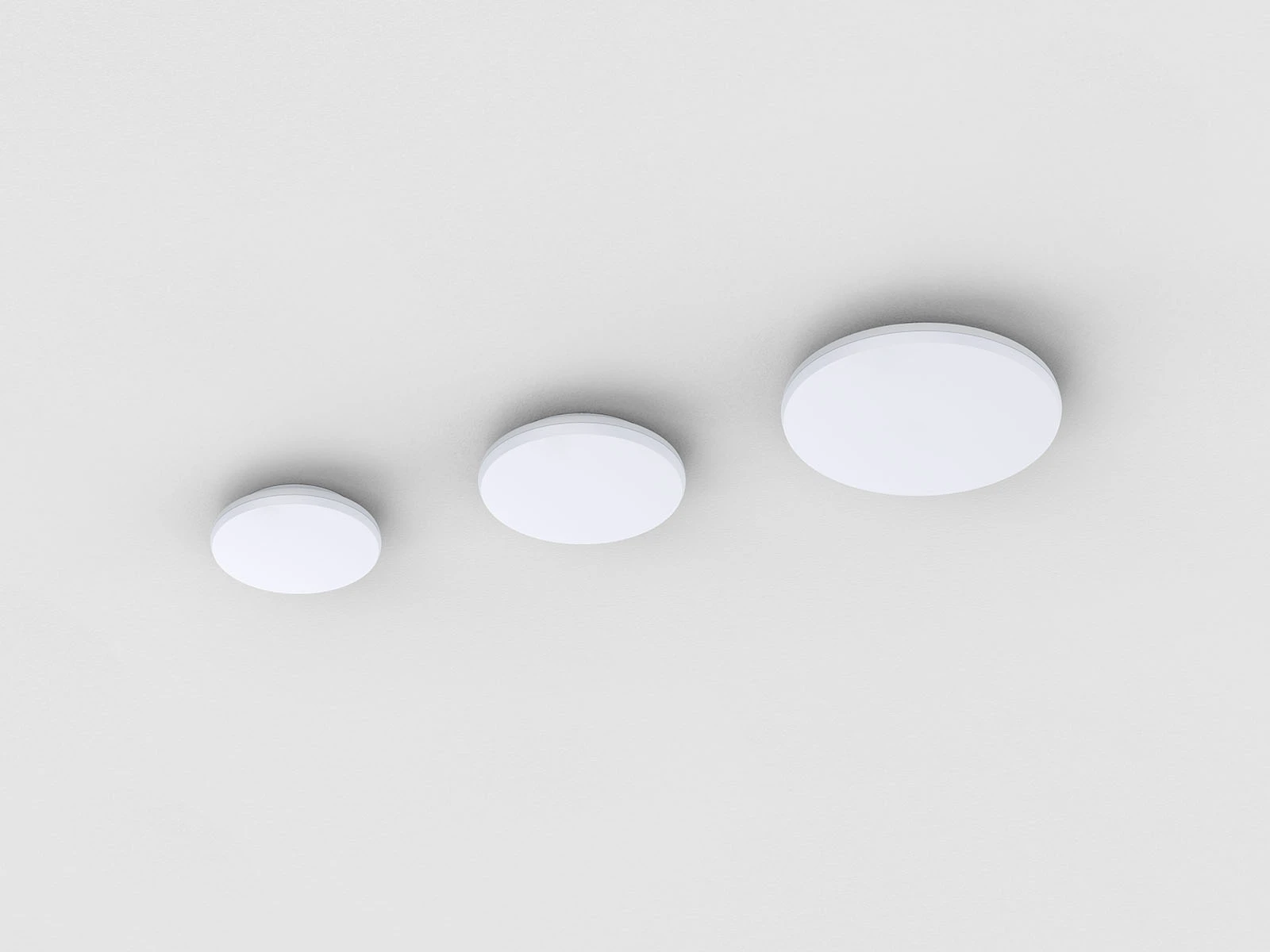

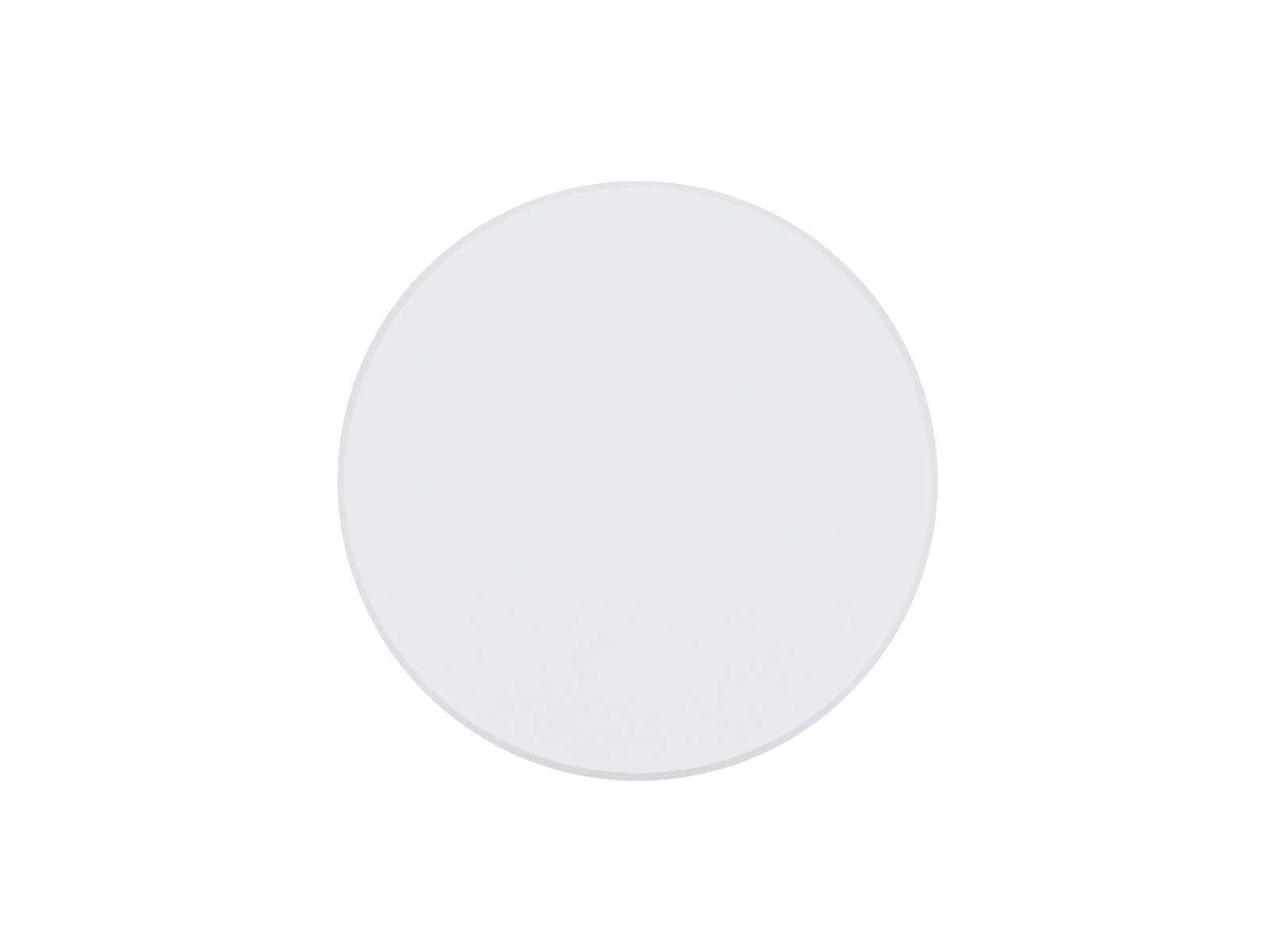

AL203 is a multifunctional modular designed LED ceiling light. The simple and sleek design provides a warm and comfortable experience. The curved transition on the sides reduces the thickness of the non-illuminating area at the back, making the product appear thinner. The large illuminated surface highlights the product's pure and simple lighting effect. Multifunctional modular design, with each module including the driver, LED PCB and sensor module being replaceable, allowing for customization of different functions. Customers can combine the functions according to their needs, making it suitable for various installation locations. High light efficiency 120LM/W, with a protection rating of IP44 and IK06, side wiring or back wiring are optional, it is flexible for different installations.
APPLICATIONS: It is designed for general lighting indoor applications: hotel, home, canteen, office, shopping mall etc
| CODE | AL203-10-12W | AL203-12-18W AL203-12-25W | AL203-16-25W AL203-16-30W | ||||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø250*56 | Ø300*59 | Ø400*65 | ||||
| Cutout(mm) | 12W | 18W | 25W | 25W | 30W | ||
| Input Voltage | AC220-240V | ||||||
| Light Source | SMD | ||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K||2-CCT:3000K+ 4000K | ||||||
| CCT Selection DIP Switch | YES | ||||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | - | ||||
| DIM | 1260-1360 | 1880-2050 | 2730-2830 | 2850-3150 | 3400-3700 | ||
| DALI | 1260-1360 | 1880-2050 | 2730-2830 | 2850-3150 | 3400-3700 | ||
| 2-CCT | Non-DIM | - | |||||
| DIM | 1250-1350 | 1860-2030 | 2700-2800 | 2800-3100 | 3300-3600 | ||
| DALI | 1250-1350 | 1860-2030 | 2700-2800 | 2800-3100 | 3300-3600 | ||
| Beam Angle (°) | 120° | ||||||
| Dimming Option | Triac / DALI | ||||||
| Emergency | - | YES | |||||
| Product weight(Kg) | N.W/PC | 0.60 | 0.85 | 1.35 | |||
| G.W/PC | 0.78 | 1.07 | 1.70 | ||||
| Package weight(Kg) | N.W/CTN | 7.20 | 5.10 | 5.4 | |||
| G.W/CTN | 10.36 | 7.20 | 7.63 | ||||
| Qty/CTN (PCS) | 12 | 6 | 4 | ||||
| Carton Size(cm) | 60*41*31.5 | 44*35.5*36 | 46*32*46 | ||||
| 20GP(pcs) | 4332 | 2976 | 1680 | ||||
| 40HQ(pcs) | 10248 | 6912 | 3900 | ||||
