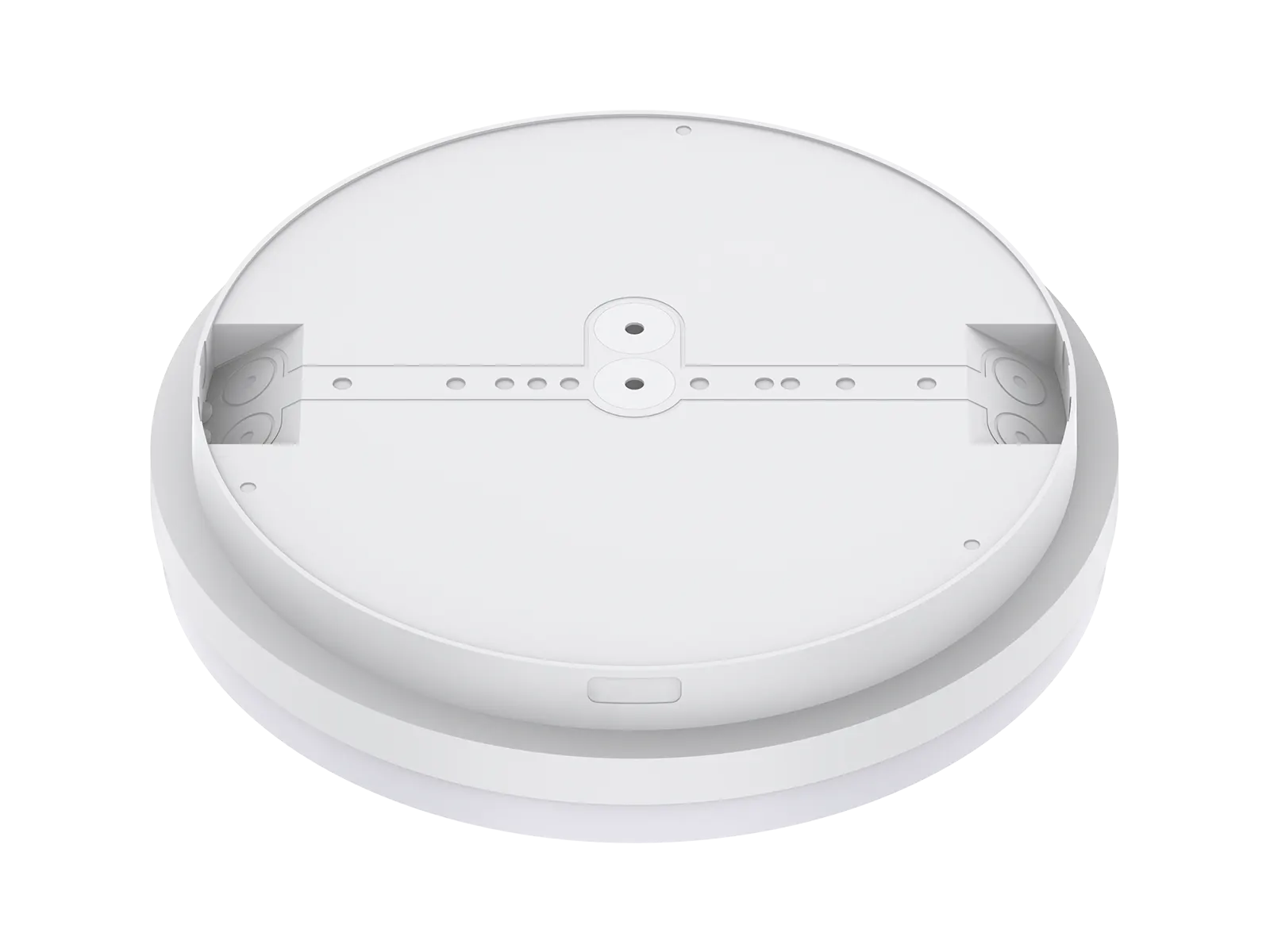

This is a ceiling light with plug in/ plug out module, it's a tool free design for module replacing like driver, led board, sensor module, emergency module, and it has cable clamp inside to make inside neat looking, so this design can cater to multiple function demand and fit more lighting request, easy maintenance and update make it long lifespan and stock saving.
Applications: It is widely used in office, shopping mall, home, balcony, hotel etc.
| Code | AL202-12-18W-B1-I03 | AL202-16-30W-B1-I03 |
|---|---|---|
| Dimension(mm) | Ø300*59 | Ø400*59 |
| Watt(W) | 18W | 30W |
| Rated Input Voltage | AC220-240V | |
| Input Voltage | AC198-264V | |
| Light Source | SMD | |
| SDCM | <6 | |
| CCT(K) | 2700K-6500K | |
| CCT Selection DIP Switch | Signal Control | |
| Luminous Flux (lm) ±5% CRI80 | 1890-2160 | 3260-3790 |
| CRI | 80 | |
| Beam Angle(°) | 130° | |
| LED Driver | Built-in, Flicker Free | |
| Dimming Option | CASAMBI Bluetooth | |
| Sensor | NO | |
| Electrical Class | Class II | |
| Ingress Protection(IP Rating) | IP54 | |
| Impact Resistance(IK Rating) | IK08 | |
| Product Finishing | White RAL9016 | |
| Optics Material | PC | |
| Housing Material | PC | |
| Lifetime(hr) | 50,000h | |
| Glow wire test(°C) | 750°C | |
| Operating Temp(°C) | -20°C~45°C | |
| Storage Temp(°C) | -20°C~60°C | |
| Installation | Surface mount / Wall mount | |
