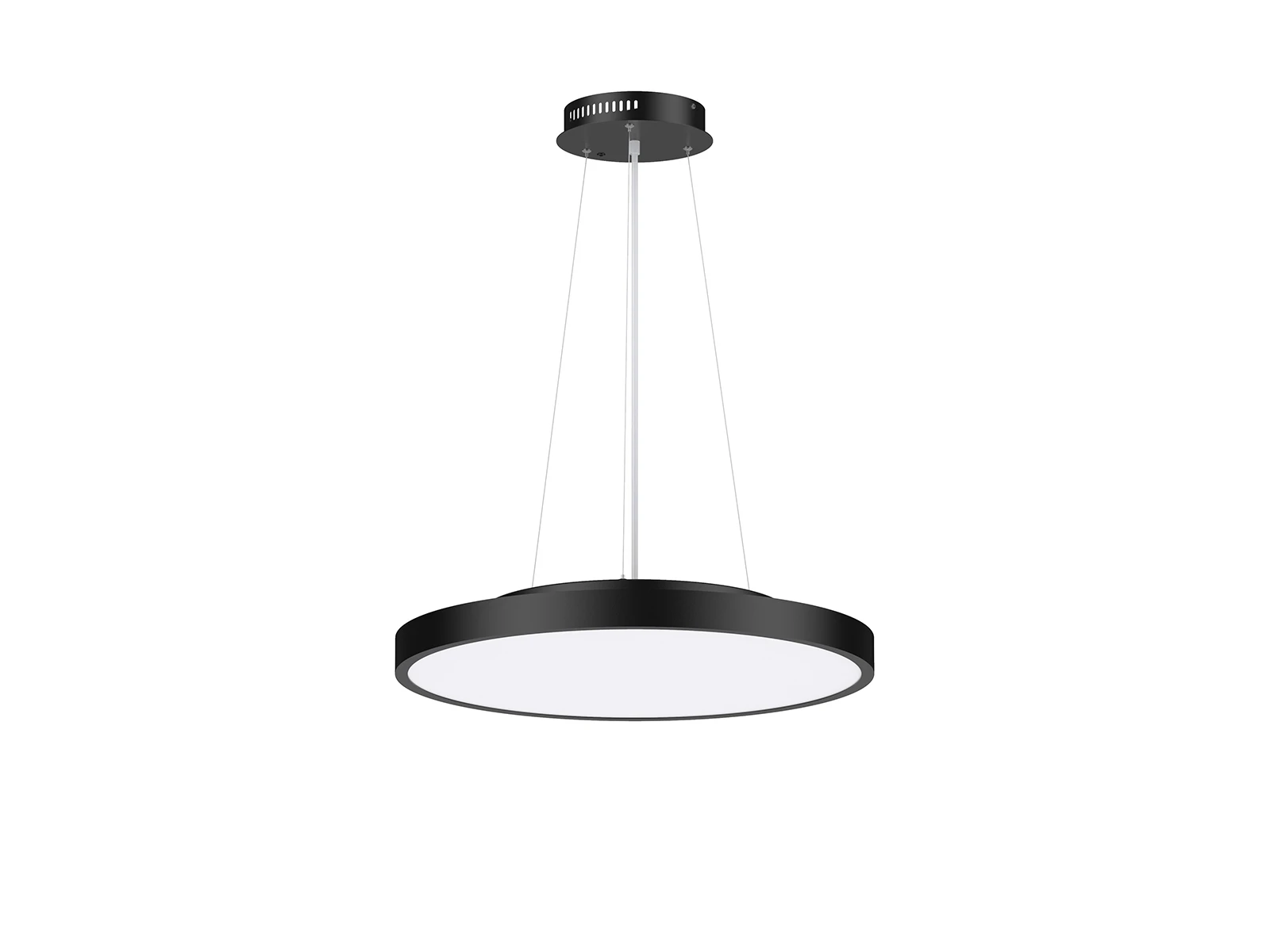

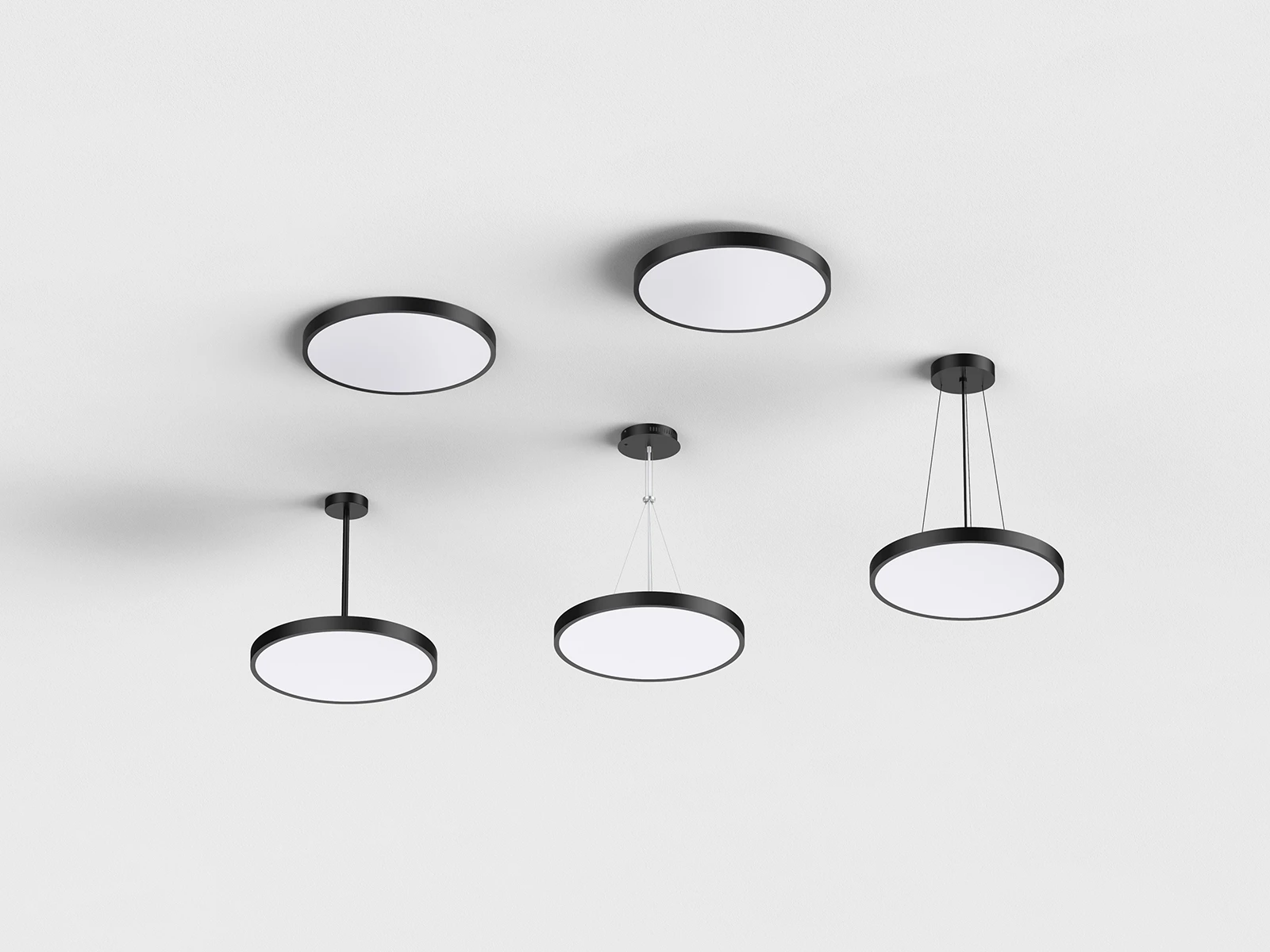

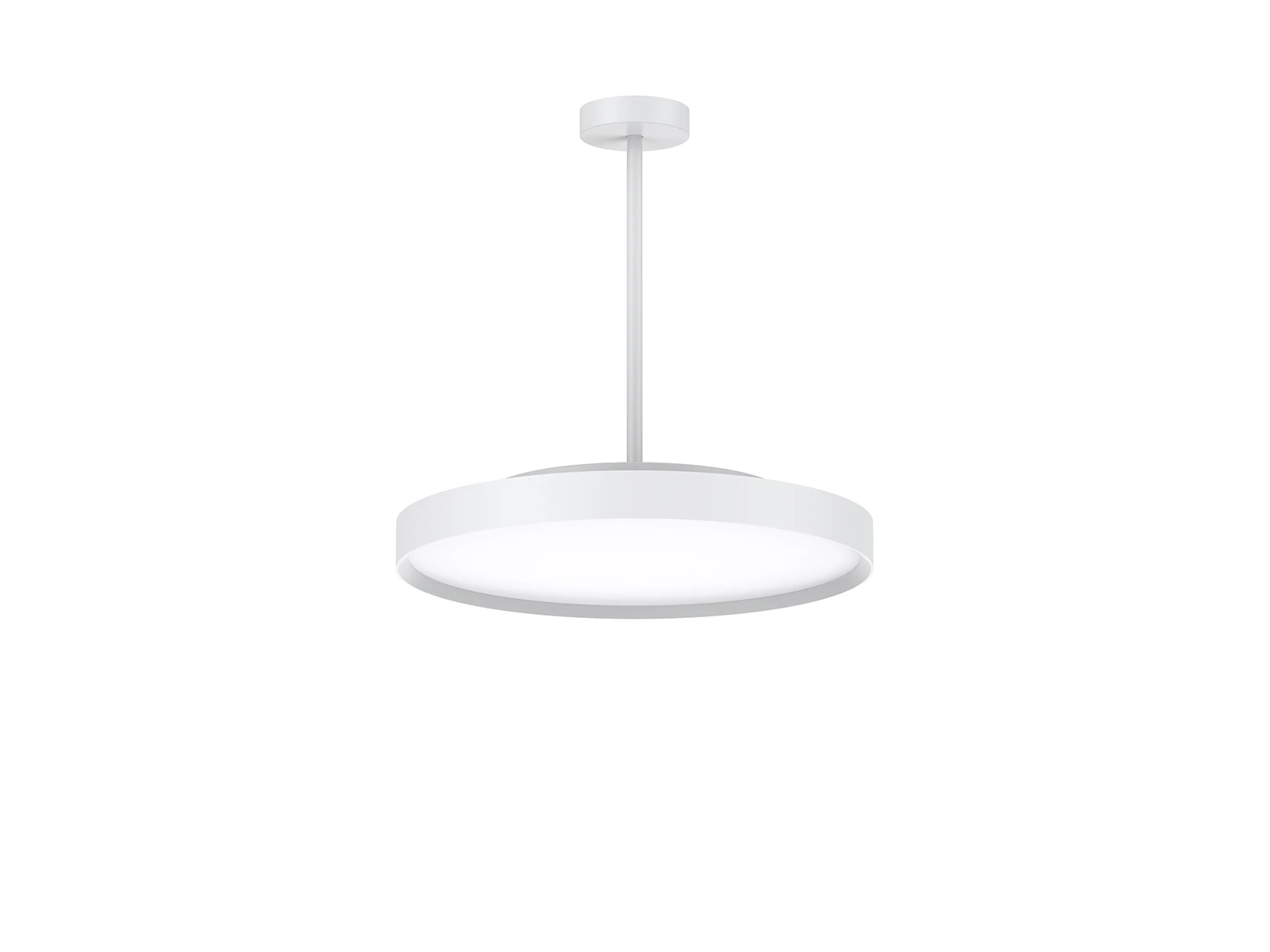

The AL199 series is a screwless design ceiling light, with a clean, simple, and textured appearance that offers a minimalist, stylish, and premium experience. It features high light efficiency, flicker-free design, a large and uniform emitting surface, providing a comfortable and soft lighting experience. There are two lighting modes: up and down lighting, and down lighting. Users can freely choose to turn on or off the uplight, creating a unique and exquisite lighting atmosphere. With multiple installation options such as ceiling-mounted, recessed and various pendant installation ways available, it meets the needs of different scenarios, offering users an ultimate lighting experience.
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc.
| Code | AL199-12-25W-A4 AL199B-12-25W-A4 | AL199-16-40W-A4 AL199B-16-40W-A4 | AL199-24-60W-A4 AL199B-24-60W-A4 | AL199-32-75W-A4 AL199B-32-75W-A4 | AL199-40-100W-A4 AL199B-40-100W-A4 | ||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø300*86mm(AL199) | Ø400*86mm(AL199) | Ø600*86mm(AL199) | Ø800*86mm(AL199) | Ø1000*86mm(AL199) | ||
| Ø300*99mm(AL199B) | Ø400*99mm(AL199B) | Ø600*99mm(AL199B) | Ø800*99mm(AL199B) | Ø1000*99mm(AL199B) | |||
| Cutout(mm) | Ø215-225 | Ø270-285 | Ø385-400 | ||||
| Watt(W) | 25W Max. | 40W Max. | 60W Max. | 75W Max. | 100W Max. | ||
| (21W/19W/15W optional) | (33W/28W/23W optional) | (53W/48W/42W optional) | (64W/53W/42W optional) | (82W/62W/42W optional) | |||
| Rated Input Voltage | AC220-240V | ||||||
| Input Voltage | AC198-264V | ||||||
| LED Module Input | - | ||||||
| Light Source | SMD2835 | ||||||
| SDCM | <6 | ||||||
| CCT(K) | 1-CCT: 3000K/4000K || 2-CCT: 3000K + 4000K | ||||||
| CCT Selection DIP Switch | - | ||||||
| 25W: 2430-2600 | 40W: 4450-4800 | 60W: 7400-7900 | 75W: 9930-10500 | 100W: 11600-12600 | |||
| 1-CCT | Non-DIM | 21W: 2050-2190 | 33W: 3720-4040 | 53W: 6900-7570 | 64W: 8590-9330 | 82W: 10500-11000 | |
| Luminous Flux (lm) ±5% | 19W: 1860-1990 | 28W: 3210-3490 | 48W: 6350-6350 | 53W: 7220-7840 | 62W: 8000-8600 | ||
| CRI80 | 15W: 1400-1580 | 23W: 2680-2900 | 42W: 5500-5800 | 42W: 5900-6200 | 42W: 5400-6000 | ||
| Standard diffuser | DALI | 2300-2500 | 4440-4800 | 7400-7900 | 9800-10200 | 11300-11800 | |
| 25W: 2430-2600 | 40W: 4450-4800 | 60W: 7400-7900 | 75W: 9930-10500 | 100W: 11600-12600 | |||
| 2-CCT | Non-DIM | 21W: 2050-2190 | 33W: 3720-4040 | 53W: 6900-7570 | 64W: 8590-9330 | 82W: 10500-11000 | |
| 19W: 1860-1990 | 28W: 3210-3490 | 48W: 5900-6350 | 53W: 7220-7840 | 62W: 8000-8600 | |||
| 15W: 1400-1580 | 23W: 2680-2900 | 42W: 5500-5800 | 42W: 5900-6200 | 42W: 5400-6000 | |||
| DALI | 2300-2500 | 4440-4800 | 7400-7900 | 9800-10200 | 12100-12500 | ||
| 25W: 2610-2880 | 40W: 4520-5000 | 60W: 7270-7800 | 75W: 9660-10200 | 100W: 12300-13300 | |||
| 1-CCT | Non-DIM | 21W: 2240-2480 | 33W: 3930-4340 | 53W: 6650-7300 | 64W: 8440-9000 | 82W: 10300-11300 | |
| Luminous Flux (lm) ±5% | 19W: 2010-2240 | 30W: 3380-3770 | 48W: 5710-6100 | 53W: 7110-7600 | 62W: 8000-8600 | ||
| CRI80 | 15W: 1550-1760 | 23W: 2840-3360 | 42W: 5200-5600 | 42W: 5600-6000 | 42W: 5630-6000 | ||
| Prismatic diffuser | DALI | 2610-2880 | 4520-5000 | 7100-7610 | 8780-9280 | 11500-12600 | |
| 25W: 2610-2880 | 40W: 4520-5000 | 60W: 7270-7800 | 75W: 9660-10200 | 100W: 12300-13300 | |||
| 2-CCT | Non-DIM | 21W: 2240-2480 | 33W: 3930-4340 | 53W: 6650-7300 | 64W: 8440-9000 | 82W: 10300-11300 | |
| 19W: 2010-2240 | 30W: 3380-3770 | 48W: 5710-6100 | 53W: 7110-7600 | 62W: 8000-8600 | |||
| 15W: 1550-1760 | 23W: 2840-3360 | 42W: 5200-5600 | 42W: 5600-6000 | 42W: 5630-6000 | |||
| DALI | 2610-2880 | 4520-5000 | 7100-7610 | 8780-9280 | 11500-12600 | ||
| CRI | CRI80 | ||||||
| Beam Angle(°) | 120° | ||||||
| UGR | - | ||||||
| LED Driver | Driver built-in | ||||||
| Dimming Option | DALI | ||||||
| Sensor | Yes | ||||||
| Emergency Kits | Yes | ||||||
| Electrical Class | Class I | ||||||
| Ingress Protection(IP Rating) | IP40 | ||||||
| Impact Resistance(IK Rating) | IK03 | ||||||
| Product Finishing | White RAL 9016 / Black RAL 9005 | ||||||
| Optics Material | PS | ||||||
| Housing Material | Aluminium | ||||||
| Lifetime(hr) | 50,000h | ||||||
| Glow wire test(°C) | 650°C | ||||||
| Operating Temp.(°C) | -20°C~45°C | ||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||
| Installation | Surface mount / Pendant / Recessed | ||||||
