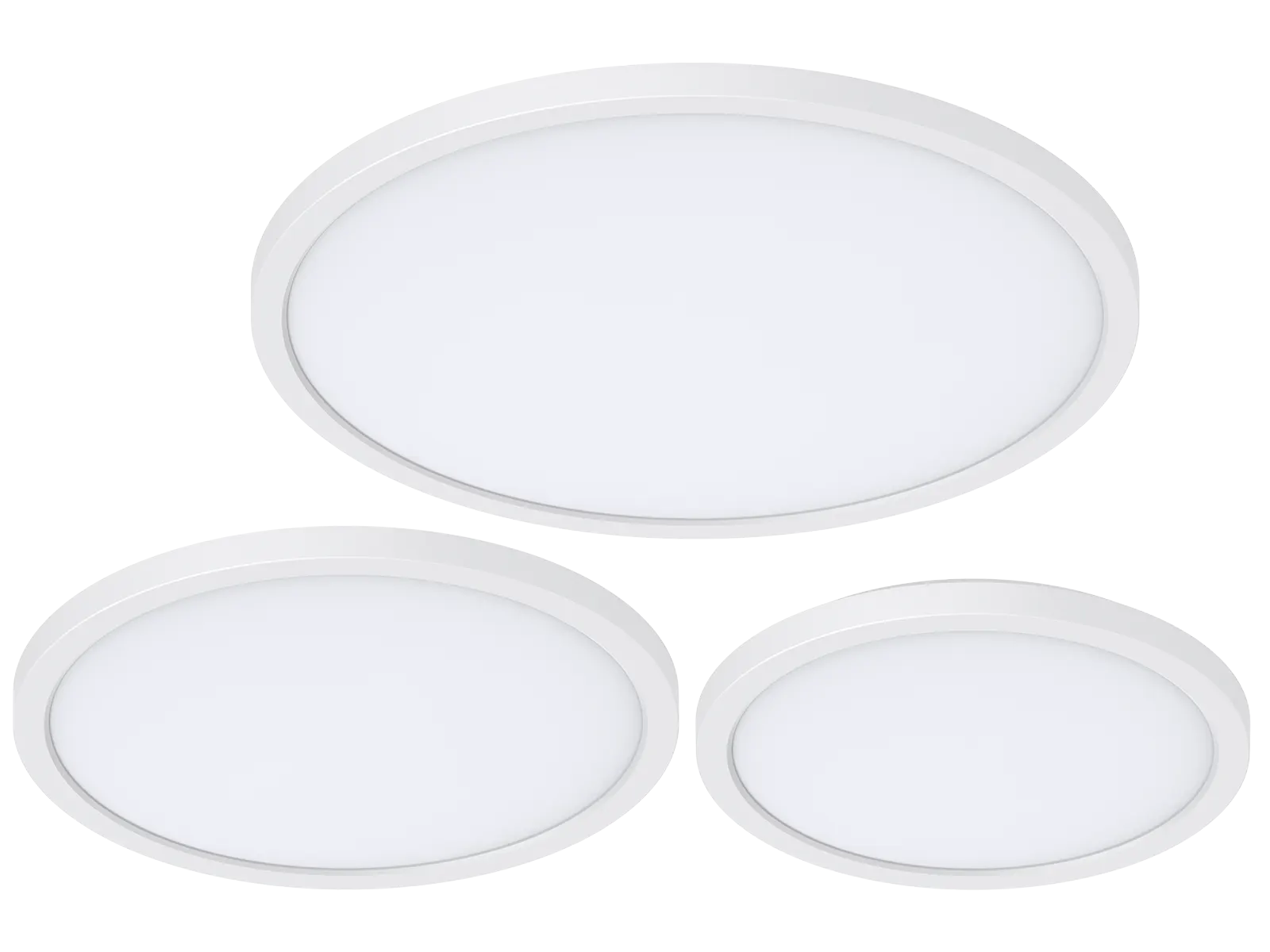

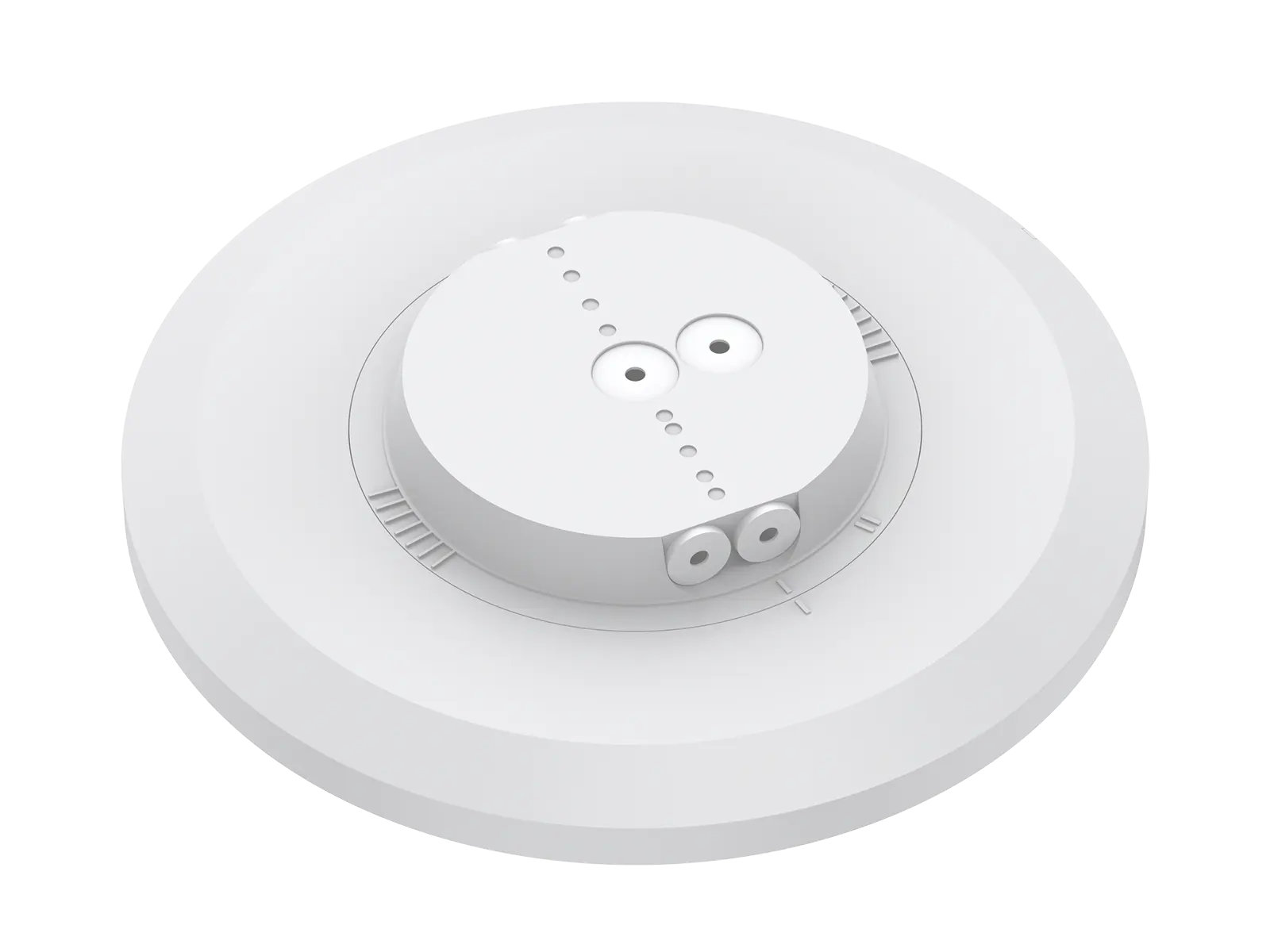

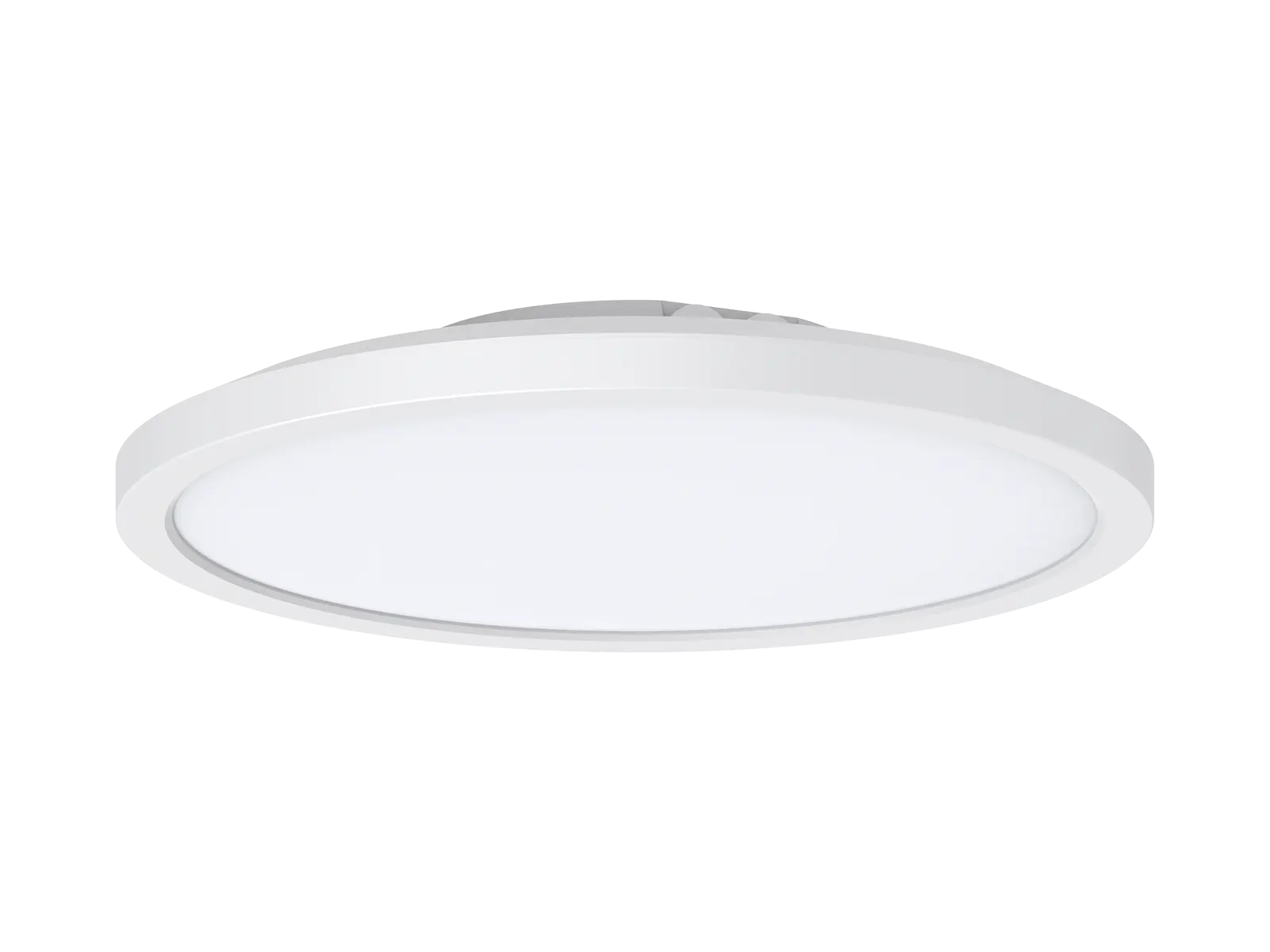

This is a side light ceiling lamp with super slim and minimalist design; it is a faultless combination and deduction of smooth lines, making itself impregnated with ceiling perfectly. Elegant design with soft and even light output realizes a perfect blend of craft and art. High quality PC lamp body promises a higher production efficiency and more stable product quality without any subsequent process. Slim and light lamp body also in PC, it is a good way to minimize the cost of transportation for customer. Easy installation, it is twist mounting after fixing the holder on the ceiling, avoid extra nail screw work, safe and convenient.
Applications: It is designed for indoor applications such as living room, bedroom, corridor, stairways etc.
| CODE | AL180-10-12W | AL180-12-18W | AL180-16-25W | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø250*49 | Ø300*49 | Ø400*49 | ||
| Watt(W) | 12W | 18W | 25W | ||
| Input Voltage | AC220-240V | ||||
| Light Source | SMD2835 | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | 1180-1230 | 1820-1970 | 2530-2700 |
| CRI80 | DIM | 1110-1150 | 1920-2150 | 2720-2830 | |
| 3-CCT | Non-DIM | 1180-1260 | 1820-1990 | 2530-2780 | |
| DIM | 1110-1180 | 1920-2180 | 2720-2880 | ||
| Beam Angle(°) | 110° | ||||
| Dimming Option | Triac | ||||
| Sensor | - | Microwave sensor | - | ||
| Emergency | NO | ||||
| Product weight(Kg) | N.W/PC | 0.73 | 1.04 | 1.55 | |
| G.W/PC | 0.92 | 1.27 | 1.93 | ||
| Package weight(Kg) | N.W/CTN | 8.76 | 6.24 | 9.3 | |
| G.W/CTN | 12.08 | 8.41 | 12.69 | ||
| Qty/CTN (PCS) | 12 | 6 | 6 | ||
| Carton Size(cm) | 62.5*41*32.5 | 41*36.5*37.5 | 48.5*41*49.5 | ||
| 20GP(pcs) | 4284 | 3096 | 1560 | ||
| 40HQ(pcs) | 9792 | 6264 | 3810 | ||
